AXGM-05
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 1/22/20 INSTAXGM-05
Product Info
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties • Multimeter • Small flat-blade screwdriver
TABLE OF CONTENTS
Connections ............................................................2
Installation .............................................................3
Programming .........................................................3
Adjustments ...........................................................3
GM Dock n’ Lock Data Interface
2000-2005
APPLICATIONS
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains chimes to the factory speaker
• Adjustable chime level
• Retains OnStar / OE Bluetooth
• Adjustable OnStar level
•
Designed for non-amplified models, or when bypassing a factory amp *
• Retains balance and fade
• AXUSB-CBL updatable (sold separately)
Buick
LeSabre 2000-2005
Oldsmobile
Aurora 2001-2003
Pontiac
Bonneville 2000-2005

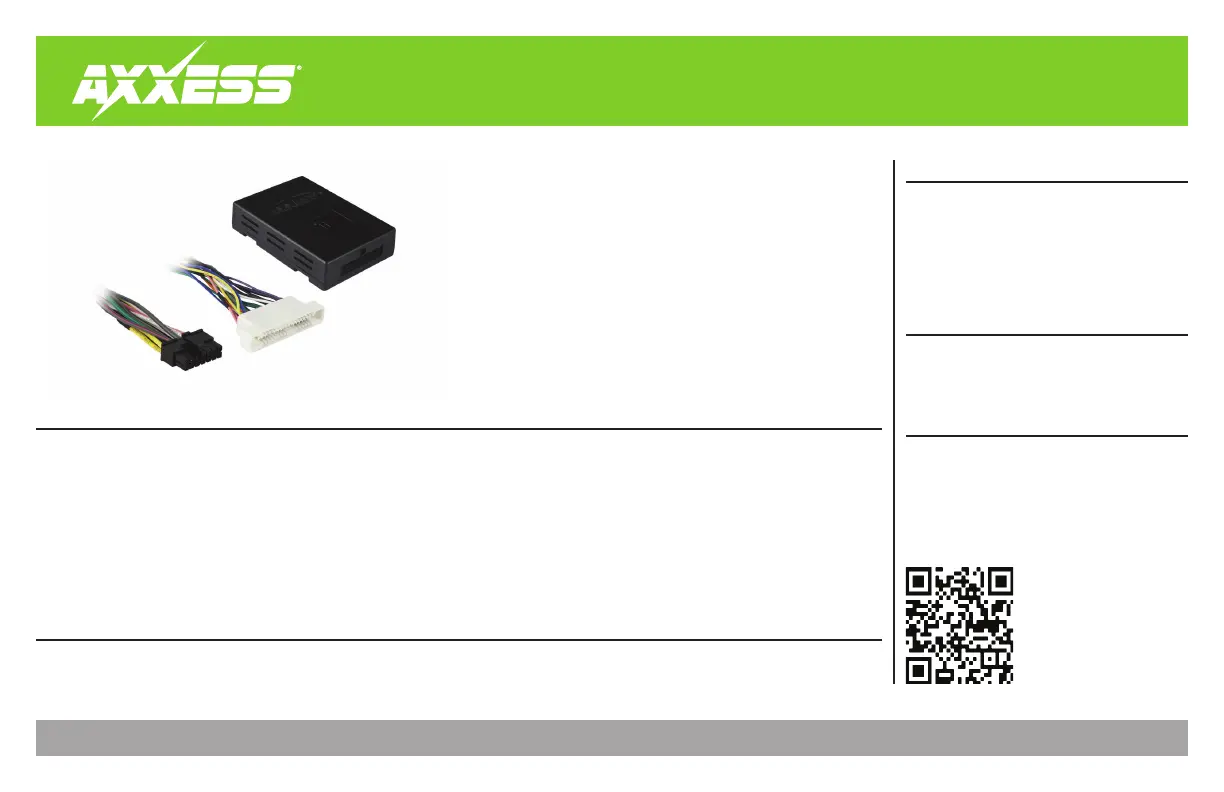

• AXGM-05 interface • AXGM-05 harness
• 16-pin harness with stripped leads
* If the vehicle is amplified, either use the AXGM-09 interface, or bypass the amplifier. If bypassing the
amplifier, follow the “Axxess Interface Amp Bypass Schematic” online.
2
CONNECTIONS
From the 16-pin harness with stripped leads to the aftermarket radio:
• Connect the Red wire to the accessory wire.
• If the aftermarket radio has an illumination wire, connect the Orange/White wire to it.
• If the aftermarket radio has a mute wire, connect the Brown wire to it. If the mute wire is
not connected, the radio will turn off when OnStar is activated.
• Connect the Gray wire to the right front positive speaker output.
• Connect the Gray/Black wire to the right front negative speaker output.
• Connect the White wire to the left front positive speaker output.
• Connect the White/Black wire to the left front negative speaker output.
The following (3) wires are only for multimedia/navigation radios that require these wires.
• Connect the Blue/Pink wire to the VSS/speed sense wire.
• Connect the Green/Purple wire to the reverse wire.
• Connect the Light Green wire to the parking brake wire.
From the AXGM-05 harness to the aftermarket radio:
• Connect the Black wire to the ground wire.
• Connect the Yellow wire to the battery wire.
• Connect the Blue wire to the power antenna wire.
• Connect the Green wire to the left rear positive speaker output.
• Connect the Green/Black wire to the left rear negative speaker output.
• Connect the Purple wire to the right rear positive speaker output.
• Connect the Purple/Black wire to the right rear negative speaker output.
• The Black/Yellow wire is used for OnStar level adjustment for models that do not come
equipped with steering wheel controls. See the OnStar level Adjustment section for further
instructions.
• Tape off and disregard the following (3) wires, they will not be used in this application:
Orange , Blue/White (qty. 2)
