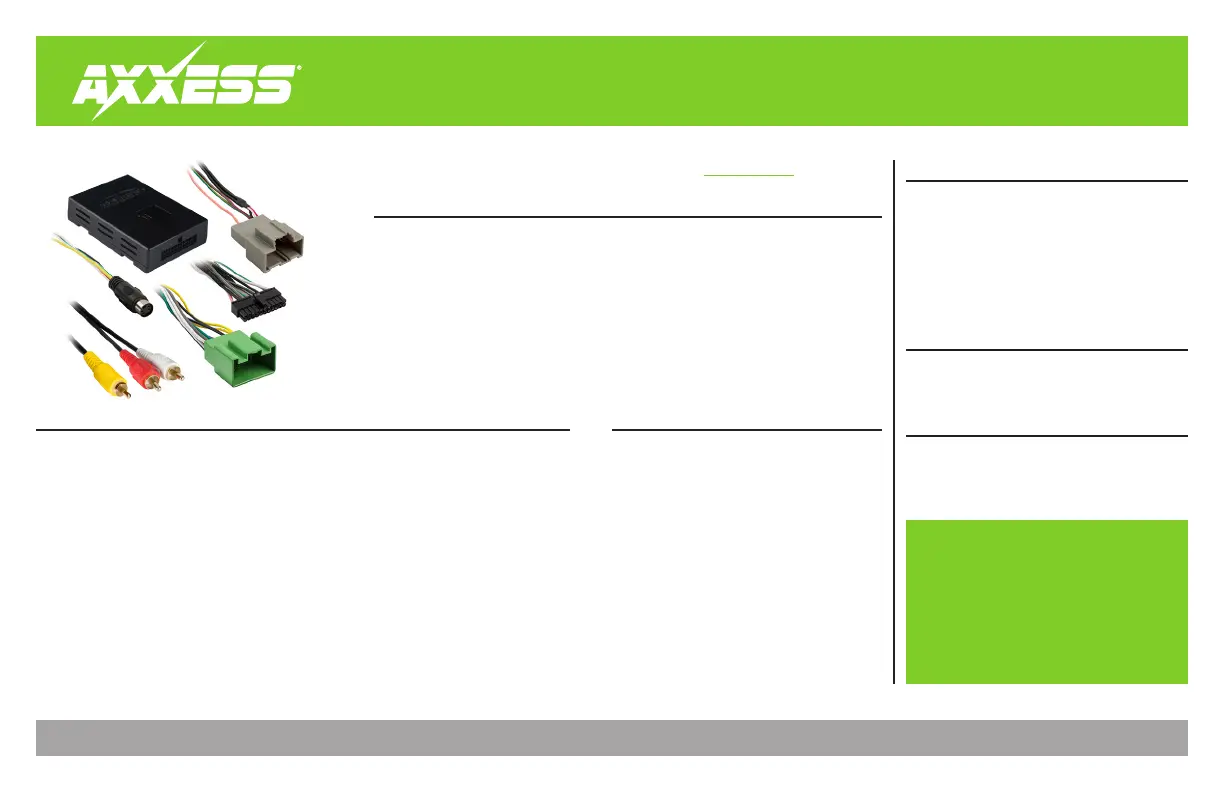

Sida 1/4
AXGMLN-09
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 4/22/24 INSTAXGMLN-09
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
CHEVROLET
Colorado (1) ..................................2015-2018
Corvette* ...................................... 2014-2019
Equinox (1) .............................................2018
Impala* ......................................... 2014-2018
Malibu (2) ..................................... 2016-2018
Silverado (3) .................................2015-2018
Silverado 1500 (3) ....................... 2014-2018
Silverado 2500/3500 (3) ............. 2015-2019
Silverado LD (1) .....................................2019
Suburban ......................................2015-2020
Tahoe ............................................2015-2020
GMC
Canyon (1) .....................................2015-2018
Sierra (3) .......................................2015-2018
Sierra 1500 (3) ............................. 2014-2018
Sierra 2500/3500 (3) ................... 2015-2019
Sierra Limited (1) ...................................2019
Yukon / Yukon XL .........................2015-2020
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties • Small flat-blade screwdriver
OPTIONAL ACCESSORIES (sold separately)
Extension Harness: AXEXH-GM09
Steering Wheel Control Interface: AXSWC
BOSE Retention interface: AXM50-GM1
TABLE OF CONTENTS
Connections
............................................................2
AXSWC Connections ...............................................3
Installation .............................................................3
Programming .........................................................3
Adjustments ........................................................... 4
Troubleshooting.....................................................4
APPLICATIONS
(1) With RPO code I05 or I06 (2) With RPO code I03,
I05, or I06 (3) With Base model radio, RPO code IP1
The IOA/IOB code, if applicable, can be found in the
Service Parts Identification label.
Locations: Malibu: Rear Compartment Floor
Canyon/Colorado/Cruze/Equinox/Silverado/
Sierra: Glovebox
INTERFACE FEATURES
GM Data Interface 2014-2020
Visit AxxessInterfaces.com for more detailed
information about the product and up-to-date
vehicle specific applications
INTERFACE COMPONENTS
• AXGMLN-09 interface • AXGMLN-09 harness
• 16-pin harness with stripped leads
•
Designed for non-amplified models
•
Provides accessory power (12-volt 10-amp)
•
Retains R.A.P. (retained accessory power)
• Provides NAV outputs
(parking brake, reverse, speed sense)
• Retains OnStar
®
/OE Bluetooth
• Retains all warning chimes
•
Adjustable volume for chimes and OnStar
®
• Retains the AUX-IN jack
• Prewired AXSWC harness
(AXSWC sold separately)
• Retains balance and fade
• Micro-B USB updatable
*Must use with AXM50-GM1
2

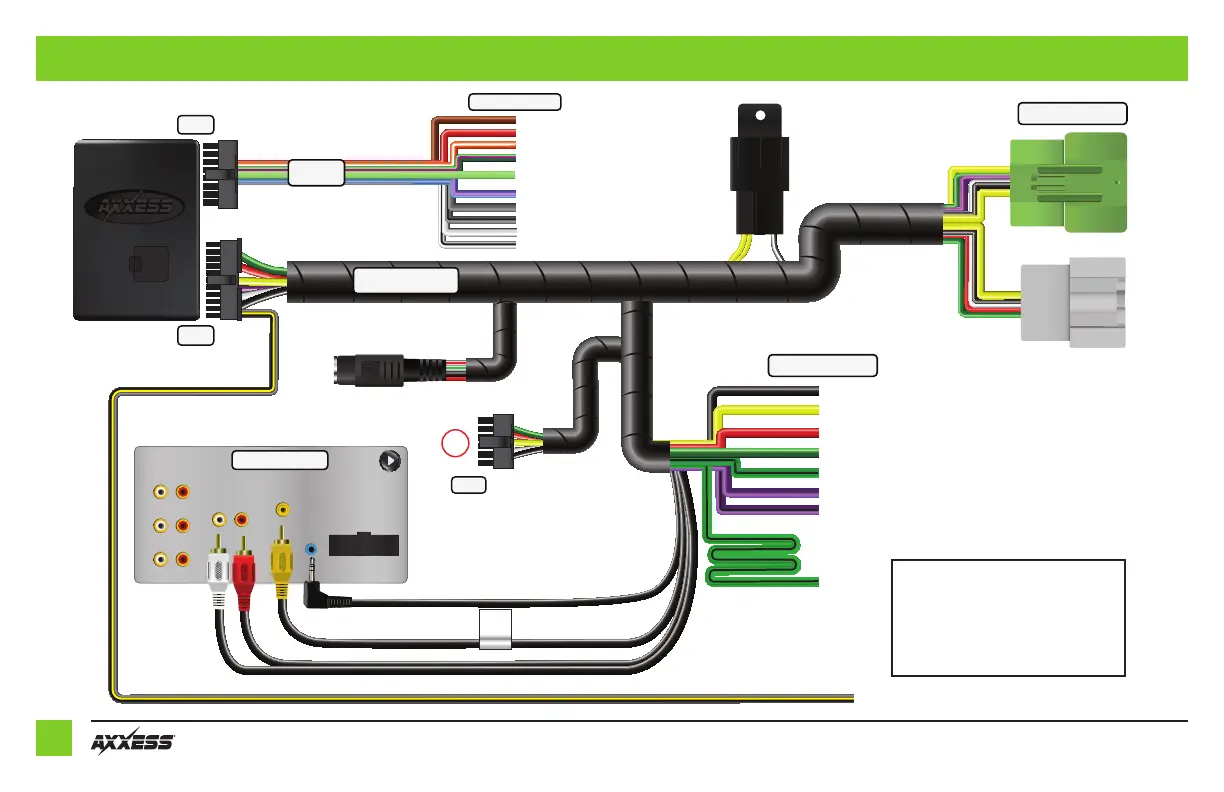

CONNECTIONS
White/Black - Front Left Speaker -
Red - Accessory
Orange/White - Illumination
Green/Purple - Reverse backup camera
Light Green - E-Brake
Blue/Pink - VSS
Gray - Front Right Speaker +
Gray/Black - Front Right Speaker -
White - Front Left Speaker +
Brown - Mute
16-Pin
22-Pin
12-Pin
Front
Rear
Sub
AUX-IN
Rear View
SWC
Aftermarket Radio
(Your radio’s features may vary)
Radio Connections
Black - Ground wire
Yellow - Battery wire
Red - Accessory for AXWC
Green - Rear left speaker + output
Green/Black - Rear left - speaker output
Purple - Rear right + speaker output
Purple/Black - Rear right - output
Vehicle Connectors
LD-GMOS-LAN-09
LD-2NAV
Radio Connections
BACKUP
CAM
Black/Yellow - OnStar
®
Level Adjustment
NOT USED
Green/Black
to AXSWC sold
separately
A
*
*
*Refer to AXSWC connection page
* *
**Note: Only connect this jack if the RPO code
I03 is present in the“Service Parts Identification”
sticker located inside the glove box. If this code is
not present, use the AXBUCH-GM3 harness (sold
separately) to retain the factory backup camera.
