AXTC-BM1
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 3/8/23 INSTAXTC-BM1
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Connections ............................................................2
Programming .........................................................3
Troubleshooting .....................................................4
BMW / Mini SWC (Steering Wheel Control)
and Data Interface 2006-2012
APPLICATIONS
• Provides accessory power (10-amp)
•
Provides illumination, parking brake,
reverse, and speed sense outputs
• Retains warning chimes through
an onboard speaker
• Retains audio controls on the
steering wheel
• Designed to be compatible with all
major radio brands
• Auto detects vehicle type, radio
connection, and preset controls
• Ability to dual assign steering
wheel control buttons
• Retains memory settings even
after battery disconnection or
interface removal (non volatile
memory)
• Designed for non-amplified
models, or when bypassing a
factory amplifier
• Retains balance and fade
• Micro-B USB updatable
BMW
1 Series .....................2008-2013
3 Series (1) ...............2012-2013
3 Series......................2007-2011
3 Series (2) .......................2006
M3 ..............................2007-2013
Mini (Cooper)
Clubman (R55) ........2008-2014
Convertible (R57) ....2009-2015
Countryman (3) ....... 2011-2016
Coupe (R58) ..............2012-2015
Hatchback (R56) ......2007-2013
Paceman (3) ............ 2011-2016
Roadster (R59) .........2012-2015
• AXTC-BM1 interface
• AXTC-BM1 harness
• 3.5mm adapter
(1) Excluding sedan models (2) Sedan and Wagon only (3) Without factory NAV
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
NOTE: Refer to the instructions included with
the aftermarket radio.
2

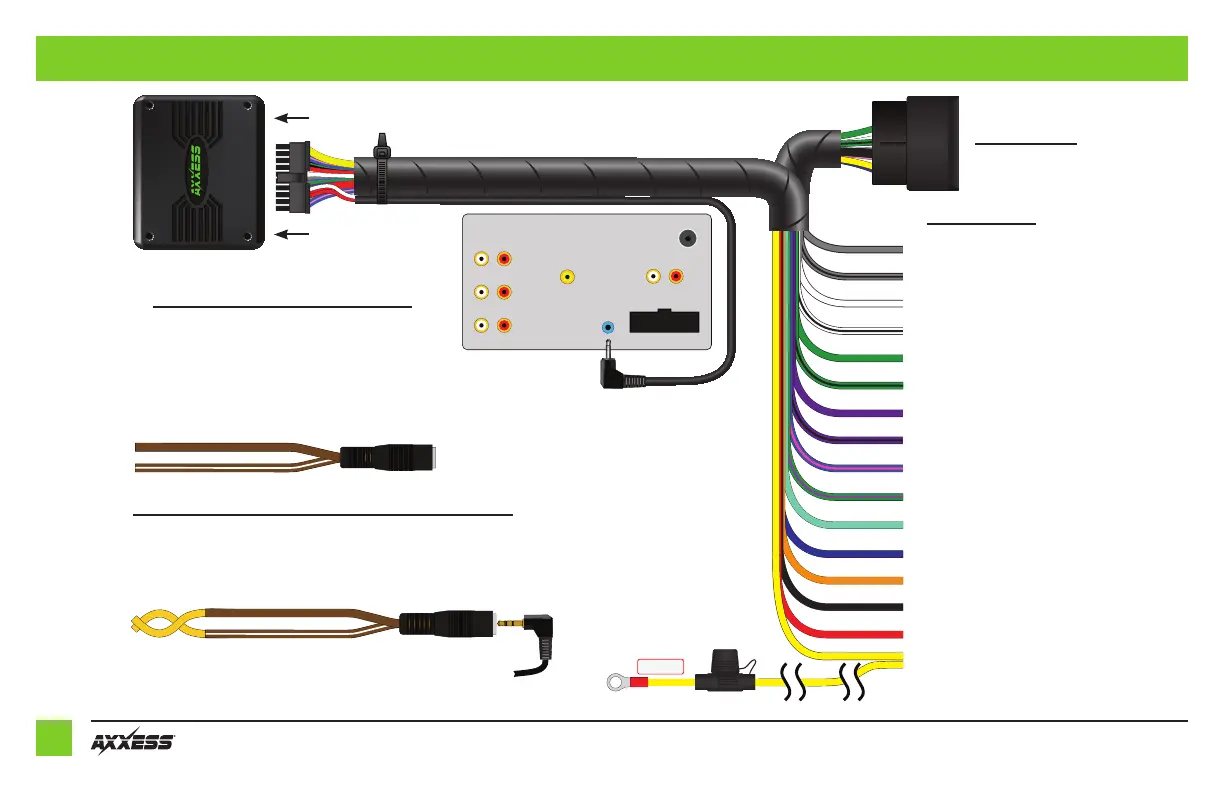

CONNECTIONS
Front
Rear
Sub
AUX-IN
Rear View
SWC
To Battery
3.5mm Adapter (for vehicles without Steering wheel
controls or aftermarket radios with a wire for SWC)
Boss (with SWC wire): Key 1 (Gray) - Brown
Kenwood / JVC (with SWC wire): Blue/Yellow - Brown
XITE: SWC-2 - Brown
Key-A or SWC-1 - Brown
Key-B or SWC-2 - Brown/White
* After programming, assign SWC buttons within radio menu
Universal
Radio*
{
3.5mm Adapter for Vehicles without Steering wheel controls
1) From the 3.5mm adapter, tie the Brown and Brown/White wires together
with tape or connector
2) Connect the 3.5mm adapter to the 3.5mm jack from the AXTC-BM1 Harness
3) Program the AXTC-BM1 per the instructions on page 3. Disregard steps 4 & 5
Gray - Front right speaker +
Gray/Black - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Green - Rear left speaker +
Green/Black - Rear left speaker -
Purple - Rear right speaker +
Purple/Black - Rear right speaker -
Blue/Pink - VSS/Speed-Sense
Green/Purple - Reverse signal
Light Green - Parking brake
Blue - Not used
Orange - Illumination
Black - Ground
Red - Accessory power
Yellow - Battery power
Aftermarket Radio
(radio’s features may vary)
Vehicle Connector
Reset Button
LED
Radio Connections
