ABCD

H

G

F

IMPORTANT:

- Before installing ensure the BB shell

①

is clean and free of

metal chips, dirt and excess paint.

- Inspect the BB shell

①

for width, inner diameter, ovalization or

anything that could cause bearing mis-alignment.

- Always use a calibrated torque wrench to tighten crank bolts.

- BBB Cycling cannot guarantee compatibility with you frame

and/or crank combination.

consult your manufacturer for compatibility.

- BBB Cycling cannot be held responsible for any damage

occured during assembly

.

BBB has no responsibility for misprints or changed technical content.

ENDEFRNLESPT MANUAL / HANDBUCH / MANUEL / HANDLEIDING / MANUAL / MANUAL /

ITHUPLCZ MANUALE / HASZNÁLATI UTASÍTÁS / PODRĘCZNIK / UŽIVATELSKÁ PŘÍRUČKA

/ MANUÁL / JP使用説明書/RUРУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ / SKNOHÅNDBOK

BBB CYCLING.COM

ROO SEVELTSTRAAT 46, 2321 BM

LEIDEN. THE NETHERLANDS

BOTTOMTHREAD

/BBO-38

BOTTOM BRACKET

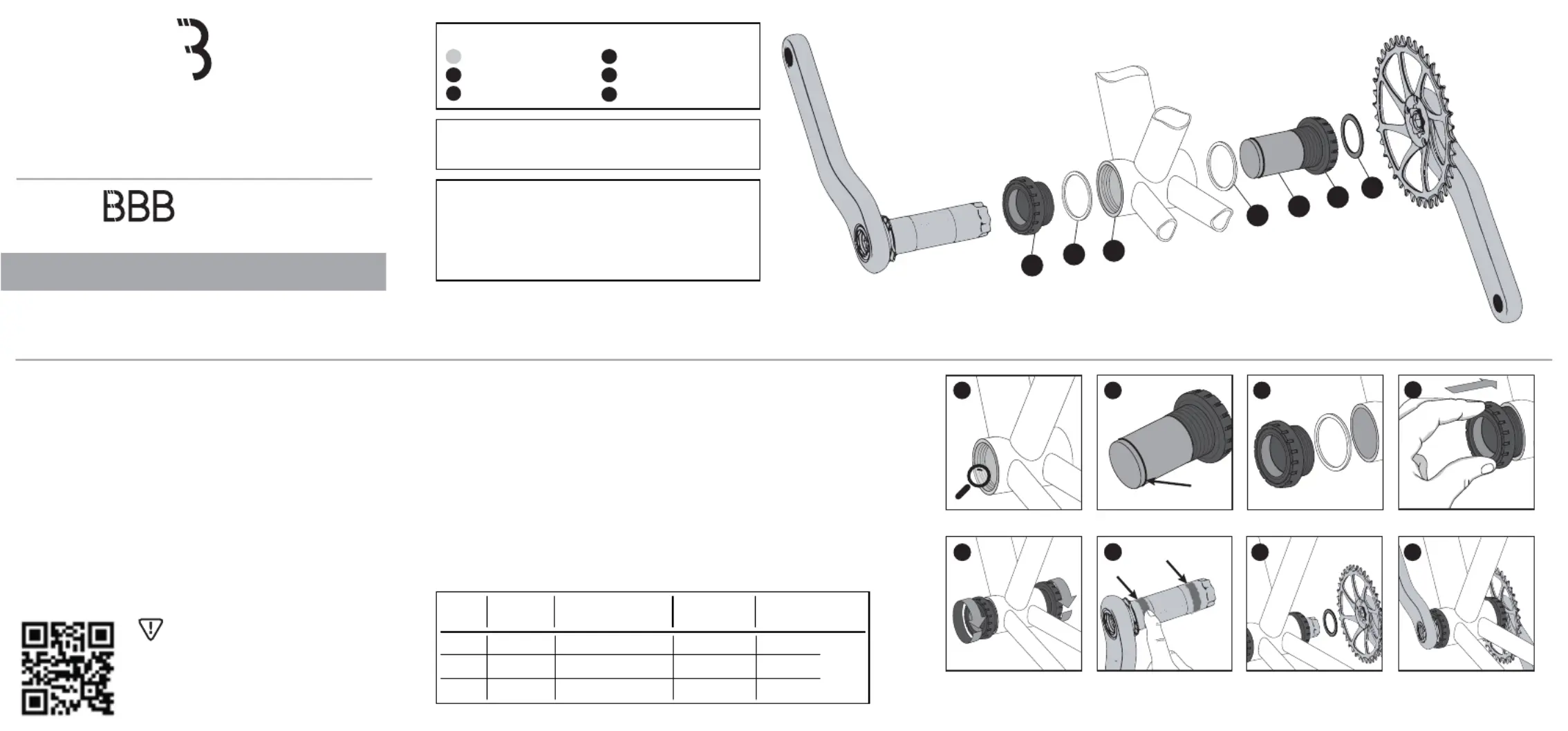

INSTALLATION:

A. Ensure sure the BB shell

①

is clean and free of metal chips, dirt and excess paint.

B. Apply a little bit of grease on the edges of the plastic sleeve

②

Do not use PTFE, anti-seize or thread locking compound.

C. Add spacers

⑤

as noted below.

D. First insert the drive side cup

③

then insert non-drive side cup

④,

until the threads

engage. Make sure you do not cross-threads the cups and that the plastic sleeve

②

is

properly seated.

E. Use the BracketPlug cup tool to tighten until the lip of the cups are flush against

the BB shell

①

(Max. 40Nm).

F. Apply grease to the surfaces of the spindle that will contact the bearings.

G. Add spacers

⑥

as noted below. If binding occurs or the crankset gets loose over time,

try removing spacers.

H. Install crankset following manufacturers specifications.

- BTL-105D BracketPlug

(12 notch 46mm cup tool)

- Caliper or ruler

- Grease

RECOMMENDED TOOLS

COMPONENTS:

3

2

1

Bottom bracket shell

Plastic sleeve (x1)

Drive side cup (x1)

5

6

4

Non-drive side cup (x1)

Thread Spacers (2.5 x2)

Spindle spacers (2, 2.5, 3)

COMPATIBILITY

BSA 68/73mm + Ø29mm spindle cranksets

CRANKBB SHELL

WIDTH

NONDRIVE SIDE -

SPACER

DRIVE SIDE

SPACER

Road680 mm0 mm

MTB682.5 mm2.5 mm

MTB7300 mm

DRIVE SIDE

SPINDLE SPACER

3 mm

4.5 mm (2+2.5 mm)

4.5 mm (2+2.5 mm)

51

2

3

5

4

6

E

Max.

40Nm

WARNING

Sold only by professional bicycle dealers.

For proper installation, ask your BBB dealer.

Not following the instructions in this manual

may cause damage to the product not covered

under warranty, damage to the bicycle, or

cause an accident resulting in injury or death.

FIND YOUR TRANSLATION

ON BBBCYCLING.COM
