INSTALLATION

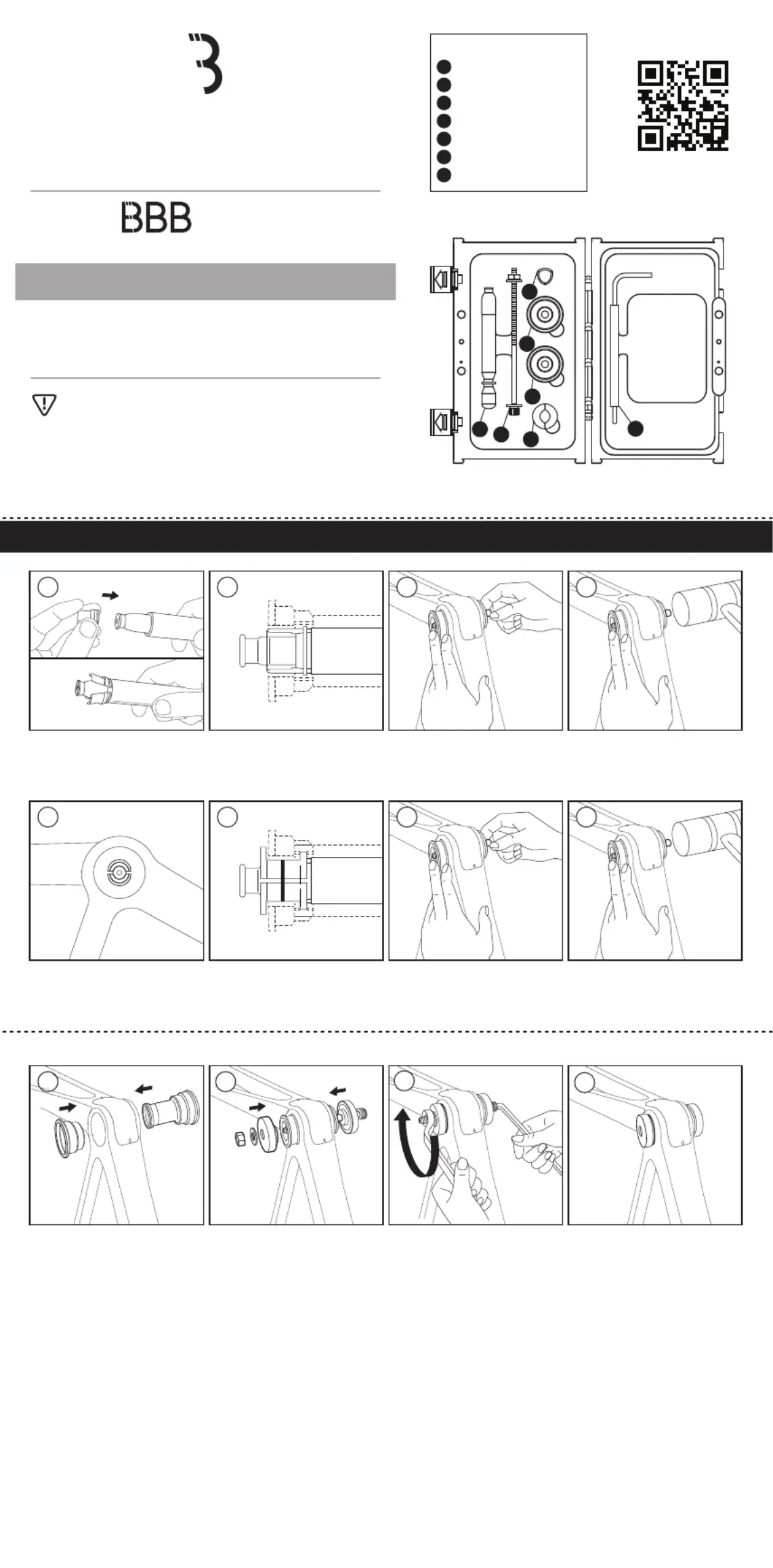

Insert the bottom bracket. Insert the installation pin and ⑥
bearing guides or . Be sure to ③ ④
use the correct bearing guide
diameter.
Use a wrench and the BTL-13
Hexagon 8mm hex key to press ①
fit the bottom bracket. The
bottom bracket should stay
parallel to the frame.
Make sure there’s no space
between the frame and bottom
bracket.
ENGLISH
2
3
4
5
6
71
FIND YOUR TRANSLATION
ON BBBCYCLING.COM
EN DE FR NL ES PT MANUAL / HANDBUCH / MANUEL / HANDLEIDING / MANUAL / MANUAL /
IT HU PL CZ MANUALE / HASZNÁLATI UTASÍTÁS / / PODRĘCZNIK UŽIVATELSKÁ PŘÍRUČKA
/ MANUÁL / JP 使用説明書/RU РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ / SK NO HÅNDBOK
BBB CYCLING.COM
ROO SEVELTSTRAAT 46, 2321 BM
LEIDEN. THE NETHERLANDS
WARNING
Sold only by professional bicycle dealers.
For proper installation, ask your BBB dealer.
Not following the instructions in this manual may
cause damage to the product not covered under
warranty, damage to the bicycle, or cause an
accident resulting in injury or death.
BBB has no responsibility for misprints or changed technical content.
COMPONENTS:
BTL-13 Hexagon, 8mm
Collet, 24mm
Bearing guide A
Bearing guide B
Collet, 30mm
Installation pin
Extraction pin
5
6
2
3
4
1
7
ABC
BRACKETKIT
/BTL-95
TOOLBOX
D
Place the 24mm collet on the ②
narrowest side of the extraction
pin . ⑦
Push the extraction pin through⑦
the bottom bracket.
Use your fingers to prevent the
collet from coming out of the ②
bottom bracket. Make sure the
extraction pin and collet are ⑦
placed correctly.
Use a hammer to extract the
bottom bracket. You should
hammer the convex side of the
extraction pin .⑦
ABCD
EXTRACTION: 24MM SPINDLE
Place the 30mm collet on the ⑤
bearings inside the bottom
bracket.The complete flat side
should be on the outside.
Push the extraction pin through⑦
the bottom bracket and collet .⑤
Make sure the collet falls over ⑤
the bottom bracket and the
extraction pin is placed ⑦
correctly.
Use a hammer to extract the
bottom bracket. You should
hammer the convex side of the
extraction pin ⑦. Use your fingers
to prevent the collet from ⑤
coming out of the bottom bracket.
C
ABD
EXTRACTION: 30MM SPINDLE
