Sida 1/7

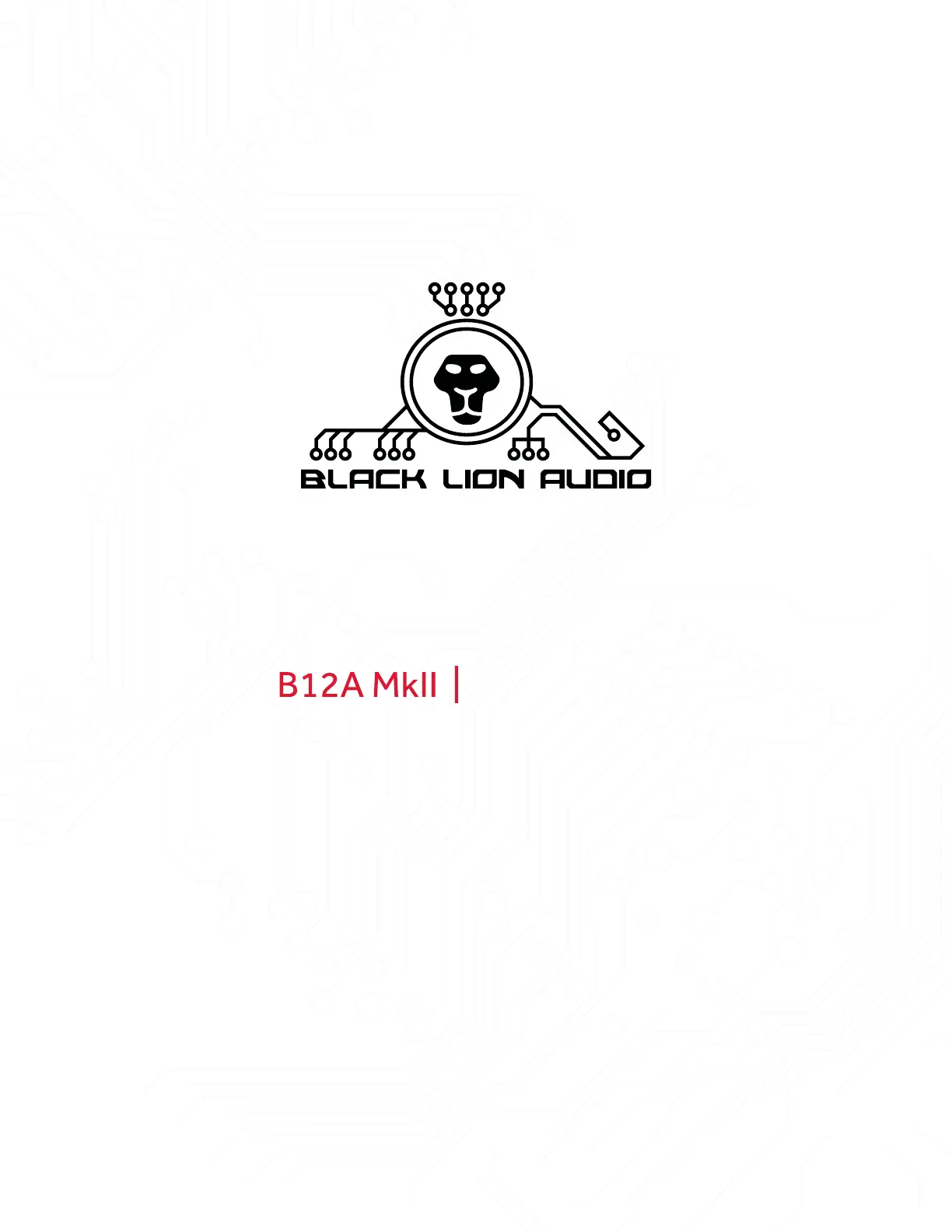

B12A MkII | User Manual
B12A MkII | User Manual 2
Introduction ..........................................................................................................3
Features .................................................................................................................3
Specications ........................................................................................................ 3
Package Contents .................................................................................................3
Front .......................................................................................................................4
Back .......................................................................................................................4
Connection Diagrams ...........................................................................................5
Signal Flow/Hardware Block Diagram ..................................................................5
Repair .....................................................................................................................6
Warranty ................................................................................................................6
Disclaimer ..............................................................................................................6
Copyright ...............................................................................................................7
TABLE OF CONTENTS
What happens when you take the stately B12A and add some extra special sauce? You get
the B12A MkII! With a titillating CineMag input transformer, less noise, and more API®-style
gain than ever before, the B12A MkII will sweeten your preamp collection for years to come!
INTRODUCTION
FEATURES
SPECIFICATIONS
• B12A MkII
• Power Supply (wall wart)
• ½ Rack Connector Plate
PACKAGE CONTENTS
Mic Section
• Max Microphone Input Level: +1dBu
• Input Impedance: 200Ω
• Pad: 18dB
• Gain (no pad): +26dB to +70dB
• Equivalent Input Noise (noise oor):
-120dBu
• THD+N (@ +4dBu output):
• .012% @ +22 dBu
• .013% @ +36 dBu
• .046% @ +56 dBu
• .145% @ +66 dBu
• Bandwidth (1kHz, 150Ω source,
unweighted): 10Hz to 30kHz
D.I. Section
• Max D.I. Input Level: +18dBu
• Input Impedance: 1.1MΩ
• Pad: none
• Gain: +10dB to +53dB
• Equivalent Input Noise (noise oor):
-102dB
• Cinemag Input Transformer
• Edcor Output Transformer
• 70dB Gain
• Hi-Z Input (passive, unbalanced)
• Phantom Power
• THD+N (@ +4dBu output):
• .013% @ +10 dBu
• .124% @ +36 dBu
• Bandwidth (1kHz, 600Ω unbalanced
source, unweighted): 10Hz to 30kHz
Output Section
• Max Output Level: +28dBu
• Output Impedance: 600Ω
Power Supply
• 24VAC, 500mA External Supply
Product Dimensions
• 9.5” x 6.5” x 1.75”
Product Weight
• 3.2 lbs
Shipping Dimensions
• 13” x 11” x 5”
Shipping Weight
• 5.5 lbs
• 18dB Pad
• Phase Switch
• XLR Microphone Input
• TRS Line Output (balanced)
B12A MkII | User Manual 3
