UEX3C-KIT QUICK REFERENCE GUIDE
Contact: support@blustream.com.au | support@blustream-us.com | support@blustream.co.uk
UEX3C-KIT
Quick Reference Guide
01
The UEX3C-KIT is a USB extender kit utilising HDBaseT™ technology to extend USB
3.2 Gen1 signals up to 100m over a single CAT6A cable.
The UEX3C-KIT allows up to 2 x USB devices to be connected to a single USB host
with support for a combined transmission data bandwidth of up to 5Gbps. The
UEX3C-KIT is backwards compatible with USB 2.0 and 1.1 devices, and provides
bi-directional Power over Cable (PoC)
The UEX3C-KIT is ideal for applications requiring extension of USB 3.2 Gen1
conferencing cameras, video capture devices, flash/hard drives, KVM devices,
audio devices and other USB 3.2 Gen1 devices
Introduction
FEATURES:
• Supports USB 3.2 signal extension up to 100m*
• Backwards compatible with USB 2.0 & USB 1.1 devices
• USB 3.2 Gen1 data transfer rate up to 5Gbps*
• 1 x USB-C port on the receiver for connection to Host equipment
• 1 x USB-C Host charging port for connection of external power supply to power Host equipment
• 1 x USB-A & 1x USB-C port on transmitter for connection to Devices
• Provides up to 2.5A combined power to USB devices (up to 1.7A per single USB port)
• Configurable USB device power management via API commands
• Bi-directional PoC (Power over Cable) to power extenders from either the Host or Device unit
• PoC function can be enabled/disabled via dipswitch
• Simple plug and play, no driver installation or setup required.
*Signal distribution bandwidth and length are subject to length of Device and Host USB cables and CAT cable type

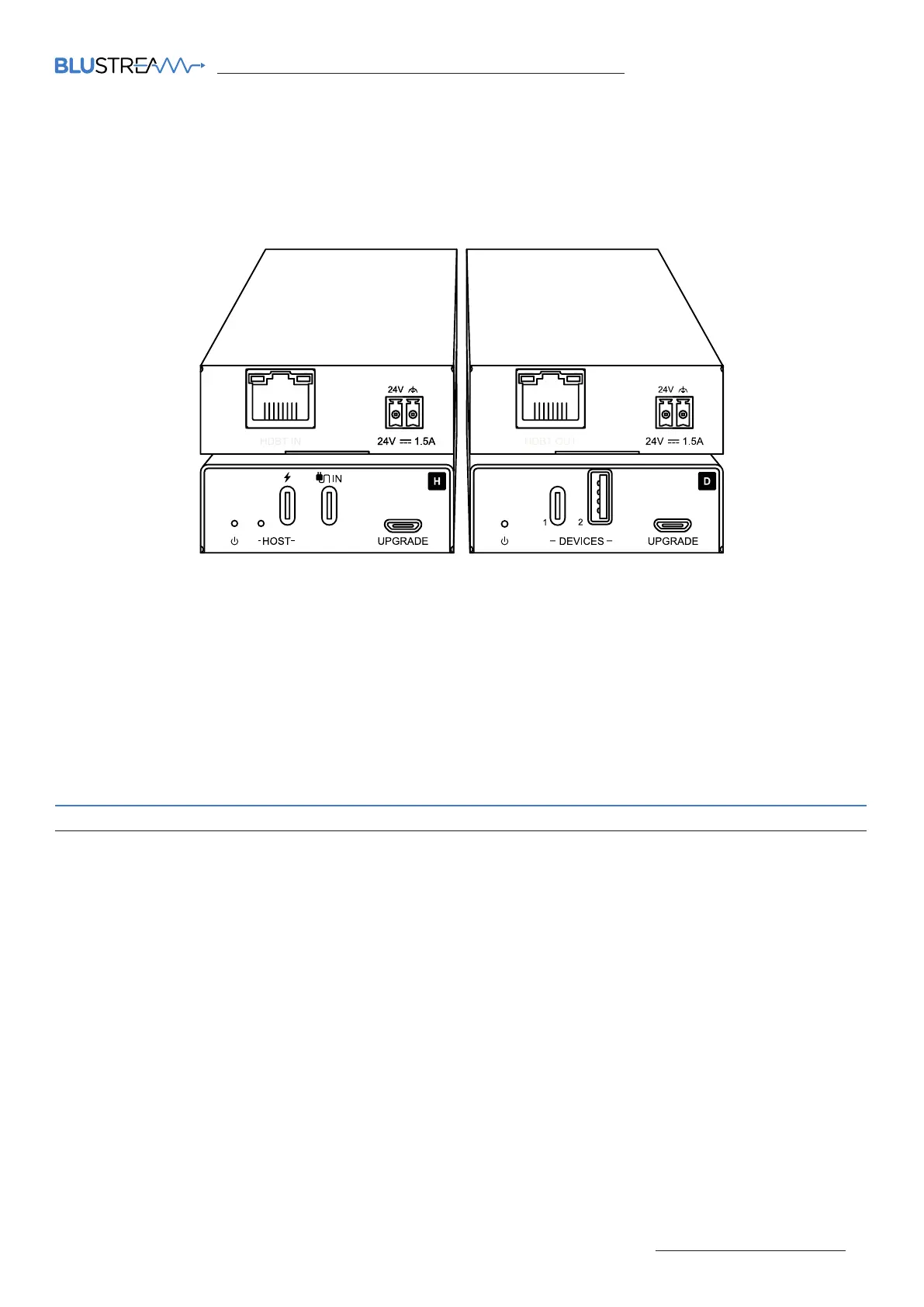

HDBT IN HDBT OUT
UEX3C-KIT QUICK REFERENCE GUIDE
www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk
HDBT IN
02

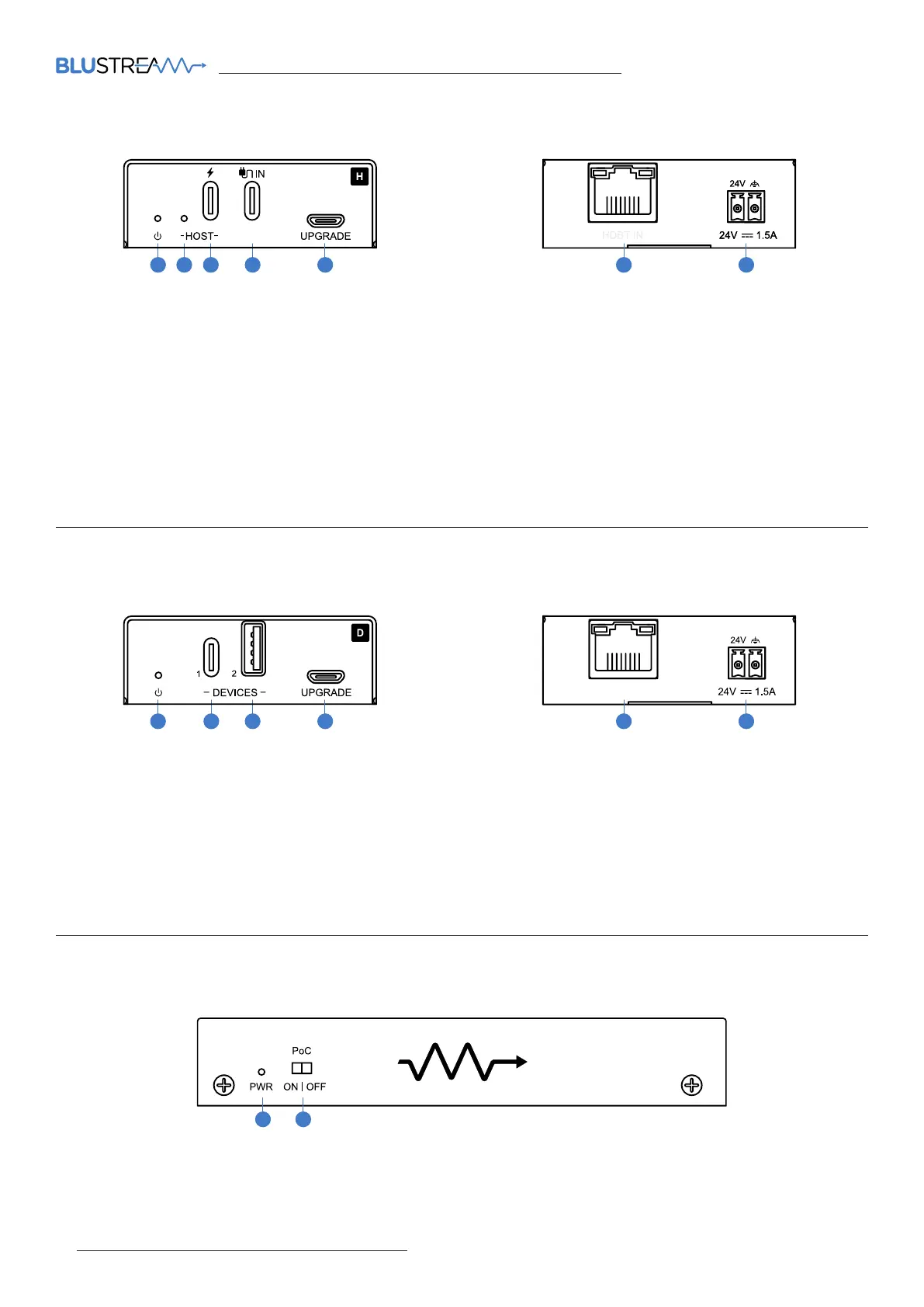

Host Panel Descriptions
1 Power Status Indicator - Illuminates when UEX3C-H is powered on
2 Host Status Indicator - Illuminates when a USB Host is connected
3 Host Input - USB-C port connects to USB Host (PC / Laptop). Can provide charge to Host if USB-C charge input port
is connected to compatibile USB-C power supply
4 Charge Input - USB-C port connects to compatible USB-C power supply (not included)
5 Upgrade Port - Micro USB port for firmware upgrade and servicing
6 HDBaseT Input - RJ45 connector connects to HDBaseT Out on UEX3C-D
7 Power Input - 2-pin Phoenix connector connects to 24V/1.25A DC power supply
1 Power Status Indicator - Illuminates when UEX3C-D is powered on
2 USB-C Device Input - Connect to USB-C device such as keyboard/mouse/camera, etc...
3 USB-A Device Input - Connect to USB-A device such as keyboard/mouse/camera, etc...
4 Upgrade Port - Micro USB port for firmware upgrade and servicing
5 HDBaseT Output - RJ45 connector connects to HDBaseT In on UEX3C-H
6 Power Input - 2-pin Phoenix connector connects to 24V/1.25A DC power supply
3 4 6 7
Device Panel Descriptions
1 2 5
HDBT OUT
2 3 5 61 4
Side Panel Descriptions
21
1 Power Reset Button - Press to reset unit
2 PoC On/O Switch - Enables or Disables Power over Cable (PoC) to power the connected unit remotely
