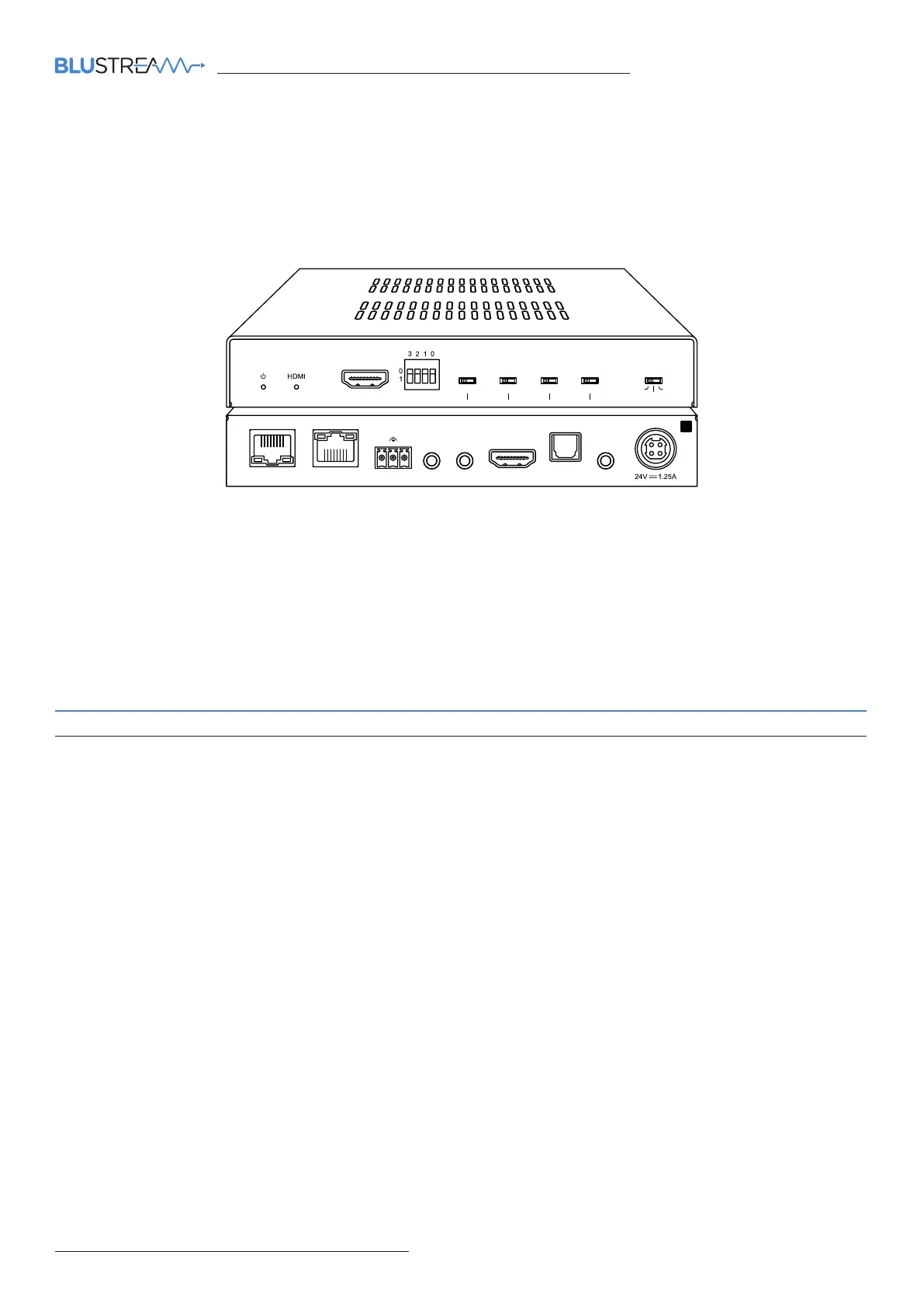

TX150CS QUICK REFERENCE GUIDE
www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk
TX150CS
Quick Reference Guide
Our Platinum Range of HDBaseT™ products oer the very best in performance
and flexibility. The TX150CS is an industry leading HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2
HDBaseT™ transmitter utilising CSC technology. The TX150CS supports HDMI, Bi-
directional IR and PoC up to lengths of 150m over a single CAT cable.
The TX150CS also provides enhanced features including ARC via HDMI or optical
(S/PDIF), RS-232 pass through and Ethernet pass through.
Introduction
FEATURES:
• Advanced HDBaseT™ technology oering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
• Supports 4K 60Hz 4:4:4 UHD video up to 100m
• Extends HDMI 1080p video up to 150m (HDBaseT™ long-reach mode)
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• HDMI re-clocking to help solve HDMI HDCP, compatibility and handshaking issues
• Supports ARC (Audio Return Channel) from connected display via HDMI or optical (S/PDIF) digital inputs (when used
with compatible Blustream RX150CS Receiver or PLA88CS Platinum matrix)
• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
• Bi-directional 100Mbps Ethernet pass through when used with Blustream RX150CS Receiver or PLA88CS Platinum
matrix solution
• Bi-directional RS-232 pass through
• Bi-directional IR from all input and output locations
• Supports bi-directional PoC (Power over Cable) to power extender from either Matrix, transmitter or receiverend
• HDCP 2.2 support
HDMI IN OPT OUT L/R OUT
TX
HDBT OUTETHERNETRS-232 IR IN IR OUT
TX RX
HDMI OUT
EDID
TX150CS
PoCOPT OUT IR
5V 12V ON OFF ON OFF
CTRL
PASS
RS-232
FW
LRM
HDMI ARC
TX150CS QUICK REFERENCE GUIDE
Contact: support@blustream.com.au | support@blustream-us.com | support@blustream.co.uk

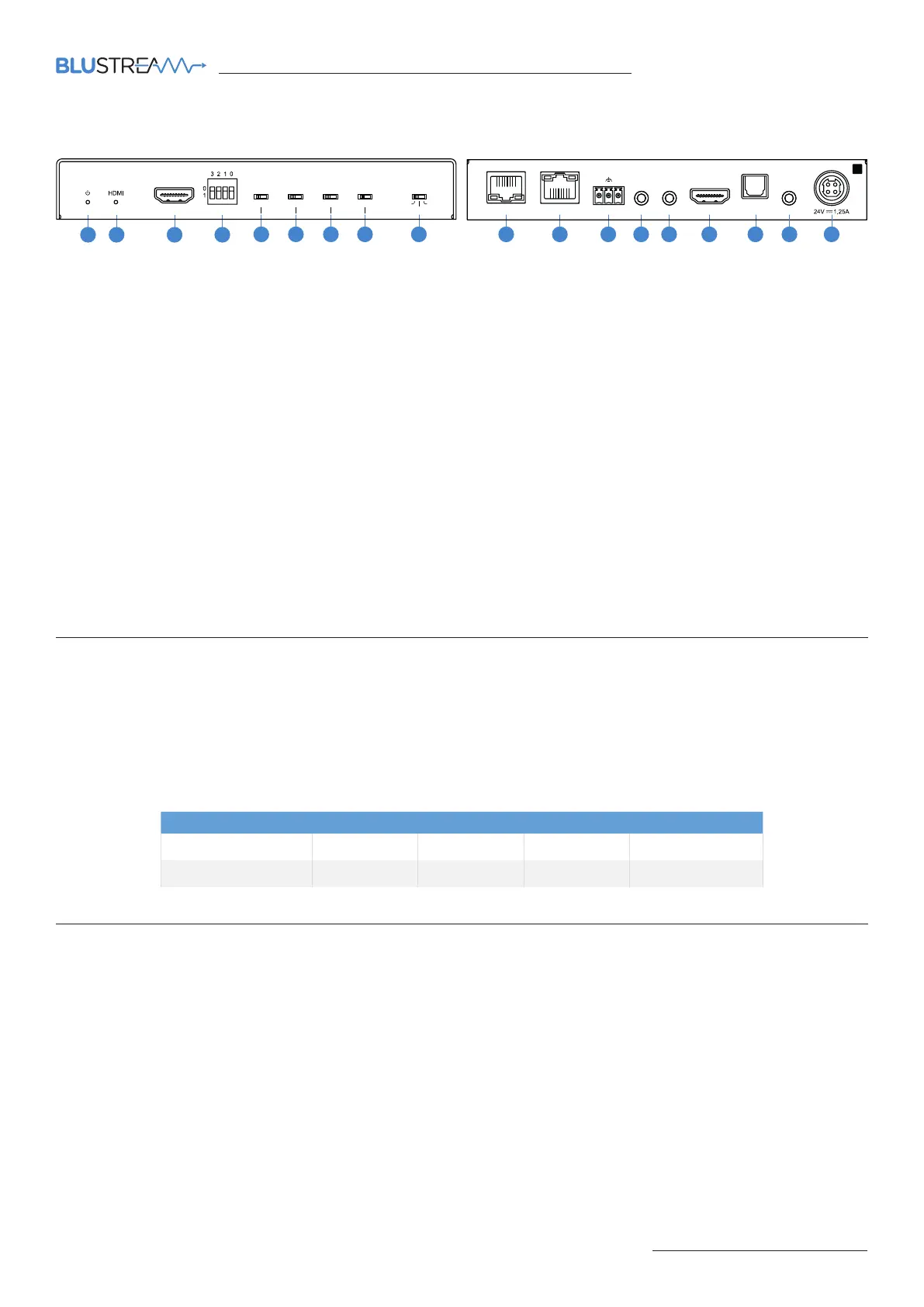

TX150CS Panel Descriptions
1 Power Status Indicator
2 HDMI Output Status Indicator
3 HDMI Output - Connect to local HDMI display
4 EDID DIP switch (UP=0, DOWN=1)
5 Opt Out Switch - Alters the optical output source:
HDMI - Takes optical source from HDMI input
ARC - Takes optical source from Audio Return Channel of
connected RX150CS
6 5V / 12V IR Voltage Switch - select between 5V or 12V
IR output voltage
7 LRM Switch - HDBaseT™ Long Reach Mode On / O.
Note: LRM should be enabled on Receiver to function
8 Power over Cable (PoC) Switch (ON / OFF) - to enable /
disable PoC being sent from the transmitter
9 RS-232 Port Mode Switch - Select between firmware
update mode or normal control passthrough mode
q HDBaseT™ Output - Connect to Matrix via CAT cable
w Ethernet Connection - Connect to network / device for
Ethernet LAN pass-through to / from Transmitter
e RS-232 Port - 3-Pin Phoenix connector to pass bi-
directional IR to / from the receiver
r IR Input - Connect to Blustream 5V 3.5mm IR receiver
t IR Output - Connect to Blustream 5V 3.5mm IR emitter
y HDMI Input - Connect to HDMI source device
u Optical (S/PDIF) Output - Connect to local audio
amplification or distribution device
i L/R Audio Output - Audio breakout of ARC audio signal
from the Receiver (2ch PCM only)
o 24V/1.25A DC Power Input 4-Pin DIN connector (sold
separatley)
421 3
5 6 7 8 9 10 11 12 13 14 15 16
HDMI OUT
EDID
TX150CS
PoCOPT OUT IR
5V 12V ON OFF ON OFF
CTRL
PASS
RS-232
FW
LRM
HDMI ARC
HDMI IN OPT OUT L/R OUT
TX
HDBT OUTETHERNETRS-232 IR IN IR OUT
TX RX
Advanced Functions
The TX150CS has been designed to partner with the RX150CS Receiver or the PLA88CS Platinum HDBaseT™ Matrix
products and will transmit audio and video to these devices, as well as bi-directional IR and RS-232 control. Advanced
functions such as ARC, CSC, Ethernet passthrough and Long Reach mode will only function with a compatible Matrix or
Receiver product. The below chart outlines the Matrix products that support these advanced functions:
MATRIX / RECEIVER CSC ARC ETHERNET LONG REACH MODE
PLA88CS Yes No Yes Yes
RX150CS Yes Yes Yes Yes
ARC and Optical Audio Return
The TX150CS supports Audio Return from the Display back to the TX150CS when used with RX150CS. By definition, ARC
(Audio Return Channel) and Optical Audio Return, will support up to a maximum of 5.1ch HD audio pass-through. For
ARC via HDMI, CEC needs to be enabled on both the display and the AVR for the required communication to instigate
the ARC channel to be opened. The TX150CS is transparent to this communication when in passthrough mode.
The TX150CS will also allow for Optical Audio Return to be sent across the HDBaseT
™ link. Please ensure the correct
settings on both the Transmitter and Receiver are selected for the required audio transmission method. For the
TX150CS, this must be carried out via the RS-232 API command “OUT 00 ARC aa” where aa=01 is ARC from Optical,
aa=02 is ARC from HDMI, and aa=03 is ARC passthrough (default) on the connected RX150CS. Please refer to the HELP
command for further information on this API function.
The TX150CS also features an anlogue 2ch L/R audio breakout to output ARC audio from the display device connected
at the Receiver.
