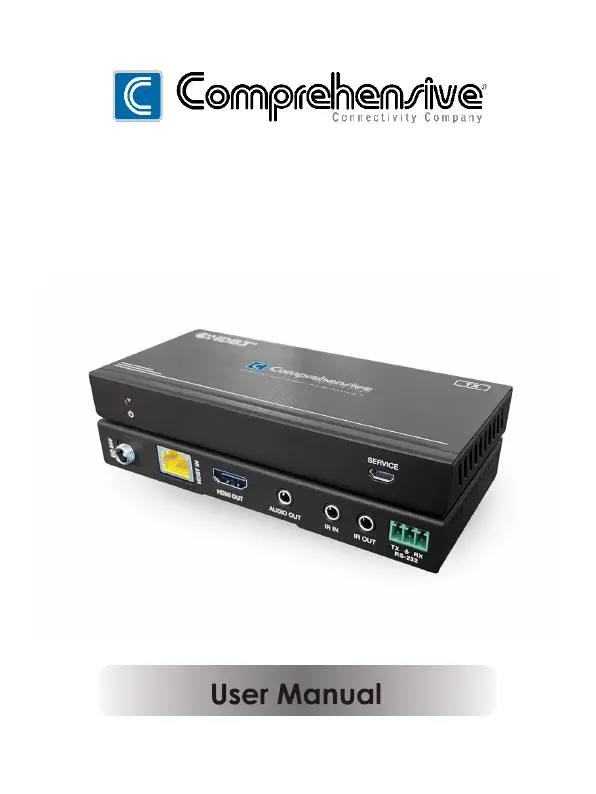

CHE-HDBT250
Pro AV/IT HDBaseT™ 4K60 18G HDMI Extender Kit
with Audio, RS232, IR, PoC up to 492ft
VER 1.0
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this manual
for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the
life of your equipment.
Table of Contents
1. Introduction. ..............................................................................................
1
2. Features. ....................................................................................................
1
3. Package Contents. ..................................................................................
2
4. Specifications. ...........................................................................................
2
5. Operation Controls and Functions. ........................................................
4
5.1 Transmitter Panel. ...............................................................................
4
5.2 Receiver Panel. ..................................................................................
5
5.3 IR Pin Definition. ..................................................................................
6
6. Application Example. ..............................................................................
8
1 / 8
1. Introduction
The CHE-HDBT250 HDBaseT HDMI Extender can extend high-definition
video / audio signals, RS-232, bi-directional IR, and the distance is up to 492ft
/ 150 meters between transmitter and receiver via a single Cat5e/6 cable. It
supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. One
HDMI loop port is available for output. It also supports de-embedded audio
for L/R audio output and PoC function. In addition, the CHE-HDBT250 is
equipped with two-way IR pass-through which allows for source and display
control.
This CHE-HDBT250 includes two units: transmitter unit and receiver unit. The
transmitter unit is responsible for capturing HDMI input signal and carrying
the signal via one cost effective Cat5e/6 cable, and transmitting / emitting IR
control signals. The receiver unit is responsible for receiving the HDMI signal
and transmitting / emitting IR control signal.
The CHE-HDBT250 offers the most convenient solution for HDMI extension
via a single Cat5e/6 with long distance capability, and is the perfect solution
for any application.
2. Features
☆ HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
☆ Supports 18Gbps video bandwidth
☆ The maximum extended transmission distance via a single Cat5e/6 cable:
394ft / 120 meters for 4K2K signal;
492ft / 150 meters for 1080P signal
☆ Supports one HDMI loop output on the transmitter
☆ De-embedded audio to analog stereo output on receiver
☆ With bi-directional IR, RS-232 and CEC pass-through
☆ HDR, HDR10+, Dolby Vision and HLG function supported
☆ Supports PoC (Power over Cable) function
☆ Compact design for easy and flexible installation
