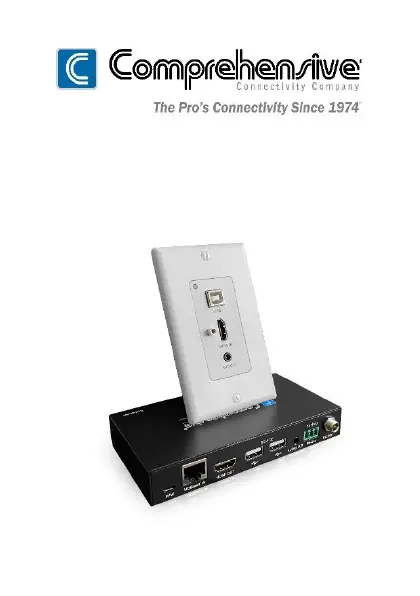

CHE-HDBTWP121K
Pro AV/IT HDBaseT 4K 18G Single Gang HDMI, USB ™
2.0 and Audio Wall Plate Extender Kit up to 230ft
User Manual
1/7
Thank you for purchasing this product
For optimum performance and safety, please read these instructions
carefully before connecting, operating or adjusting this product. Please
keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be
damaged by electrical spikes, surges, electric shook, lighting strikes,
etc. Use of surge protection systems highly recommended is in order
to protect and extend the life of your equipment.
Table Contentsof
1. Introduction. .................................................................................. 2
2. Features. ........................................................................................ 2
3. Package Contents. ....................................................................... 2
4. Specifications. ............................................................................... 3
5. Operation Controls and Functions. ............................................. 4
5.1. Transmitter Panel. .................................................................
4
5.2. Receiver Panel. ....................................................................
5
6. Application Example. ................................................................... 7
2/7
1. Introduction
Comprehensive’s CHE-HDBTWP121K Wall Plate Extender kit was designed to
extend HDMI, analog audio and high speed USB 2.0 signals up to 230ft over
Cat5e or Cat6 cables. Perfect for all commercial AV/IT installations that
require HDMI and USB 2.0 and audio inputs.
2. Features
• Extends your HDMI, Audio and USB 2.0 High Speed Signals over a single UTP4K
cable to 230ftup
• HDMI 2.0, 18Gbps
• HDCP 2.2 & 1.4 Compliant
• HDMI input supports resolutions up to 4K2K@60Hz (4:4:4), 1080p@120Hz
HDBaseT™ over a single CAT 6/6a/7 cable up to 230ft/70m distance to 1080p or
131/40m distance 4K2K@60Hz (4:4:4).to
• USB 2.0 High Speed port up to 190 Mbps
• 3.5mm Audio Port to independently transit analog audio signal from the
Transmitter to the Receiver
• Supports HDR, pass throughCEC
• 24V POC (Power Over Cable) function is supported, either TX or RX is powered
by 24V1A power supply, the another does not need power supply from the DC
jack.
• POC power consumption less than 10W.is
• Transfer Bidirectional - control signal together with the HDMI signal.RS 232
• 3 Year Warranty
3. Package Contents
① 1× 4K HDMI Wall Plate Transmitter
② 1× HDBaseT Receiver
③ 1× Phoenix connector (3 pins)
④ 1× Phoenix connector (2 pins)
⑤ 1× 24V/1A power adapter
⑥ 1× Cover plate
⑦ 2× Rack ears
⑧ 1× User Manual
