Sida 1/8

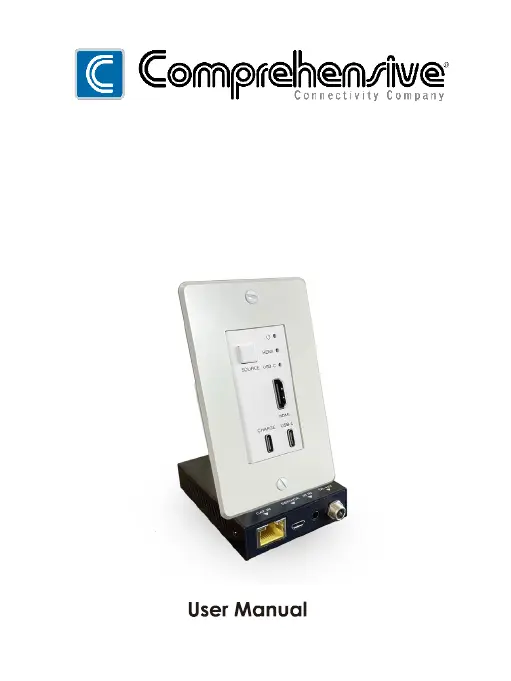

CHE-HDWP85UD
Pro AV/IT HDMI & USB-C 4K60Hz Wallplate
Extender Kit up to 164ft
VER 1.1
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this manual
for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the
life of your equipment.
Table of Contents
1. Introduction. ............................................................................................
1
2. Features. ..................................................................................................
1
3. Package Contents. ................................................................................
1
4. Specifications..........................................................................................
2
5. Product Dimensions ...............................................................................
3
6. Operation Controls and Functions. ......................................................
4
6.1 Transmitter Panel. .............................................................................
4
6.2 Receiver Panel. ................................................................................
5
7. Application Example. ............................................................................
6
- 1 -
1. Introduction
The CHE-HDWP85UD is a wallplate 2x1 switcher transmitter &
receiver kit with HDMI and USB-C inputs. It features a US one-gang
enclosure for Decora-style wallplate with a white wallplate and
faceplate. The CHE-HDWP85UD supports video resolutions up to
4K2K@50/60Hz 4:4:4. The CHE-HDWP85UD also is able to extend
AV signal to transmission distances up to 164ft / 50m over cat5e or
cat6. The transmitter is remotely powered by the receiver via POC.
2. Features
☆ Compliant with HDMI 2.0b, HDCP 2.2 and Display Port 1.2a
☆ HDMI input supports 18Gbps video bandwidth;
USB-C input supports 5.4Gbps video bandwidth
☆ Video resolution up to 4K2K@50/60Hz 4:4:4
☆ Video transmission distance up to 164ft / 50m for 4K@60 444 via a single
CAT5e/6 cable
☆ Supports 3D, HDR10 and Dolby Vision (does not support CEC control)
☆ HDMI audio formats support LPCM, Dolby Digital/Plus/EX, Dolby True HD,
DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
☆ Supports HDMI and USB-C input
☆ Dedicated USB-C charging port to power your connected USB-C devices
(requires a PD adapter up to 60W)
☆ US one-gang enclosure for Decora-style wall plate openings
☆ Input signal selection supports automatic mode and manual mode
☆ Supports POC function (only from Receiver to Transmitter)
3. Package Contents
1× CHE-HDWP85UD (Transmitter & Receiver kit)
1× 12V DC power adapter
1× User Manual
