Sida 1/14
1

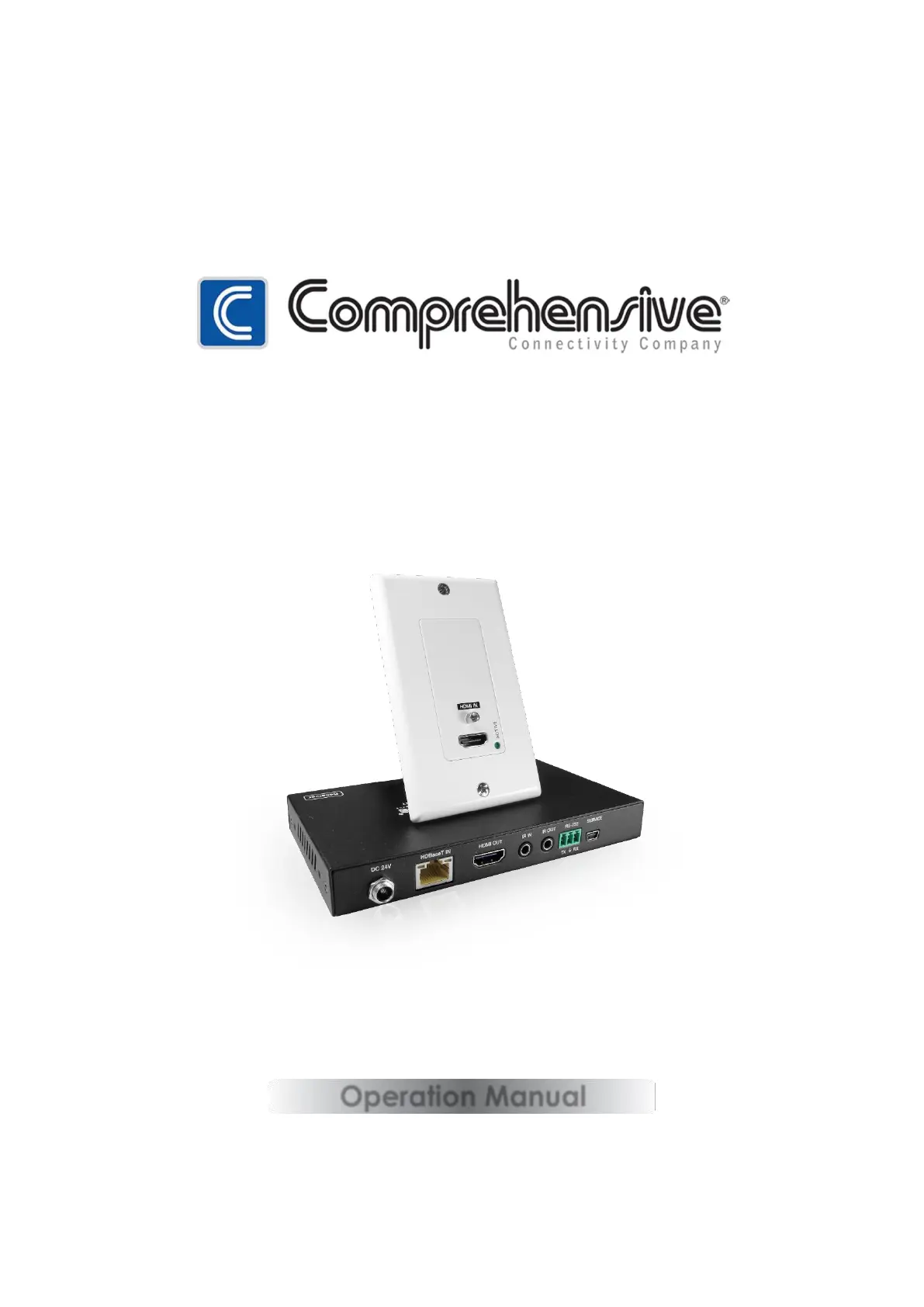

CHE HDBTWP100K-
Pro AV/IT HDBaseT 4K60 18G Single Gang HDMI Wall Plate Extender Kit up to 230ft
Operation Manual
2
Thank you for purchasing this product
For optimal performance and safety, please read these instructions carefully before
connecting, operating or adjusting this product. Please keep this manual for future
reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical
spikes, surges, electric shook, lighting strikes, etc. Use of surge protection systems is
highly recommended in order to protect and extend the life of your equipment.
Table of Contents
1. Introduction ...................................................................................... 3
2. Features ............................................................................................ 3
3. Package Contents .............................................................................. 4
4. Specifications .................................................................................... 4
5. Operation Controls and Functions ..................................................... 6
5.1 Front panel ................................................................................... 6
5.2 Rear panel .................................................................................... 7
6. IR port connection method 8 ...............................................................
7. Application Example .......................................................................14
3
1. Introduction
The HDBaseT Wall plate Transmitter can transmit up to 4K2K@60 (4:4:4) video over a -
single CAT6/6a/7 cable up to 130ft/40m or 1080p up to 230ft/70m. It supports Power
over Cable (PoC) functionality that allows for greater flexibility in installations. It also
supports two way IR and RS 232.- -
2. Features
• HDMI 2.0b 18Gbps, HDCP 2.2 compliant
• Up to 4K2K@60Hz(4:4:4), 4K2K@30Hz, 1080p@120Hz
• Up to 7.1 channels HD audio
• HDBaseT over a single CAT 6/6a/7 cable up to 230ft/70m distance ™
• One HDMI input, 1 Gang US Decora Wall Plate
• Two way IR and RS 232- -
• PWR/LINK/HDCP indicators
• POC (Power over Cable) function is supported, either TX or RX is powered by 24V1A
power supply, the another does not need power supply from the DC jack. POC Power
consumption is less than 10W.
※ See the description 1
• Transfer Bidirectional Infrared control signal together with the HDMI signal.
See the description 2.※
• Transfer Bidirectional RS 232 control signal together with the HDMI signal. -
※ See the description 3.
