Sida 1/3
l
Paralleled distribution block for Cresnet® network cables
l
Provides connections for lighting control modules and
outboard devices
The is a Cresnet terminalblockdesignedCAEN-BLOCK
specifically forCrestron lighting and automation systems to
linkextension andsatellite enclosures to the central control
system. TheCAEN-BLOCK mounts at the bottom ofa ,CAEN
CAEN-MLO CAENIB, or enclosure that does not containa
control systemto provide Cresnet and Override signal
connectivity forCLX-Series lighting control modules. The
CAEN-BLOCK servesas a parallel distribution blockfor
multipleCresnetcables,and provides connections for Cresnet
andoverridesignalcables from the central control system.
The
The
The
TheTheCre
Cre
Cre
CreCresnet
snet
snet
snetsnetB
B
B
BBus
us
us
usus
Cresnet isthe communications backbone for many Crestron
keypads,lightingcontrols, shademotors, thermostats,
sensors, andother devices that don’t require thehigher speed
ofEthernet. Itprovides a dependable and flexible wiring
solution, allowingmultiple devices to be wiredtogether in
parallelusingboth home-run and daisy-chain topologies. The
Cresnet busdistributes bidirectional data communication and
24VDCpower to each device over asingle 4-conductor cable.
CAEN
CAEN
CAEN
CAENCAENMo
Mo
Mo
MoMounting
unting
unting
untingunting
TheCAEN-BLOCKis designed to mount inside aCAEN,
CAEN-MLO, orCAENIB enclosure, positioned at the bottom
belowthelightingcontrolmodules. Frontfacing connectors
andcontrolsaffordoptimal visibility and serviceability to
facilitateinstallation andtroubleshooting.
Specifications
Specifications
Specifications
SpecificationsSpecifications
Connectors
Connectors
Connectors
ConnectorsConnectors
LEFT/RIGHT
LEFT/RIGHT
LEFT/RIGHT
LEFT/RIGHTLEFT/RIGHT (2)5-pin0.156in.headers;
Cresnet/Override interconnect portsfor
Crestron CLX-serieslighting control modules
(interconnect cablesincluded)
NET
NET
NET
NETNET (4)4-pin 3.5mm detachableterminalblocks,
paralleled;
Connect upto 20 Cresnet devices;
Amaximumaggregatecable length of
1500feet(457 meters) is recommended
OVERRIDE
OVERRIDE
OVERRIDE
OVERRIDEOVERRIDE (2)3-pin3.5mmdetachable terminal blocks,
paralleled;
Comprised of(2) inputs(and pass-thru)for
external contactclosures;
Triggers thepreset Override state in each
connected CLX-seriesmodule;
TheL input passes through to the LEFT
interconnect port;
TheR input passes through to the RIGHT
interconnect port
Environmental
Environmental
Environmental
EnvironmentalEnvironmental
Temperature
Temperature
Temperature
TemperatureTemperature 32°to 104°F (0° to 40°C)
Humidity
Humidity
Humidity
HumidityHumidity 10%to 95% RH (noncondensing)
Construction
Construction
Construction
ConstructionConstruction
Chassis
Chassis
Chassis
ChassisChassis Metal,gray, surface mount module with (2)
integral mountingflanges
Mounting
Mounting
Mounting
MountingMounting Installs ina Crestron CAEN, CAEN-MLO, or
CAENIBenclosure

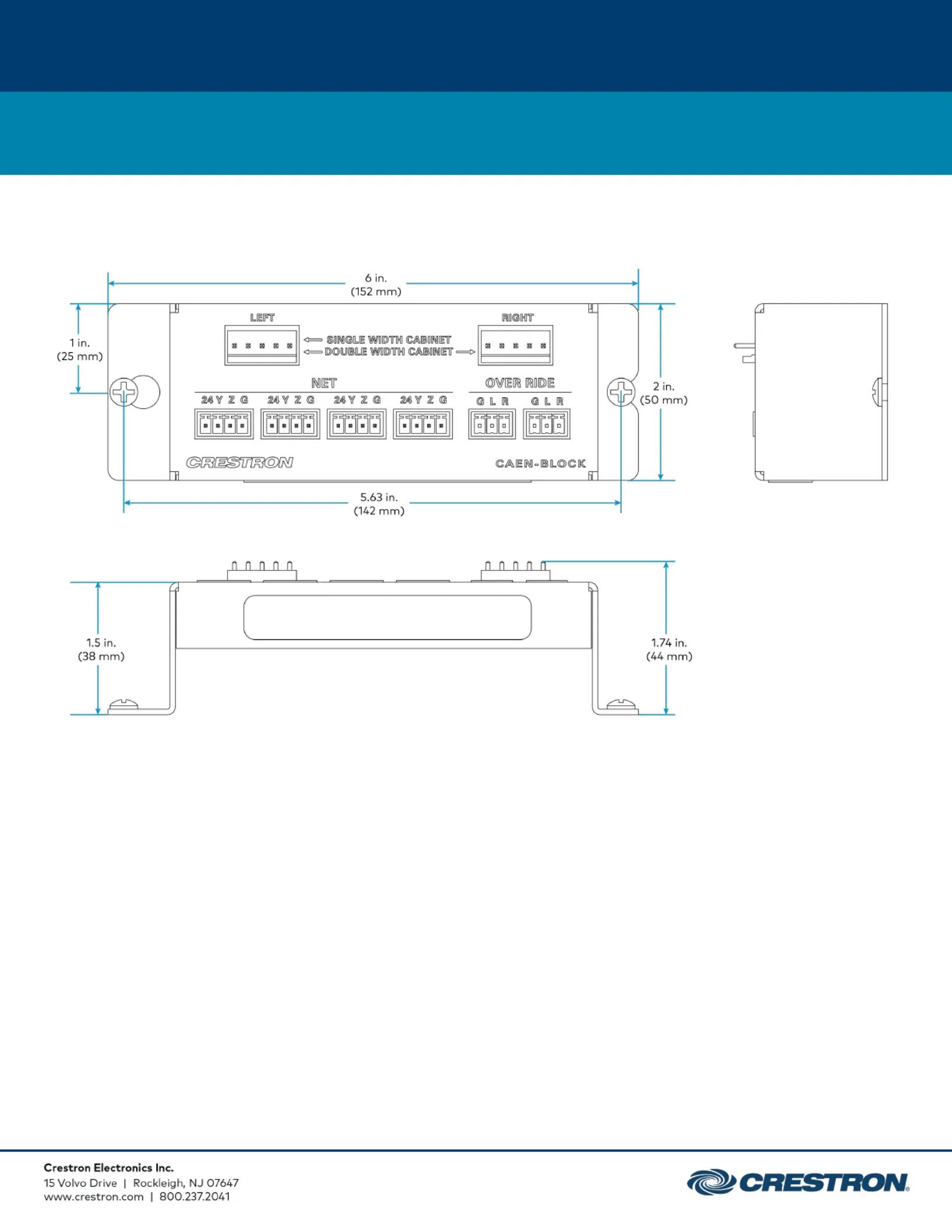

Dimensions
Dimensions
Dimensions
DimensionsDimensions
Height
Height
Height
HeightHeight 2.0in.(51mm)
Width
Width
Width
WidthWidth 6.00in.(153mm)
Depth
Depth
Depth
DepthDepth 1.74in.(44mm)
Weight
Weight
Weight
WeightWeight
5.65oz(161g)
Model
Model
Model
ModelModel
CAEN-BLOCK
Cresnet® NetworkTermination Block for CAEN and CAENIB
Automation Enclosures
CAEN-BLOCK
CAEN-BLOCK
CAEN-BLOCK
CAEN-BLOCKCAEN-BLOCK
Cresnet® Network Termination Block for CAEN and CAENIB Automation
Enclosures
