Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev. 072524

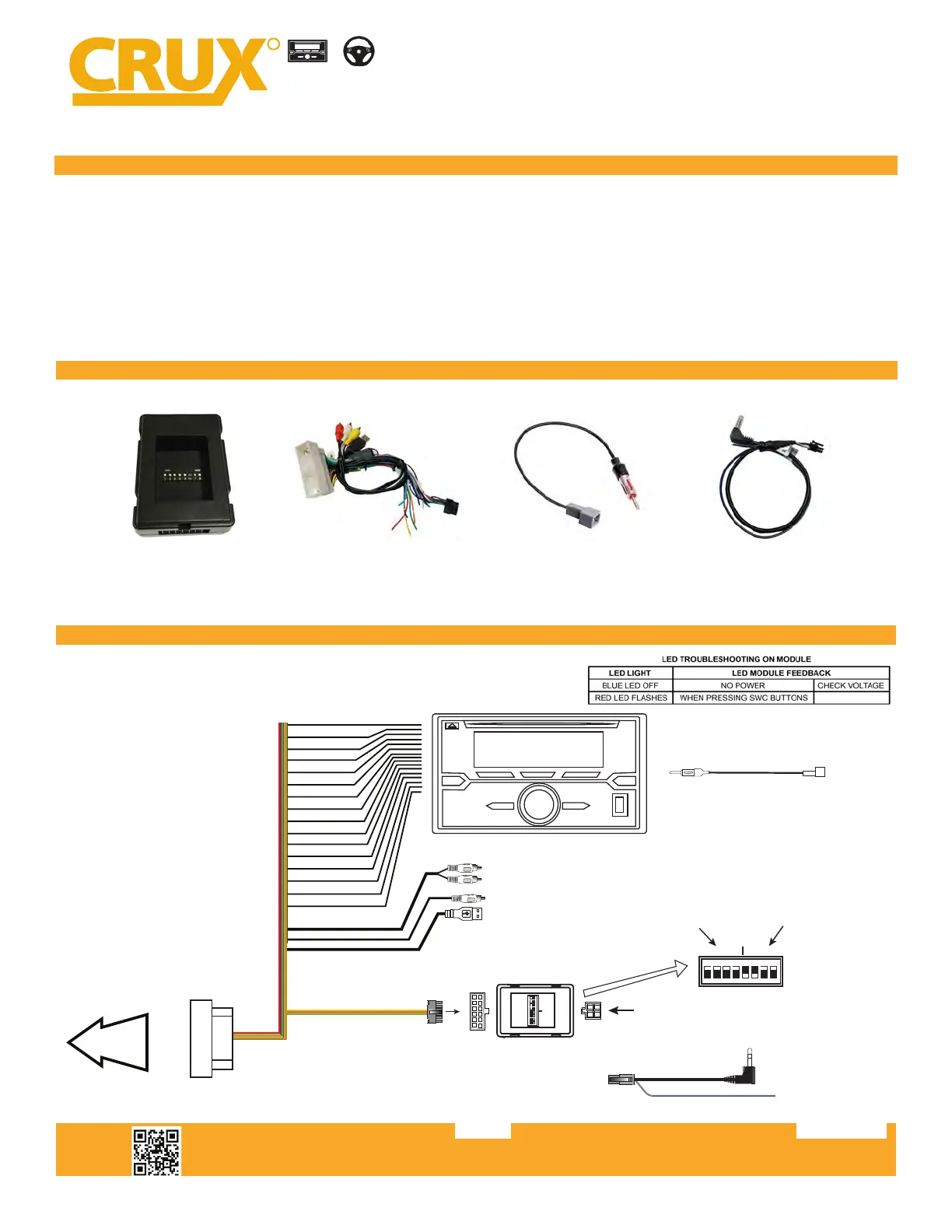

SWRHK-65Q

Radio Replacement with Steering Wheel, Aux Input &

Backup Camera Retention for Select Hyundai and Kia Vehicles

1 of 3

RADIO REPLACEMENT

SWC RETENTION

+

R

INTERFACING SOLUTIONS

-Retains factory features in select Hyundai and Kia vehicles while functioning with an aftermarket radio.

-Retains factory 3.5mm Aux Input Jack (if equipped).

-Retains factory USB port (if equipped).

-Retains factory backup camera (if equipped).

-Pre-programmed to retain factory Steering Wheel Controls.

-Includes antenna adapter.

PRODUCT FEATURES:

PARTS INCLUDED:

INSTALLATION DIAGRAM:

SWRHK-65Q MODULESWRHK-65Q HARNESSANTENNA ADAPTERSWC CABLE

AFTERMARKET

RADIO

SWC

MODULE

illumination (+)Orange

Reverse Gear Output Red/White

Antenna Turn ONBlue

Vehicle Speed Sense Blue/White

Parking BrakeGreen

+12V ConstantYellow

+12V ACCRed

GroundBlack

Right Front (+)Gray

Right Front (-) Gray/Black

Left Front (+)White

Left Front (-) White/Black

Right Rear (+)Violet

Right Rear (-) Violet/Black

Left Rear (+)Green

Left Rear (-) Green/Black

Audio Signal from 3.5mm Jack Aux-InRed & White RCA

OEM Back Up Camera Retention Yellow RCA

OEM USB Port USB Connector

12-Pin Black

Connector

HYUNDAI/KIA ANTENNA

ADAPTOR (Included)

TO FACTORY

HARNESS

ON RADIOVEHICLE

1 2 3 4 5 6 7 8

3.5MM SWC CABLE

Plug in the 3.5MM SWC cable to the 4-pin port

on the module. See “DIP SWITCH SETTINGS” section.

AFTERMARKET

RADIO SELECTOR

(See Chart)

HYUNDAI / KIA TYPE

SWC SETTING

(OFF OFF ON ON)

ON RADIOVEHICLE

1 2 3 4 5 6 7 8

4-Pin

Connector

Insulate with

tape if not used

Blue/Yellow (Kenwood & JVC)
