Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.020420

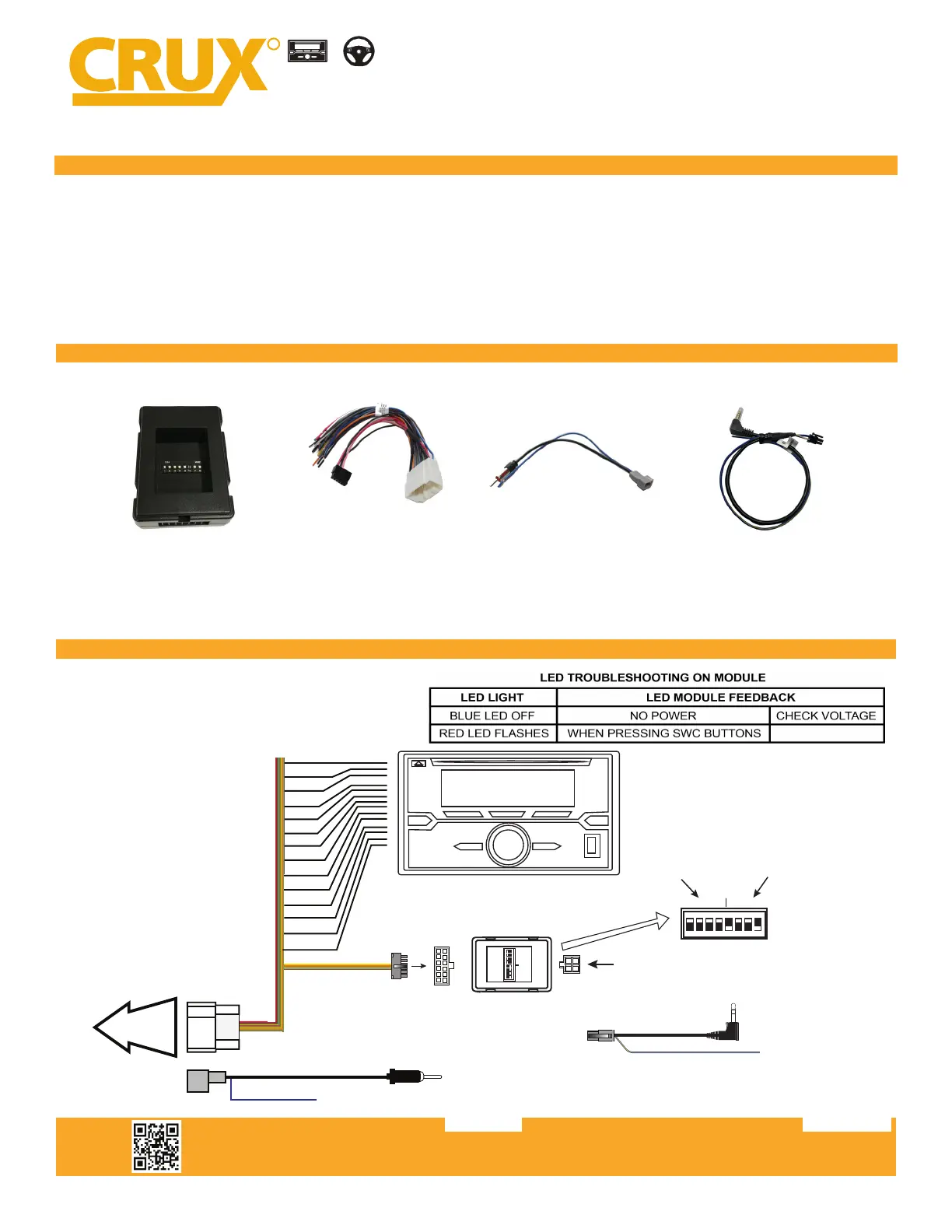

SWRHN-62D

Radio Replacement with Steering Wheel Retention for

Select HONDA Vehicles

1 of 2

RADI O REPLAC EMEN T

SWC R ETENT IO N

INTERFACING SOLUTIONS

- Retains factory features in select Honda vehicles while functioning with an aftermarket radio.

- Pre-programmed to retain factory Steering Wheel Controls.

- Retains Factory Auxiliary Input.

- Includes Honda antenna adapter.

- EIA color coded wiring for easy installation.

PRODUCT FEATURES:

PARTS INCLUDED:

INSTALLATION DIAGRAM:

SWRHN-62D MODULE SWRHN-62D HARNESS ANTENNA ADAPTER SWC CABLE

AFTERMARKET

RADIO

12V Constant Yellow

+12V ACC Red

Ground Black























TO FACTORY

HARNESS

12-Pin Black

Connector

SWC

MODULE

ON RADIO VEHICLE

1 2 3 4 5 6 7 8

3.5MM SWC CABLE

Plug in the 3.5MM SWC cable to the 4-pin port

on the module. See “DIP SWITCH SETTINGS” section.

AFTERMARKET

RADIO SELECTOR

(See Chart)

HONDA

SWC SETTING

(OFF ON ON OFF)

ON RADIO VEHICLE

1 2 3 4 5 6 7 8

4-Pin

Connector



BLUE / YELLOW (for Kenwood & JVC)

Insulate with tape

if not being used

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.020420

2 of 2

RADI O REPLAC EMEN T

SWC R ETENT IO N

INTERFACING SOLUTIONS

VEHICLE APPLICATIONS:

SWRHN-62D

DIP SWITCH SETTINGS:

HONDA STEERING WHEEL CONTROL DIP SWITCH SETTING:

AFTERMARKET RADIO DIP SWITCH SETTINGS:

3.5MM SWC CABLE

Plug in the 3.5MM to 4-Pin SWC cable and set the DIP switches to the aermarket radio you are using.

NOTE: Insulate the Blue/Yellow wire or 3.5mm plug if not being used.

Radio Replacement with Steering Wheel Retention for

Select HONDA Vehicles

Honda

2003 - 2007 Accord DX/EX/LX

2005 - 2006 CRV

2003 - 2011 Element

2005 - 2007 Odyssey

2003 - 2008 Pilot

2006 - 2008 Ridgeline

DIP: 5 6 7 8

Honda OFF ON ON OFF

SWC MODULE

ON RADIO VEHICLE

1 2 3 4 5 6 7 8

RADIO BRAND: DIP: 1 2 3 4

Atoto, Dual, Farenheit, Jensen, Pioneer

Power Acoustik, Soundstream

Blaupunkt, Most o-brand Radios

Alpine

Clarion

Kenwood

JVC

Boss, Old Sony

New Sony

OFF OFF ON ON

OFF OFF OFF OFF

OFF ON ON OFF

OFF ON ON ON

OFF ON OFF ON

OFF ON OFF OFF

OFF OFF ON OFF

SWC MODULE

ON RADIO VEHICLE

1 2 3 4 5 6 7 8

NOTE: For Atoto, Blaupunkt, Dual, Farenheit, Power Acoustik, Soundstream, and most o-brand radios,

check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.

RED to SWC Key 1

WHITE to SWC Key 2

SHIELD to SWC Ground

For aermarket radios that have wires for SWC connecons, cut o the 3.5mm plug on the Crux SWC Cable and connect the

SWC wires as follows:

Note that there are some radios that only have SWC1 and SWC2, in this case “shield” does not need to be connected.
