Sida 1/3
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.100724
SWRMT-39N
Radio Replacement with Steering Wheel Control Retention for
Select Mitsubishi Vehicles 2008 - 2019

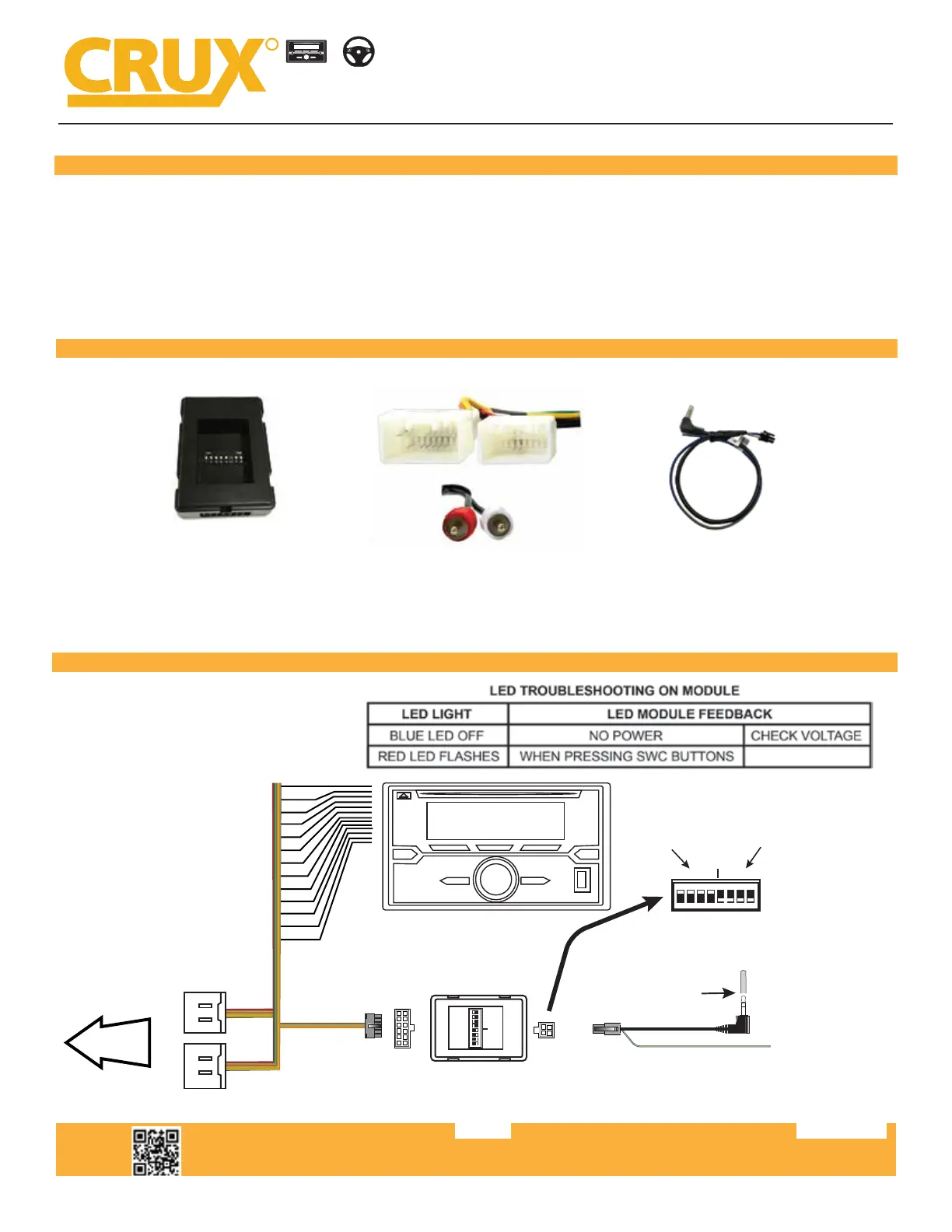

1 of 2
RADIO REPL ACEMENT
SWC RE TENTION
+
R
INTERFACING SOLUTIONS
- Pre-programmed to retain factory Steering Wheel Controls.
- Retains factory Auxiliary input for vehicle if equipped.
- Retains factory features in select Mitsubishi vehicles while functioning with an aftermarket radio.
- EIA color coded wiring for easy installation.
PRODUCT FEATURES:
PARTS INCLUDED:
SWRMT-39N Module SWRMT-39N Harness SWC Cable
INSTALLATION DIAGRAM:
AFTERMARKET
RADIO
4-Pin
Connector
Cap or insulate if
not being used
Kenwood/JVC (BLUE / YELLOW)
Insulate with tape
if not being used
3.5MM SWC CABLE
Plug in the 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
ON RADIO VEHICLE
1 2 3 4 5 6 7 8
+12V Constant
Yellow
+12V ACC
Red
Ground
Black
Illumination (+)
Orange
Antenna Power
Blue
Right Front (+)
Gray
Right Front (-) Gray/Black
Left Front (+)
White
Left Front (-) White/Black
Right Rear (+)
Violet
Right Rear (-) Violet/Black
Left Rear (+)
Green
Left Rear (-) Green/Black
TO FACTORY
HARNESS
12-Pin Black
Connector
AFTERMARKET
RADIO SELECTOR
(See Page 2)
MITSUBISHI
SWC SETTING
(See Page 2)
ON RADIO VEHICLE
1 2 3 4 5 6 7 8
18 Pin Connector
20 Pin Connector
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.100724
SWRMT-39N
Radio Replacement with Steering Wheel Control Retention for
Select Mitsubishi Vehicles 2008 - 2019

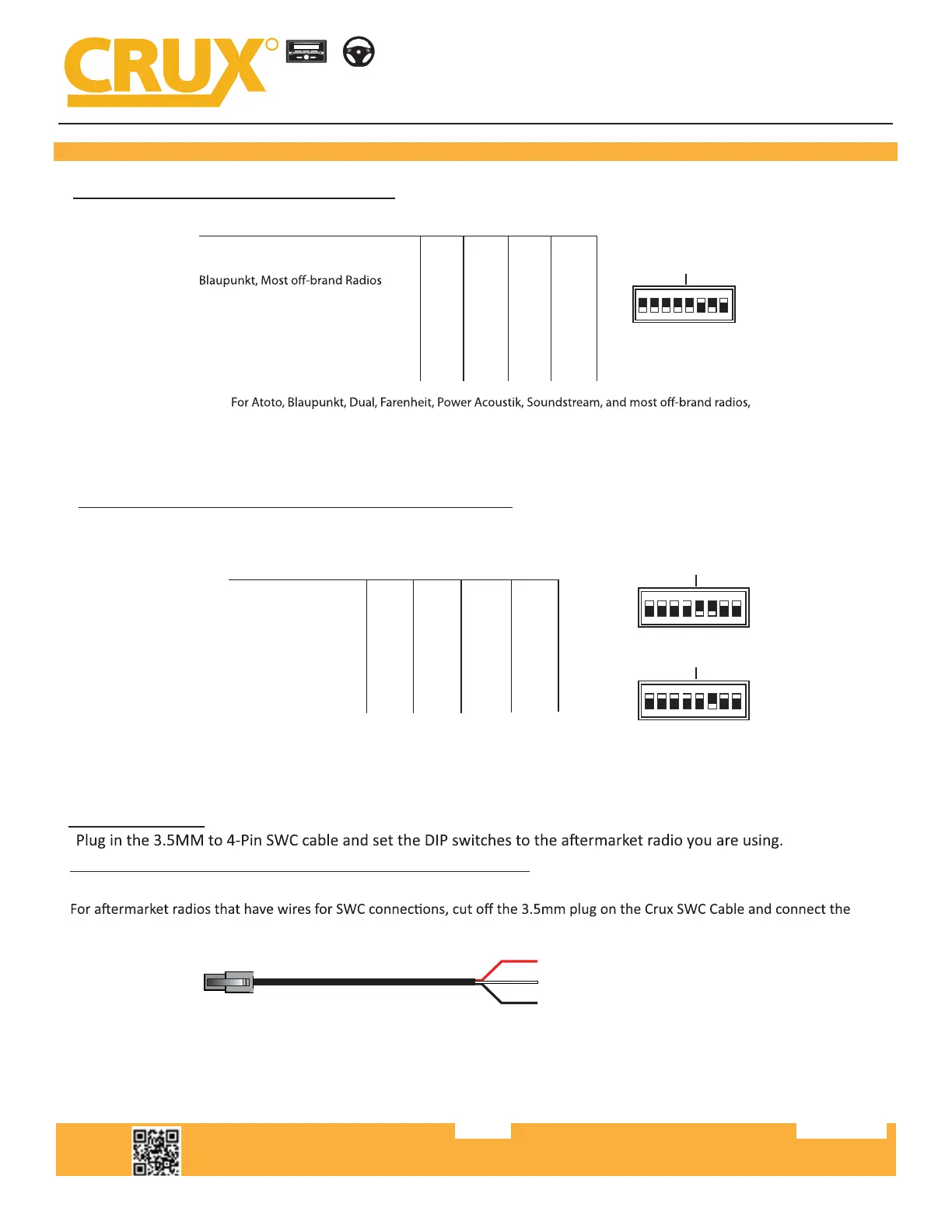

2 of 2
RADIO REPL ACEMENT
SWC RE TENTION
+
R
INTERFACING SOLUTIONS
DIP SWITCH SETTINGS:
MITSUBISHI STEERING WHEEL CONTROL DIP SWITCH SETTING:
AFTERMARKET RADIO DIP SWITCH SETTINGS:
RADIO BRAND: DIP: 123 4
Atoto, Dual, Farenheit, Jensen, Pioneer
Power Acoustik, Soundstream
Alpine
Clarion
Kenwood
JVC
Boss, Old Sony
New Sony
OFF OFF ON ON
OFF OFF ON ON
OFF OFF ON ON
OFF OFF OFF OFF
OFF ON ON OFF
OFF ON ON ON
OFF ON OFF ON
OFF ON OFF OFF
OFF OFF ON OFF
SWC MODULE
ON RADIO VEHICLE
1 2 3 4 5 6 7 8
NOTE:
check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.
DIP: 567 8
Older Mitsubishi models
OFF OFF ON ON
Newer Mitsubishi models ON OFF ON ON
SWC MODULE
ON RADIO VEHICLE
1 2 3 4 5 6 7 8
ON RADIO VEHICLE
1 2 3 4 5 6 7 8
3.5MM SWC CABLE
NOTE: Insulate the Blue/Yellow wire or the 3.5mm plug if not being used.
RED to SWC Key 1
WHITE to SWC Key 2
SHIELD to SWC Ground
SWC wires as follows:
Note that there are some radios that only have SWC1 and SWC2, in this case “shield” does not need to be connected.
