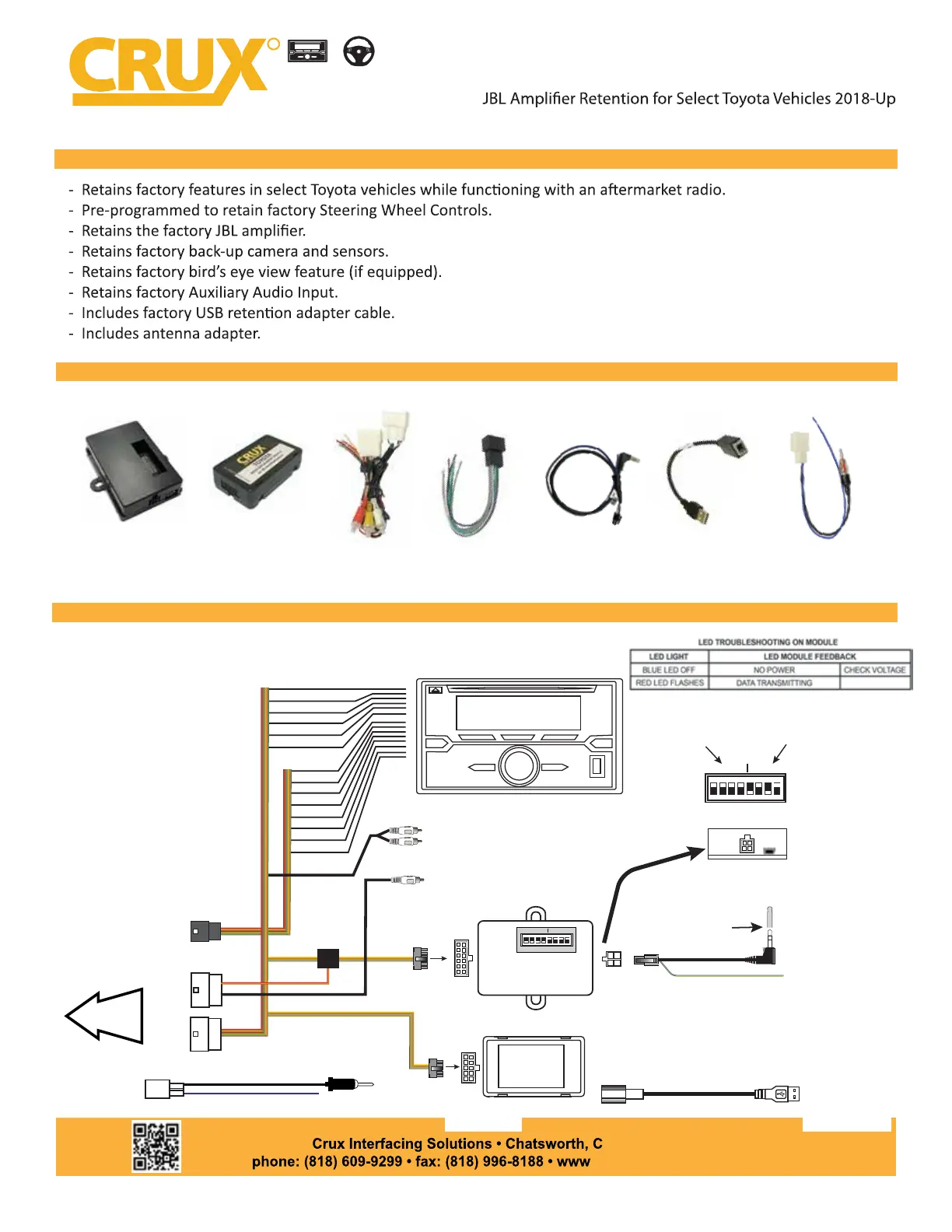

SWRTY-61P
Radio Replacement Interface with Steering Wheel Control and
JBL Amplier Retention for Select Toyota Vehicles 2018-Up
1 of 3
RADI O R EPL ACEMENT
SWC R ETEN TIO N
+
R
INTERFACING SOLUTIONS
- Retains factory features in select Toyota vehicles while funconing with an aermarket radio.
- Pre-programmed to retain factory Steering Wheel Controls.
- Retains the factory JBL amplier.
- Retains factory back-up camera and sensors.
- Retains factory bird’s eye view feature (if equipped).
- Retains factory Auxiliary Audio Input.
- Includes factory USB retenon adapter cable.
- Includes antenna adapter.
PRODUCT FEATURES:
PARTS INCLUDED:
INSTALLATION DIAGRAM:
AFTERMARKET
RADIO
+12V Constant Yellow
+12V ACC Red
Ground Black
Reverse Gear Output Purple/White
Vehicle Speed Sense Pink
Parking Brake Output Green
Right Front (+) Gray
Right Front (-) Gray/Black
Left Front (+) White
Left Front (-) White/Black
Right Rear (+) Violet
Right Rear (-) Violet/Black
Left Rear (+) Green
Left Rear (-) Green/Black
Audio Input Red/White RCA
(Retains Factory AUX Input)
TO FACTORY
HARNESS
12-Pin Black
Connector
30 PIN
USB Retention Adaptor
(included in kit)
ANTENNA ADAPTOR
(Included in Kit)
Blue / Antenna Turn On
28 PIN
Yellow RCA
(Retains OE Camera)
Rear View Camera Signal Output
AFTERMARKET
RADIO SELECTOR
(See Chart)
TOYOTA
SWC SETTING
(OFF ON OFF ON)
ON RADIO VEHICLE
1 2 3 4 5 6 7 8
ON RADIO VEHICLE
1 2 3 4 5 6 7 8
4-Pin
Connector
Cap or insulate if
not being used
Kenwood/JVC (BLUE / YELLOW) Insulate with tape
if not being used
3.5MM SWC CABLE
Plug in the 3.5MM SWC cable to the 4-pin port
on the module. See below for DIP switch settings.
TOY BOX
SWC BOX
10-Pin Black
Connector
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.050520
2 of 3
RADI O R EPL ACEMENT
SWC R ETEN TIO N
+
R
INTERFACING SOLUTIONS
SWRTY-61P
Radio Replacement Interface with Steering Wheel Control and
JBL Amplier Retention for Select Toyota Vehicles 2018-Up
INSTALLATION INSTRUCTIONS:
1. Connect the SWRTY-61P T-harness
to the aermarket radio harness.
Refer to the diagram on page 1 for
wire color codes.
2. Remove the padded trim above the glove compartment.
3. Carefully pull out the trim under the
radio.
4. Remove the small trim next to the
shier.
5. Remove the AC control panel below
the radio.
6. Unplug the connector behind the AC
control panel.
7. Pull out the radio and unplug the
connectors.
8. Mate the factory radio connectors
to the SWRTY-61P T-harness. Test
for funconality then install the
aermarket radio.
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.050520
3 of 3
RADI O R EPL ACEMENT
SWC R ETEN TIO N
+
R
INTERFACING SOLUTIONS
DIP SWITCH SETTINGS:
TOYOTA STEERING WHEEL CONTROL DIP SWITCH SETTING:
AFTERMARKET RADIO DIP SWITCH SETTINGS:
NOTE: Insulate the Blue/Yellow wire or 3.5mm plug if not being used.
DIP: 5 6 7 8
Toyota OFF ON OFF ON
SWC MODULE
ON RADIO VEHICLE
1 2 3 4 5 6 7 8
RADIO BRAND: DIP: 1 2 3 4
Atoto, Dual, Farenheit, Jensen, Pioneer
Power Acoustik, Soundstream
Blaupunkt, Most o-brand Radios
Alpine
Clarion
Kenwood
JVC
Boss, Old Sony
New Sony
OFF OFF ON ON
OFF OFF ON ON
OFF OFF ON ON
OFF OFF OFF OFF
OFF ON ON OFF
OFF ON ON ON
OFF ON OFF ON
OFF ON OFF OFF
OFF OFF ON OFF
SWC MODULE
ON RADIO VEHICLE
1 2 3 4 5 6 7 8
NOTE: For Atoto, Blaupunkt, Dual, Farenheit, Power Acoustik, Soundstream, and most o-brand radios,
check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.
3.5MM SWC CABLE
Plug in the 3.5MM to 4-Pin SWC cable to the SWC module.
VEHICLE APPLICATIONS:
SWRTY-61P
Radio Replacement Interface with Steering Wheel Control and
JBL Amplier Retention for Select Toyota Vehicles 2018-Up
Factory bird’s eye view and proximity sensors feature is retained.
Image on the le is from a 2019 Toyota Camry using a Sony radio.
RED to SWC Key 1
WHITE to SWC Key 2
SHIELD to SWC Ground
For aermarket radios that have wires for SWC connecons,
cut o the 3.5mm plug on the Crux SWC Cable and connect
the SWC wires per the diagram on the right:
Note that there are some radios that only have SWC1 and SWC2,
in this case “shield” does not need to be connected.
Toyota
2020-Up
2019-Up
2018-Up
2019-Up
2018-Up
2020-Up
4Runner
Avalon
Camry
CH-R
Corolla
Highlander
2096-Up
2020-Up
2018-Up
2020-Up
2020-Up
RAV4
Sequoia
Sienna
Tacoma
Tundra
NOTE: For JBL amplied vehicles ONLY.
