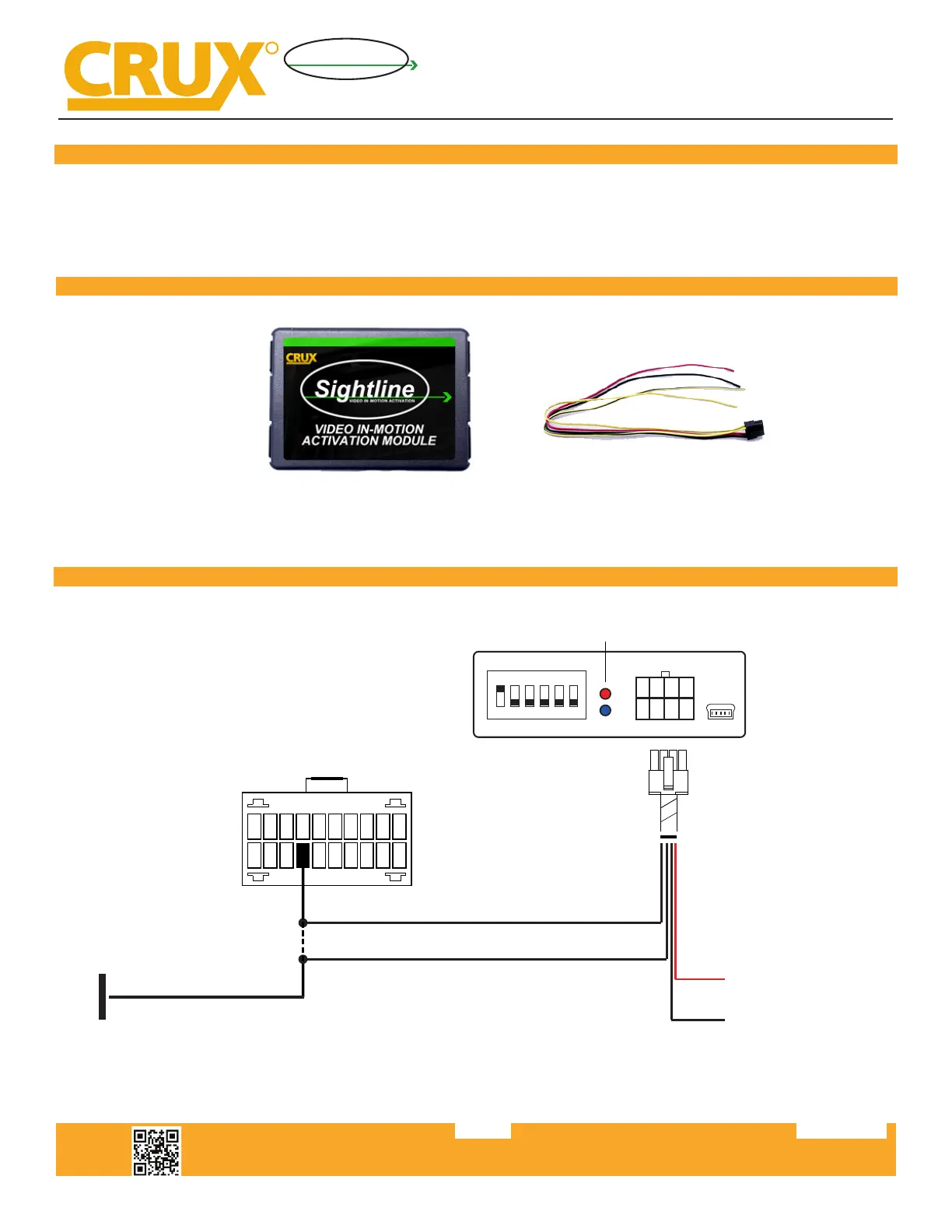

Sida 1/5
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.030320
VIMGM-94M
Video In Motion Activation for
Select Cadillac, Chevrolet & GM Vehicles 2013-Up
1 of 5
R
INTERFACING SOLUTIONS
Sightline
VIDEO IN-MOTION ACTIVATION
- Unlocks functionality of the factory-installed Radio Screen for passenger access at any time.
- Designed for OEM equipment only.
PRODUCT FEATURES:
PARTS INCLUDED:
VIMGM-94M Module VIMGM-94M Harness
INSTALLATION DIAGRAM:
8-PIN
(male plug)
4 5 6
ON
1 2 3
STATUS LED’S
CAR SIDE
CUT WIRE YELLOW/BLACK /CAR SIDE
YELLOW /RADIO SIDE
RED 12V ACC
BLACK /GROUND
CUT THE WIRE ON PIN 14
TO INTERCEPT THE DATA
WIRE VIEW
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.030320
2 of 5
R
INTERFACING SOLUTIONS
Sightline
VIDEO IN-MOTION ACTIVATION
VIMGM-94M
Video In Motion Activation for
Select Cadillac, Chevrolet & GM Vehicles 2013-Up
INSTALLATION INSTRUCTIONS:
Remove the RADIO panel to gain access to the factory 20-PIN Harnesses. You will need to locate the CAN wire
on the vehicle. The Installaon Overview on page 1 will give you details on how to connect.
Using the provided 8-Pin harness, you will need to connect the DATA wire from the vehicle harness to the
module. The CAN wire is located on the factory tuner’s 20-pin connector. The tuner is located below or behind
the factory screen.
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0303203 of 5
R
INTERFACING SOLUTIONS
Sightline
VIDEO IN-MOTION ACTIVATION
VIMGM-94M
Video In Motion Activation for
Select Cadillac, Chevrolet & GM Vehicles 2013-Up
Cut the data wire on pin 14 of the 20-pin connector of the vehicle harness and connect it to the YELLOW and
YELLOW/BLACK wires on the VIMGM-94M harness. See chart below for wire descripons. Note that the wire
color on pin 14 may vary. Make sure the connecons are solid to ensure proper data transfer. We recommend
soldering the connecons and applying heatshrink.
Loose wires on VIMGM-94M harness:
RED = 12V ACC
BLACK = Ground
YELLOW = Data Output (To Radio)
YELLOW/BLACK = Data Input (From Car)
8-PIN
(male plug)
CAR SIDE
CUT WIRE YELLOW/BLACK /CAR SIDE
YELLOW /RADIO SIDE
RED 12V ACC
BLACK /GROUND
CUT THE WIRE ON PIN 14
TO INTERCEPT THE DATA
WIRE VIEW
Tap power for the module from the GREEN 16-pin connector located next to the GRAY 20-pin connector.
RED = 12V ACC / BLACK = GROUND (Use a volt meter to conrm)
