DESCRIPTION

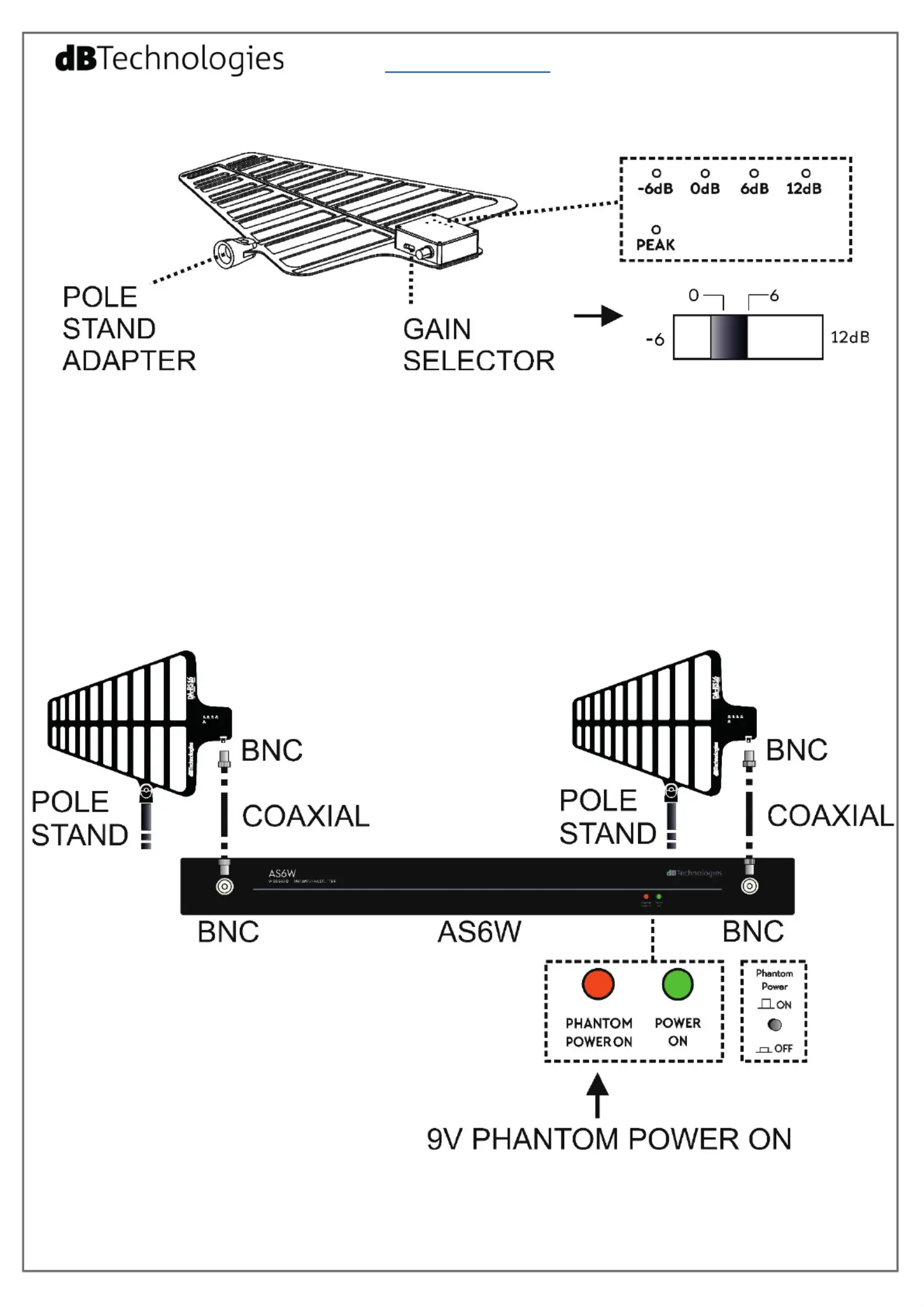

DA-RS16 is an active directive antenna, with a cardioid radiation pattern. It is equipped with a BNC connector,

a gain selector and a pole-mount adapter. The status LEDs provide immediate information about the gain

selection, and the PEAK LED reveals a potential issue due to a saturation of the signal reception.

A pair of DA-RS16 should be used with RS16000TR or a single AS6W module. In the second case please check

that the phantom power is enabled.



 

www.dbtechnologies.com  info@dbtechnologiesͲaeb.com 



DAͲRS16 - 3

GAIN SELECTOR

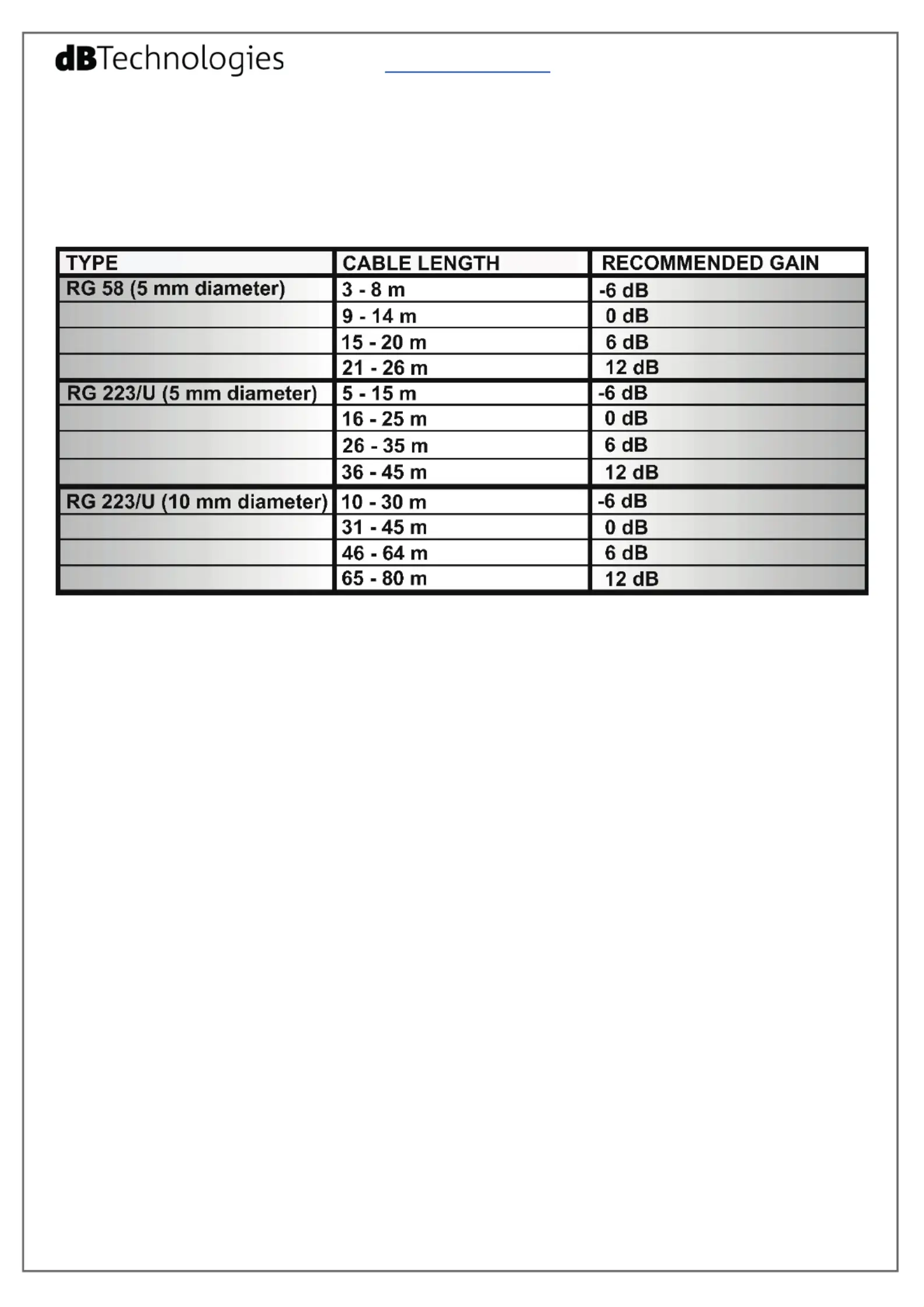

Depending on the type and length of the used coaxial cable, the gain selector must be regulated following the

table below, to compensate the losses due to the signal path:



USAGE RECOMMENDATION

Place the antennas in line-of-sight to the transmitters. Maximize the distance between the two antennas as

much as possible. For an optimized reception, please consider a minimum height of 1.8 m. The “true diversity”

concept requires the use of two antennas, so always use one or more pairs of DA-RS16. 



Produktspecifikationer

Varumärke:	DB Technologies
Kategori:	mikrofon
Modell:	DA-RS16
Produkttyp:	Wireless receiver antenna
Kompatibilitet:	RS16000
Produktens färg:	Svart
Frekvensområde:	470 - 870 MHz
