INSTRUCTION MANUAL
CAR STEREO MP3/WMA PLAYER
WITH PLL FM STEREO RADIO
RDS
USB / SD/MMC / FRONT AUX INPUT
CAU-420
EN-2

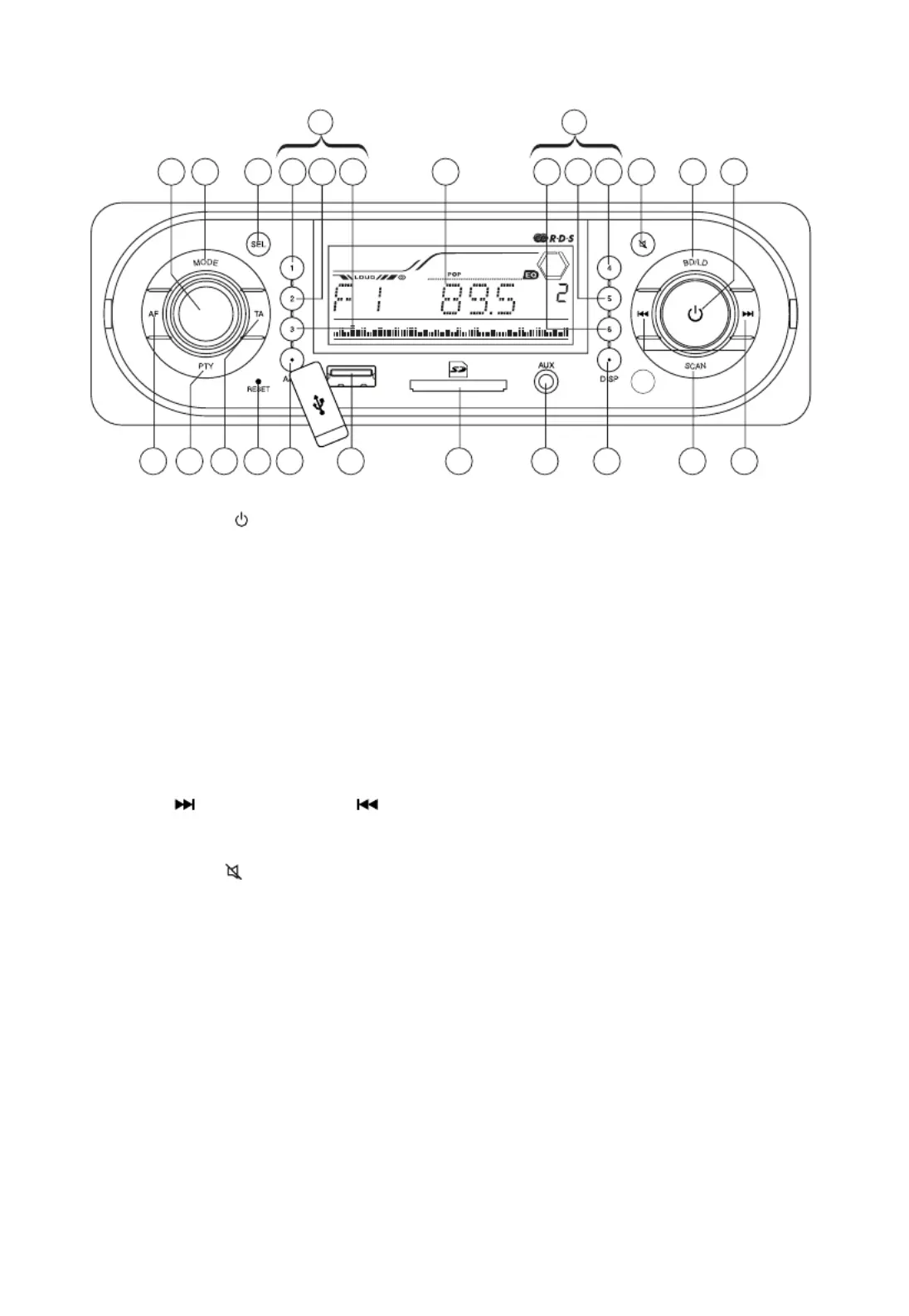

LOCATION OF PARTS AND CONTROLS
1. POWER ON/OFF ( )
2.
FUNCTION SELECT BUTTON: CONTROLS FOR BASS/TREBLE/BALANCE/FADER / TA/PI/RE-
TUNE/MASK/EON/BEEP/TA VOL/ADJ/DSP (SEL)
3.
VOL UP/VOL DOWN BUTTON: CONTROLS FOR BASS/TREBLE/BALANCE/FADER / TA/PI/RE-
TUNE/MASK/EON/BEEP/TA VOL/ADJ/DSP
4. PRESET STATIONS (1,2,3,4,5,6)
5. ‘AF’ function (ALTERNATIVE FREQUENCIES)
6. ‘TA’ function (TRAFFIC ANNOUNCEMENT)
7. ‘PTY’ function (PROGRAM TYPE)
8. DISPLAY BUTTON (DISP)
9. MODE BUTTON (MODE)
10. BAND/LOUDNESS BUTTON (BD/LD)
11. AUTOMATIC OR MANUAL TUNING
(FREQ UP OR FREQ DOWN )/ TRACK/SEARCH BUTTON
12. AUTO SEEK SEARCH TUNING (A/PS)
13. ‘SCAN’ AUTOMATIC TUNING CONTROL (SCAN)
14. MUTE BUTTON ( )
15. LCD DISPLAY
16.PAUSEBUTTON(ForUSB,SD/MMCatMP3/WMAles)
17.REPEATBUTTON(ForUSB,SD/MMCatMP3/WMAles)
18.INTROBUTTON(PreviewallTracks)(ForUSB,SD/MMCatMP3/WMAles)
19.RANDOMBUTTON(ForUSB,SD/MMCatMP3/WMAles)
20,21.10TRACKSEARCHDOWN/UP(MP3/WMAFilesonly)
22. USB PORT
23. MULTI-MEDIA CARD (MMC) / SD CARD SLOT
24. AUX IN
25. RESET BUTTON
93 2 15 192021 14 10 116 17 18
(1-3)
4
(4-6)
4
7 65 25 22 23 24 13 11812
EN-3
WIRE CONNECTION
RCA Jack Line Out:
Red(right)White(left)
CONNECTOR A
4. MEMORY +12V
5. AUTO ANTENNA OUTPUT
7. +12V (TO IGNITION KEY)
8. GROUND
Note:(connectorAno.7)mustbeconnectedbycarignitionkeyinordertoavoidthatcarbatterybecomesweak
whenthecarwillbenotusedforlongperiod.
CONNECTOR B
1. REAR RIGHT SPEAKER (+)
2. REAR RIGHT SPEAKER (-)
3. FRONT RIGHT SPEAKER (+)
4. FRONT RIGHT SPEAKER (-)
5. FRONT LEFT SPEAKER (+)
6. FRONT LEFT SPEAKER (-)
7. REAR LEFT SPEAKER (+)
8. REAR LEFT SPEAKER (-)
Maintenance
FUSE REPLACEMENT
Ifthefuseblows,checkthepowerconnectionandreplacethefuse.Ifthefuseblowsagainafterthereplacement,
theremaybeaninternalmalfunction.Inthiscase,consultyournearestrepairingcenter.
Warning
Usethespeciedamperagefuseforeachlead.Useofahigheramperagefusemaycauseseriousdamage.
L(WHITE)
LINE OUT
R(RED)
ANTENNA
CONNECTOR
ISO CONNECTOR
B
A
1 3 5 7
2 4 6 8
5 7
4 8
7
1
2
3
4
4
6
5
6
6
8
9
5

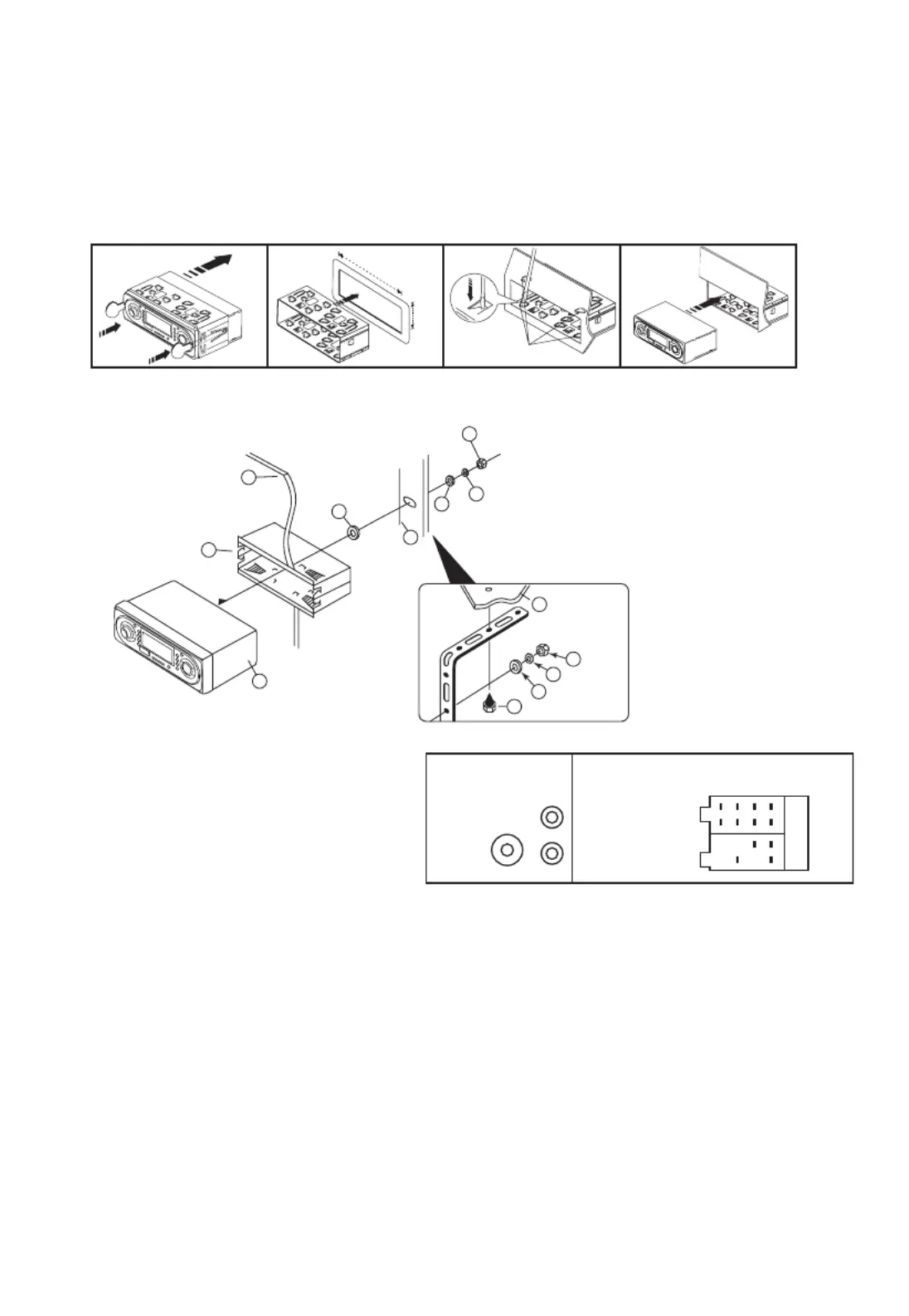

TO SUPPORT THE UNIT
1. UNIT
2. RELEASE CASE
3. DASH BOARD
4. HEX NUT
5. LOCK WASHER
6. PLAIN WASHER
7. CAR BODY
8. REAR SUPPORT STRAP
9. TAPPING SCREW
10. M5 X 15 HEX BOLT
Dashboard
INSTALLATION
PRECAUTIONS
• Choosethemountinglocationcarefullysothattheunitwillnotinterferewiththenormaldrivingfunctionsof
thedriver.
• Avoidinstallingtheunitwhereitwouldbesubjecttohightemperatures,suchasfromdirectsunlightorhot
airfromtheheater,orwhereitwouldbesubjecttodust,dirtorexcessivevibration.
• Useonlythesuppliedmountinghardwareforasafeandsecureinstallation.
• Besuretoremovethefrontpanelbeforeinstallingtheunit.
NOTE :Inclinationangleforcarradioinstallationmustnotexceed30˚otherwisethefrontpanelwillnotopen.
Note: Keepthereleasekeyinthesafeplaceasyoumayneeditinfuturetoremovetheunitfromthecar.
3
2
182mm
53mm
4
1
1
2
Bendthese
claws,ifnecessay
