INSTALLATION
Electric Strikes
ES74F
© 2019 dormakaba USA Inc
DORMA DRIVE, DRAWER AC, REAMSTOWN, PA 17567 PHONE: (800) 523-8483 (717) 336-3881 FAX: (717) 336-2106
EMAIL: archdw.us@dormakaba.comdormakaba.us WEBSITE:

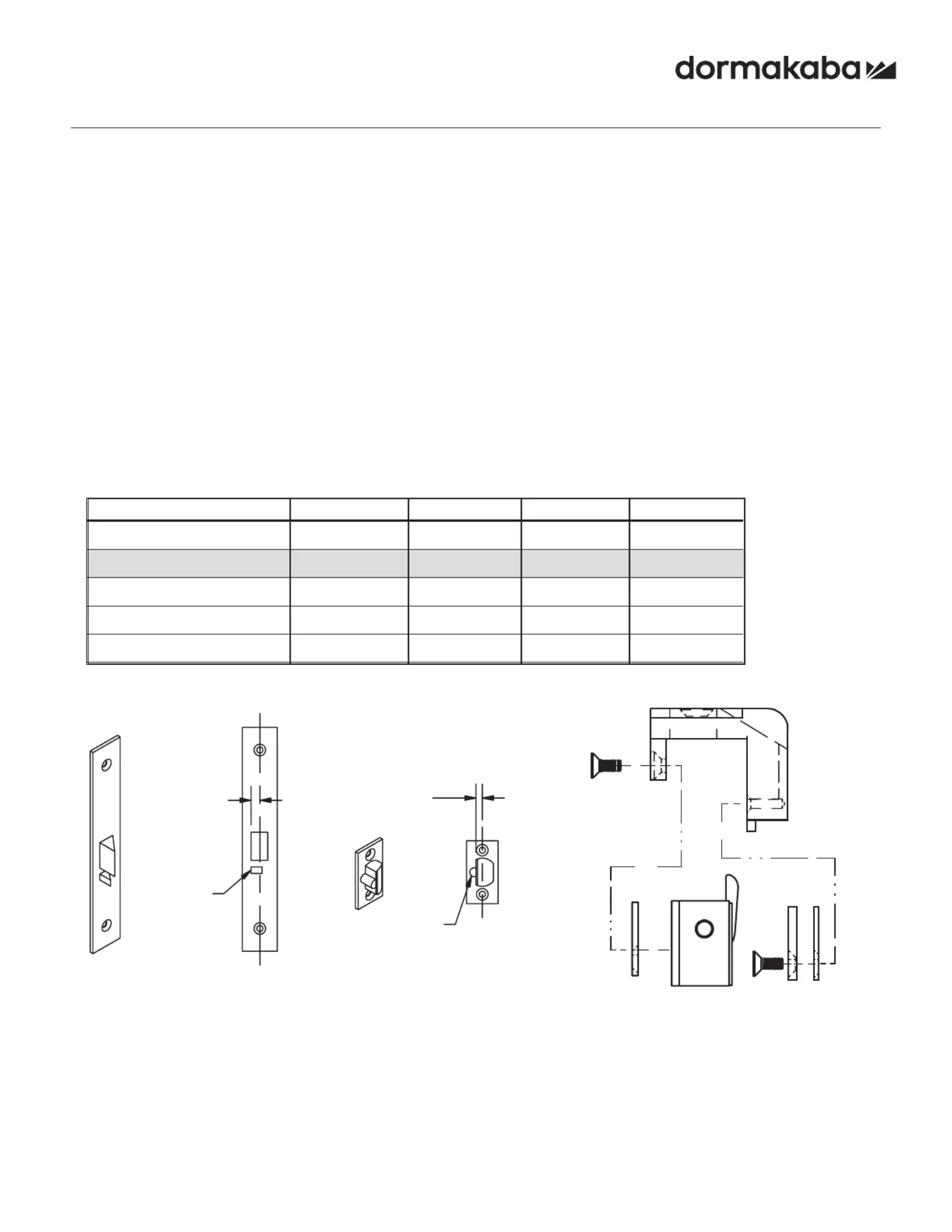

MOUNTING & WIRING INSTRUCTION
1. To determine if the Strike Shim positions need adjustment, measure dimension “R” (see Figure 1) from the
center to the edge of the latch. When necessary, re-arrange the Strike Shims according to the chart below.
The “shipped as default” positions are illustrated in Figure 2.
SHIM PLACEMENT CHART
NOTE: Shims consist of two thin and one thick.
Install with the indicated hardware per the appropriate measurement R range.
Figure #1
When installing an electric strike on an inactive door of a set of double doors, it can be treated the same as a frame installation in most situations.
For more information contact the Technical Services Department.
ISES74F
08281200
PCN18035
R09-19GR
Figure #2
S1
S2
Shipped as Default
“R” distance
from center to
edge of latch
“R” distance from
center to edge of latch
Deadlock
Trigger
Deadlock
Trigger
Mortise Lock
Cylindrical Lock
Measurement “R”“S1”Shims “S1” Screws “S2” Shims “S2”Screws
5/16”(8.2mm) or Less None M4 x 10mm 1 thick, 2 thin M4 x 10mm
5/16”- 3/8”, (8.2 - 9.7mm) 1 thin M4 x 10mm 1 thick, 1 thin M4 x 10mm
3/8” - 7/16”, (9.7 - 10.7mm) 1 thick M4 x 10mm 2 thin M4 x 10mm
7/16”- 1/2”, (10.7 - 12.2mm) 1 thick, 1 thin M4 x 14mm 1 thin M4 x 10mm
1/2” - 9/16”(12.2 - 13.7mm) 1 thick, 2 thin M4 x 14mm none none
