Installation alternatives
Dowelled on finished
floor (standard)
With mounting plate
on subfloor level
Cast-in in finished
floor level
Ø 5-1/2"
Ø 140
Ø 240
5/16"
(8)
Ø 5-1/2"
Ø 140
9-13/16"
(250)
X
"Ø 5-1/2
Ø 140
Ø 4-3/4"
Ø 120
5-15/16"
(150)

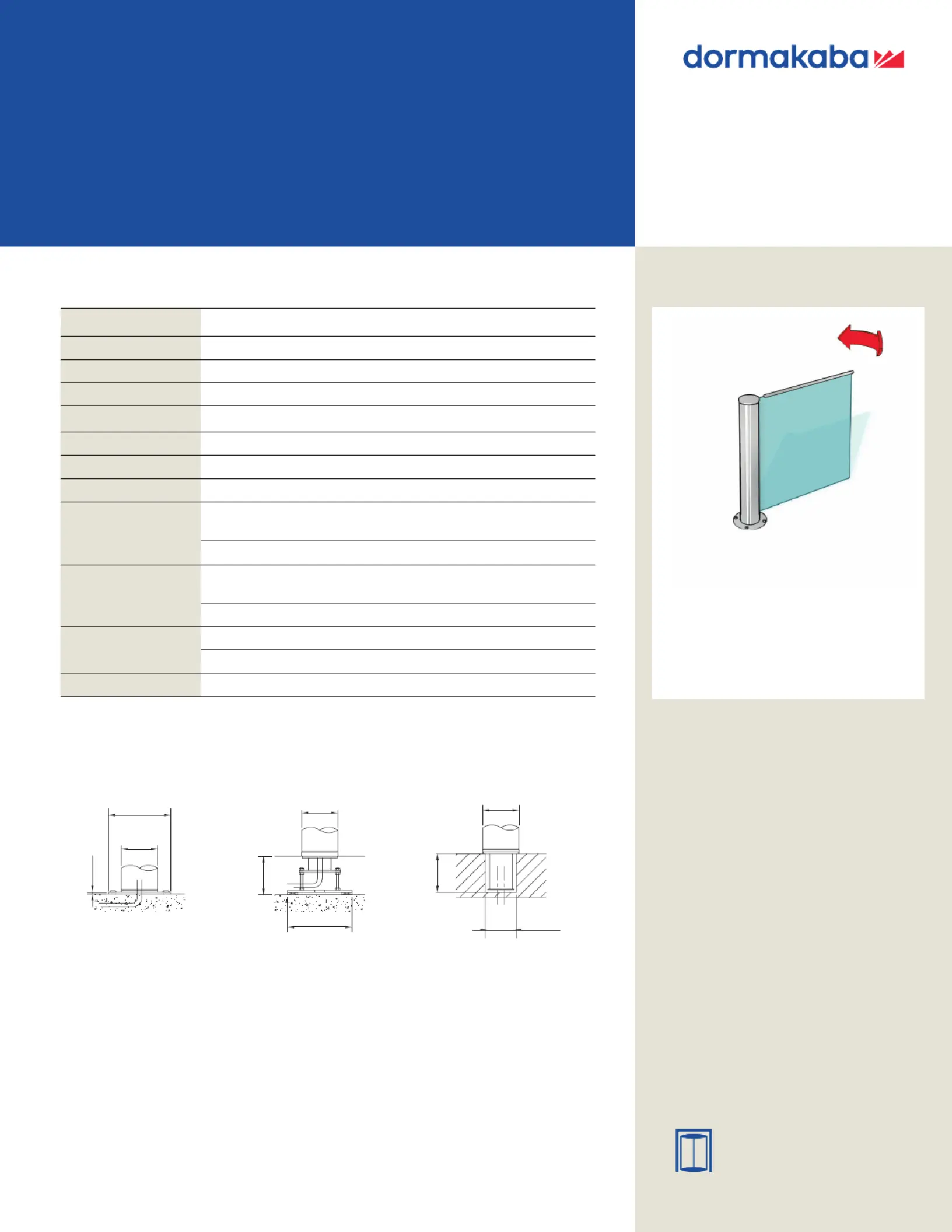

Entrance systems
HSD-E03
Half-height swing doors
Entrance systems
Standard unitsHSD-E03
Construction
Tubular columnMade of AISI 304 stainless steel, Ø 5-1/2"(Ø 140)
Barrier elementFull-height glass element, 3/8" (10) TSG with straight handle bar.
Leaf radius35-7/16" (900)
Leaf upper edge35-7/16 (900)
Locking systemDrive and toothed holding brake installed in tubular column.
FinishStainless steel satin finish.
FunctionType 2: Power-assisted motion, servo positioning drive/electrically
controlled in 2 directions.
90° opening in entrance and exit directions.
Electrical equipmentControl unit and power supply unit in an external switch cabinet
H = 11-1/8" (283) / W = 6-5/8” (168) / D = 4-1/2” (115).
Power supply 100–240 VAC 50/60 Hz.
InstallationDowelled on finished floor level, FFL.
Not suitable for outdoor installation.
Protection classesHousing IP43, components conducting supply voltage IP54.
Subject to change without notice
Note
Dimensions shown as inches
followed by millimeters; for
example, 1" (25).
