Sida 1/2
Subject to change without notice

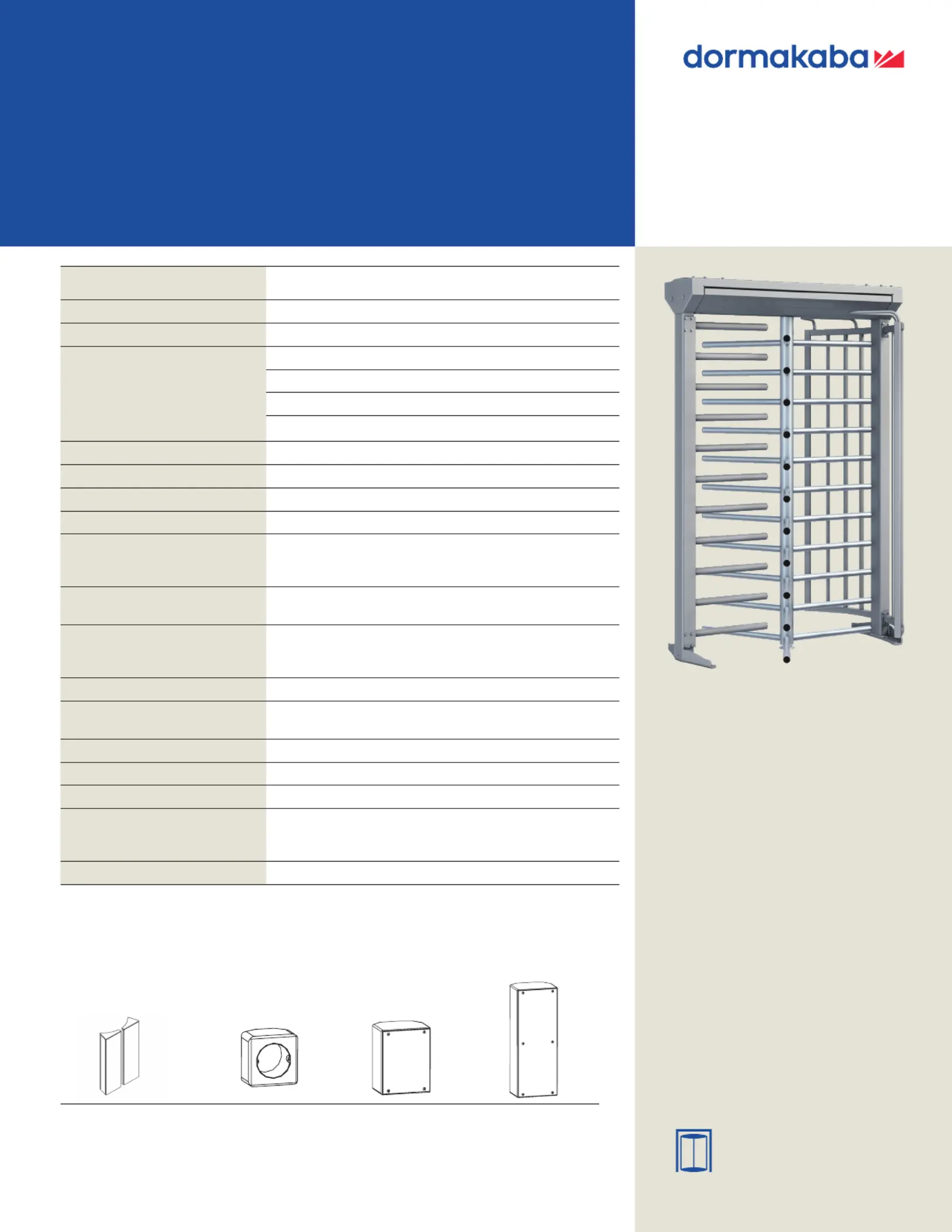

FTS-E02
Full height turnstile with choice
of straight or looped crossbars
Entrance systems
Standard units FTS-E02
Construction column diameter 51-13/16" (1300 mm)
Portal width 60-5/8" (1540 mm)
Total height 89-3/8" (2270 mm)
with optional canopy D1 94-1/16" (2390 mm)
with optional canopy D2 95-1/4" (2420 mm)
with optional canopy D3 95-1/4" (2420 mm)
Passage height 81-1/8" (2060 mm)
Passage width 25-7/16" (646 mm)
Portal and housing Steel
Lockable maintenance opening Aluminum
Rotating unit with tubular
column, Ø3-1/2" (Ø89 mm)
120° each with 11 straight or 7 looped crossbars
Ø1-9/16" (Ø40 mm), made of glossy AISI 304 stainless
steel with black plastic cover caps.
Barrier element With 11 straight or 7 looped crossbars Ø1-5/8"
(Ø42 mm), made of steel.
Finish Rotating unit made of glossy stainless steel, hot-dip
galvanized steel elements, aluminum elements in RAL
9006 (white aluminum).
Rotor 3-blade rotor
Function (see Mechanical (Manual)Function note)
Power assist
Electrical equipment Control system integrated in the unit.
Power supply 100 – 240 VAC, 50/60 Hz, 253 VA.
Standby power consumption 10 VA.
Installation Finish floor
Sub-floor
Sleeve foundation
Protection classes Housing IP33, components conducting supply voltage IP43.
Function
• Manual—Mechanical operation, free in
one direction/opposite direction blocked.
• Power assist—Power-assisted motion;
servo-positioning drive/electronically
controlled in both directions (behavior
in event of power failure can be selected
for each direction: free or blocked).
Housing with lockable front
panel made of silver
anodized aluminum,
plastic-coated according to
RAL or glossy stainless steel
Plastic in color of
unit or in RAL 9006
W: 3-11/16" (94 mm)
H: 3-11/16" (94 mm)
D: 2-9/16" (65 mm)
Aluminum in color of
unit or in RAL 9006
W: 5-1/2" (140 mm)
H: 7-1/16" (180 mm)
D: 4-5/16" (110 mm)
Aluminum in color of
unit or in RAL 9006
W: 5-1/2" (140 mm)
H: 14-3/8" (365 mm)
D: 4-5/16" (110 mm)
Optional components
Housing
Console 1
Console 2
Console 3
dormakaba
FTS-E02 full height turnstile
EO 8.18
FTS-E02

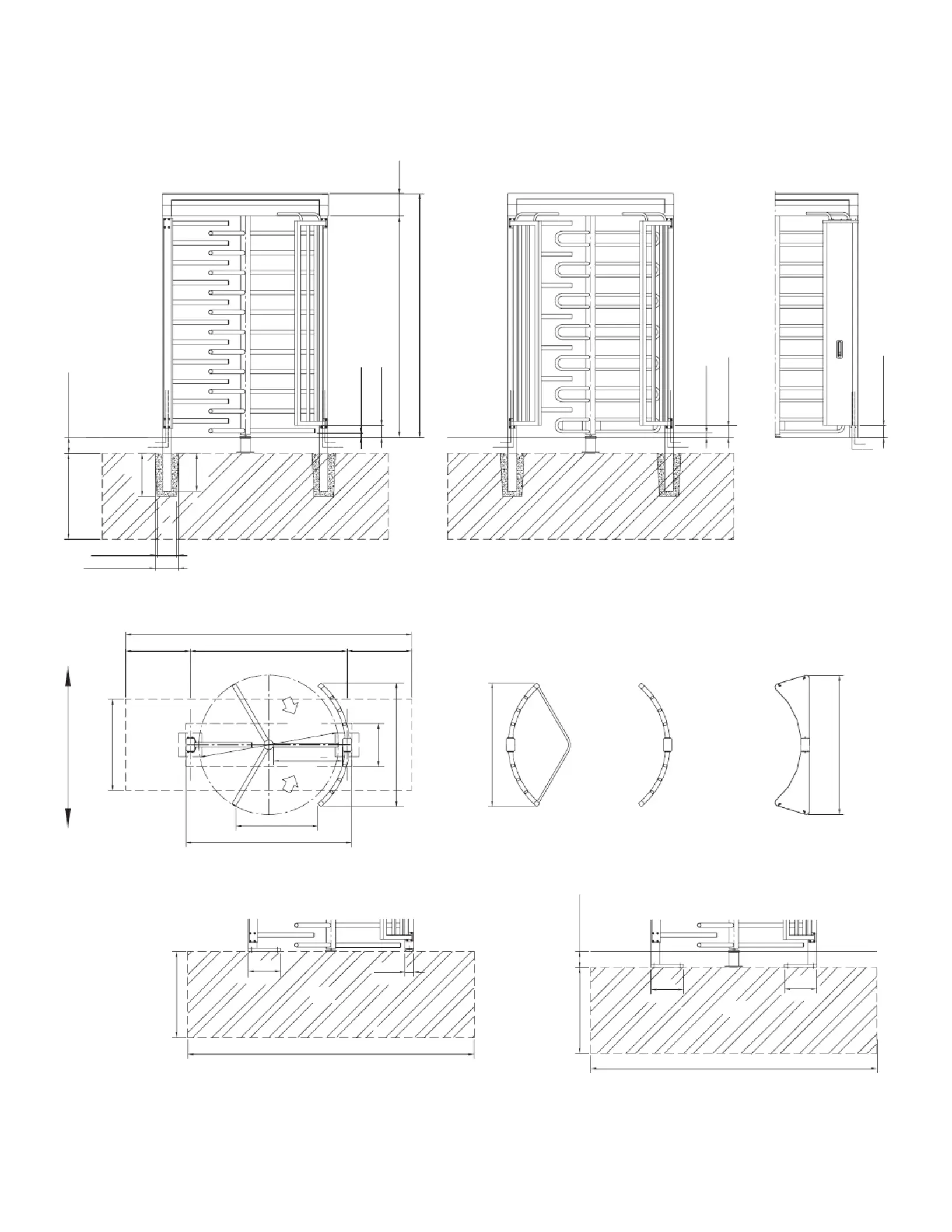

Installation drawings
INSIDE
passage height = 81-1/8" (2060)
89-3/8" (2270)
measure = X
5-5/16" (150)
foundation =
31-1/2" (800)
31-1/2" (800)
31-1/2" (800)
foundation =
33-7/16" (850)
foundation = 104-3/ (2660)4"
Option: Barrier element curved Option: Entry/Exit rake
enclosu metal housingre
104-3/4" (2660)
104-3/4" (2660)
30-1/8" (765)
3-1/8"
(80)
11-13/16"
(300)
11-13/16"
(300)
11-13/16"
(300)
13-3/4"
(350)
15-3/4"
(400)
5-15/16" (150)
7-1/16" (180)
8-11/16" (220)
1- 16" 9/ (40)
4-5/16" (110)
60-5/8" (1540)
23-5/8"
(600)
23-5/8"
(600)
51-13/16" (1300)
57-1/2"
(1460)
roof depth
OUTSIDE
45-3/8" (1152)
45-3/8" (1152)
15-3/4"
(400) 8-1/4"
(210)
25-7/16"
(646)
Option: Turnstile with curved crossbars
includes barrier element curved rake
1- 16" 9/ (40)
4-5/16" (110)
4-5/16" (110)
Ø51-13/16"
(Ø1300)
FFL
SFL
dormakaba USA Inc.
Dorma Drive, Drawer AC
Reamstown, PA 17567
844.SPECNOW
www.dormakaba.us
Note
Dimensions shown as inches
followed by millimeters; for
example, 1" (25).
