Dormakaba RCI 0162 Bruksanvisning
Sidor 2 Engelska Inte kategoriserad
Läs bruksanvisningen för Dormakaba RCI 0162 gratis online eller ladda ner PDF:en. Bruksanvisningen har visats 31 gånger. Fråga om modellen? Ställ en fråga
Fail Secure = Fail Locked = FL AC = Alternating Current DC = Direct Current
Intermittent Duty = Energized less than 1 minute with 1:5 duty ratio Continuous Duty = Energized 1 minute or more

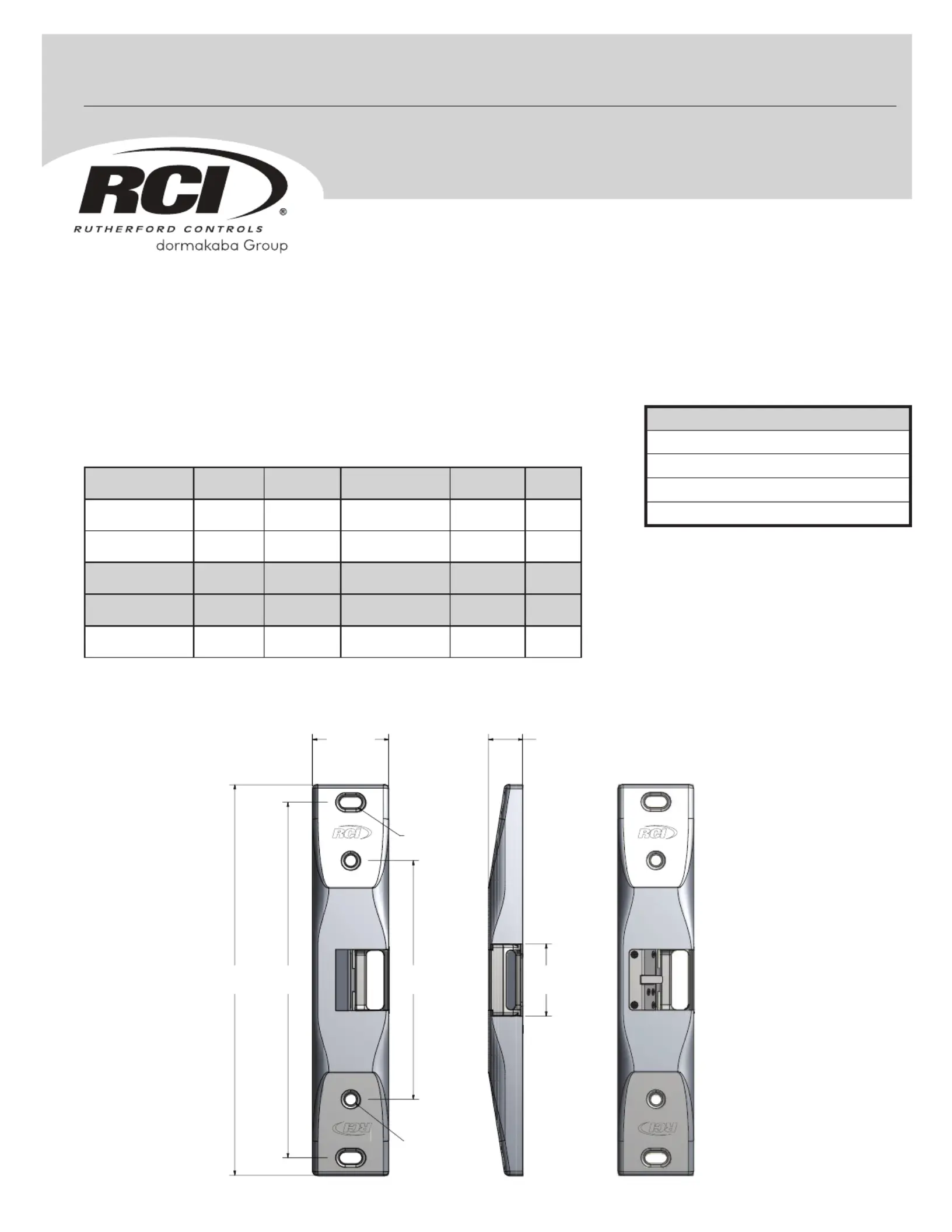

INSTALLATION
F0162 / 0162
F0162LM / 0162LM
IS0162
PCN18003
R02-18TG-1
Important: The F0162 or the 0162 Electric Strikes should never be used as a door stop. Please install stops on frame in
appropriate locations. Ensure the exit device functions as intended for life safety concerns by verifying electric strike and
exit device compatibility. Maximum latch projection is essential to obtain full holding force.
When installed in a fail secure manner, the local Authority Having Jurisdiction shall be consulted with regard to the use
of selected panic hardware to ensure emergency exit from the secured area.
Installations of this RIM strike qualify as “Indoor Use Only” when not continuously exposed to an outdoor environment.
Catalog Specifications
MODEVOLTAGECURRENTDUTYAMPSOHMS
Fail Secure12VACIntermittent0.3322
Fail Secure12VDCContinuous0.5022
Fail Secure24VACIntermittent0.6422
Fail Secure24VDCContinuous0.2489
Fail Secure11-16VACIntermittent0.32-0.5022
1-3/4”
(44.5mm)
3/4”
(19.0mm)
9”
(228.6mm)
5-1/2”
(139.7mm)
1-5/8”
(42.0mm)
8-1/4”
(209.6mm)
HORIZONTAL
ADJUSTMENT
MOUNTING
HOLES
MODEL WITH
LATCH MONIT
OR
LOCK DOWN
HOLES
SURFACE MOUNTED RIM STRIKE
(FIRE RATED AND NON-FIRE RATED)
Electrical Latch Monitor
Specification:
• 12VDC, 1A, resistive load
Note: Contacts identified on the
harness sleeve are indicated with the
keeper in a closed and locked condition,
with no latch present
Dimensional Details
UL 294 Performance Ratings:
Access Control Line Security : Level I
Destructive Attack : Level I
Endurance : Level IV
Standby Power : Level I
© 2018 dormakaba Canada Inc.
www.rutherfordcontrols.comhoneax • P: 1.800.265.6630 • F: 1.800.482.9795 • Email: sales_RCI@dormakaba.com
