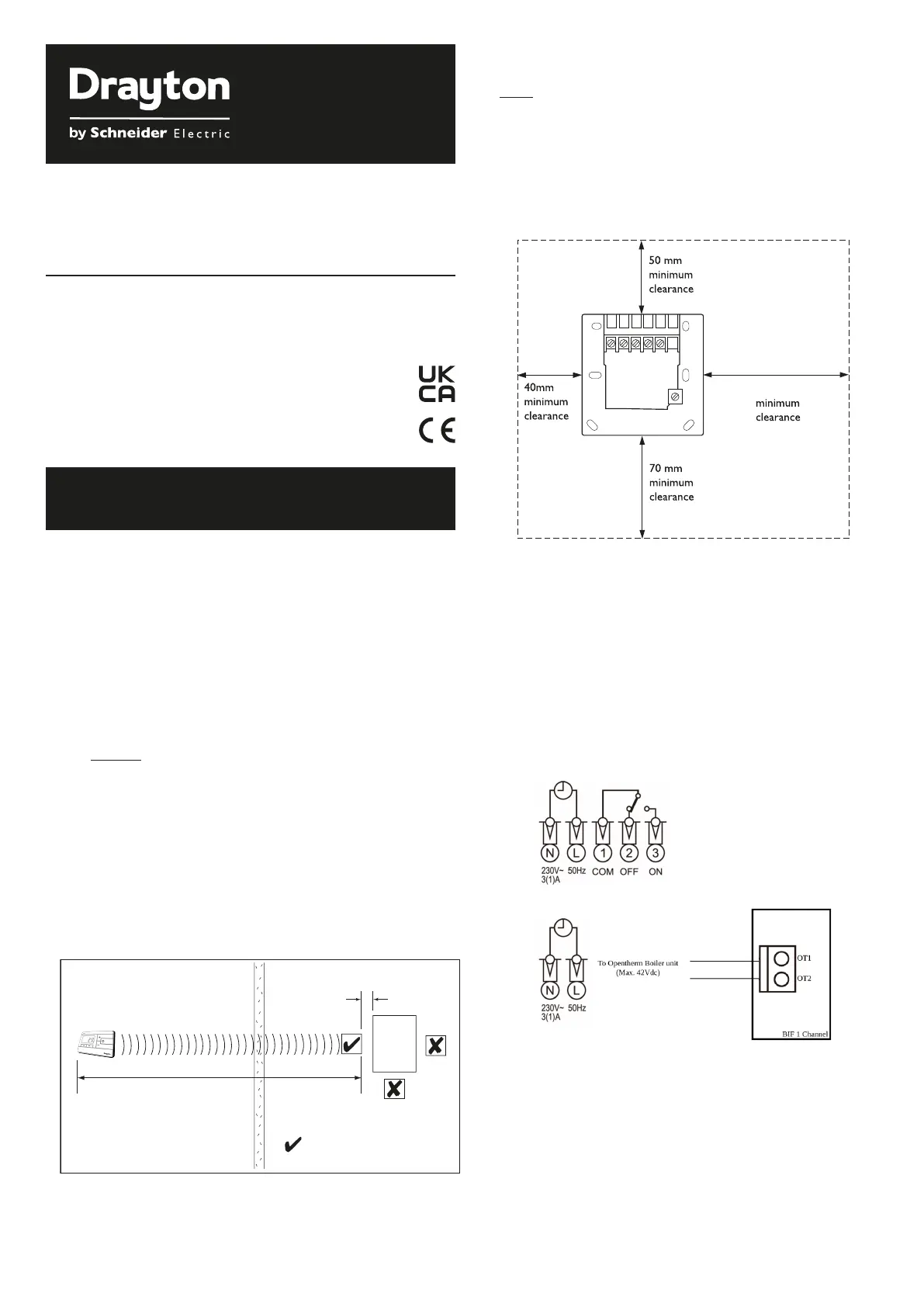

Sida 1/4
100 mm
N L 1 2 3 4
Wireless Programmable
Room Thermostat
Installation Guide
Before Installation
If you do not have the knowledge to install the thermostat safely
then you must arrange for a competent electrician to install it for
you. Wiring must conform to the current IEE regulations.
Prior to commencing the installation you must ensure the
mains supply is switched off.
1. Installing the Digistat
Receiver
1a. Location of the receiver
Location
The Digistat Receiver should be mounted in a convenient
position, close to the boiler or central heating system wiring
centre. It is recommended that the receiver is mounted on the
wall nearest the final location and not less than 1m from the
boiler side panel.
Warning: Installing the receiver too close to metal objects
or mains cables may interfere with the radio signal.
Digistat
3rd Generation
(Fig 3)
(Fig 2)
1b. Installation of the wallplate
2. Wiring
Fixing (minimum wallplate clearances shown below)
i. Loosen the securing screws, remove the wallplate, and if
surface wiring is to be used, snap out the cable entry strip
on the bottom edge of the wallplate with a pair of pliers.
ii. Fix the wallplate, terminals at the top, either direct onto the
flat wall using wall plugs and no 6 x1” wood screws or on
a flush-mounting single conduit box using M3.5 x 14mm
screws.
This product is double insulated and does not require an earth
connection. The receiver should
be wired to the combi boiler or
central heating wiring using the correct type of cable or flex.
The receiver should be wired in to replace hard-wired room
or programmable thermostats shown on the system or boiler
wiring diagrams. Always check other manufacturers’
instructions for compatibility.
Relay Output
BOILER
Opentherm Output
1m
Preferred side of boiler
The range may be affected by composition/density and
number of walls between the Digistat thermostat and
receiver
Radio Signal Range:
30m Typically
REC
(Fig 1)
M
ode
l
: RF901
Consists of Thermostat RF90T and Receiver RF90S
Technical Helpline Tel: 0333 6000 622
Website: www.draytoncontrols.co.uk
Email: customer.care@draytoncontrols.co.uk
User and Installation Guide 06490310001 Iss E
If your boiler supports OpenTherm please follow these
instructions:
Remove the OpenTherm cables f rom the existing controller or
thermostat. Connect the cables to the OpenTherm terminals
OT1 and OT2 on the Receiver. Polarity is not important.
