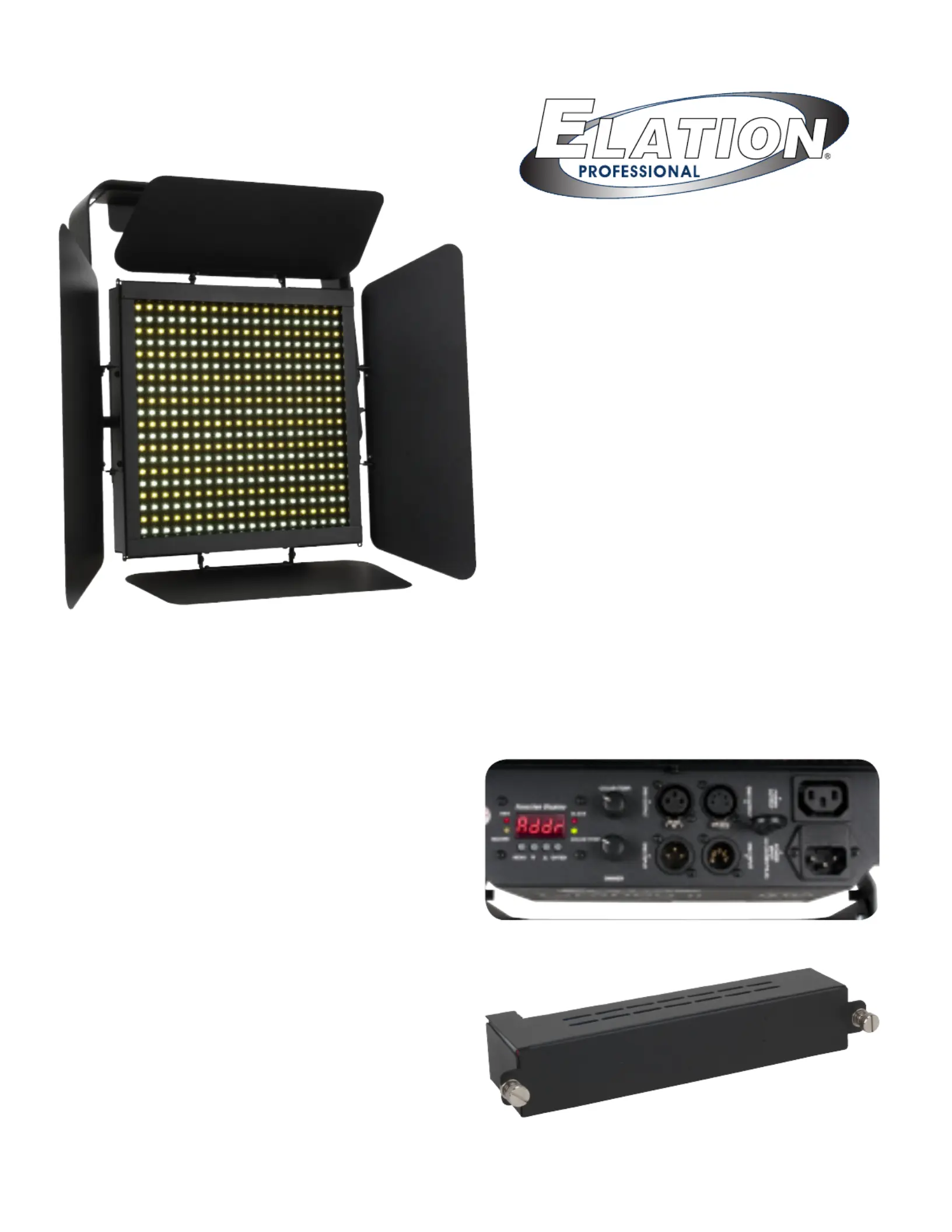

TVL1000 II™
SKU# TVL613
The new improved TVL1000 II™ features a low heat,
>90CRI, dynamic LED array panel consisting of 200
warm white and 200 cool white LEDs, 30° beam angle,
variable manual and DMX controlled color temperature
(3,200K - 6,500K) and dimming, adjustable barn doors,
magnetic gel/diffuser holder, flicker free operation for
broadcast TV and FILM, 3 and 5 pin DMX in/out and
linkable power in/out connections, (4) button (2) dial LCD
display control panel, 68W max power consumption,
a multi-voltage universal auto switching power supply
(100-240v), and an optional battery is available.
FEATURES
Low Heat, >90CRI, Dynamic LED Array Panel
(200) Warm White and (200) Cool White LEDs
30° Beam Angle
Varible Color Temperature (3,200K - 6,500K)
Adjustable Barn Doors
Magentic Gel/Diffuser Holder
Manual and DMX Controlled Color Temp and Dimming
Flicker Free Operation for Broadcast TV and FILM
Multiple Unit Power Linking
68W Max Power Consumption
Optional Battery Available
Specifications are subject to change without notice ©Elation Professional 07/31/16
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands
+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu
EL ATION I TVL2000 II™ I Product Specification Sheet
Optional Battery
SOURCE
(200) Warm White + (200) Cool White LEDs
PHOTOMETRIC DATA
340 LUX 32 FC @6.6’ (2M) (30° Warm White 3,200K)
420 LUX 39 FC @6.6’ (2M) (30° Cool White 6,500K)
600 LUX 56 FC @6.6’ (2M) (30° Full On 4,500-5,000K)
EFFECTS
Variable Color Temperature (3,200K - 6,500K)
Electronic Dimming (0% - 100%)
CONTROL / CONNECTIONS
(3) DMX Channel Modes (2 / 2 / 3)
Manual and DMX Color Temperature and Dimming
(4) Button and (2) Dial Control Panel
LCD Menu Display
3pin and 5pin DMX In/Out
Power Link Up To (5) Units
SIZE / WEIGHT
Length: 15.9” (406mm)
Width: 13.7” (350mm)
Vertical Height: 4.4” (113mm)
Weight: 13.6 lbs. (6.2 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
68W Max Power Consumption
TA: 40°C Max Ambient Temperature
INCLUDED ITEMS
90° Dual / Yoke Bracket
Power Cable
APPROVALS / RATINGS
15.9”
(406mm)
13.7”
(350mm)
4.4”
(113mm)
specifications
I
ELATION TVL1000 II™
I
www.elationlighting.com
Specifications are subject to change without notice ©Elation Professional 07/31/16
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands
+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu
DIMENSIONAL DIAGRAMS
PRODUCT SPECIFICATIONS
PHOTOMETRIC DATA
OPTIONAL ACCESSORIES
ORDER CODE ITEM
TRIGGER CLAMP Heavy Duty Wrap Around Hook Clamp
TVL975 TLV1000 BATTERY
LSF536 Light Shaping Filter 30 20” x 24” Sheet°
LSF537 Light Shaping Filter 20 20” x 22” Sheet°
LSF538 Light Shaping Filter 60 x 1 20” x 24” Sheet° °
LSF559 Light Shaping Filter 10 20” x 24” Sheet°
ECCOM-10 Power Link Cables
AC3PDMX10PRO 10 ft. (3m) 3pin PRO DMX Cable
AC5PDMX10PRO 10 ft. (3m) 5pin PRO DMX Cable
Additional cable lengths available
WARM WHITE (3200K)
COOL WHITE (6500K)
FULL ON (4500-5000K)
111 FC / 1200 LUX
143 FC / 1540 LUX
204 FC / 2200 LUX
30° Beam Angle
LUX
x
0.0929 = FC
0 m
0 ft
1 m
3.3 ft
4 m
13.1 ft
3 m
9.8 ft
2 m
6.6 ft
5 m
16.4 ft
Ø 1.0 m / Ø 3.3 ft
Ø 1.6 m / Ø 5.2 ft
Ø 2.1 m / Ø 6.9 ft
Min Beam Diameter
30° Beam Angle Ø 2.6 m / Ø 8.5 ftØ 0.5 m / Ø 1.6 ft
32 FC / 340 LUX
39 FC / 420 LUX
56 FC / 600 LUX
15 FC / 160 LUX
19 FC / 200 LUX
25 FC / 270 LUX
9 FC / 95 LUX
11 FC / 116 LUX
15 FC / 160 LUX
6 FC / 66 LUX
10 FC / 110 LUX
8 FC / 85 LUX
RoHs
C O M P L I A N T
IP20
