User Instructions
Elation Professional®
4295 Charter Street
Los Angeles CA 90058
www.elationlighting.com
Introduction:
Thank you for purchasing the Elation Professional ®
Stage Color.
™
To optimize the performance of this product, please
read these operating instructions carefully to familiarize yourself with
the basic operations of this unit. The Stage Color™ is a high output,
color mixing Par64 Can, designed for stage and theatrical venues.
Unpacking: Every Stage Color™ has been thoroughly tested and has
been shipped in perfect operating condition. Carefully check the ship-
ping carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your fixture for any
damage and be sure all equipment necessary to operate the unit has
arrived intact. In the event damage has been found or parts are miss-
ing, contact technical support for further instructions. Do not return the
unit to your dealer without contacting technical support first
Customer Support: Elation Professional provides a customer sup-®
port line, to provide set up help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.elationlighting.com for any comments
or suggestions. Service Hours are Monday through Friday 9:00 a.m. to
5:00 p.m. Pacific Standard Time.
Voice: (323) 582-3322
Fax: (323) 582-3108
E-mail: support@elationlighting.com
Warning! To prevent or reduce the risk of electrical shock or fire, do
not expose this unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
Elation Professional.
Safety Issues: This unit may blow a fuse if the maximum allotted
channel load of 6 amps is reached. If any of the fuses need replace-
ment, always replace the fuse with the same exact type that was
removed, unless otherwise instructed by an authorized Elation Profes-
sional service technician. Use of a different type fuse from that which ®
is recommended may cause fire or electric shock and will void the
manufactures warranty.
Stage Color™ Introduction
© ®Elation Professional - www.elationlighting.com - Stage Color™ Instruction Manual Page 2
Revised 6/05
STAGE COLOR
© ® Elation Professional www.elationlighting.com Stage Color™ Instruction Manual Page 3 Elation Professional www.elationlighting.com Stage Color™ Instruction Manual Page 4© ®
• This unit may blow a fuse if the maximum allotted load of 6 amps is
reached. If the fuse needs replacement, always replace the fuse
with same exact type that was remove. Use of a different type fuse
from that which is recommended may cause fire or electric shock
and will void the manufactures warranty
• To reduce the risk of electrical shock or fire, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit
• Be sure that the local power outlet match that of the required voltage
for your unit
• Do not attempt to operate this unit if the power cord has been
frayed or broken
• Do not attempt to remove or break off the ground prong from the
electrical cord. This prong is used to reduce the risk of electrical
shock and fire in case of an internal short
• Disconnect from main power before making any type of connection
• Do not remove the cover under any conditions. There are no user
serviceable parts inside
• Never operate this unit when it’s cover is removed
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall
• Do not attempt to operate this unit, if it becomes damaged
• This unit is intended for indoor use only, use of this product out
doors voids all warranties
• During long periods of non-use, disconnect the unit’s main power
• Always mount this unit in safe and stable matter
• Power cords should be routed so they are not likely to be walked
on, pinched by items placed upon or against them.
• Cleaning -The fixture should be cleaned only as recommended by
the manufacturer. See page 14 for cleaning details
• Heat -The appliance should be situated away from heat sources
such as radiators, heat registers, stoves, or other appliances
(including amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the unit.
C. The unit has been exposed to rain or water.
Stage Color™ Safety Precautions
Stage Color™ Features
• R. G. B. Color Mixing
• Built-in 3 Channel Electronic Dimmer
• 1800 Watts Maximum Output
• 9 Preset Chase Programs Built-in
• Chase Speed Adjustment
• Fade Time Adjustment
• 3 Operating Modes:
Mode 1: RGB
Mode 2: C&B,
Mode 3: Color Scroll
• 3 x ZB-HX600 120v - 575w - 3200k - 300hrs
• Optional Lamps:
ZB-HX601 120v - 575w - 3050k - 1500hrs
ZB-HX400 120v - 400w - 3200k - 300hrs
ZB-HX401 120v - 400w - 3040k - 1500hrs
• Optional Lens
Narrow 10˚ Lens
Wide 16 x 30˚ Lens
Stage Color™ Product Registration
The Stage Color™ carries a two year limited warranty. Please fill out
the enclosed warranty card to validate your purchase. All returned
service items whether under warranty or not, must be freight pre-
paid and accompany a return authorization (R.A.) number. The R.A.
number must be clearly written on the outside of the return package.
A brief description of the problem as well as the R.A. number
should
also be written down on a piece of paper included in the shipping
carton. If the unit is under warranty, you must provide a copy of your
proof of purchase invoice. You may obtain a R.A. number by contact
-
ing our customer support team on our customer support number. All
packages returned to the service department not displaying a R.A.
number on the outside of the package will be returned to the shipper.
© ® Elation Professional www.elationlighting.com Stage Color™ Instruction Manual Page 6© ® Elation Professional www.elationlighting.com Stage Color™ Instruction Manual Page 5
or anywhere in the middle. When a fixture is assigned a DMX address
of 1, the DMX controller knows to send DATA assigned to address 1
to that unit, no matter where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX and Master/
Slave Operation): The Stage Color can be controlled via DMX-512
protocol. The Elation Professional Stage Color™ can use up to three ®
channels of DMX. The DMX address is set on the rear panel of the
Stage Color. Your unit and your DMX control-
ler require a standard 3-pin XLR connector for
data input and data output (Figure 1). If you are
making your own cables, be sure to use standard
two conductor shielded cable (This cable may
be purchased at almost all professional sound
and lighting stores). Your cables should be made
with a male and female XLR connector on either
end of the cable. Also remember that DMX cable
must be daisy chained and can not be split.
Notice: Be sure to follow figures two and three when making your own
cables. Do not use the ground lug on the XLR connector. Do not con-
nect the cable’s shield conductor to the ground lug or allow the shield
conductor to come in contact with the XLR’s outer casing. Grounding
the shield could cause a short circuit and erratic behavior.
Stage Color™ Set Up
Power Supply: Before plugging your unit in, be sure the source volt-
age in your area matches the required voltage for your Elation Profes-
sional Stage Color.™ The Stage Color®
™
is available in a 120v and
220v version. Because line voltage may vary from venue to venue, you
should be sure your unit voltage matches the wall outlet voltage before
attempting to power up your fixture.
DMX-512: DMX is short for Digital Multiplex. This is a universal pro-
tocol used as a form of communication between intelligent fixtures
and controllers. A DMX controller sends DMX data instructions from
the controller to the fixture. DMX data is sent as serial data that trav
-
els from fixture to fixture via the DATA “IN” and DATA “OUT” XLR ter
-
minals located on all DMX fixtures (most controllers only have a DATA
“OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of
different manufactures to be linked together and operate from a sin-
gle controller, as long as all fixtures and the controller are DMX com
-
pliant. To ensure proper DMX data transmission, when using several
DMX fixtures try to use the shortest cable path possible. The order
in which fixtures are connected in a DMX line does not influence the
DMX addressing. For example; a fixture assigned a DMX address of 1
may be placed anywhere in a DMX line, at the beginning, at the end,

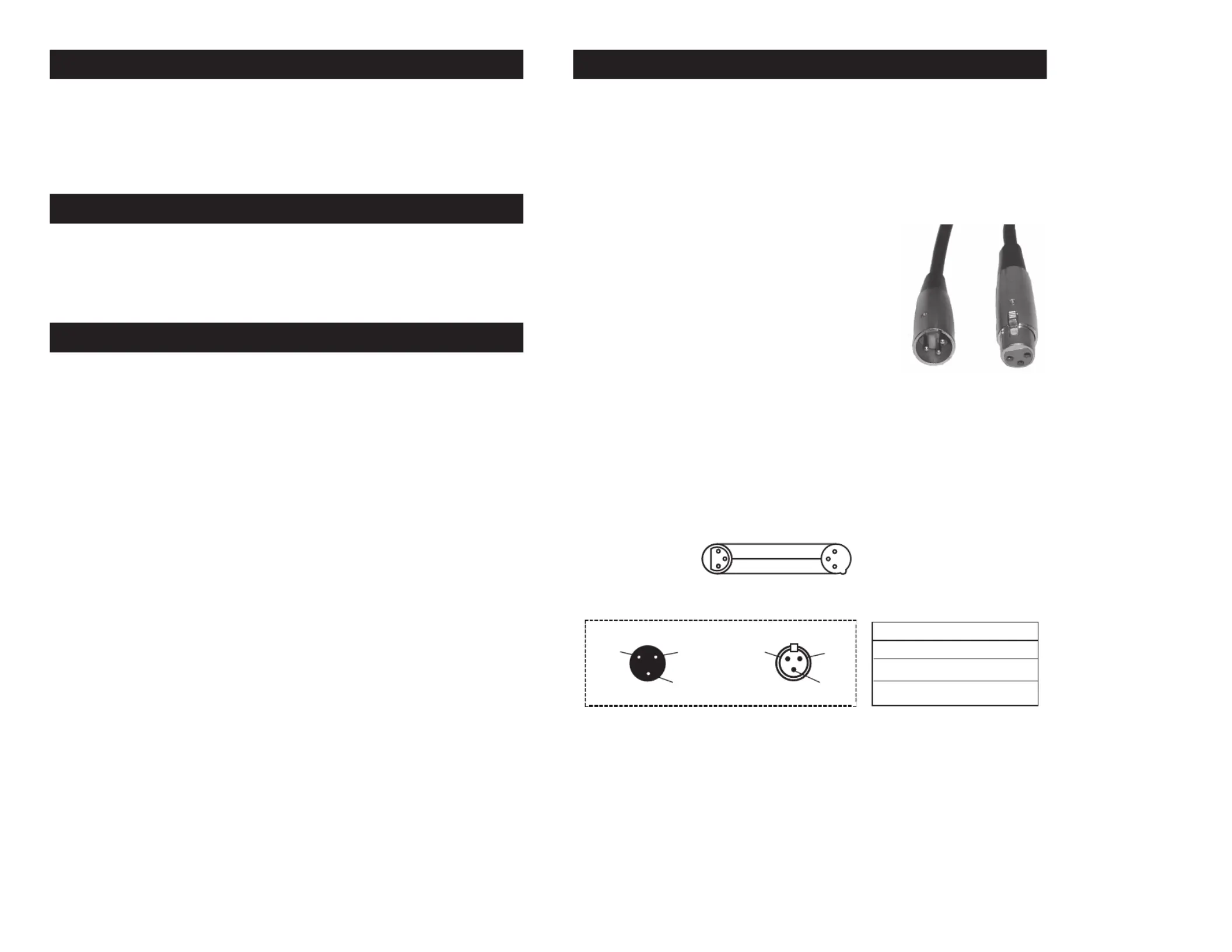

DMX512 IN
3-PIN XLR
1
2
3
1
2
3
DMX +
DMX -
COMMON
DMX512 OUT
3-PIN XLR
Figure 2
Stage Color™ Set Up
Stage Color™ Description
To optimize the performance of this product, please read these
operating instructions carefully to familiarize yourself with the basic
operations of this unit. These instructions contain important safety
information regarding the use and maintenance of this unit. Please
keep this manual with the unit, for future reference.
Stage Color™ General Instructions
The Stage Color.
™
is a 3 channel DMX, color mixing par can. With the
use of a DMX controller, this unit can create up to 16,000,000 colors.
The unit also includes a built-in dimmer that allows for full dimming
functions and eliminates the need of an external dimmer pack. For
added convenience the unit comes with a 4-digit LED display for func
-
tion settings and easy DMX addressing.
Figure 1
Figure 3
1 Ground
1 Ground
XLR Male Socket
XLR Pin Configuration
3 Hot
2 Cold
2 Cold
3 Hot
XLR Female Socket
Pin 3 = Data True (positive)
Pin 2 = Data Compliment (negative)
Pin 1 = Ground
