Sida 1/6
English Version 1.0
Part No.24-004-2319-00
USER MANUAL
IMAGE PRO 300 II
Http: www.elationlighting.com
E-mail: support @ elationlighting.com
Model
Image Pro 300 II
Order Code
26-007-0267-00
26-007-0268-00
Voltage
AC230V/240V
AC100V/120V

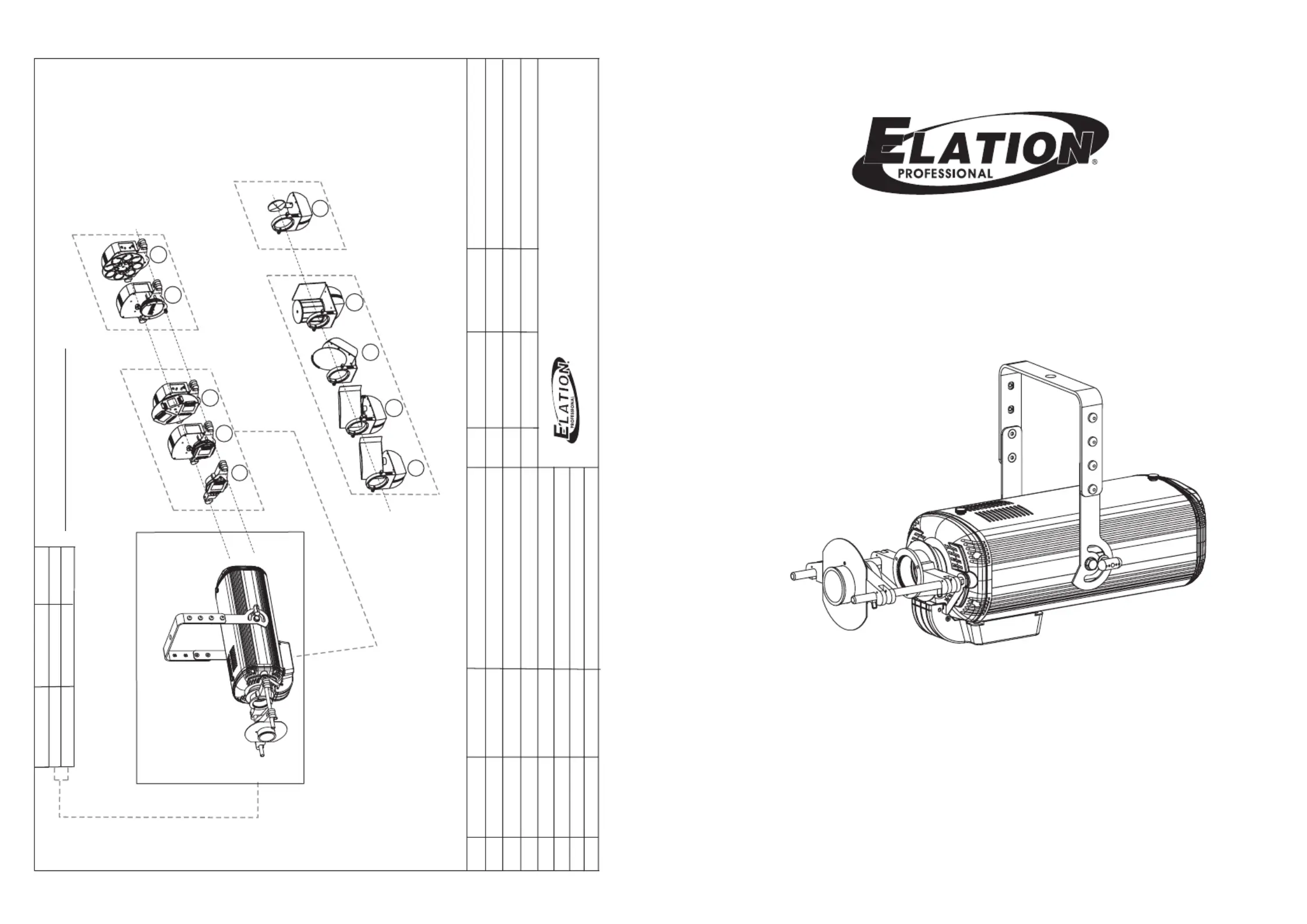

Image Pro 300 II & Standard Accessories
Request with Film Series
Optional Accessories-Film Series Optional Accessories-GOBO Series
Optional Accessories-Mirror Series Optional Accessories-LENs Series
Order Code Model Descriptions
28-002-0249-00
26-020-0020-00
28-003-0069-00
26-007-0036-00
28-003-0066-00
28-003-0050-00
26-007-0035-00
ISP-F1
ISP-F1R
IP-F3-R
IP-2
ISP-RGW
ISP-FM
IP-3
Static slide holder
Rotating slide suppor t
Manual or timed tri-slide changer
Rotating gobo holder
Rotating gobo wheel
Manual fixed mirror
Motorized mirror
TYPE
(H)
( I )
(J)
Order Code
28-002-0651-00
28-003-0046-00
28-002-0650-00
Model
ISP-RM
ISP-RB
ISP-RP
Descriptions
Angel adjustable rotating mirror
Rotating multiple mirror effect
Rotating panoramic effect prism
Image Pro 300 II
Appendix: Order Information
Image Pro 300 II
A
C
D
E
B
F
G
H
I
J
TYPE
(A)
(B)
(C)
(D)
(E)
(F)
(G)
-11-
Contents
Welcome......................................................................................2
General Information.....................................................................3
Prepare before operation.............................................................4
Lamp replacement.......................................................................5
Fuse replacement........................................................................7
Operation Guide..........................................................................7
Optional accessories & effects...............................................7/8/9
Fixed gobo holder & Metal gobos................................................9
Fixed lens holder & Single/Multi-element lens...........................10
Technical specifications..............................................................10
Appendix:Order Information........................................................11
unpacking................................................................................2
customer support....................................................................2
safety issues...........................................................................2
About our Image Pro 300 II.....................................................3
Main Features.........................................................................3
Safety Instructions..................................................................4
Fixed Lens Holder & Single/Multi-elements Lens
-10-
Technical Specifications
Overall Size:
Weight(Approx):
Lamp Type:
Mains Supply:
Power Consumption:
Fuse(Slow acting)
Cooling:
Optional Accessories:
(Included)
555x240x262mm
10.5Kg
HTI 300W/DEL lamp 85V/300W, 750hours
AC 100/120V~50/60Hz
450 Watts maximum
T6.3A 250V 5x20mm
Forced air with axial fan
One fixed gobo holder + 6 metal gobos
One fixed lens holder
1:2.4/100mm single-element lens
*******
All rights reserved! Improvement and changes to specifications, design and
this user's manual, may be made at any time without prior notice.

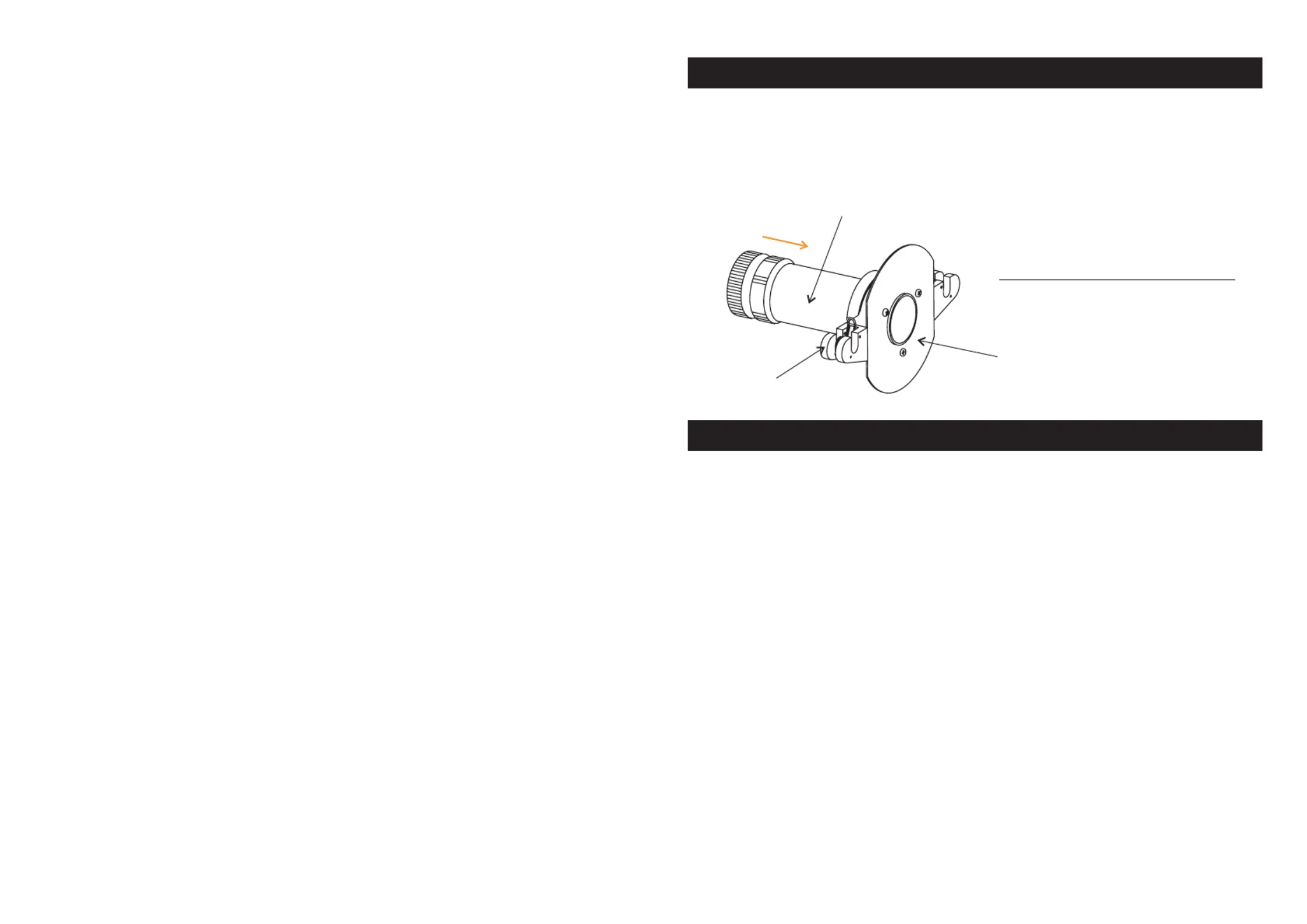

The Image Pro 300 II supplies the Lens Hoder as standard equipment together
with the chosen lens and on which mirror accessories can be mounted; by
positioning the support correctly on the guides, the projected image can be
focused perfectly.
Single/Multi-element lens
mounting
supporting plate
Support lens and effects, standard
Thank you for purchasing the Elation Professional Image Pro 300 II. To optimize
the performance of this product, please read these operating instructions
carefully to familiarize yourself with the basic operations of this unit.
Welcome
Warning!
Caution!
To prevent or reduce the risk of electrical shock or fire, do not expose this unit
to rain or moisture.
There are no user serviceable parts inside this unit. Do not attempt any repairs
yourself, doing so will void your manufactures warranty. In the unlikely event
your unit may require service please contact Elation Professional.
This unit may blow a fuse if the maximum allotted channel load of 6.3 amps is
reached. If any of the fuses need replacement, always replace the fuse with the
same exact type that was removed, unless otherwise instructed by an
authorized Elation Professional service technician. Use of a different type fuse
from that which is recommended may cause fire or electric shock and will void
the manufactures warranty.
Safety Issues:
Customer Support:
Unpacking:
Every Image Pro 300 II has been thoroughly tested and has been shipped in
perfect operating condition. Carefully check the shipping carton for damage that
may have occurred during shipping. If the carton appears to be damaged,
carefully inspect your fixture for any damage and be sure all equipment
necessary to operate the unit has arrived intact. In the event damage has been
found or parts are missing, contact technical support for further instructions. Do
not return the unit to your dealer without contacting technical support first.
Service Hours are Monday through Friday 9:00 a.m. to 5:00 p.m.
Pacific Standard Time.
Voice: (323) 582-3322
Fax: (323) 582-3108
E-mail: support@elationlighting.com
Elation Professional provides a customer support line, to provide set up help and
to answer any question should you encounter problems during your set up or
initial operation. You may also visit us on the web at www.elationlighting.com for
any comments or suggestions.
-2-
Optional Accessories & Effects
-9-
Fixed Gobo Holder & 6 Metal Gobos

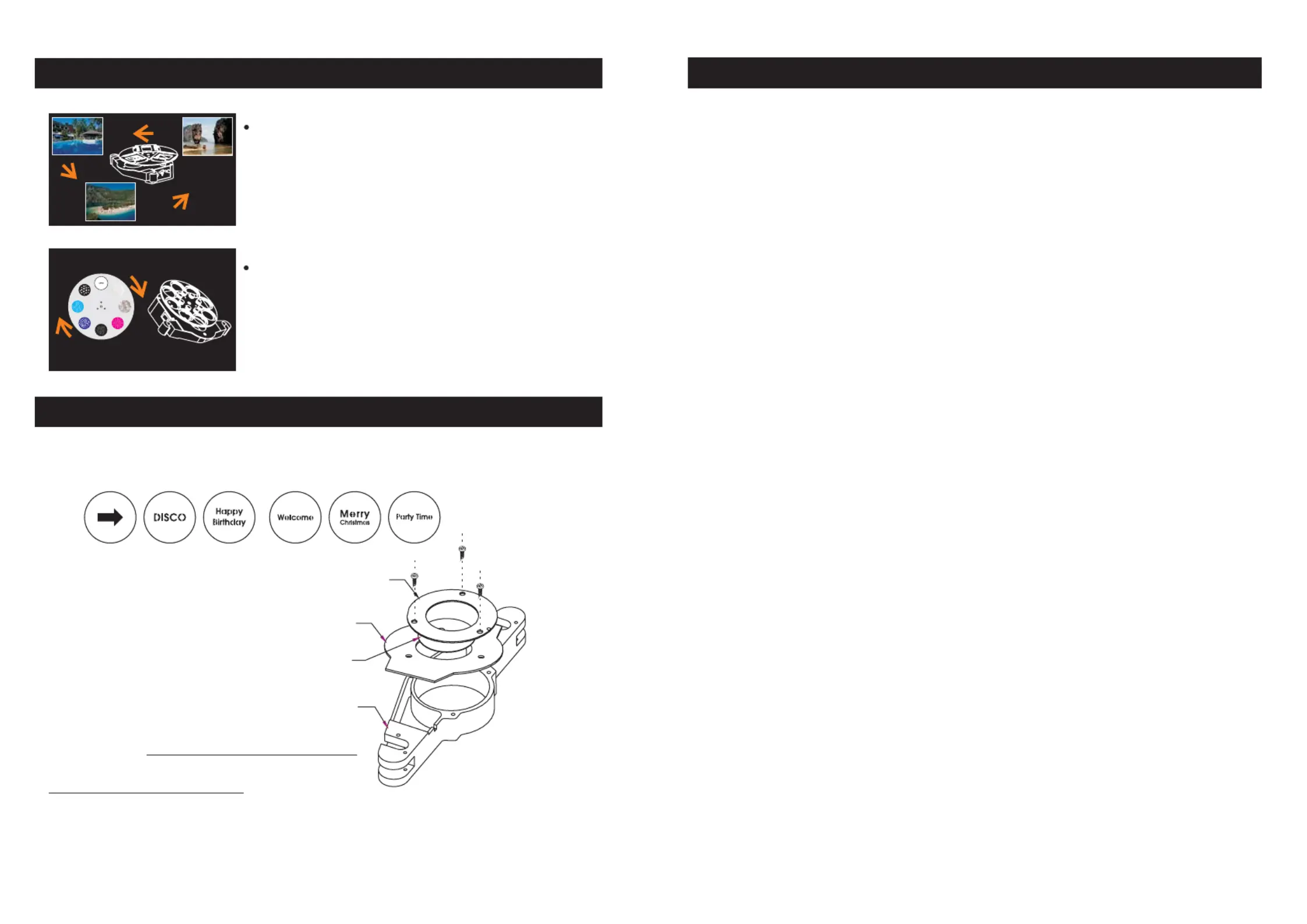

The Image Pro 300 II comes with a fixed gobo holder and 6 metal gobos. These
6 metal gobos are illustrated as follows:
(Dia. 51.5 mm)
fixing plate
supporting plate
metal gobo
mounting
Gobo pattern & Image
The mirror image on the wall, floor etc. is subject to the gobo pattern.
Please note the gobo pattern should be inverted so that the image can be
acceptable.
Support gobos and color filters
IP-F3-R
ISP-RGW
Rotating gobo
wheel as a
manual or
timed gobo
changer
Manual or
timed slide
changer
