Electro-Voice RE20 Bruksanvisning

Electro-Voice mikrofon RE20

Läs gratis den bruksanvisning för Electro-Voice RE20 (2 sidor) i kategorin mikrofon. Guiden har ansetts hjälpsam av 10 personer och har ett genomsnittsbetyg på 4.4 stjärnor baserat på 5.5 recensioner. Har du en fråga om Electro-Voice RE20 eller vill du ställa frågor till andra användare av produkten? Ställ en fråga

Ladda ner PDF

Sida 1/2

RE20

Variable-D

Dynamic Cardioid

Microphone

General Description:

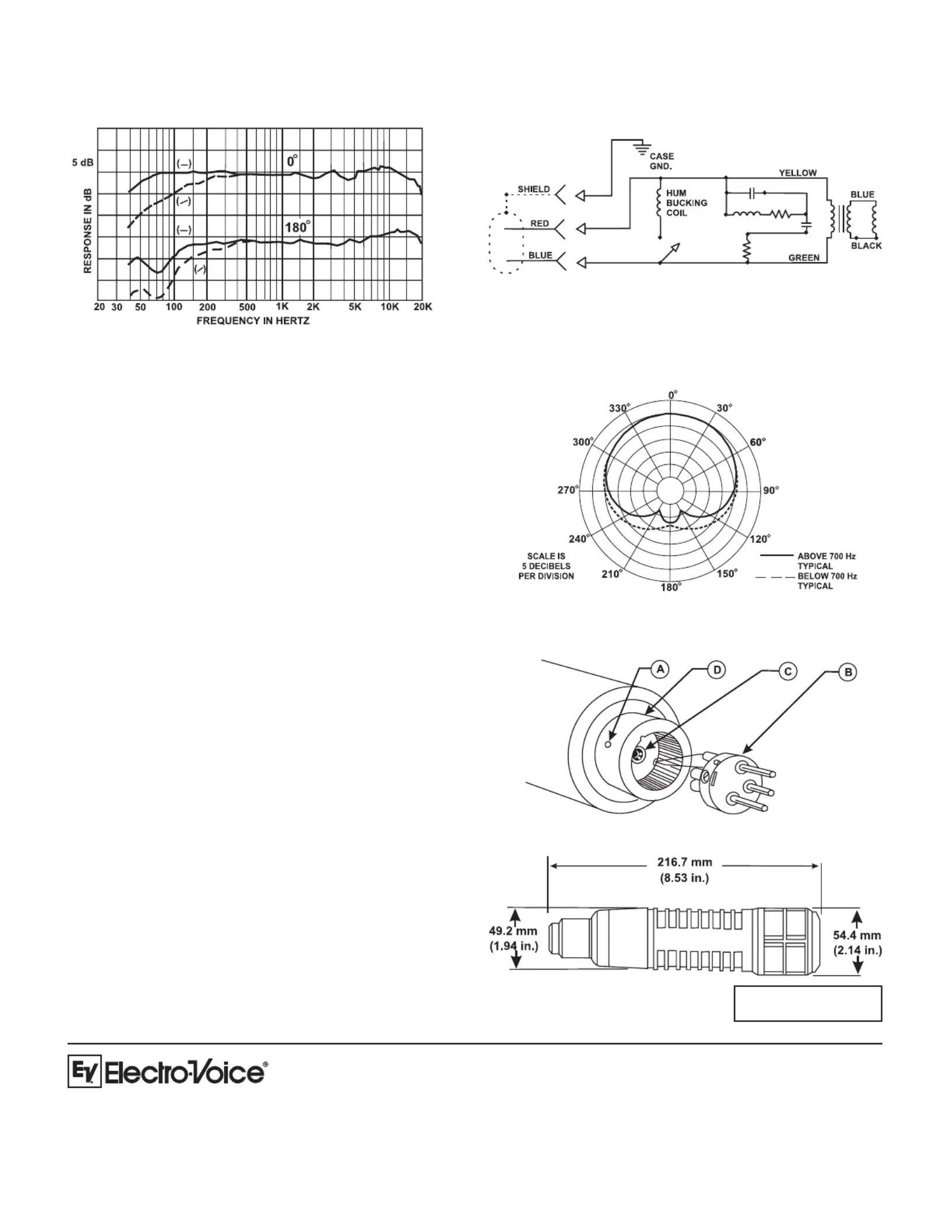

Technical Specifications:

:tnemelEgnitareneG cimanyD

:esnopseRycneuqerF zH000,81-54

:nrettaPraloP dioidraC

:ecnadepmI decnalabsmho051

tiucriCnepO,ytivitisneS

:zHk1,egatloV

lacsap/Vm5.1

lacipyt,leveLpukciPmuH

detsreoillim1/zH06(

:)dleif

mBd031-

:ytiraloP niPotdecnereferevitisopeblliw2niP

mgarhpaidnoerusserpevitisophtiw3

:lairetaMesaC leetS

,snoisnemiD

:htgneL ).ni35.8(mm7.612

:retemaiDtsediW ).ni41.2(mm4.45

:retemaiDydoB ).ni49.1(mm2.94

:hsiniF egieBnwaF

:thgieWteN )zo01,bl1(g737

:thgieWgnippihS )zo4,bl3(g474,1

:dehsinruFseirosseccA pmalcdnats51718

:seirosseccAlanoitpO rofretpadadnatsdetnuom-kcohsA903

moobgnidrocerrodnatsroolfhtiwesu

Key Features:

•Favorite of broadcast show hosts and voice-

over studios

•Ideal for instrument recording, especially

kick drums and acoustic guitars

•Studio condenser response yet no powering

required and immune to overloading

•Large Acoustalloy diaphragm and low-mass

aluminum voice coil

•Dual-ported, continuously Variable-D

with

minimal proximity effect

•Steel case and hum-bucking coil provide

exceptional magnetic shielding

The Electro-Voice RE20 is a professional-quality dynamic

cardioid microphone created specially for recording, broadcast

and sound-reinforcement applications requiring essentially

flat response over a very wide frequency range. The wide

frequency response, coupled with excellent transient

response, make the RE20 easily comparable to the finest

condenser cardioid microphones and an easily operated “bass

tilt down” switch corrects spectrum balance for use in long-

reach situations or other applications where bass attenuation

is needed.

A true cardioid microphone, the RE20 offers greatest rejection

at 180º off axis - directly to the rear of the microphone. Pattern

control is so consistent that the frequency response is nearly

independent of angular location of the sound source, creating

virtually no off-axis coloration, yet providing greatest possible

rejection of unwanted sounds. An integral blast and wind filter

covers each acoustic opening on the RE20. In recording

sessions or on stage, singers can “close talk” the microphone,

singing with their lips almost touching the grille screen with

no worry of “P-pops” or excessive sibilance. Part of the filter

also shock mounts the internal microphone element, reducing

the transfer of vibrations from external sources. The

exceptional performance of the RE20 is achieved by using a

large Acoustalloy diaphragm in combination with an

exceptionally low-mass aluminum voice coil. Using this

diaphragm assembly, the RE20 is capable of reproducing

extremely high sound pressure levels with no fear of the

overload and distortion often experienced with phantom-

powered condensers. The RE20 will also continue to function

flawlessly in high humidity and elevated temperatures that

would seriously degrade competitive condenser microphones.

A massive steel housing and effective hum-bucking coil assure

the RE20’s resistance to magnetically induced hum and noise.

This means the RE20 can be used successfully in situations

where other microphones would experience unacceptable

levels of hum and buzz. By exploiting the strength of its steel

housing and employing a mechanical nesting concept, EV

designers have created an exceptionally rugged microphone

with superior handling noise rejection ideally suited for

professional uses.

Produktspecifikationer

Varumärke:	Electro-Voice
Kategori:	mikrofon
Modell:	RE20
Gränssnitt:	XLR-3
Modell:	Scenmikrofon
Mikrofonfrekvens:	45 - 18000 hz
Produktens färg:	Beige
Mikrofonvikt:	737 g
Anslutningsteknologi:	Kabel
Plug & Play-kompatibel:	Ja
Mikrofon, riktning:	Kardioid
Mikrofon ingångsimpedans:	150 Ω
Mikrofonmått (D x H):	54 x 217 mm
