USER MANUAL
Elo Touch Solutions
PayPoint
®
Plus for iOS

User Manual – PayPoint Plus for iOS
UM600186 Rev A, page 2 of 48
Copyright © 2017 Elo Touch Solutions, Inc. All Rights Reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer
language, in any form or by any means, including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written
permission of Elo Touch Solutions, Inc.
Disclaimer
The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its Affiliates (collectively “Elo”) makes no representations or
warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose. Elo
reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Elo to notify any person of such
revisions or changes.
Trademark Acknowledgments
Elo, Elo (logo), Elo Touch, Elo Touch Solutions, and PayPoint are trademarks of Elo and its Affiliates.

User Manual – PayPoint Plus for iOS
UM600186 Rev A, page 3 of 48
Table of Contents
Section 1: Introduction ............................................................................................................................................................................................................................... 4
Section 2: Unpacking and Operation ......................................................................................................................................................................................................... 5
Section 3: Receipt Printer ........................................................................................................................................................................................................................ 14
Section 4: Common Barcode Configurations ........................................................................................................................................................................................... 19
Section 5: Elo PayPoint Test App ............................................................................................................................................................................................................ 24
Section 6: Technical Support and Maintenance ...................................................................................................................................................................................... 38
Section 7: Regulatory Information ............................................................................................................................................................................................................ 41
Section 8: Warranty Information............................................................................................................................................................................................................... 47

User Manual – PayPoint Plus for iOS
UM600186 Rev A, page 4 of 48
Section 1: Introduction
Product Description
The Elo PayPoint Plus register is an all-in-one iPad based cash register that comes equipped with a built-in receipt printer, magnetic stripe reader,
barcode reader, cash drawer, and an optional customer facing display. In addition to its built-in peripherals, the system has USB ports (for charging)
and serial ports that allow for connectivity of external point of sale devices.
Precautions
Follow all warnings, precautions and maintenance as recommended in this user manual to maximize the life of your unit and prevent risks to user
safety. See Section 7 for more information on regulatory information.
This manual contains information that is important for the proper setup of the PayPoint Plus register. Before setting up and powering on your PayPoint
Plus register, we advise you to read through this manual, especially Unpacking and Operation, Regulatory Information, and Technical Support and
Maintenance sections.

User Manual – PayPoint Plus for iOS
UM600186 Rev A, page 5 of 48
Section 2: Unpacking and Operation
Box Contents
Verify that the box contains:
• PayPoint Plus for iOS
• Quick Install Guide
• Power cable
• 1x receipt paper roll
• 2x cash drawer keys
• 1x RJ45 to DB9 serial cable

User Manual – PayPoint Plus for iOS
UM600186 Rev A, page 6 of 48
Elo PayPoint Plus Register Layout

User Manual – PayPoint Plus for iOS
UM600186 Rev A, page 7 of 48
A. Register Display Head
1
Magnetic Stripe Reader (MSR)
2
iPad Docking Tray
3
Barcode Scanner
4
iPad Eject Button

User Manual – PayPoint Plus for iOS
UM600186 Rev A, page 8 of 48
B. Register Base
5
Customer Facing Display (USA and China part numbers only)
6
USB Charging Port
7
Cash Drawer
8
Cash Drawer Lock
9
Receipt Printer
10
Cash Drawer Media Slot
11
Printer Head Release Button
12
Printer Connection Light
13
Printer Error Light
14
Printer Feed Button
15
Printer Power Button
16

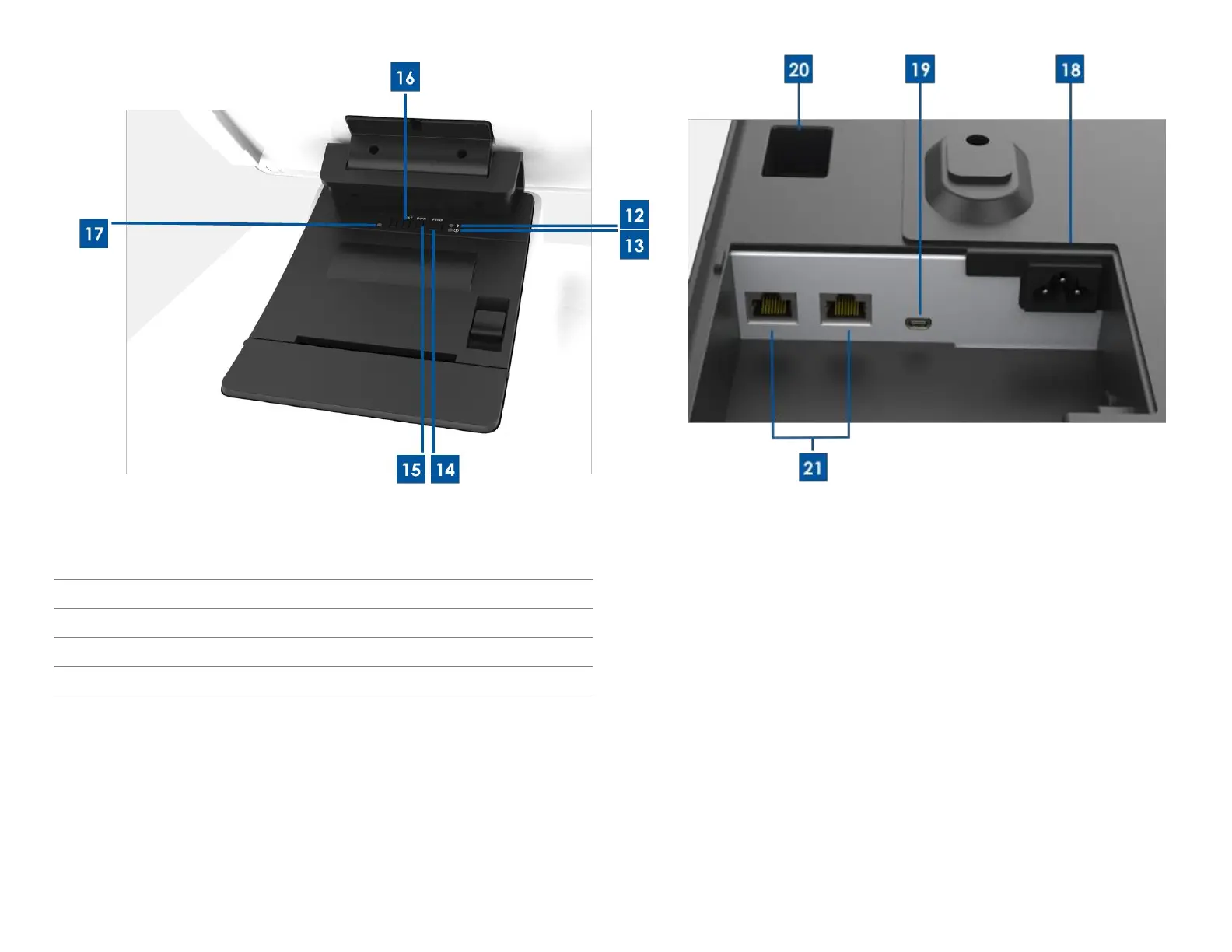

Bluetooth Connection Reset Button
17
iPad Connection Status Light
18
AC Power Input
19
Mini USB Charging Port
20
RJ12 Serial Port (for external cash drawer)
21
RJ45 Serial Ports (for weigh scale and other
peripherals)

User Manual – PayPoint Plus for iOS
UM600186 Rev A, page 9 of 48
1. Magnetic Stripe Reader (MSR)
The register has a built in encryptable magnetic stripe reader. The application provider is responsible for correctly encrypting the reader.
When the register is in clerk view, the MSR will be on the left of the register display head. When the register is in customer view, the MSR will be
on the right of the register display head.
2. iPad Docking Tray
The register is capable of docking an iPad into the display head. The register supports iPad (4
th
Generation), iPad Air, iPad Air 2, iPad (2017),
iPad Pro (9.7 and 12.9 inch).
3. Barcode Scanner
The register has a built-in barcode scanner that scans 1-D and 2-D barcodes. When the register is in cashier view, the barcode scanner will be
on the right of the register display head.
4. iPad Eject Button
The register has a button on the back of the main display head which is used to facilitate the removal of the iPad.
5. Customer-Facing Display (North America and China part numbers only)
The register base is equipped with a customer-facing display.
6. USB Charging Port
This USB port can be used to charge your mobile device.
7. Cash Drawer
The register is equipped with a cash drawer for storing cash, coins and checks.
8. Cash Drawer lock
Use the key that comes with the Elo PayPoint Plus register to lock / unlock the cash register. When the cash drawer is locked, it will not open
even when it is commanded to.
9. Receipt Printer (built-in)
The register is equipped with a built-in receipt printer that is located on the register base.

User Manual – PayPoint Plus for iOS
UM600186 Rev A, page 11 of 48
18. AC Power port
To power the register, plug one end of the power cable to the register power port, and the other end to the wall.
19. Mini USB charging port
This USB port can be used to charge your mobile device.
20. RJ45 Serial Port
Use this port to connect a weigh scale or external payment device to your register.
21. RJ45 Serial Port
Use this port to connect a weigh scale or external payment device to your register.

User Manual – PayPoint Plus for iOS
UM600186 Rev A, page 13 of 48
Power
The maximum voltage, frequency and current for the register are provided in the power ratings table below:
Operating Voltage Range
Operating Frequency Range
Operating Current Range
100 - 240Vac
50/60 Hz
0.5 A
Produktspecifikationer
Varumärke: | ELO |
Kategori: | Låda |
Modell: | PayPoint Plus |
