Installation / Service Instructions
DS 1150, DS1400, DS1650
Gas Fireplace
630358_20
For the latest documentation, visit www.escea.com
Warning: Refer to the warning on page 1 and the wall lining instructions in
sections B5 on page 9 and F6 on page 42. Failure to follow these
instructions may result in a fire.
Important:
The appliance shall be installed in accordance with;
• This installation instruction booklet
• Local gas fitting regulations
• Municipal building codes
• Electrical wiring regulations
• Any other relevant statutory regulations
• AS/NZS 5601.1:2013 Gas Installations
WARNING:
This appliance must be installed by a qualified person. Replacement of the appliance mains supply
cord should only be made by the manufacturer, its service agent, or a similarly qualified person. This
appliance must be installed into a cavity strictly in accordance with the following instructions.
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN
OPERATION.
DO NOT USE OR STORE FLAMMABLE MATERIALS IN OR NEAR THIS APPLIANCE.
DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE.
DO NOT MODIFY THIS APPLIANCE.
This appliance is not intended for use by young children or infirm persons unless they have been
adequately supervised by a responsible person to ensure that they can use the appliance safely.
Young children should be supervised to ensure that they do not play with the appliance.
Failure to follow these instructions could cause a malfunction of the heater, which could result in
death, serious bodily injury, and/or property damage. Failure to follow these instructions may also
void your fire insurance and/or warranty.
Who can install this product:
Installation must be carried out by a registered installer who, on completion of the installation, must
issue a:
AUS: Certificate of Compliance
NZ: Certificates that comply with the latest legislation in accordance with national and/or local
codes. If these are not issued then the Escea warranty may be void.
Warranty Repair and Annual Servicing:
Please contact Escea if you require warranty work. Warranty repair work must be carried out by a
recognised gas fire technician. It is recommended that recognised Escea Gas Fire Technicians are
also used to carry out annual servicing requirements (particularly during the warranty period). For
contact details of recognised Escea Gas Fire Technicians in your area, or for replacement parts,
please contact the retailer from whom the appliance was purchased our visit our website.
The heater must be installed according to these instructions and in compliance with all relevant:
building, gas fitting, electrical and other statutory regulations (eg. AS/NZS 5601). Any
shortcomings in the appliance and flue installation will be the responsibility of the installer, and
Escea will not be accountable for any such failings or their consequences.
Manufactured by: Escea Ltd, PO Box 5277 Dunedin NZ, Ph: +64 3 478 8220. For contact details
of your local Escea distributor or dealer in New Zealand, please visit: www.escea.com or
email: info@escea.com. From Australia, please visit www.escea.com.au, call AU: 1800 460 832 or
WA: 1800 730 140, or email us at info@escea.com
DS1150 PRODUCT SPECIFICATION
MODEL NAME DS1150
Description of Appliance Indoor Gas Fire Heater
Star Rating 4.4 Stars
Max. Heat Output 8.2kW
A/NZ Approval No. AS/NZS 5263.1.3:2016
Gas Type Natural Propane ULPG
Gas input High 34 MJ/hr 34 MJ/hr 34 MJ/hr
Low 25 MJ/hr 25 MJ/hr 25 MJ/hr
Inlet Pressure Max 5 kPa 5 kPa 5 kPa
Min 1.13 kPa 2.75 kPa 2.75 kPa
Operating Pressure on High 0.68 kPa 1.8 kPa 1.8 kPa
Operating Pressure on Low 0.3 kPa 0.9 kPa 0.9 kPa
Burner Jet Size LH & RH: 1.5mm
Middle: 1.95mm
LH & RH: 0.85mm
Middle: 1.3mm
LH & RH: 0.85mm
Middle: 1.3mm
Burner Aeration LH & RH: Closed
Middle: 1 x 3.5mm
LH & RH: 2 x 4mm
Middle: 2 x 12mm
LH & RH: 2 x 7mm
Middle: Spacer
(no restriction)
Pilot injector #37 #27 #27
Appliance Dimensions (mm)
Width 1401mm
Height 788 mm
Depth 350 mm
Weight 130 kgKg
Ignition System Electronic Ignition to pilot system
Escea PCB
Ignition Activation 20 secs (approx)
Flame Safeguard Flame Rectication
Consumption 160W @ 0.69A 230V
Remote controls Yes
Timers Yes
Clock Yes
Function lock / child Yes
Temperature control Yes
Connections
Electric 230V AC
Gas 1/2" BSPP female lower centre of replace chassis
Flue Type Aluminium Flexi Flue
Flue Size 75mm and 100mm Flexi Flue & PolyPro
Spigot
Location Right hand top
Data badge location On Chassis Base
DS1400 PRODUCT SPECIFICATION
MODEL NAME DS1400
Description of Appliance Indoor Gas Fire Heater
Star Rating 5.1 Stars
Max. Heat Output 9.7kW
A/NZ Approval No. AS/NZS 5263.1.3:2016
Gas Type Natural Propane ULPG
Gas input High 40 MJ/hr 40 MJ/hr 37 MJ/hr
Low 30 MJ/hr 28 MJ/hr 28 MJ/hr
Inlet Pressure Max 5 kPa 5 kPa 5 kPa
Min 1.13 kPa 2.75 kPa 2.75 kPa
Operating Pressure on High 0.82 kPa 1.98 kPa 1.68 kPa
Operating Pressure on Low 0.4 kPa 0.93 kPa 1.04 kPa
Burner Jet Size LH & RH: 1.70mm
Middle: 1.95mm
LH & RH: 1.02mm
Middle: 1.3mm
LH & RH: 1.02mm
Middle: 1.25mm
Burner Aeration
LH & RH: 1 x
3.5mm Middle: 1
x 6mm
LH & RH: 2 x 7mm
(identication
grooves present)
Middle: 2 x 13mm
LH & RH: 2 x 8mm
Middle: Spacer
(no restriction)
Pilot injector #37 #27 #27
Appliance Dimensions (mm)
Width 1693 mm
Height 788 mm
Depth 350 mm
Weight 150 kgKg
Ignition System Electronic Ignition to pilot system
Escea PCB
Ignition Activation 20 secs (approx)
Flame Safeguard Flame Rectication
Consumption 160W @ 0.69A 230V
Remote controls Yes
Timers Yes
Clock Yes
Function lock / child Yes
Temperature control Yes
Connections
Electric 230V AC
Gas 1/2" BSPP female lower centre of replace chassis
Flue Type Aluminium Flexi Flue
Flue Size 75mm and 100mm Flexi Flue
Spigot
Location Right hand top
Data badge location On Chassis Base
DS1650 PRODUCT SPECIFICATION
MODEL NAME DS1650
Description of Appliance Indoor Gas Fire Heater
Star Rating 5.0 Stars
Max. Heat Output 10.2kW
A/NZ Approval No. AS/NZS 5263.1.3:2016
Gas Type Natural Propane ULPG
Gas input High 44 MJ/hr 44 MJ/hr 44 MJ/hr
Low 32 MJ/hr 32 MJ/hr 32 MJ/hr
Inlet Pressure Max 5 kPa 5 kPa 5 kPa
Min 1.13 kPa 2.75 kPa 2.75 kPa
Operating Pressure on High 0.67 kPa 1.67 kPa 1.67 kPa
Operating Pressure on Low 0.34 kPa 0.82 kPa 0.82 kPa
Burner Jet Size LH & RH: 1.95mm
Middle: 1.95mm
LH & RH: 1.1mm
Middle: 1.2mm
LH & RH: 1.1mm
Middle: 1.2mm
Burner Aeration
All collars (Coals/
Crystalight): Closed
All collars (Logs
and Woodland): 1 x
3.5mm
LH & RH: 2 x 4mm
Middle: 2 x 12mm
LH & RH: 2 x 7mm
Middle: Spacer
(no restriction)
Pilot injector #37 #27 #27
Appliance Dimensions (mm)
Width 1987mm
Height 788 mm
Depth 350 mm
Weight 130 kgKg
Ignition System Electronic Ignition to pilot system
Escea PCB
Ignition Activation 20 secs (approx)
Flame Safeguard Flame Rectication
Consumption 160W @ 0.69A 230V
Remote controls Yes
Timers Yes
Clock Yes
Function lock / child Yes
Temperature control Yes
Connections
Electric 230V AC
Gas 1/2" BSPP female lower centre of replace chassis
Flue Type Aluminium Flexi Flue
Flue Size 75mm and 100mm Flexi Flue
Spigot
Location Right hand top
Data badge location On Chassis Base
A Product Description and Installation Process 8
A1 Product Description 8
A2 Recommended Install Process 8
A3 Product Dimensions 9
B Creating the Cavity 10
B1 Cavity Shape 10
B2 Designing the Cavity 10
B3 Hearth 11
B4 Cavity Base 11
B5 Wall Lining 11
B6 Television & Mantel Clearances 11
C Installing the Flue 12
C1 Flue Configuration (If less than 8m flue length is required) 12
C2 Flue Configuration (If more than 8m flue length is required) 14
C3 Installing the Horizontal Powerflue Wall Terminal option 14
C4 Installing the Universal Vertical Powerflue (Internal Install) 17
C5 Installing an Universal Vertical Powerflue (External Install) 19
C6 Installing in Accordance with Relevant Codes 20
C7 Running the Flue 21
C8 Running the Powerflue Electrical Cable 22
D Installing the Electricity and Gas to the Appliance 23
D1 Power Supply 23
D2 Network Cable 23
D3 Gas Pipe Sizing 24
D4 Gas Pipe Position 24
D5 Gas Isolating Valve 25
E Installing the Appliance 26
E1 Connecting the Flue 26
E2 Installation 26
E3 Removing (and Replacing) the Glass 26
E4 Remove the Infill & Burners 26
E5 Single Sided Front to Back Conversion (only for single sided fires) 27
E6 Gas Type Conversion 30
E7 Operating the Appliance 33
E8 Checking the Gas Operating Pressure 33
E9 Auxiliary On/O button 36
E10 Home Automation Setup 37
F Finishing the Installation 38
F1 Coal or Crystalight Fuelbed Installation 38
F2 Log and Woodland Log Fuelbed Retainer Setup 38
F3 Log Fuelbed Installation 39
F4 Woodland Fuelbed Installation 41
F5 Flame Picture 43
F6 Wall Linings 44
F7 Fitting the Linear Trim 46
F8 Fitting the Bevelled Lite Fascia 46
F9 Locating Wall Mount Cradle for Wireless Control 47
F10 Operating the Appliance 48
F11 Normal Operating Sounds and Smells 48
G Installation Checklist 50
S Service Manual 51
S1 Annual Service Procedure 51
S2 Error Codes 52
S3 Cleaning the Fuel bed and Glass 54
S4 Cleaning the Fascia 54
S5 Checking Operating Pressure 54
S6 Replacing a Remote Control 54
S7 Replacing the Burners 55
S8 Serial Number 55
S9 Removing or Cleaning Fan 55
S10 Removing the Control Tray 56
S11 Pressure Switch Removal 56
S12 Replacing the Thermal Cut Out (TCO) 57
S13 Servicing the Horizontal/Universal Vertical Powerflue 60
S14 Wiring Diagram 61
BAC D E F G SERVICE
8
A
Product Description and Installation Process
A1 Product Description
The Escea DS-Series gas fire is an indoor room sealed gas appliance designed to be built into a false
cavity. The appliance is flued using co-linear flexible aluminium flue. The user will control their fire with
the Radio Frequency (RF) remote that will normally be located in its wall mount cradle. In addition to
the RF remote the appliance has a single auxiliary On/O button on the unit. When not in operation it
is in a standby mode unless it is physically isolated from the mains supply.
A2 Recommended Install Process
The following diagram illustrates the steps required to install your gas fire. The sequence in which you
choose to do these tasks will vary depending on your individual scenario. Please read these instructions
fully before proceeding with the installation.
Important: Installations that are not specifically outlined in this manual
should be referred to the Escea Architectural Advisory Team.
Please email aa@escea.com
Non-standard installations or scenarios not covered in this manual (including but not limited to sealed
cavities, under bench installations, a recessed fire, or with overhangs protruding above the fire), can
expose materials to higher than anticipated levels of heat.
While non-standard scenarios may meet the surface temperature combustibility requirements of
AS/NZS5601 Gas Installations, some materials may be exposed to higher or undesirable levels of
heat, or levels of heat greater than their tolerances allow. Specifiers and installers must choose
materials when in these scenarios that meet the combustibility requirements AND the maximum
service temperatures allowed by the chosen product. Escea takes no responsibility for material choice
and reference should always be made to the relevant material manufacturer’s maximum service
temperatures for the suitability of use.
Please refer to the D-Series Gas Fire Materials Guide.
For more information on materials selection and for further guidance please contact our
Architectural Advisory Team - aa@escea.com
To ensure that your installation is fully complete, please use the “Installation Checklist” on page 50.
BA C D E F G SERVICE
10
B
Creating the Cavity
B1 Cavity Shape
The DS Range is suitable for timber framed cavities.
Most existing masonry cavities will not be suitable.
B2 Designing the Cavity
The following aspects must be considered when designing this installation:
• Appliance physical size
• Single sided or double sided
• Wall finishing and interaction with appliance
• Positioning of appliance in regards to wall lining (depth into wall)
• Use of a fascia - one side or two sides?
• Exhaust termination aspect – horizontal / vertical and flue configuration
• Flue exhaust fan noise - Is there a direct noise path along the flue, especially for short flue
runs?
• Exhaust cowl access for maintenance
• Gas pipe layout
• Gas isolation valve / pressure test point position
• Electrical isolation switch
• Home automation network connections - ethernet cable layout
The cavity and wall linings may be constructed from standard timber framing materials and do not need
to be non-combustible.
It is not necessary to line the sides or back of the cavity.
Recommended Framing Dimensions
These DS Series fires are to be installed prior to any wall lining.
The wall lining is the very last task to be completed in this installation.
B
min* D min*
Side
Single Sided Side
Double Sided
Front
A
min*
C
min*
*Dimensions shown do not include allowances for
clearance to combustibles to the flue
BACDEFGSERVICE
11
Model A B C D
DS1150 364 350 850 1508
DS1400 364 350 850 1800
DS1650 364 350 850 2094
B3 Hearth
A hearth is not required. If a hearth is installed below the fire, it must be at least
100mm below the bottom of the glass or be composed entirely of non-combustible materials.
B4 Cavity Base
This appliance MUST be fully supported on its base, over the entire area of the
underside of the appliance. The base must also be level and strong enough to
support the total product weight, which is approximately . 150kg
The fireplace can be recessed into the ground but must maintain clearances
detailed in the diagram (shown right) for any combustible flooring materials.
NOTE: A recessed floor is required to install the fire with the opening less than
200mm above the floor.
B5 Wall Lining
Only after all applicable sections up to section F5 on page 43have been completed is it permissible
to commence with the final wall linings detailed in section F6 on page 44. Wall lining cutout
dimensions around the glass must be adhered to.
Non-combustible materials may be required in some scenarios. See section F5 for further information.
Please refer to section F6 on page 44 for wall finishing dimensions surrounding glass.
B6 Television & Mantel Clearances
Television
The diagram (shown right) shows the recommended minimum clearances
for the location of any electrical equipment (such as Plasma TV, LCD
TV or home theatre) above a DS Series gas fire. A mantel/recess is not
required to comply with our recommendation of TV installation.
NOTE: Dimensions are from the top edge of the glass frame.
NOTE: The television clearance recommendations are to be treated as a
suggestion of a suitable installation only. It is the responsibility of the end
user to check the installation instructions of their electrical appliances to
ensure that the location in relation to the gas fire is suitable. Escea in no
way guarantees or takes responsibility that the recommended installation
suggestion will be suitable for all electrical or home entertainment appliances.
Mantel
Please refer to the diagram (shown right). Mantels or protruding ledges
above the heater must not be installed lower than the dimension shown.
NOTE: Dimension are from the top edge of the glass frame.
Fireplace Glass
Fireplace
100mm
Min.
Flooring or Hearth
Fireplace
Fireplace Glass
B ACDEFGSERVICE
13
Vertically Terminated: Utilises the Escea universal vertical power flue enclosure kit.
0.4m Min.
8m Max.
Overall ue length:
8m MAX
1.2m F-F Liner
UVP Cowl
Internal
Liner
UVP Unit
8m MAX
External
BA D E F G SERVICEC
14
C2 Flue Configuration (If more than 8m flue length is required)
If your flue system is greater than 8m long (up to 40m long), then please contact the Escea Advisory
Team at aa@escea.com for further guidelines.

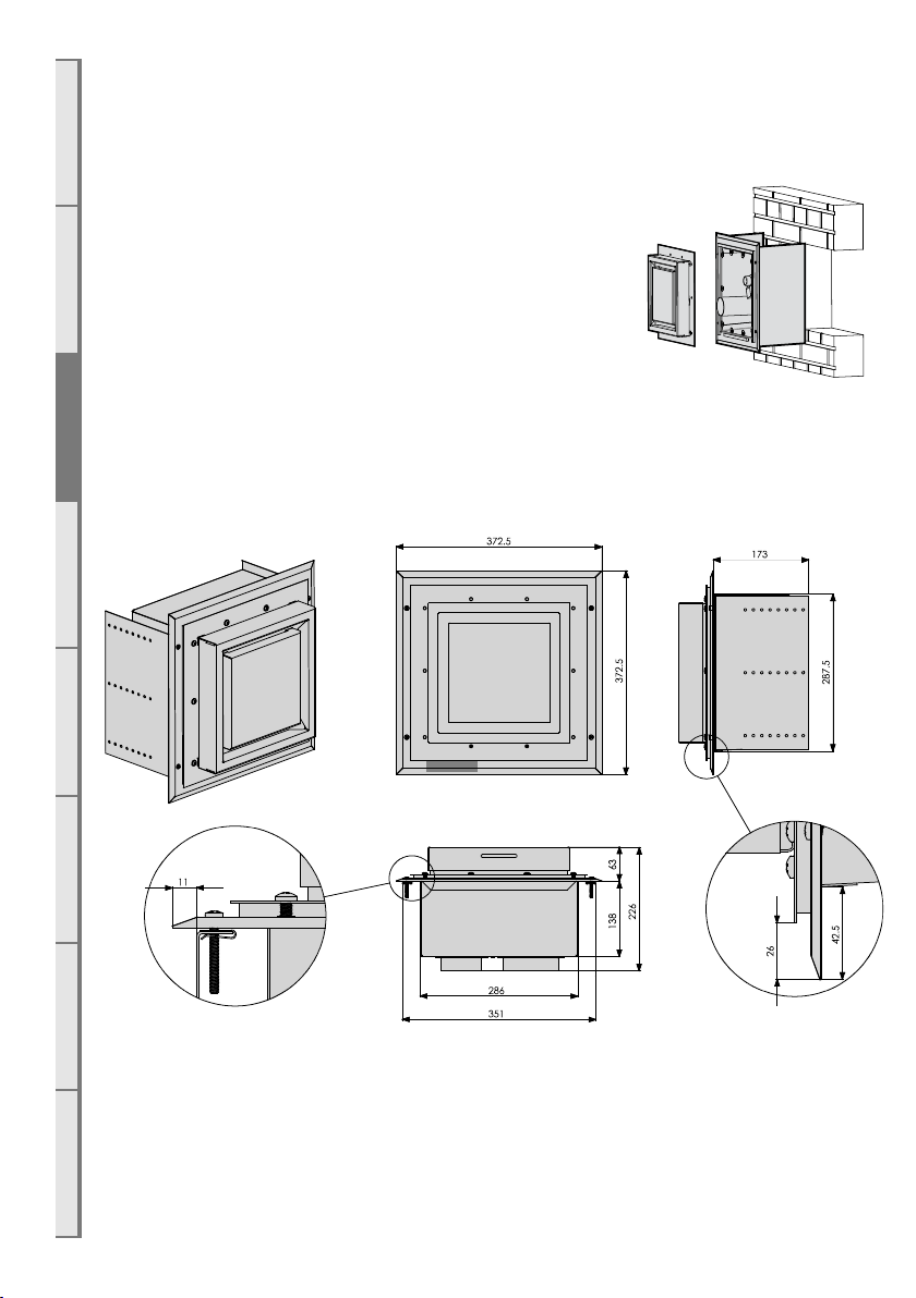

C3 Installing the Horizontal Powerflue Wall Terminal option
The horizontal powerflue wall terminal must be installed in the correct
orientation (the small horizontal slot should be at the bottom). This
allows for the correct operation of the flue system and prevents the
ingress of water.
The horizontal powerflue wall terminal must be weather-tight when
installation is complete to prevent damage to the dwelling. It must be
installed by a suitably qualified person.
Fit the horizontal powerflue wall terminal into the hole and fix in place, making sure the installation is
sealed appropriately to prevent the ingress of water from outside the wall cladding. Take notice of the
label on the termination which shows the correct orientation of the terminal.
Note: It is the responsibility of the installer to ensure the horizontal powerflue wall terminal is installed to all
relevant building codes to ensure weather tightness.

Produktspecifikationer

Varumärke: Escea
Kategori: Värmare
Modell: DS1650

Behöver du hjälp?

Om du behöver hjälp med Escea DS1650 ställ en fråga nedan och andra användare kommer att svara dig


Värmare Escea Manualer

Escea

Escea DF990 Bruksanvisning

5 September 2024
Escea

Escea TFS650 Bruksanvisning

4 September 2024
Escea

Escea DL850 Bruksanvisning

3 September 2024
Escea

Escea TC950 Bruksanvisning

3 September 2024
Escea

Escea DS1650 Bruksanvisning

2 September 2024
Escea

Escea DS1900 Bruksanvisning

2 September 2024
Escea

Escea DF960 Bruksanvisning

1 September 2024
Escea

Escea EK1250 Bruksanvisning

1 September 2024
Escea

Escea DFS730 Bruksanvisning

1 September 2024
Escea

Escea EK950 Bruksanvisning

30 Augusti 2024

Värmare Manualer

Nyaste Värmare Manualer

Dimplex

Dimplex VFMi 60C Bruksanvisning

5 April 2025
Scandia

Scandia Styliste’ 6 Bruksanvisning

4 April 2025
Plieger

Plieger Genua Bruksanvisning

3 April 2025
Ardes

Ardes AR4P09 Bruksanvisning

2 April 2025
Dimplex

Dimplex 2NC81524L Bruksanvisning

30 Mars 2025
Dimplex

Dimplex FXL24i Bruksanvisning

30 Mars 2025
Einhell

Einhell MR 7 S Bruksanvisning

29 Mars 2025
Argoclima

Argoclima Dori Night Bruksanvisning

29 Mars 2025
Delonghi

Delonghi RHJ21F1015 Bruksanvisning

27 Mars 2025
Rinnai

Rinnai GEPH-22DTW Bruksanvisning

27 Mars 2025
