Source Four User Manual • 1

Source Four

User Manual

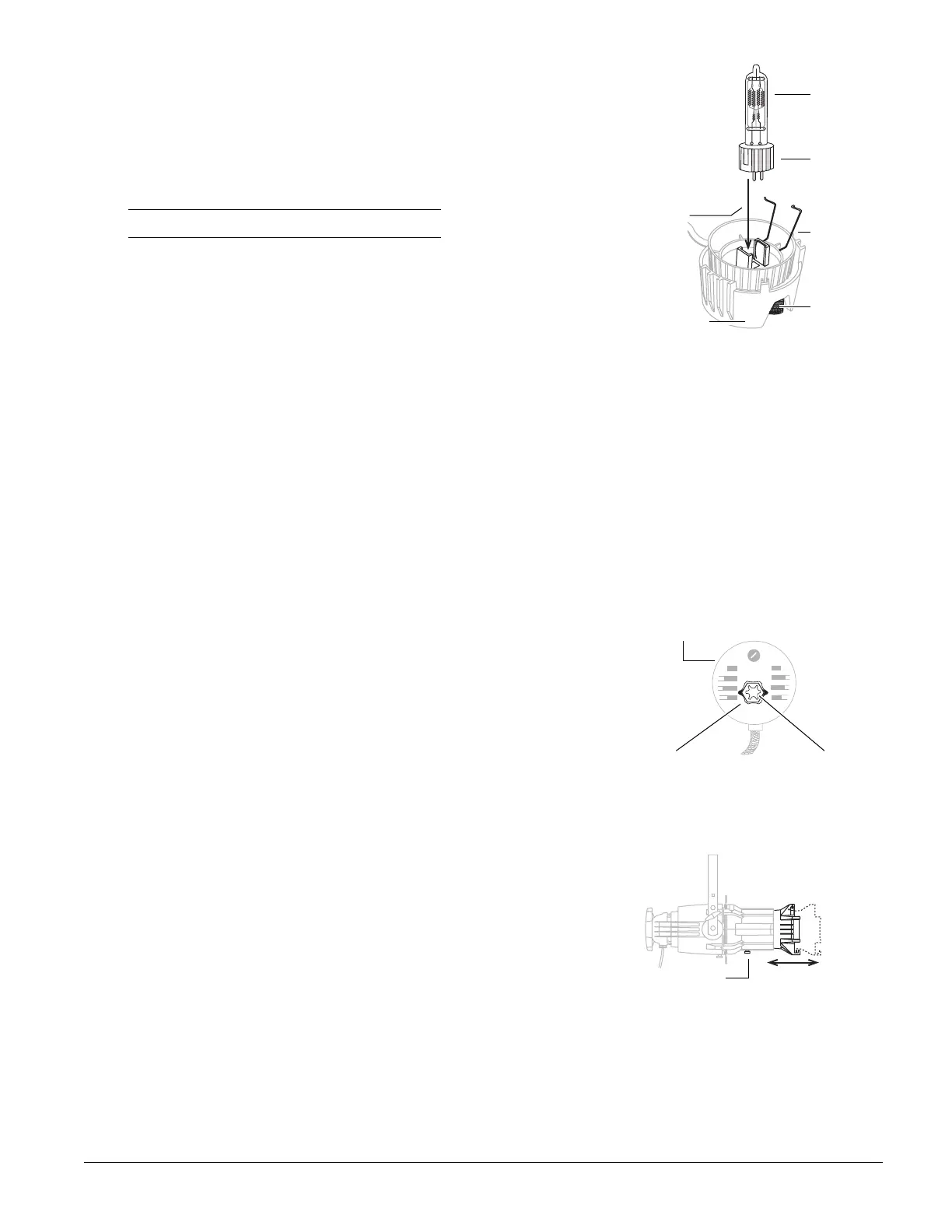

HPL lamps

Do not use lamps other than the HPL in Source Four fixtures.

Use of lamps other

than HPL will void UL/cUL safety compliance and your warranty

.

Lens locations

The different lenses used in the

Source Four are not interchangeable.

When installing a new lens, refer to

the illustration below for proper

placement. Also, remember to have

the lens’ color designator dot facing

the color frame.

Lamp codeWattsVoltsInitial LumensColor temp.Average rated life

HPL 750/115

75011521,9003,250º K300 hour

HPL 575/11557511516,5203,250º K300 hour

HPL 575/115X57511512,3603,050º K2,000 hour

HPL 575/12057512016,4603,250º K300 hour

HPL 375/11537511510,5403,200º K300 hour

HPL 375/115X3751158,0683.000º K1000 hour

HPL 550/77*5507716,1703,250º K300 hour

HPL 550/77X*5507712,1603.050º K2,000 hour

HPL 750/22075022019,4003,200º K300 hour

HPL 750/23075023019,4003,200º K300 hour

HPL 750/24075024019,4003,200º K300 hour

HPL 575/23057523014,9003,200º K400 hour

HPL 575/24057524014,9003,200º K400 hour

HPL 575/230X57523011,7803,050º K1500 hour

HPL 575/240X57524011,7803,050º K1500 hour

HPL 375/230X3752307,8003,050º K1000 hour

HPL 375/240X3752407,8003,050º K1000 hour

Table 1:

HPL lamp reference

*To be used with ETC Dimmer Doubler™

19° (6x16)

Red dot

26° (6x12)

Black dot

36° (6x9)

Dotless

50° (4.5x6)

Yellow dot

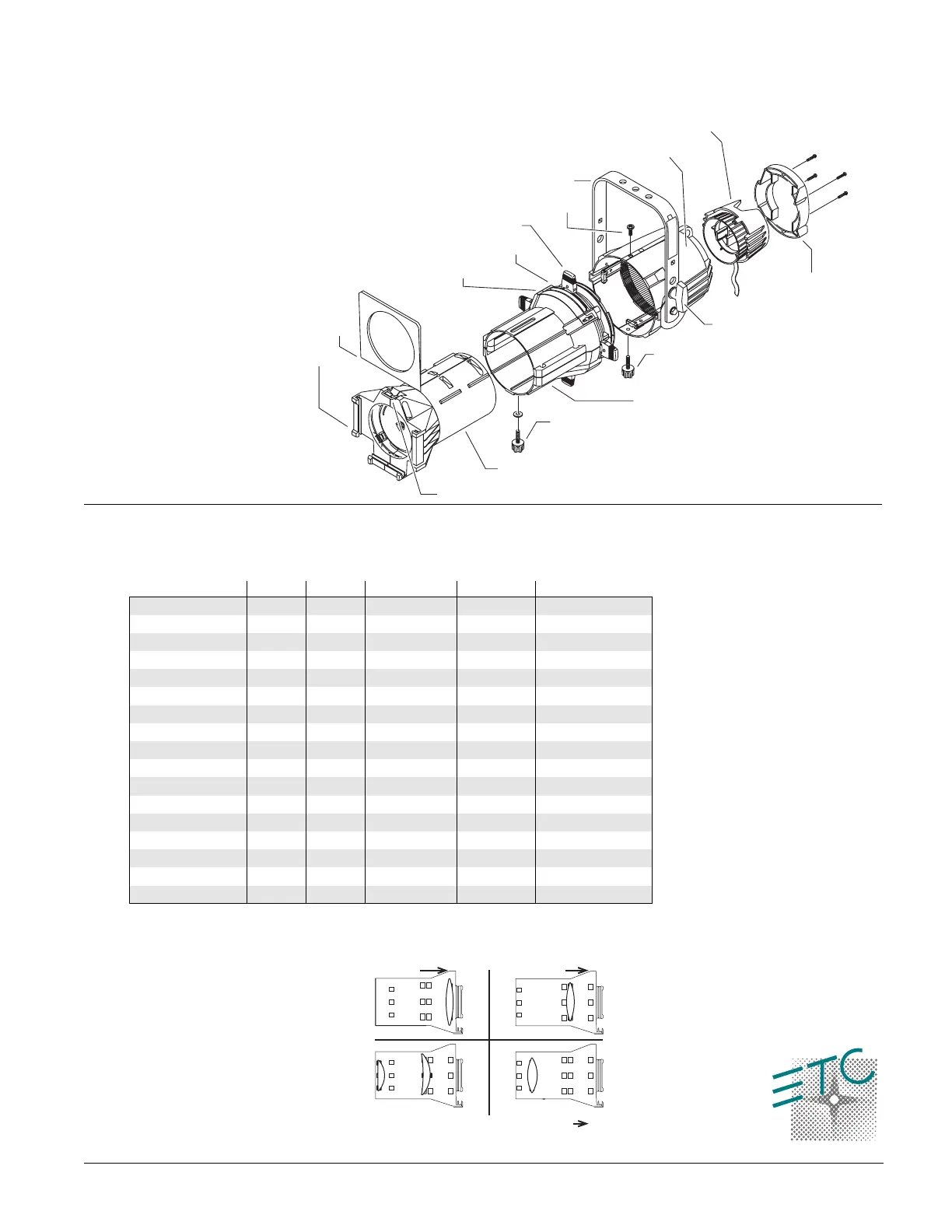

Figure 1

Retainin

g

cli

p

Color frame holder

Color frame

Drop-in iris slot

Pattern holder slot

Shutters

Retainer bolt

Yoke

Insulated handle

Yoke locking knob

Barrel rotation knob

Barrel

Beam focus knob

Lens tube

Reflector housing

Lamp housing

Note:

Safety cable is included

for cUL applications.
