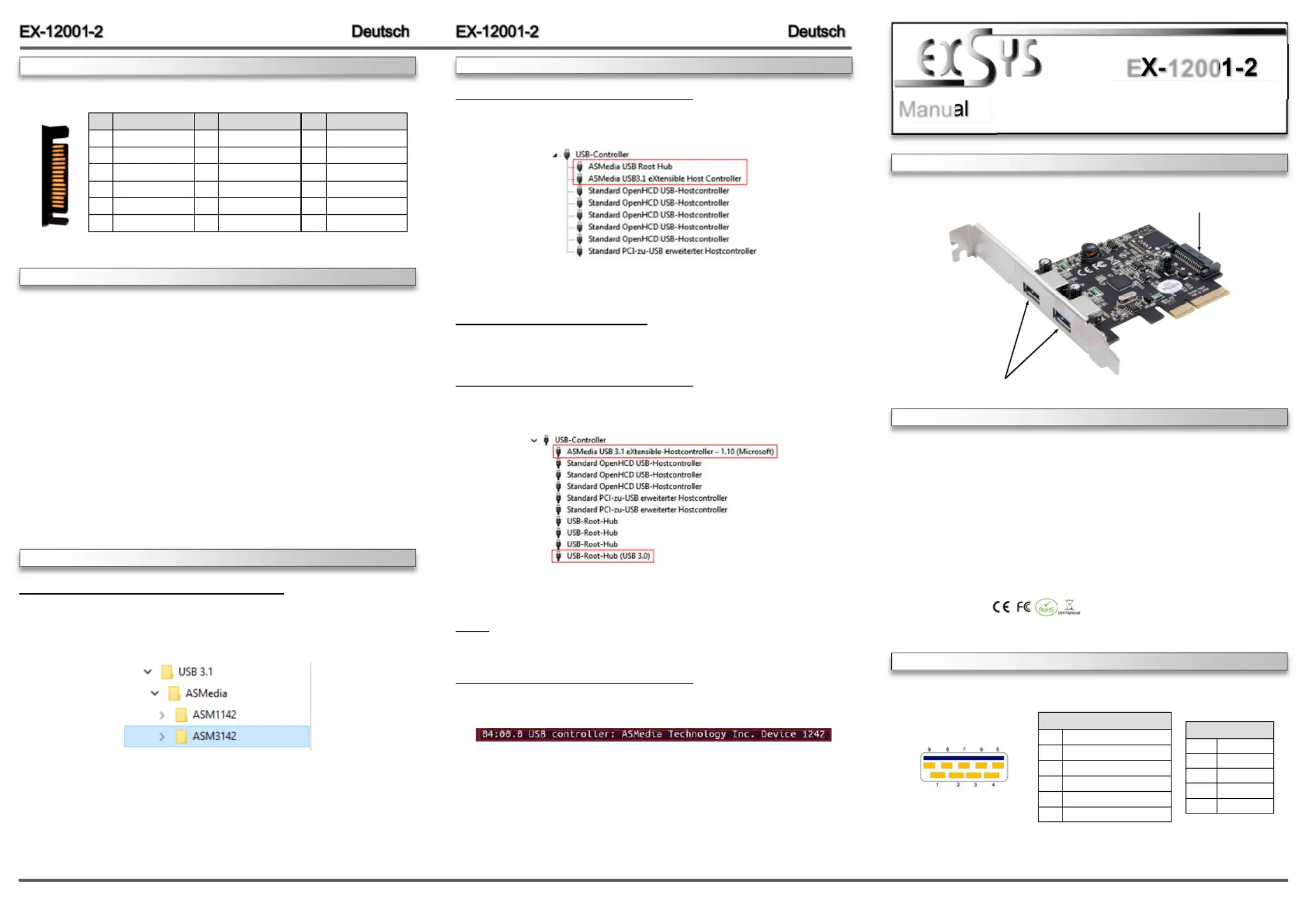

Sida 1/2

6 5

Die EX 12001 2 ist eine USB 3.1 (Gen2) PCI Express Karte. Sie ist mit 2 externen Ports ausge-- - -

stattet, die jeweils 900mA Strom zu Verfügung stellen. Die EX-12001 2 unterstützt die volle -

Leistung von 900mA an beiden externen Ports ohne das Sie zusätzlichen Strom vom PC-

Netzteil benötigen. Sie unterstützt alle PCI Express Slots von x4 bis x16. Der serielle PCI- -

Express Bus unterstützt optimal die Leistung des schnellen ASMedia Chipsatz. Die EX 12001 2 - -

gewährleistet so eine sichere Datenübertragung und exzellente Performance von bis zu 10Gbit

pro Sekunde! Die EX 12001 2 unterstützt alle USB Anschlüsse von 1.1 bis 3.1.- -

ANSCHLÜSSE

BESCHREIBUNG & TECHNISCHE DATEN

AUFBAU

Anleitun

Vers. 1.0 / 19.09.18

E 1200

Kompatibilität: PCI Express p1-x4 bis x16 -

Betriebssysteme: Windows XP/ Vista/ 7/ 8.x/ 10/ Server 2003 & 2008R2 & 2012R2/ Linux

Anschlüsse: 2x USB 3.1 (Gen2) A Buchse extern, 1x SATA 15 Pin -

Lieferumfang: EX 12001 2, Low Profile Bügel, Treiber CD, Anleitung - -

Zertifikate:

J1: SATA 15 pin Power

Anschluss vom PC Netzteil-

CON1 & CON2: 2x externe USB 3.1 (Gen2) A Buchse-

CON1 & CON2:

USB 2.0 Pin‘s

Pin Signal

1 VCC

2 DATA -

3 DATA+

4 GND

USB 3.1 Pin‘s

Pin Signal

5 SSTX+

6 SSTX -

7 GND

8 SSRX+

9 SSRX -

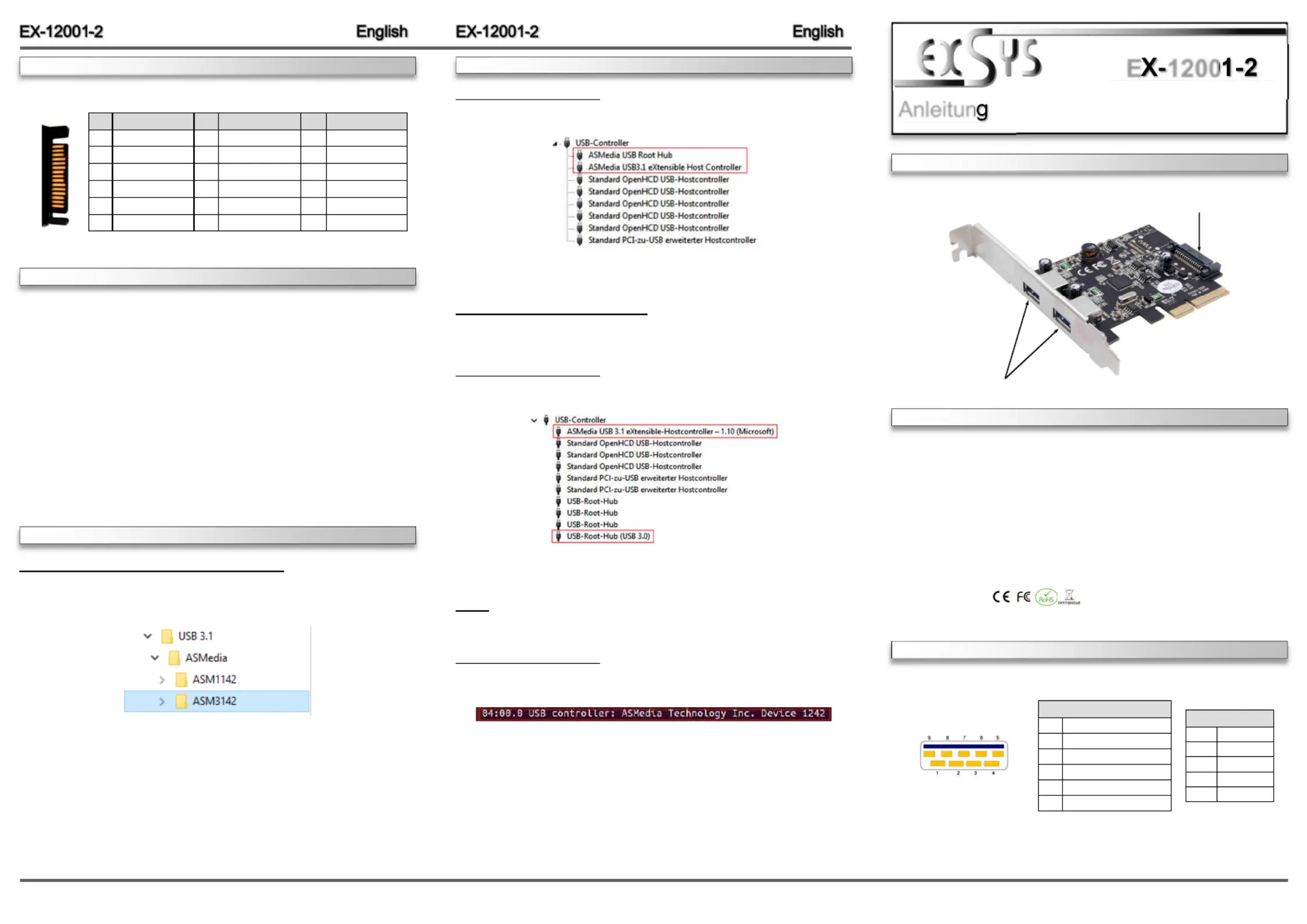

DRIVER INSTALLATION

CONNECTORS

J1:

Pin Assignment Pin Assignment

1 3.3 Volt (Orange) 7 5 Volt (pre charge) -

2 3.3 Volt (Orange) 8 5 Volt (Red)

3 3.3 Volt (pre charge) 9 5 Volt (Red) -

Pin Assignment

13 12 Volt (pre charge) -

14 12 Volt (Yellow)

15 12 Volt (Yellow)

4 Ground (Black) 10 Ground (Black)

5 Ground (Black) 11 Reserve

6 Ground (Black) 12 Ground (Black)

HARDWARE INSTALLATION

DRIVER INSTALLATION

Windows XP/ Vista/ 7/ Server 2003 & 2008 R2

After starting Windows is recognizes a new „ “. Start the USB (Universal Serial Bus) Controller-

„ “ file which is in the „ “ folder (see picture):setup.exe ASM3142

Follow the installation instructions and complete the installation.

Windows will now install automatically you right driver for your particular operating system. After

the installation the operating system detects the card and automatically install them.

Please note the following installation instructions. Because there are large differences between the

PC’s, we can give you only a general installation instructions for the EX-12001-2. Please refer your

computer’s reference manual whenever in doubt.

1. Turn off the power to your computer and any other connected peripherals.

2. Remove the mounting screws located at the rear and/or sides panels of your Computer and

gently slide the cover off.

3. If necessary please install now the external power supply to the card (see at Connectors at

J1).

4. Locate an available PCI Express expansion slot and insert the card. Make sure that the card -

is plugged in correctly.

5. Then attach the card with a screw to the rear panel of the computer.

6. Gently replace your computer’s cover and the mounting screws.

CHECK INSTALLED DRIVER

Open the >Device manager<. Now you should see at „USB Controller-“ the following new entry's:

If you see this or a similar information the device is installed correctly.

Windows 8.x/ 10/ Server 2012 R2

After the hardware installation, the operating system will recognize the device automatically and

install the drivers.

CHECK INSTALLED DRIVER

Open the >Device manager<. Now you should see at „USB Controller-“ the following new entry's:

If you see this or a similar information the device is installed correctly.

Linux

After the hardware installation, the operating system will recognize the device automatically and

install the drivers.

CHECK INSTALLED DRIVER

Now you should see the following new entry:

If you see this or a similar information the device is installed correctly.

Produktspecifikationer

Varumärke:	EXSYS
Kategori:	nätverkskort/adapter
Modell:	EX-12001-2
Vikt:	300 g
Bredd:	88 mm
Djup:	68 mm
Certifiering:	CE, FC
Värdgränssnitt:	PCIe
Monteringsfästen ingår:	Ja
Dataöverföringshastighet (max):	10 Gbit/s
Antal interna SATA-portar:	1
bruksanvisning:	Ja
Windows-operativsystem som stöds:	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Temperatur vid drift:	0 - 55 ° C
Temperaturintervall (förvaring):	-40 - 75 ° C
Intervall för relativ operativ luftfuktighet:	5 - 95 %
Hållbarhetscertifiering:	RoHS
Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar:	2
Plug & Play-kompatibel:	Ja
Linux operativsystem som stöds:	Ja
Intern:	Ja
Kretsar:	ASMEDIA ASM2142
Antal:	1
Utgränssnittet:	USB 3.2 Gen 1 (3.1 Gen 1)
Drivrutiner medföljer:	Ja
Byte under drift (hotswap):	Ja
