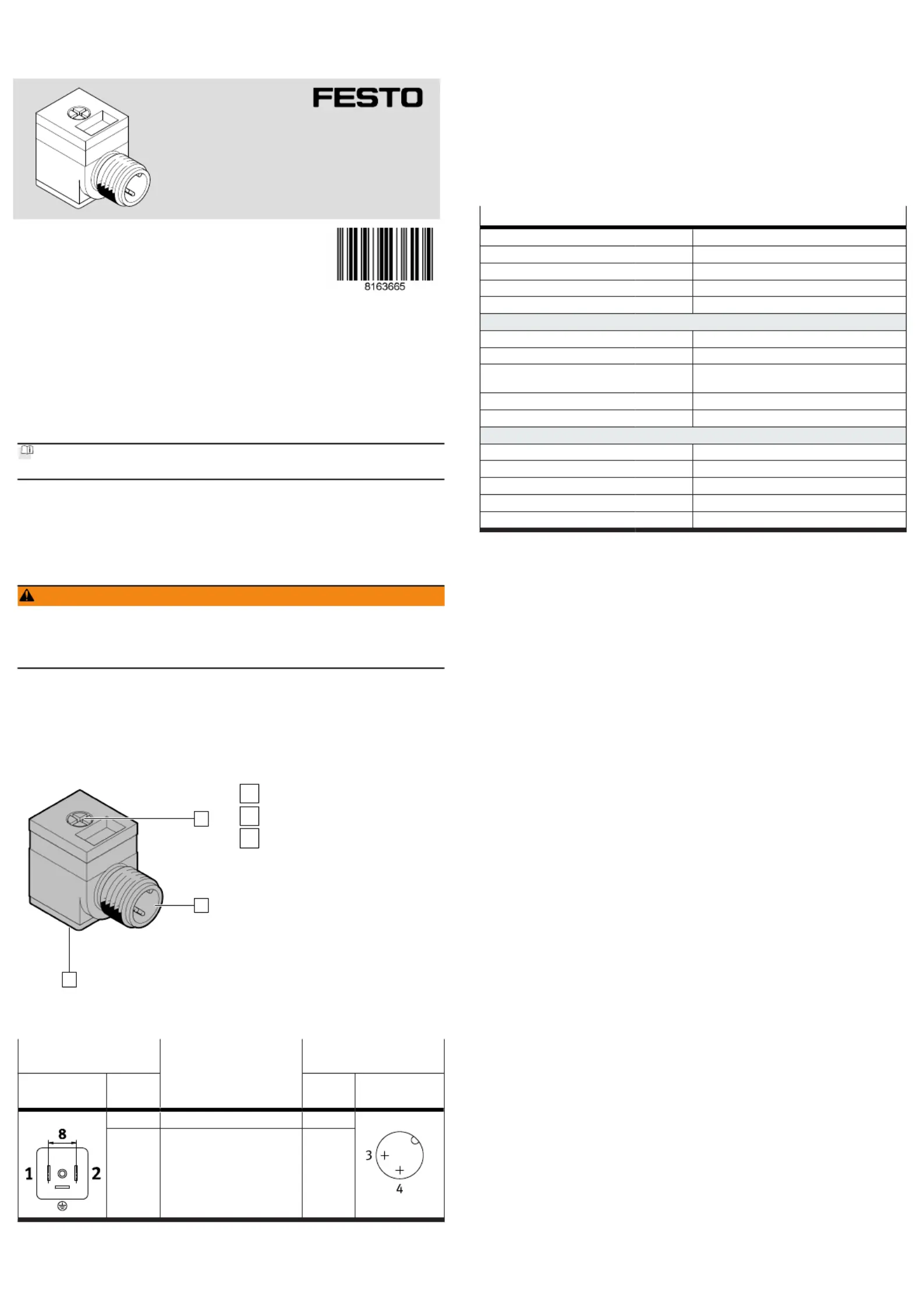

Sida 1/1
MSSD-EB-M12-MONO
Plug socket
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Deutschland
+49 711 347-0
www.festo.com
Assembly instructions
8163665
2021-09c
[8163667]
Translation of the original instructions
© 2021 all rights reserved to Festo SE & Co. KG
1
Applicable Documents
All available documents for the product
è
www.festo.com/sp.
2 Safety
2.1 Safety instructions
–
Do not connect or disconnect plug connector when powered.
–Only mount the product on components that are in a condition to be safely
operated.
WARNING
Risk of injury due to electric shock.
• For the electrical power supply with extra-low voltages, use only PELV circuits
that guarantee a reinforced isolation from the mains network.
•
Observe IEC 60204-1/EN 60204-1.
2.2 Intended use
Electrical adapter for solenoid valves with plug pattern type C in accordance with
EN 175301-803.
3 Structure
3.1
Product design
1
2
3
Fig.1
1
Socket type C
2
Plug M12x1, A-coded
3
Central screw
3.2 Contact assignment
Electrical connection 1
Field device side
Assignment/signal Electrical connection 2
Controller side
1
Socket
Pin Pin 2
Plug con-
nector
1 com(-) 0V 3
2 Signal (+) solenoid valve 14 4
Tab. 1:
Contact assignment
4 Assembly
4.1 Mounting electrical connection 1
1. Align socket to fit the solenoid valve.1
2.
Connect socket to the solenoid valve.1
3. Fasten socket with central screw . Tightening torque: 0.35 Nm ± 15%. 1 3
4.2 Mounting electrical connection 2
1. Align the socket of the connecting cable to fit the plug .2
2. Insert the plug into the socket.2
3. Tighten screw-type lock. Tightening torque: 0.3 Nm ± 67%.
5 Technical data
MSSD-EB-M12-MONO
Current rating at 40 °C [A] 0.12
Surge resistance [kV] 2.5
Operating voltage range AC/DC U
B
[V] 12 … 24
Switching position indicator LED
Ambient temperature [°C] –10 … +50
Electrical connection 1
Function Field device side
Connection type Socket
Connection technology Plug pattern type C in accordance with EN
175301-803
Type of mounting Central screw M2.5
Degree of protection IP65 In assembled state
Electrical connection 2
Function Controller side
Connection type Plug connector
Connection technology M12x1 A-coded to EN 61076-2-101
Type of mounting Screw-type lock
Degree of protection IP65 In assembled state
Tab. 2: Technical data
