Sida 1/2
Translation of the original instructions
© 2020 all rights reserved to Festo SE & Co. KG
LOCTITE
®
is a registered trademark of its respective trademark holder in certain
countries.
1 Applicable documents
Documents Product Contents
Instructions Angle seat valve VZXA Operating
Addendum document Angle seat valve VZXA Operating conditions
Safety data sheet Adhesive from the original manu
facturer
e.g. LOCTITE270
Tab. 1
2 Safety
2.1 Safety instructions
– Before carrying out any work on the product, switch off the compressed air
supply and secure it against being switched back on.
– Observe the safety data sheet for the adhesive from the original manufac
turer.
– The magnet is fragile and strongly magnetic.1
– Handle the magnet carefully.
– Store the magnet at least 20cm away from magnetisable objects.
2.2 Intended use
Installation of a position indicator on an angle seat valve VZXA.

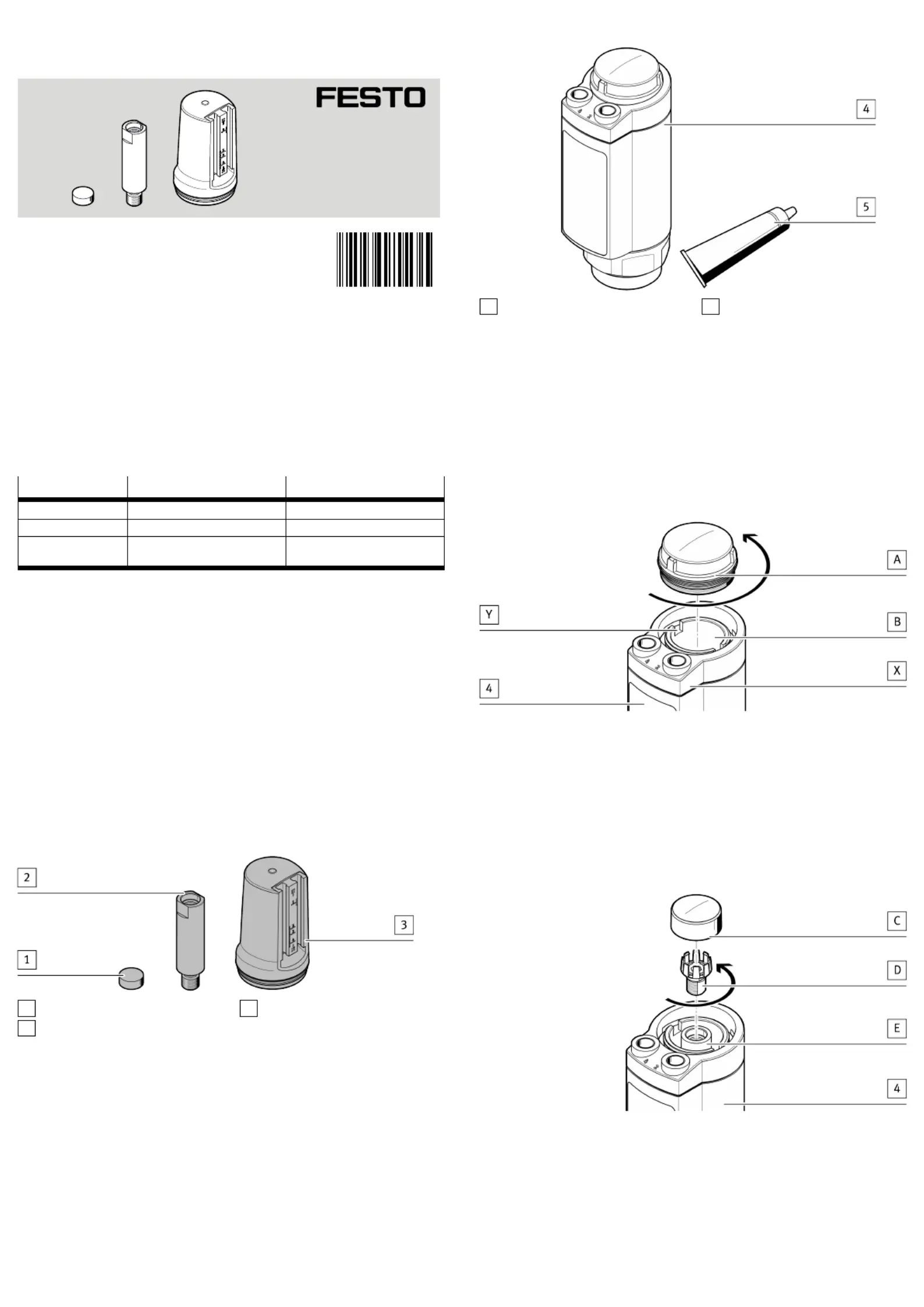

3 Product Range Overview
3.1 Scope of delivery
1
Magnet (1x)
2
Rod (1x)
3
Sensor bracket (1x)
Fig. 1
3.2 Not in scope of delivery
4
Angle seat valve (1x)
VZXA
5
Locking agent (1x)
e.g.LOCTITE270
Fig. 2
4 Assembly
A distinction is made between the following control functions of the angle seat
valve :4
– Double acting (D/A)
– Normally closed (N/C)
– Normally open (N/O)
4.1 Preparation
4.1.1 For angle seat valves with D/A and N/C control function
Fig. 3
1. Clamp the angle seat valve in a vice on the edges[X] of the spine.4
2. Remove the sight cap[A].
3. If the connector[B] was unscrewed together with the inspection cap[A],
detach it from the inspection cap[A].
– Do not damage the thread of the connector[B].
– Screw the connector[B] back into the angle seat valve .4
4. Use an auxiliary tool to engage into the slots[Y].
Auxiliary tool: 5mm thick, 35mm wide
5. Tighten connector[B]. Tightening torque: 20Nm±10%

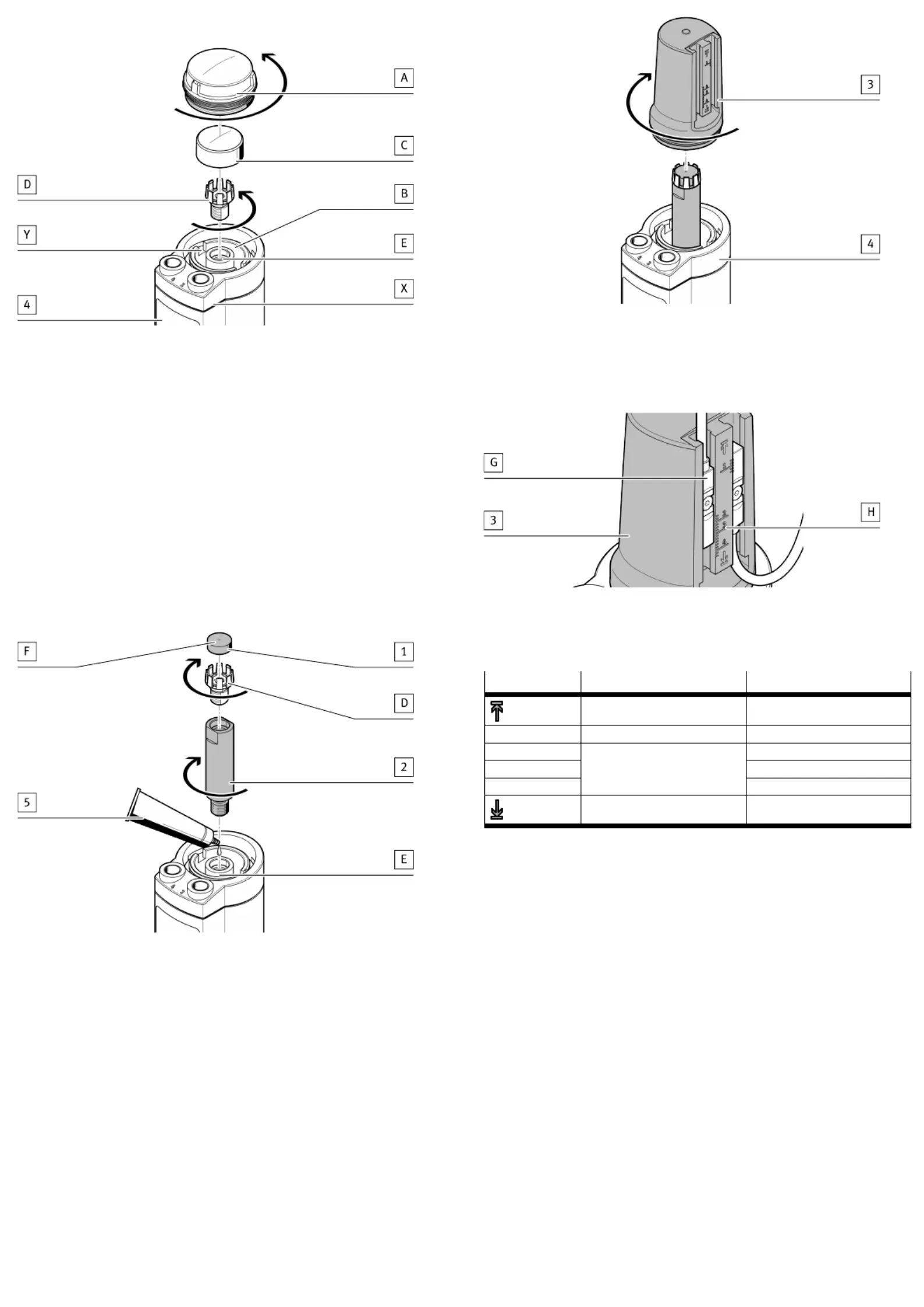

Fig. 4
1. Pressurise the angle seat valve with compressed air at port 2.4
Ä
The piston rod[E] travels to the top end position.
2. Pull off display part[C].
3. Unscrew the retaining bracket[D] from the piston rod[E]. Hexagon: 5mm
4. If necessary, remove objects from the angle seat valve . Clean coarse con4
tamination. Objects: e.g.thread abrasion
8128632
SAMH-F12-MK
Position indicator
8128632
202008
[8128634]
Assembly instructions
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 3470
www.festo.com
