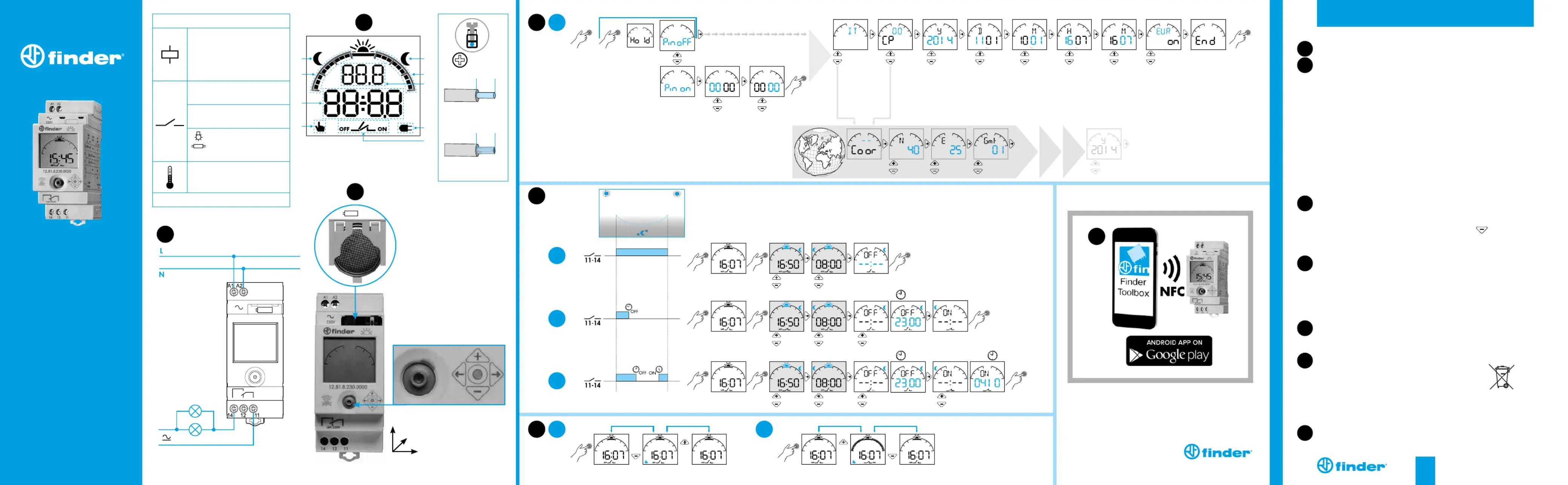

12.81 DIGITAL ASTRO TIME SWITCH

WIRING DIAGRAM

DISPLAY INDICATORS

ASwitch-o at sunrise

BSwitching advanced (

■

=10min)

CPIN−CP(post code)−Coor(geographic coordinates in degrees)

−Time zone(with respect to Gmt)−year−day−month−hour−

minutes−Daylight saving−END

DManual mode active

ECurrent contact state

FTime switch without power supply connected (powered by battery)

GIT(country), CP(leading two characters of CP), Y(year), D(day),

M(month), H(hour), M(minutes), Daylight saving ON/OFF

(EUR=Europe−BRA=Brazil−AUS=Australia)

Coor N(North), S(South), E(East), W(West), Gmt(Time zone)

Prog OFF(switch-o), ON(switch-on)

HSwitching retarded (

■

=10min)

I Switch-on at sunset

SETUP (examples)

3a Setup PIN

−−−−CountryPostcodeDataSummer time

3b Setup by geographic coordinates. Start at 3a, but at the select

Country or select CP stage, scroll down with

to enter Coor

setting. Continue by setting the coordinates and time zone.

Latitude: North-South. Longitude: East-West. Time zone(Gmt).

PROGRAMMING (examples)

4a ASTRO function

4b ASTRO function + (Time Switch) OFF

4c ASTRO function + (Time Switch) OFF & ON

NOTE

- (

■

=10min) Advanced/Retarded

- ASTRO times vary over the year, time switch times remain constant

MODE SETUP

5aMANUAL OFF mode setting (activate g.1/deactivate g.2)

5bMANUAL ON mode setting (activate g.1/deactivate g.2)

Battery replacement

BATTERY CR 2032 (LiMnO

2

) 3V, 230mAh.

Complies with Article 11, EU directive 2006/66/CE.

Dispose of batteries according to local regulations.

NOTE

- Back-light display (only with power supply)

- Minimum switching interval:

■

=10min

Programmable with technology by the App NFCFINDER TOOLBOX

downloaded from Google Play™.

1

2

3

4

5

6

7

ENGLISH
