ENGLISH

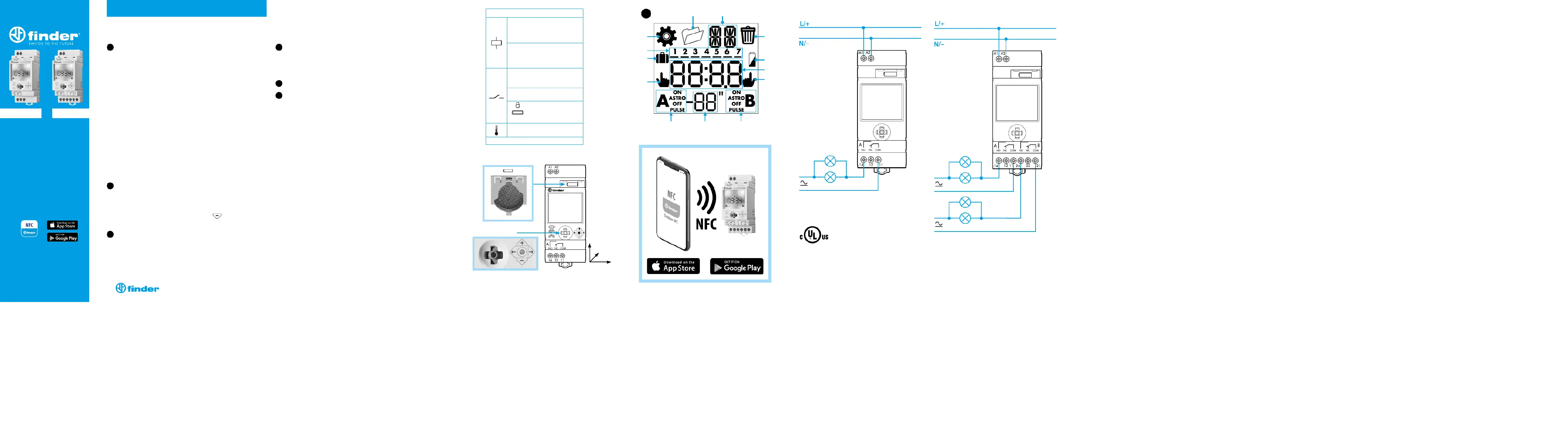

12.A1/A2DIGITAL ASTRO TIME SWITCH

Programmable with NFC technology with the App FINDER TOOLBOX

downloaded from Google Play™ - Apple Store.

DISPLAY INDICATORS

ASetting Menu

BDays of the week (1=Mon...7=Sun)

CHoliday program

DPermanent Manual over-ride activated - channel A

EChannel A functions (ON, OFF, Astro ON, Astro OFF, Pulse)

FDay - Advanced/Retarded - seconds/minutes

GChannel B functions (ON, OFF, Astro ON, Astro OFF, Pulse)

HPermanent Manual over-ride activated - channel B (12.A2 only)

ITime-CP (post code), year, day, month, hours, minutes,

daylight saving ON/OFF, holiday program (Start: day/month.

Finish: day/month) PIN ON/OFF, End

LTime switch without power supply (powered by battery) - Low battery

(with power supply)

MCancel

NProgram number (max 50) - IT (country), CP (leading two characters

of CP), Coor (geographic coordinates in degrees), N(North)/

S(South), E(East)/W(West), TZ(Time zone), Y(year), D(day),

M(month), H(hour), M(minutes), Daylight saving ON/OFF

(EU=Europe − BR=Brazil − AU=Australia)

Holiday program (Start: day/month. Finish: day/month)

OProgramming

SETTINGS (examples)

2aSetting: Country, CP (leading two characters of CP), year, day,

month, hour, minutes, EU (daylight saving)

2bHoliday program (Start: day/month. Finish: day/month), PIN, END

2cSetup by geographic coordinates. Start at 2a, but at the select

Country or select CP stage, scroll down with

to enter Coor

setting. Continue by setting the coordinates and time zone.

Latitude: North-South. Longitude: East-West. Time zone(TZ)

PROGRAMMING (examples)

3aASTRO ON - ASTRO OFF Function (18:19 Astro ON + retarded

10 min - 05:20 Astro OFF + advanced 20 min); Day: Mon...Fri

3bON - OFF Function (6:25 ON - 19:15 OFF, Mon, Wed, Fri, Sun)

3cPULSE function (11:00 pulse 5 s, Mon Wed Fri)

1

2

3

MANUAL MODE

4aManual ON/OFF channel A

4bManual ON/OFF channel B (only 12.A2)

4cPermanent Manual over-ride ON/OFF - Channel A

4dPermanent Manual over-ride ON/OFF - Channel B (12.A2 only)

DELETION of all program

DELETION of single program

NOTE

- Battery replacement: BATTERY CR 2032 (LiMnO

2

) 3V, 230mAh.

Complies with Article 11, EU directive 2006/66/CE.

Dispose of batteries according to local regulations

- Back-light display (only with power supply)

- Minimum switching interval: 1 second (pulse function)

- ASTRO times vary over the year, time switch times remain constant

4

5

6

12.A212.A1

Toolbox NFC

G

A

B

C

D

E

FF

N

O

M

L

I

H

1

12.A1

12.A2

JOYSTICK

88.8 mm

60.8 mm

35 mm

EN 60669-1/EN 60669-2-1

12.A.8.230.0000x

U

N

110...230 V AC (50/60 Hz)/DC

U

min

- U

max

90 V - 264 V (AC/DC)

P 2.8 VA (50 Hz)/0.9 W

12.A.0.024.00002

U

N

12...24 V AC (50/60 Hz)/DC

U

min

- U

max

10 V - 30 V (AC/DC)

P 2.2 VA/1.2 W

1 CO (SPDT) ()12.A1

2 CO (DPDT) ()12.A2

16 A 250 V AC

AC1 4000 VA

AC15 (230 V AC) 750 VA

(230 V) 2000 W

(230 V) 750 W

CFL-LED (230 V) 400 W

(–20…+50)°C

IP20

Utility Model - IB12A1VXXG - 03/22 - Finder S.p.A. con unico socio - 10040 ALMESE (TO) - ITALY

- Operating Control, Independently mounted

- Panel mounting, Type 1 Action

- Pollution Degree 2, Impulse Voltage 4000 V (800 V for 12...24 V models)

- Terminals nominal torque: 0.8 Nm

- The battery can be replaced only by the manufacturer or competent personnel

- The device can be installed and congured only by the installer or a qualied installer
