JOYSTICK

88.8 mm

60.8 mm

35 mm

EN 60669-1/EN 60669-2-1

12.A .8.230.0000x

110...230 V AC (50/60 Hz)/DC

min

- U

max

90 V - 264 V (AC/DC)

P 2.8 VA (50 Hz)/0.9 W

12.A .0.024.00002

24 (12...24) V AC (50/60 Hz)/DC

min

- U

max

10 V - 30 V (AC/DC)

P 2.2 VA/1.2 W

1 CO (SPDT) ( )12.A1

2 CO (DPDT) ( )12.A2

16 A 250 V AC

AC1 4000 VA

AC15 (230 V AC) 750 VA

(230 V) 2000 W

(230 V) 750 W

CFL-LED (230 V) 400 W

(–20…+50)°C

IP20

Utility Model - IB12A1A2 - 10/20 - Finder S.p.A. con unico socio - 10040 ALMESE (TO) - ITALY

ENGLISH

12.A1/A2 DIGITAL ASTRO TIME SWITCH

Programmable with NFC technology with the App FINDER TOOLBOX

downloaded from Google Play™ - Apple Store.

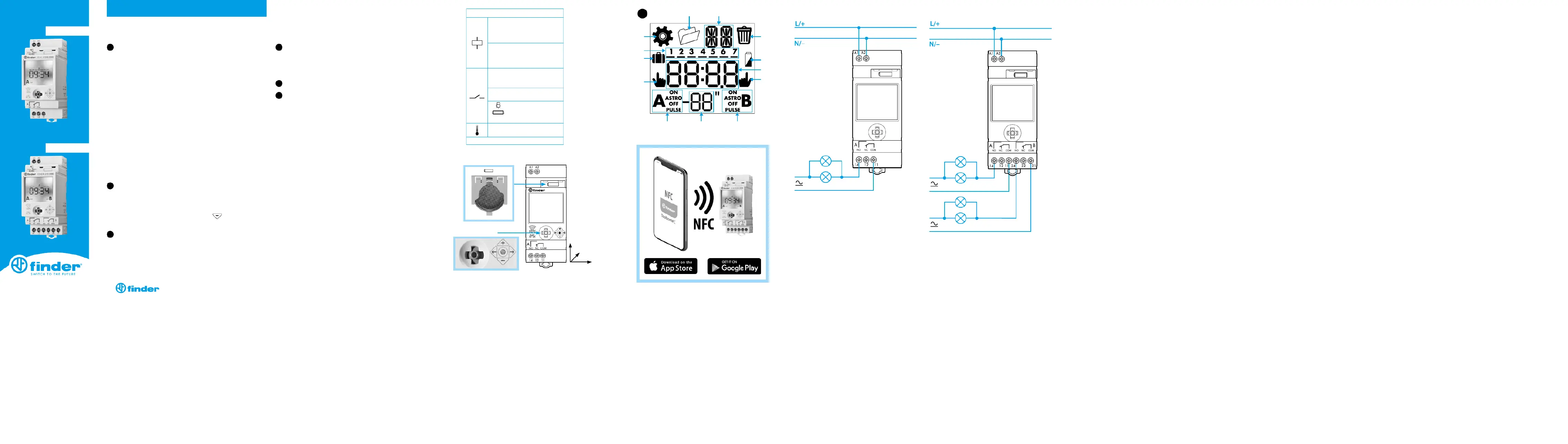

DISPLAY INDICATORS

A Setting Menu

B Days of the week (1=Mon...7=Sun)

C Holiday program

D Permanent Manual over-ride activated - channel A

E Channel A functions (ON, OFF, Astro ON, Astro OFF, Pulse)

F Day - Advanced/Retarded - seconds/minutes

G Channel B functions (ON, OFF, Astro ON, Astro OFF, Pulse)

H Permanent Manual over-ride activated - channel B (12.A2 only)

I Time-CP (post code), year, day, month, hours, minutes,

daylight saving ON/OFF, holiday program (Start: day/month.

Finish: day/month) PIN ON/OFF, End

L Time switch without power supply (powered by battery) - Low battery

(with power supply)

M Cancel

N Program number (max 50) - IT (country), CP (leading two characters

of CP), Coor (geographic coordinates in degrees), N(North)/

S(South), E(East)/W(West), TZ(Time zone), Y(year), D(day),

M(month), H(hour), M(minutes), Daylight saving ON/OFF

(EU=Europe − BR= Brazil − AU= Australia)

Holiday program (Start: day/month. Finish: day/month)

O Programming

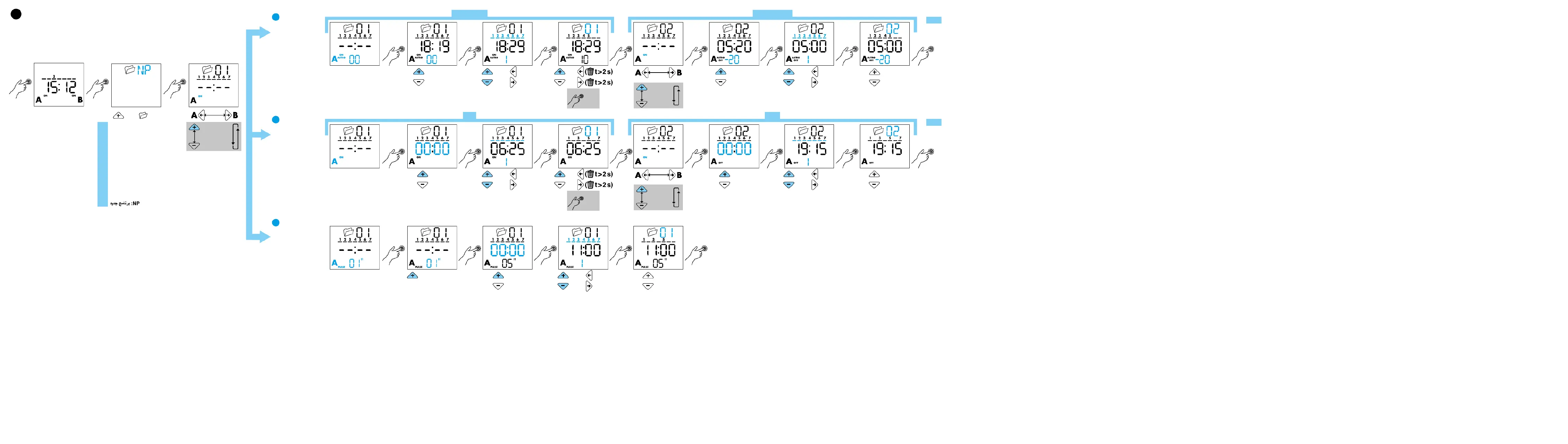

SETTINGS (examples)

2a Setting: Country, CP (leading two characters of CP), year, day,

month, hour, minutes, EU (daylight saving)

2b Holiday program (Start: day/month. Finish: day/month), PIN, END

2c Setup by geographic coordinates. Start at 2a, but at the select

Country or select CP stage, scroll down with

to enter Coor

setting. Continue by setting the coordinates and time zone.

Latitude: North-South. Longitude: East-West. Time zone(TZ)

PROGRAMMING (examples)

3a ASTRO ON - ASTRO OFF Function (18:19 Astro ON + retarded

10 min - 05:20 Astro OFF + advanced 20 min); Day: Mon...Fri

3b ON - OFF Function (6:25 ON - 19:15 OFF, Mon, Wed, Fri, Sun)

3c PULSE function (11:00 pulse 5 s, Mon Wed Fri)

MANUAL MODE

4a Manual ON/OFF channel A

4b Manual ON/OFF channel B (only 12.A2)

4c Permanent Manual over-ride ON/OFF - Channel A

4d Permanent Manual over-ride ON/OFF - Channel B (12.A2 only)

DELETION of all program

DELETION of single program

NOTE

- Battery replacement: BATTERY CR 2032 (LiMnO

) 3V, 230mAh.

Complies with Article 11, EU directive 2006/66/CE.

Dispose of batteries according to local regulations

- Back-light display (only with power supply)

- Minimum switching interval: 1 second (pulse function)

- ASTRO times vary over the year, time switch times remain constant
