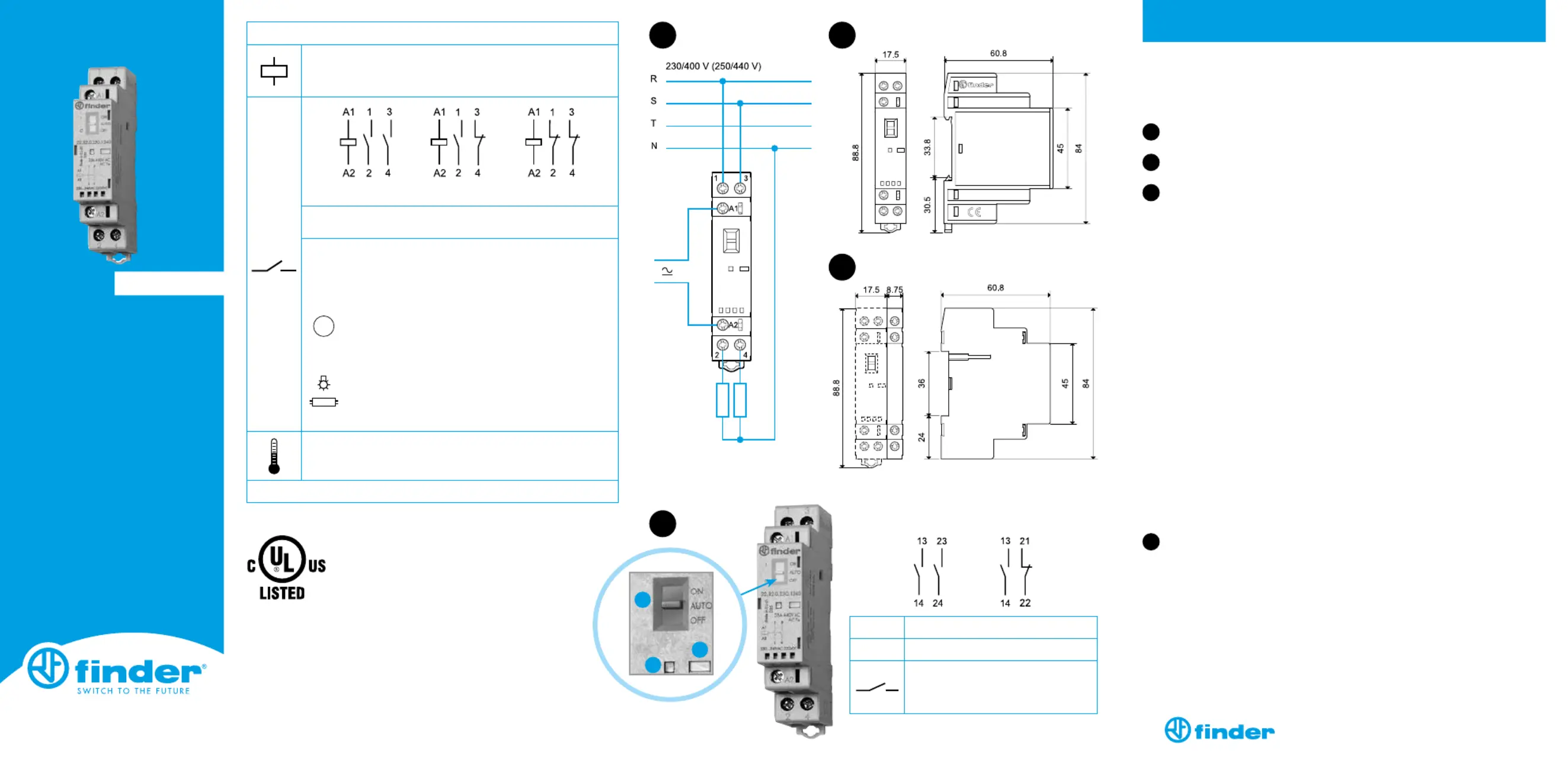

22.32

22.3 (022.33/022.35)2 +

• Open Type Device - Pollution degree 2 Installation Environment

• Maximum Surrounding Air Temperature 50°C

• Minimum distance among modular contactors 9 mm

• Field Wiring Terminals:

Use 60/75°C copper conductor only and wire ranges

No. 10-12-18-24 AWG, Solid only

Terminal tightening torque 7.0 lb.in. (0.8 Nm)

• Suitable for use on a circuit capable of delivering not more than

5000 ARMS Symmetrical, 240 V ac, when protected by Listed

Cartridge Fuses, rated K5 Class (No Current Limiting, Non-Time

Delay, max 600 Vac, 30 A, 50 kA A.I.C.) or RK5 Class (Current

Limiting, Time Delay, max 600 Vac, 15 A, 50 kA A.I.C.) or equivalent

• For use in a circuit protected by Type1 or Type2 Surge Protective

Devices with “Max Voltage Protection” rating of 3.7 kVpk and

“Minimum Nominal Discharge Current” of 5 kA (at 6 kV)

022.33 022.35

022.33 2 NO (DPST- NO)

022.35 1 NO (SPST- NO) + 1 NC (SPST- NC)

Ith 6 A

AC15 700 VA

(230 V AC)

22.32.0. .x x0xxx x

UN ( - - - - - )V AC (50/60 Hz) / DC12 24 48 60 120 230

Umin- Umax (0.8-1.1)UN

P 2 VA / 2.2 W

22.32...x x0 22.32...x x0 22.32...x x03 5 4

25 A 440 V AC (EN 61095)

AC AC-7a (250 V) 6250 VA1/

AC AC-7b 10 A3/

AC5a (250 V) 15 A

AC15 (230 V AC) 1800 VA

(230 V AC) 1 kW

DC1 (30/11 220 /1)A0/ )V (25/5

AC-7c - (10 A - ... )22.32 4xx0

800 W (2000 W - )22.32... xx04

300 W (800 W - )22.32... xx04

CFL–LED 100 W (200 W - )22.32... xx04

(–20...+50)°C

IP20

1 2

Utility Model - IB2232001 - 06/19 - Finder S.p.A. con unico socio - 10040 ALMESE (TO) - ITALY

22.32 MODULAR CONTACTORS 25 A

Contact gap ≥ 3 mm for NO contacts only; NC contacts ≥ 1.5 mm.

Compliant with EN 61095: 2009.

AC/DC silent coil (with varistor protection).

CONNECTION DIAGRAM

OUTLINE DRAWINGS

FRONT VIEW

A = Selector (22.32.0.xxx.xx40)

The three-position manual selector has the following functions:

ON position

The contacts are latched in the operated state (NO contacts -

closed and NC contacts - open), the mechanical indicator is visible

in its window, the LED is not illuminated.

AUTO position

The state of contacts, mechanical indicator and LED follow the coil

supply voltage.

OFF position

Even if terminals A1 - A2 are supplied with rated voltage, the coil

is not energized, and so the contacts remain in the non-operated

state, the mechanical indicator is not visible and the LED is not

illuminated.

B = LED

C = Mechanical indicator

ACCESSORIES

- Auxiliary contact module available, “Quick assembly” with the main

contactor 022.33/022.35

- It is not possible to assembly the auxiliary module on 22.32.0.xxx.x4x0

(2 NC versions)

OTHER DATA

It is suggested an air gap of 9 mm between adjacent relays for installations

and working conditions close to the limit (that is, ambient temperature

> 40°C, coil operated for a prolonged period of time, all contacts loaded

with current > 20 A).

ENGLISH
