Sida 1/102

Rugged Mobile Computing Solutions

A140

USER MANUAL

October 2017

TRADEMARKS

The Bluetooth® word mark and logos are registered trademarks owned by

Bluetooth SIG, Inc.

All brand and product names are trademarks or registered trademarks of

their respective companies.

NOTE

The information in this manual is subject to change without notice.

For the latest version of the manual, please visit the Getac website

at www.getac.com.

Table of Contents

Chapter 1 Getting Started ................................................................. 1

Getting the Tablet PC Running ................................................. 2

Unpacking .............................................................................. 2

Installing the Micro SIM Card (Optional) and Battery -

Packs ....................................................................................... 2

Connecting to AC Power ....................................................... 4

Using the Tether .................................................................... 5

Turning On and Off the Tablet PC ....................................... 6

Taking a Look at the Tablet PC ................................................. 7

Front Components ................................................................. 7

Rear Components ................................................................ 10

Right-Side Components ....................................................... 11

Left-Side Components ......................................................... 12

Top Components .................................................................. 13

Bottom Components ........................................................... 13

Chapter 2 Operating Your Tablet PC .............................................. 14

Using the Touchscreen ............................................................. 15

Using Multi touch Gestures- ................................................ 16

Using Network and Wireless Connections ............................. 18

Using the LAN ...................................................................... 18

Using the WLAN ................................................................... 19

Using the Bluetooth Feature .............................................. 21

Using the WWAN Feature (Optional) ................................ 23

Using the GPS Feature (Optional) ........................................... 25

Using the Barcode Scanner (Optional) ................................... 26

Using the Fingerprint Scanner (Optional) .............................. 27

Enrolling a Fingerprint ........................................................ 27

Fingerprint Login ................................................................. 29

Using the NFC/RFID Reader (Optional) ................................... 30

Chapter 3 Managing Power ............................................................ 31

AC Adapter ............................................................................... 32

Battery Pack .............................................................................. 33

Charging the Battery Pack .................................................. 33

Initializing the Battery Pack ................................................ 34

Checking the Battery Level ................................................. 34

Battery Low Signals and Actions ........................................ 35

Replacing the Battery Pack ................................................. 36

Power-Saving Tips .................................................................... 38

Chapter 4 Expanding Your Tablet PC ............................................. 39

Connecting Peripheral Devices ............................................... 40

Connecting a USB Device .................................................... 40

Connecting a USB Device with Fischer Connectors

(Optional) ............................................................................. 41

Connecting an Audio Device .............................................. 41

Connecting a Monitor ......................................................... 42

Connecting a Serial Device (Optional) ............................... 42

Using Storage and Expansion Cards ....................................... 43

Using MicroSD Cards ........................................................... 43

Using Smart Cards ................................................................ 44

Changing or Replacing ............................................................ 45

Replacing the SSD ................................................................ 45

System Memory Upgrade .................................................... 47

Chapter 5 Using BIOS Setup ............................................................ 49

When and How to Use ............................................................. 50

Menu Descriptions ................................................................... 52

Information Menu ............................................................... 52

Main Menu ........................................................................... 52

Advanced Menu ................................................................... 53

Security Menu ...................................................................... 54

Boot Menu ........................................................................... 55

Exit Menu ............................................................................. 55

Chapter 6 Using Getac Software .................................................... 56

OSD Control Panel ................................................................... 57

G-Manager ............................................................................... 58

Camera (Optional) ................................................................... 60

G-Camera (for Windows 10) ............................................... 60

Getac Camera (for Windows 7) ........................................... 61

Chapter 7 Care and Maintenance ................................................... 62

Protecting the Tablet PC .......................................................... 63

Using an Virus Strategy -Anti ............................................... 63

Using the Cable Lock ........................................................... 63

iii

Taking Care of the Tablet PC .................................................. 64

Location Guidelines ............................................................. 64

General Guidelines .............................................................. 64

Cleaning Guidelines ............................................................. 65

Battery Pack Guidelines ....................................................... 65

Touchscreen Guidelines ....................................................... 66

When Traveling ........................................................................ 68

Chapter 8 Troubleshooting ............................................................. 69

Preliminary Checklist ................................................................ 70

Solving Common Problems ...................................................... 71

Battery Problems . ................................................................ 71

Bluetooth Wireless Transmission Problems ....................... 71

Display Problems .................................................................. 72

Hardware Device Problems ................................................. 72

Power Management Problems ........................................... 73

Sensor Problems (for Windows 10 Models Only) .............. 73

Software Problems .............................................................. 74

Sound Problems ................................................................... 74

Startup Problems ................................................................. 75

WLAN Problems ................................................................... 75

Other Problems .................................................................... 77

Resetting the Tablet PC ........................................................... 78

System Recovery ....................................................................... 79

System Restore, Recovery, or Reset (for Windows 10

Models) ................................................................................. 79

System Recovery (a Tool for Windows 7 Models) .............. 80

Using the Driver Disc (Optional) ............................................. 82

Appendix A Specifications ................................................................. 83

Appendix B Regulatory Information ................................................. 85

On the Use of the System ........................................................ 86

Class B Regulations .............................................................. 86

ANSI Warning ....................................................................... 87

Safety Notices ....................................................................... 88

On the Use of the RF Device .................................................... 90

USA and Canada Safety Requirements and Notices .......... 90

European Union CE Marking and Compliance Notices ..... 92

User Notification of Take-back Service ................................... 94

ENERGY STAR 6.1 ..................................................................... 95

Battery Recycling ...................................................................... 97

Chapter 1

Getting Started

Congratulations on g this Tablet PC.purchasin rugged

This chapter first tells you step by step how to get the Tablet PC up and

running. Then, you will find a section briefly introducing the external

components of the Tablet PC.

Getting the RunninTablet PC g

Unpacking

After unpacking the shipping carton, you should find these standard items:

 A140 Tablet PC

 AC adapter

 AC power cord

 Battery pack x 2

 Stylus

 Tether

  Document(s) Driver disc (optional)

Inspect all the items. If any item is damage or missing, notify your dealer

immediately.

Installing th SIM Card (Optional) and e Micro-

Battery Packs

1. Select models only:

With the s chip side facing up and the mirco- ’SIM card beveled corner

pointing to the slot, insert the card all the way into the slot.

NOTE: To remove the SIM card, just push in the card to release it and micro-

then pull it out.

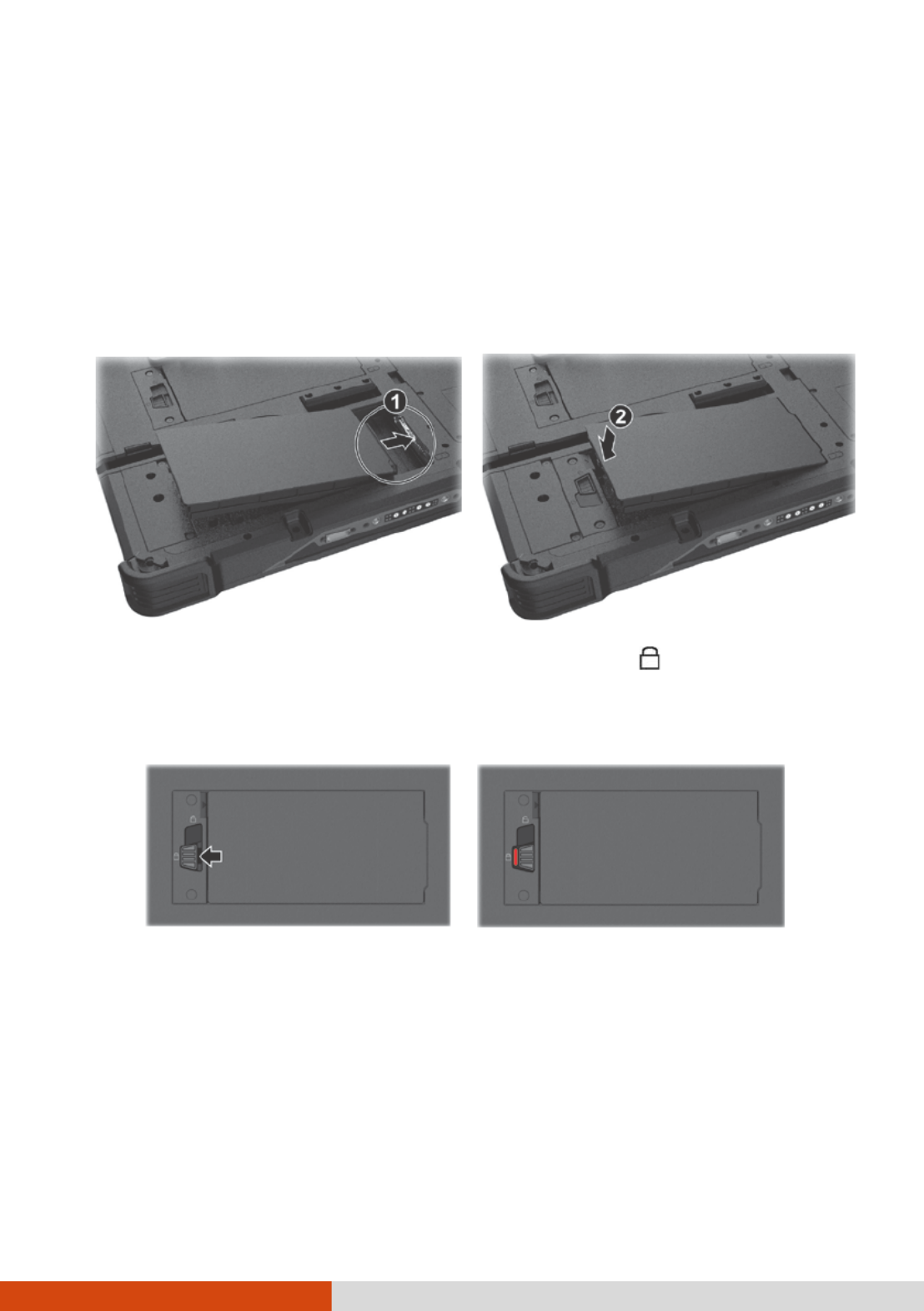

2. The Tablet PC has two battery compartments for two battery packs; each

is installed in the same way.

With the battery pack correctly oriented, attach its connector side to the

battery compartment at an angle () and then press down the other

side ().

3. Slide the battery latch toward the locked position ( ).

CAUTION: Make sure the battery latch is correctly locked, not revealing the

underneath red part.

Correct Incorrect (revealing red part)

Connecting to AC Power

CAUTION: Use only the AC adapter included with your . Using Tablet PC

other AC adapters may damage the Tablet PC.

NOTE:

 The battery pack is shipped to you in power saving mode that protects it

from charging/discharging. It will get out of the mode to be ready for

use when you install the battery pack and connect AC power to the

Tablet PC for the very first time.

 When the AC adapter is connected, it also charges the battery pack. For

information on using battery power, see Chapter 3.

You must use AC power when start up the for the very first ing Tablet PC

time.

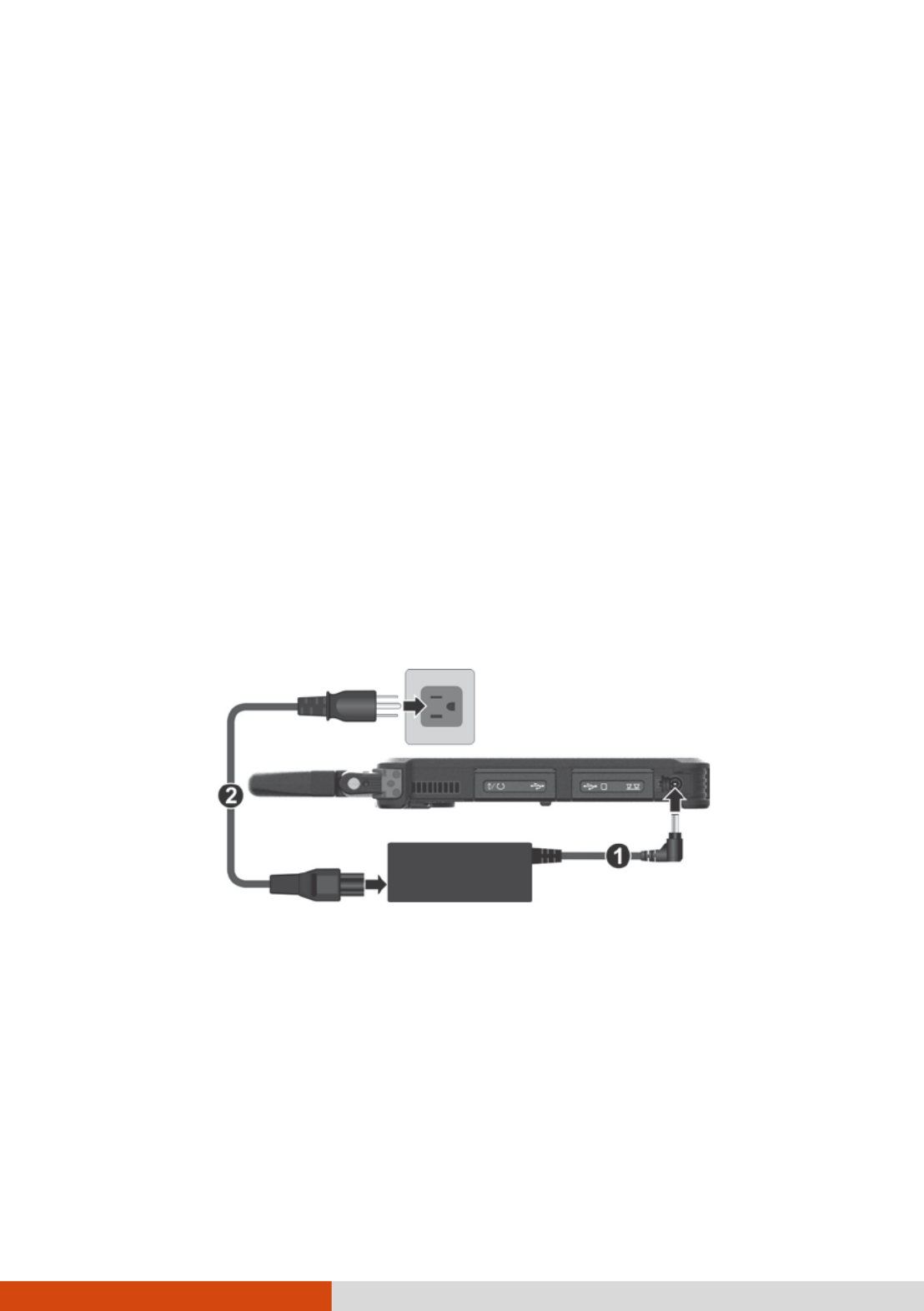

1. Plug the DC cord of the AC adapter to the power connector of the Tablet

PC ().

2. Plug the female end of the AC power cord to the AC adapter and the

male end to an electrical outlet ().

3. Power is being supplied from the electrical outlet to the AC adapter and

onto your . Now, you are ready to turn on the Tablet PC Tablet PC.

Turning On and Off the Tablet PC

Turning On

Press the power button ( ). T should start. he Windows operating system

NOTE: Tapping the screen during startup a premay invoke -boot menu

(unless the default settings have been changed). If the menu appears, simply

select . Continue

Turning Off

When you finish a working session, you can stop the system off by turning

the power or leaving in Sleep or Hibernation mode:it

To... Do this...

Windows 10 Windows 7

Power off

(Shutdown)

Tap Power Shut

down.

Use the Windows Start menu

in the lower left and follow

the shutdown procedure.

Sleep Press the power button.*

-or-

Tap Power Sleep.

Press the power button.*

-or-

U Start menu se the Windows

to put the Tablet PC in Sleep

mode.

Hibernate By default, this option is not

shown in the Start menu. If you

want to use the feature, set up

accordingly in Windows

settings.

Use the Windows Start menu

to put the Tablet PC in

H ibernation mode.

* “ ” Sleep is the default setting of the power button. You may change what

the power button does in Windows settings.

Taking a Look at the Tablet PC

NOTE: Depending on the model you purchased, the appearance of your

Tablet PC may not be exactly the same as those shown in this manual.

CAUTION: You need to open the protective covers to access the connectors.

When not using a connector, make sure to close the cover completely for

water- dust-, and fire-, proof integrity. Engage the locking mechanism if (

existing.)

Front Components

Ref

Component Description

 Handle

(optional)

Provides a convenient way to carry the Tablet PC.

A lso serves as a stylus holder. The handle has a slot

and two s for the stylus. You can use any one for hole

storing the stylus.

 Light sensor Se nses the ambient light for automatic adjustments

of the display backlight.

Ref

Component Description

 Camera

indicator

(option )al

Lights up when the camera lens beside it is in use.

 Camera lens

(option )al

Allows you to use the camera function.

Slide the camera cover toward the right to use the

camera; slide it toward the left for privacy protection.

 Touchscreen D s s or . isplay and receive information f the Tablet PC

 Indicators

Power Lights blue the power is onwhen .

Blinks blue when the system is in Sleep mode.

Battery Lights amber when the battery is being charged.

Lights green when battery charging is completed.

Blinks green to indicate in high -the battery’s built

temperature protection mechanism is activated.

CAUTION: Do not remove the battery during this

period.

Blinks red (once per second) when the battery’s

capacity is below 10%.

Blinks red rapidly (once per 0.5 second) when there is

a thermal protection problem Ask for repair service .

in case this happens.

Blinks amber when the battery charging is in an

abnormal state. Replace the battery in case this

happens.

RF (Radio

Frequency)

Lights blue when the RF radio of any RF feature

(WLAN/Bluetooth/WWAN) is on.

 Power button Turns the power on or off. (The default “off” state is

“ ”) Sleep mode.

 Plus button Increases the sound volume.

 Minus button Decreases the sound volume.

 Windows logo

button

Opens or closes the Start menu.

Produktspecifikationer

Varumärke:	Getac
Kategori:	Ritplatta
Modell:	A140
Färg på produkten:	Zwart
Vikt:	20 g
Djup:	42.9, 177.8 mm
Höjd:	14.2 mm
Förpackningens vikt:	60 g
Förpackningens bredd:	100.1 mm
Djuppackning:	227.1 mm
Förpackningshöjd:	41.3 mm
Antal per paket:	1 stuk(s)
Anslutning 1:	HDMI
Anslutning 2:	VGA + 3.5mm + Micro-USB
Anslutning 1 typ:	Mannelijk
Anslutning 2 typ:	Vrouwelijk
