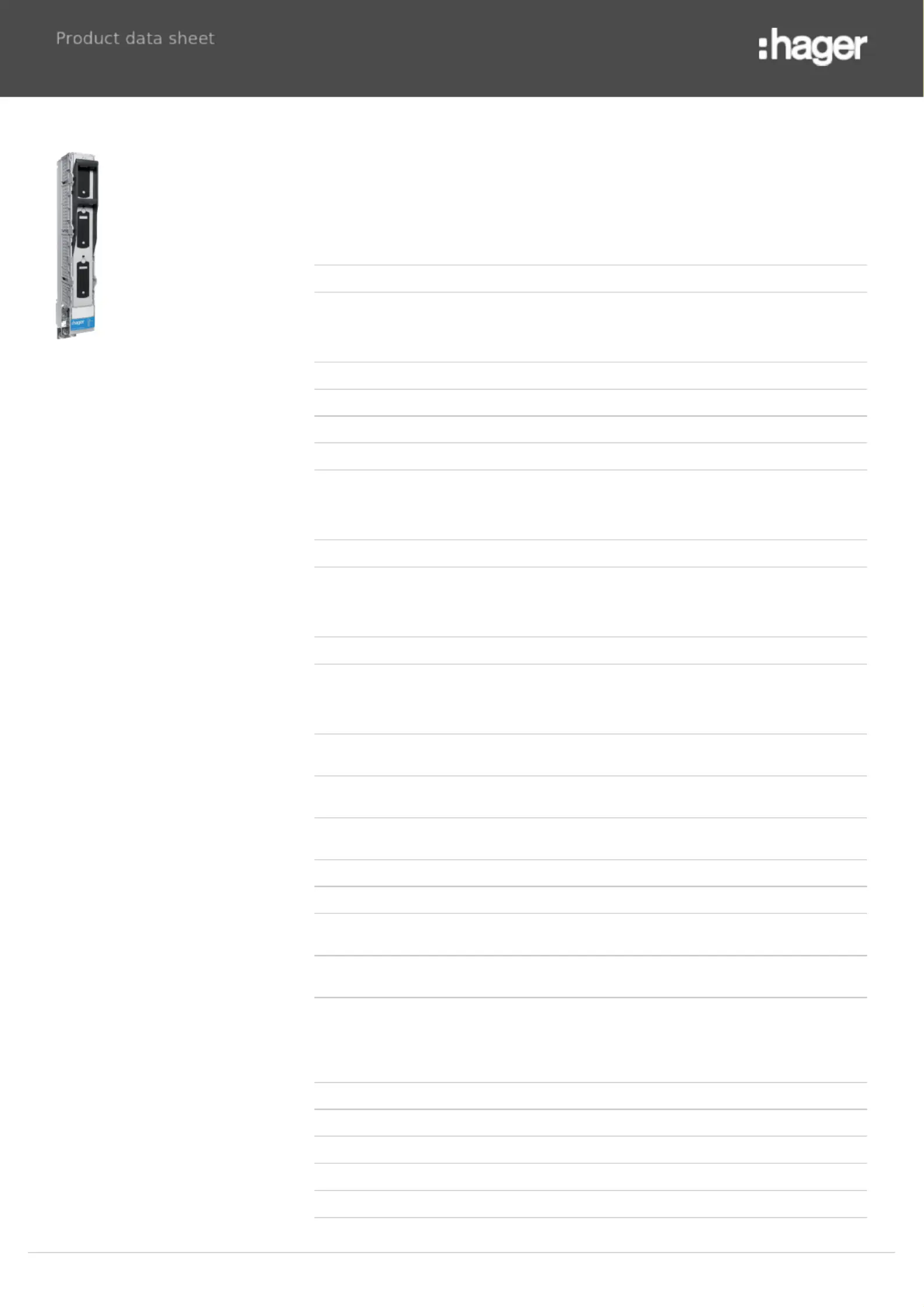

NH Disconnector vertical design LV size 3 1000A 185mm 3pole M12

Technical properties

Architecture

Number of poles 3 P

Type of pole 3 P

Configuration

Distance between rail centre, 40 mm No

Distance between rail centre, 50 mm No

Distance between rail centre, 60 mm No

Distance between rail centre, 100 mm No

Distance between rail centre, 185 mm Yes

Main electrical features

Rated operational voltage Ue 0 / 690 V AC

Frequency 50/60 Hz

Voltage

Rated insulation voltage 1000 V

Rated impulse withstand voltage 12 kV

Electric current

Rated current for Ue=400V AC according to

IEC 61439-1 5.3.2 1000 A

Rated current for Ue=500V AC according to

IEC 61439-1 5.3.2 1000 A

Rated current for Ue=690V AC according to

IEC 61439-1 5.3.2 1000 A

Rated current 1000 A

Rated short-time withstand current 1s 15 kA

Conventional free air thermal current with

Trennmesser and std. cross section 1000 A

Acceptable current rating with AC22

category B 1000 A

Acceptable current rating with AC23

category B 1000 A

Electric current / temperature

Rating current 40°C 1000 A

Rating current 45°C 950 A

Rating current 50°C 900 A

Rating current 55°C 850 A

Rating current 60°C 800 A

Rating current 65°C 750 A

Subject to technical modifications
