Sida 1/1

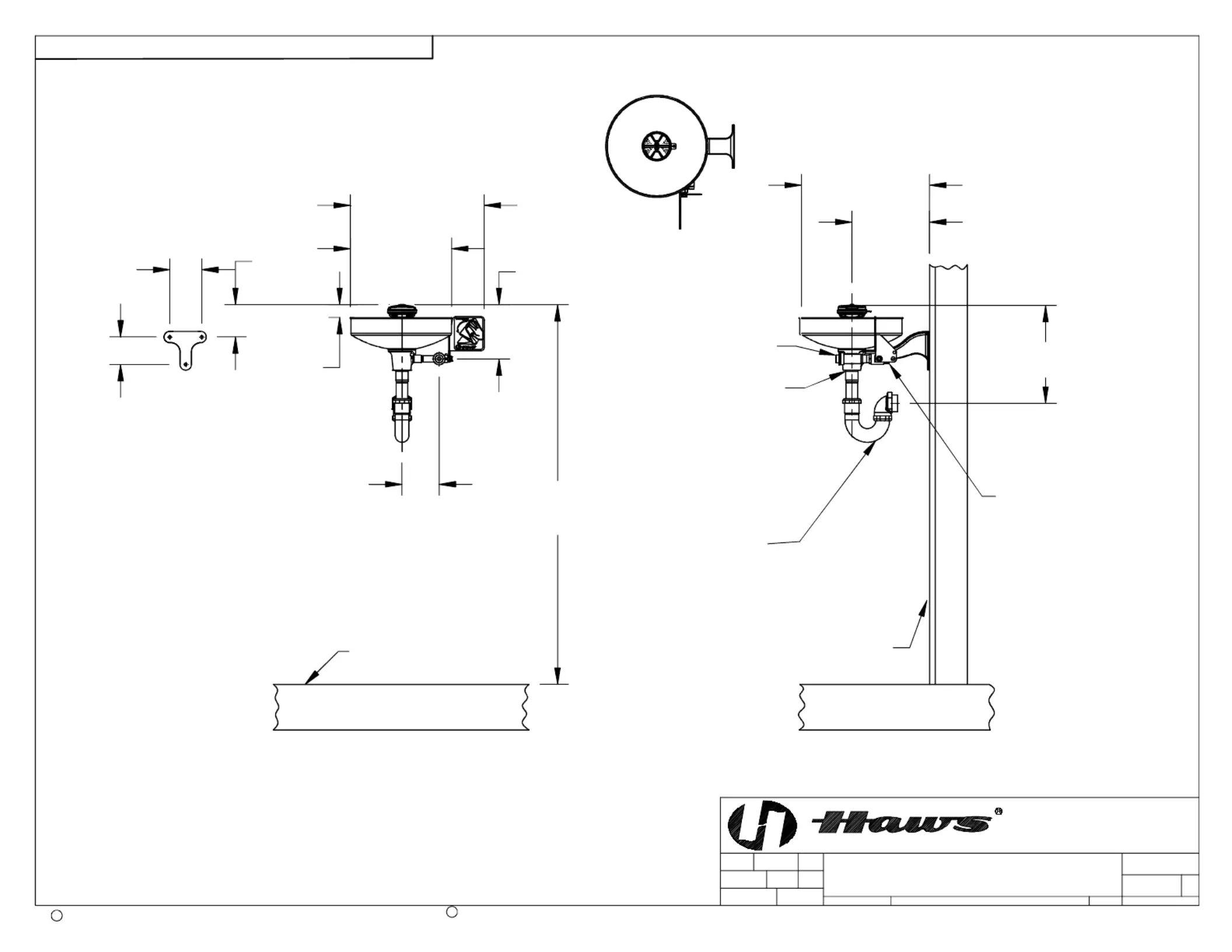

3 1/2 [89]
3 [76]
1-1/2 (F) IPS
WASTE TRAP
(SUPPLIED
W/7360BT &
7460BT ONLY)
MAX. 45" [1143]
MIN. 33" [838]
FLOOR LINE
WALL FACE
L-STRAINER
1-1/4 IPS
14 3/4 [372]
11 [281]
6 [151]
1 1/2 [36]
3 1/2 [90]
TOP VIEW
8 1/2 [216]
14 1/16 [356]
1/2 IPS
SUPPLY
10 3/4 [272] ± 1 [25]
WALL
MOUNT
DETAIL
NOTES:
1. METRIC DIMENSIONS ARE IN BRACKETS [X].
2. TO COMPLY WITH ANSI Z358.1-2009 FOR EMERGENCY EYEWASH OR EYE/FACE WASH:
- UNIT SHALL BE INSTALLED IN ACCORDANCE WITH MANUFACTURER'S INSTRUCTIONS AND ACCEPTABLE PLUMBING PRACTICES.
- EYEWASH OR EYE/FACE WASH SHALL BE POSITIONED WITH NOZZLES NOT LESS THEN 83.8 CM (33 IN.) AND NO GREATER THAN
114.3 CM (45 IN.) FROM SURFACE ON WHICH USER STANDS AND 15.3 CM (6 IN.) MINIMUM FROM WALL OR NEAREST
OBSTRUCTION.
3. DIMENSIONS MAY VARY BY ± 1/2 [13].
4 1/4 [105]
APPROVED:
DRAWN:
PART NUMBER
DRAWING NO.
SCALE:
SHEET OF
REV
DRAWING TYPE: SIZE: A
BY:ECN NO.
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved.
HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
C
R
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
(775) 359-4712 FAX (775) 359-7424
E-MAIL: HAWS@HAWSCO.COM
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
IR
4/28/08
08808A00
11
0002080042.D
7360B-7460B/7360BT-7460BT
1:1
1 1
4110
HM
INSTALLATION
4910
2014
