APPROVED:

DRAWN:

PART NUMBER

SCALE:

SHEETOF

REVISION

DRAWING TYPE:SIZE: A

BY:ECN NO.

DATE:

DATE:

ECN:

REVISED PER

CHK'D.:

Haws Corporation - All Rights Reserved.

HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.

C

R

MODEL(S)

1455 KLEPPE LANE

SPARKS, NEVADA 89431

(775) 359-4712 FAX (775) 359-7424

E-MAIL: HAWS@HAWSCO.COM

WEBSITE: WWW.HAWSCO.COM

THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS

MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.

JL

05/09/16

3

0510000133.D

7601.15

15 GAL EYEWASH

1:1

11

FV

10/24/16

5050

VWC

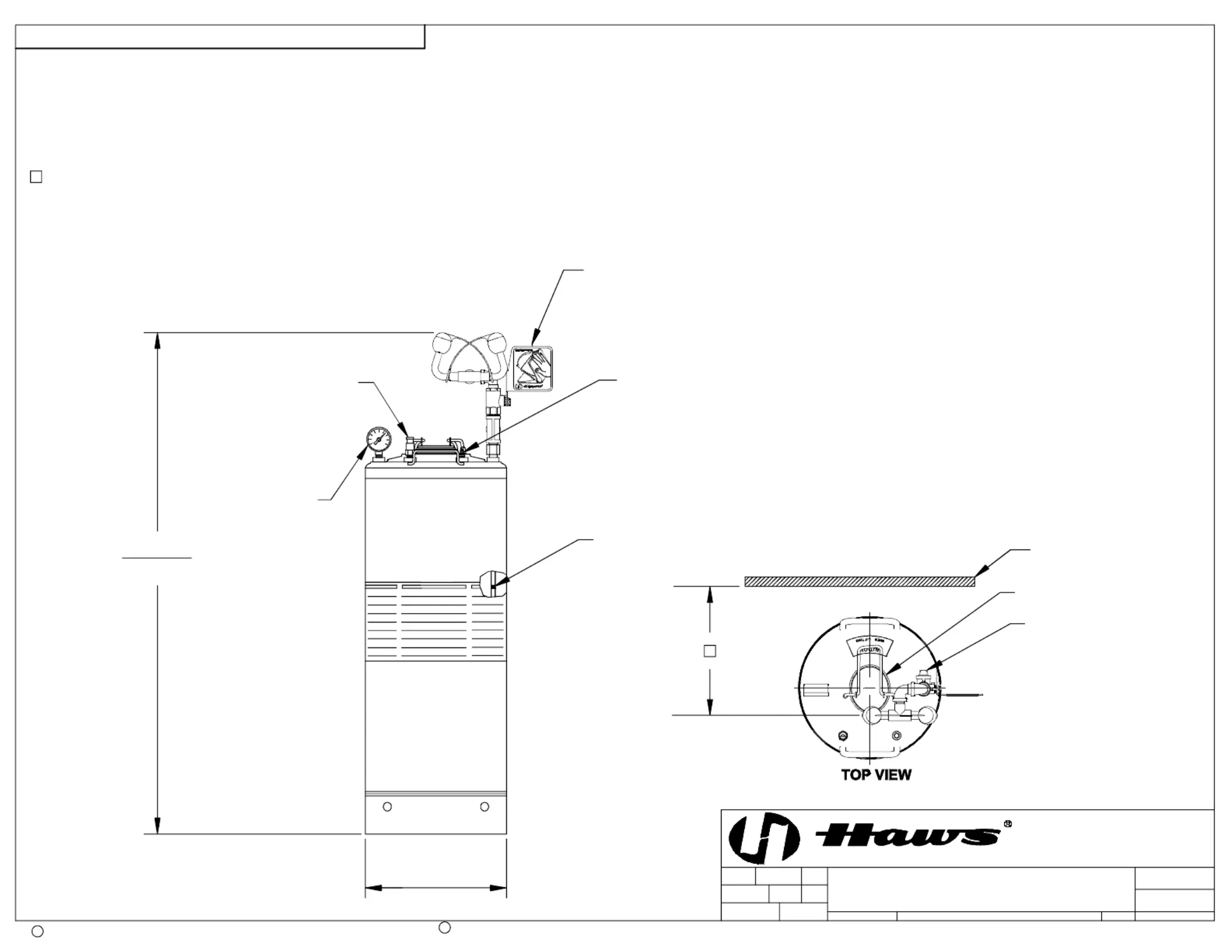

INSTALLATION

5142

2016

CC

NOTES:

1. TO COMPLY WITH ANSI Z358.1-2014 FOR EMERGENCY EYEWASH OR EYEWASH:

- UNIT SHALL BE INSTALLED IN ACCORDANCE WITH MANUFACTURER'S INSTRUCTIONS AND ACCEPTABLE PLUMBING PRACTICES.

- EYE/FACE WASH SHALL BE POSITIONED SUCH THAT STREAMS ARE 15.3 CM (6 IN.) MINIMUM FROM WALL OR NEAREST

OBSTRUCTION.

2 EYEWASH HEAD ASSEMBLY MUST BE PARALLEL TO WALL OR OBSTRUCTION TO MEET CRITERIA STATED IN ACCORDANCE TO NOTE 1.

*3. DIMENSIONS MAY VARY BY ±1/2" [12.7mm].

4.

PRESSURIZE TO 100 PSI. REFILL IF PRESSURE < 95 PSI.

43-11/16"

311 mm

12-1/4"

1110 mm

PUSH

FLAG

AIR VALVE

*

WALL

2

1/2" NPT (FEMALE)

CONNECTION FOR

OPTIONAL EYE/FACE

& BODY HOSE UNIT

FILL WATER

TO THIS MARK

PRESSURE

GAUGE

PRESSURE

RELIEF VALVE

COVER PLATE
