Operation & Installation Manual

iQ751, Gen II

1001, Gen IIiQ

iQ1501, Gen II

WARNING

If the information in these instructions is not followed

exactly, a or explosion could result causing re

property damage, personal injury, or death.

— Do not store or use gasoline or other ammable

vapors and liquids in the vicinity of this or any

other appliance.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use

any phone in your building.

• Immediately call your gas supplier from a

neighbor’s phone. Follow the gas supplier’s

instructions.

• If you cannot reach your gas supplier, call the

re department.

— Installation and service must be performed by

a installer, service agency, or the gas qualied

supplier.

— Ne pas entreposer ni utiliser d’essence ou

ni d’autres vapeurs ou liquides inammables

à proximité de cet appareil ou de tout autre

appareil.

QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ

•

Ne pas tenter d’allumer d’appareil.

•

Ne touchez à aucun interrupteur; ne pas vous

servir des téléphones se trouvant dans

le bâtiment.

•

Appelez immédiatement votre fournisseur de gaz

depuis un voisin. Suivez les instructions

du fournisseur.

•

Si vous ne pouvez rejoindre le fournisseur,

appelez le service des incendies.

— L’installation et l’entretien doivent être assurés

par un installateur ou un service d’entretien

qualié ou par le fournisseur de gaz.

AVERTISSEMENT

Assurez-vous de bien suivre les instructions données

dans cette notice pour réduire au minimum le

risque d’incendie ou d’explosion ou pour éviter tout

dommage matériel, toute blessure ou la mort.

Thank you for purchasing this Intellihot unit,

Our journey to create a better heating system began back in the winter of 2005, when a tank-

type water heater brRNHGRZQDQGƠRRGHGP\EDVHPHQW%\FRPELQLng the principles of a diesel

engine’s robustness, robotics intelligence, and marine environment durability, we set out to

design a unit from the ground up ¬that would outperform and outlast all others. Quickly, our goal

grew from not just making a better water heaterEXWFUHDWLQJDQHƝFLHQWDQGLQWHOOLJHQWZDWHU

heating and delivery system.

,QQRYDWLRQLVRXUKDOOPDUNDQGVLPSOLFLW\HƝFLHQF\DQGGXUDELlity are at the core of every

lntellihot product. Our water heaters utilize the best attributes of tank and tankless – with

intelligent logic and integrated recirculation. The result is a water heating system capable

of handling the extreme loads of commercial applications with the preciseness needed for

residential applications.

Our products are proudly engineered and built in GalesburJ,OOLQRLVPDNLQJOQWHOOLKRWWKHƟUVWDQG

RQO\86EDVHGPDQXIDFWXUHURIJDVƟUHGFRQGHQVLQJWDQNOHVVZDWHr heating systems. Over

the past eight years lntellihot has helped commercial customers throughout the nation save

thousands of dollars while eliminating downtime. As we continue to expand our coverage across

North America, we strive to provide you with the same unmatched performance advantages

and savings. Our talented team of dedicated professionals is ready to assist you and help your

business succeed.

I thank you for purchasing our lntellihot products.

Sincerely,

Sridhar Deivasigamani

President, lntellihot Inc.

Table of Contents

1. General Information

1.1 Items Shipped With Water Heater. . . . . . . . . . 5

1.2 Serial Number Locations . . . . . . . . . . . . . . . . . 5

2. Safety

2.1 Safety Signal Words. . . . . . . . . . . . . . . . . . . . . 6

2.2 Installation Warnings . . . . . . . . . . . . . . . . . . . . 6

3. Technical Speci� cations

3.1 Speci cations Chart . . . . . . . . . . . . . . . . . . . . 8

3.2 High Elevation Installations . . . . . . . . . . . . . . . 8

3.3 Clearance Requirements . . . . . . . . . . . . . . . . . 9

3.4 Connection Speci cations . . . . . . . . . . . . . . . . 9

3.5 Exhaust Gas Standards . . . . . . . . . . . . . . . . . . 9

3.6 Overall Dimensions. . . . . . . . . . . . . . . . . . . . . 10

3.7 Con guration Options . . . . . . . . . . . . . . . . . . 12

4. Quick Reference Installation Guide

4.1 Install the Water Heater. . . . . . . . . . . . . . . . . 13

4.2 Pre-Startup Instructions . . . . . . . . . . . . . . . . 13

5. Preparation Before Installation

5.1 Selecting an Indoor Installation Site . . . . . . . 15

5.2 Selecting an Outdoor Installation Site . . . . . . 16

6. Gas Connection

6.1 Quick Reference Installation Instructions . . . .17

6.2 Fuel Source . . . . . . . . . . . . . . . . . . . . . . . . . . .17

6.3 Gas Pressure Requirements . . . . . . . . . . . . . .17

6.4 Gas Pressure Regulator . . . . . . . . . . . . . . . . . .17

6.4.1 Venting of Gas Supply Regulators . . . .17

6.5 Length of Gas Supply Line. . . . . . . . . . . . . . . 18

6.6 Gas Piping Material . . . . . . . . . . . . . . . . . . . . 18

6.7 Determine Correct Gas Pipe Diameter . . . . . 18

6.8 Gas Pipe Drip Leg and Shut-o Valve . . . . . . 18

6.9 Connecting Gas Line to Unit . . . . . . . . . . . . . 18

6.10 Gas Pipe Sizing Tables . . . . . . . . . . . . . . . . . . 20

7. Air Intake Inlet and Exhaust Gas Outlet

Pipe Connections

7.1 Quick Reference Installation Guide . . . . . . . . 22

7.2 Typical Single Unit Air Intake Inlet and

Exhaust Gas Outlet Pipe Installation . . . . . . . 22

7.3 Two Pipe Vent System (Direct Vent) . . . . . . 24

7.3.1 Single Unit Con gurations . . . . . . . . . 24

7.3.2 Multiple Units Con gurations . . . . . . . 24

7.3.3 Side Wall Air Intake Inlet and Exhaust

Gas Outlet Pipe Termination. . . . . . . . 25

7.3.4 Roof Air Intake Inlet and Exhaust Gas

Outlet Pipe Termination . . . . . . . . . . . 25

7.4 Single Pipe Venting System (Power Vent) . . 26

7.4.1 Single Unit . . . . . . . . . . . . . . . . . . . . . . 26

7.4.2 Multiple Units . . . . . . . . . . . . . . . . . . . 26

7.5 Combustion Air Requirements . . . . . . . . . . . . 27

7.6 Intake Air Inlet and Exhaust Gas Outlet

Pipe Diameter and Length . . . . . . . . . . . . . . 27

7.7 Venting Clearance Speci cations . . . . . . . . . 28

7.8 Exhaust Gas Outlet Pipe Materials . . . . . . . . 29

7.9 Air Intake Inlet Pipe Vent Materials . . . . . . . . 29

7.10 Recommended Exhaust Gas Outlet Pipe

Transitions . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

8. Water Connections

8.1 Quick Reference Installation Instructions . . . 31

8.2 Hot Water Connection . . . . . . . . . . . . . . . . . . 31

8.3 Cold Water Connection . . . . . . . . . . . . . . . . . 32

8.4 Condensate Drain Line. . . . . . . . . . . . . . . . . . 33

9. Electrical Power

9.1 Electrical Recommendations . . . . . . . . . . . . . 3 4

9.2 Connection Instructions. . . . . . . . . . . . . . . . . 34

10. Adjusting CO2 Level

10.1 General Information . . . . . . . . . . . . . . . . . . . . 3 5

10.2 Adjustment Procedure . . . . . . . . . . . . . . . . . . 3 5

11. Natural Gas to Propane Conversion

11.1 General Information . . . . . . . . . . . . . . . . . . . . 39

11.2 Conversion Procedure . . . . . . . . . . . . . . . . . 39

12. Operation

12.1 Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . 4 1

12.2 Turning Water Heater ON and OFF . . . . . . . . 41

12.3 Setting the Time . . . . . . . . . . . . . . . . . . . . . . 4 2

12.4 Adjusting the Water Temperature . . . . . . . . . 42

12.5 Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

12.5.1 Setting Passcode Protection . . . . . . . 43

12.5.2 Forgot Passcode . . . . . . . . . . . . . . . . . 43

12.6 iNTouch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

12.7 Life Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . 4 4

12.8 Unit Information . . . . . . . . . . . . . . . . . . . . . . . 44

12.9 More Screens. . . . . . . . . . . . . . . . . . . . . . . . . 45

12.9.1 Wi-Fi . . . . . . . . . . . . . . . . . . . . . . . . . . 45

12.9.2 Error History . . . . . . . . . . . . . . . . . . . . 45

12.9.3 telliCare Service

(Subscribe at Startup) . . . . . . . . . . . . 46

13. Connecting Multiple Units

13.1 General Information . . . . . . . . . . . . . . . . . . . . 4 8

13.2 Installation Procedure . . . . . . . . . . . . . . . . . . 48

13.2.1 telliCare for Multiple Units . . . . . . . . . 50

14. Maintenance

14.1 Side Panel Doors . . . . . . . . . . . . . . . . . . . . . . 51

14.2 Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

14.2.1 Inspection . . . . . . . . . . . . . . . . . . . . . . 51

14.2.2 Cleaning Procedure . . . . . . . . . . . . . . . 5 1

14.3 Condensate Sediment Cup Cleaning . . . . . . . 5 2

14.4 Maintenance-Free Circulation Pump. . . . . . . 53

14.5 Heat Engine Locations . . . . . . . . . . . . . . . . . . 5 3

15. Wiring Diagrams and Troubleshooting

15.1 Operational Flow Chart . . . . . . . . . . . . . . . . . 54

15.2 Complete Wiring Diagram (all models) . . . . . 55

15.3 Control Board Wiring Diagram

(iQ751 / iQ1001) . . . . . . . . . . . . . . . . . . . . . . . 56

15.4 Control Board Wiring Diagram (iQ1501) . . . . 57

15.5 Troubleshooting Guide . . . . . . . . . . . . . . . . . . 58

1 .

77 Requirements for State of Massachusetts

1 .1 7Notice Before Installation . . . . . . . . . . . . . . . 74

1 .

88 Warranty

1 .1 8Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

1 .

99 Product Warranty Card

1 .1 9Warranty Card . . . . . . . . . . . . . . . . . . . . . . . . 78

16. Serviceable Parts . . . . . . .. . . . . . . . . . . . . .. 62

DANGER

To avoid product damage, personal injury, or

even possible death, carefully read, understand,

and follow all the instructions in this Operation

and Installation manual before installing this

product. Improper installation, adjustment, alteration,

or maintenance can cause injury, loss of life, and/or

property damage. This water heater should be installed

and serviced by a qualified technician. The lack of

proper service can result in a dangerous condition.

Due to Intellihot’s policy of continuous product improvement

and technology, the design and/or technical specifications in

this manual are subject to change without notice.

This manual contains safety information, installation

instructions, and maintenance procedures. It must be left

with the homeowner or placed near the water heater in a

noncombustible location. The customer should retain this

manual for future reference.

This product complies with ANSIZ21.10.3 (2017) / CSA 4.3 Gas Water Heater. For use as potable water heating.

Certified to

NSF/ANSI 372

Contact Information

Call us, your dealer, first if you have any questions about this

product. We can help answer questions about installation,

operation, or if there are damaged or missing parts when

unpacking this unit from the shipping box.

Dealer Contact Information

WARNING

If the information in these instructions is not followed

exactly, a or explosion could result causing re

property damage, personal injury, or death.

— Do not store or use gasoline or other ammable

vapors and liquids in the vicinity of this or any

other appliance.

WHAT TO DO IF YOU SMELL GAS

•Do not try to light any appliance.

•Do not touch any electrical switch; do not use

any phone in your building.

•Immediately call your gas supplier from a

neighbor’s phone. Follow the gas supplier’s

instructions.

•If you cannot reach your gas supplier, call the

re department.

— Installation and service must be performed by

a installer, service agency, or the gas qualied

supplier.

— Ne pas entreposer ni utiliser d’essence ou

ni d’autres vapeurs ou liquides inammables

à proximité de cet appareil ou de tout autre

appareil.

QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ

•

Ne pas tenter d’allumer d’appareil.

•

Ne touchez à aucun interrupteur; ne pas vous

servir des téléphones se trouvant dans

le bâtiment.

•

Appelez immédiatement votre fournisseur de gaz

depuis un voisin. Suivez les instructions

du fournisseur.

•

Si vous ne pouvez rejoindre le fournisseur,

appelez le service des incendies.

— L’installation et l’entretien doivent être assurés

par un installateur ou un service d’entretien

qualié ou par le fournisseur de gaz.

AVERTISSEMENT

Assurez-vous de bien suivre les instructions données

dans cette notice pour réduire au minimum le

risque d’incendie ou d’explosion ou pour éviter tout

dommage matériel, toute blessure ou la mort.

iQ751 - iQ1501 General Information

May 2018 - Revision 01

1. General Information

1.1 Items Shipped With Water Heater

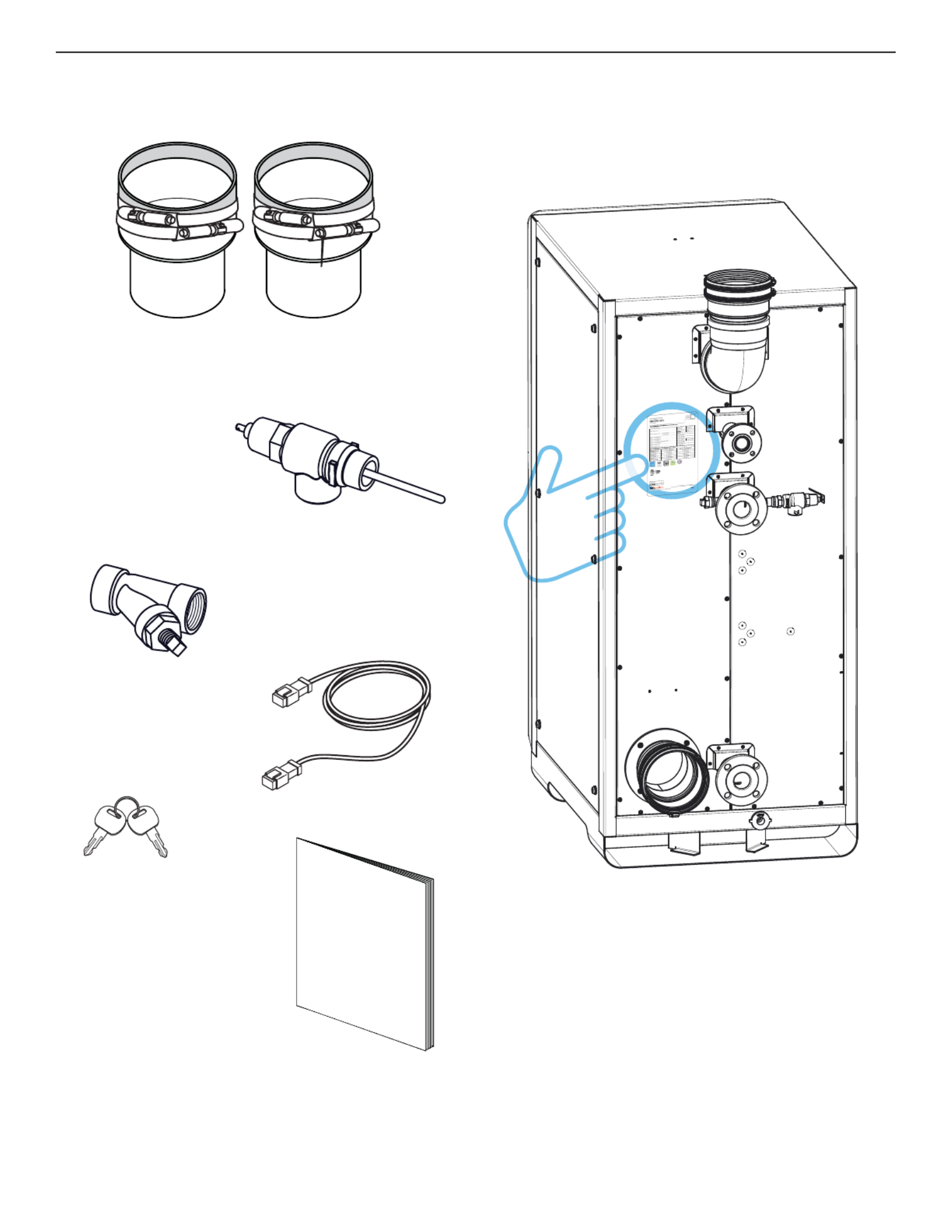

The shown in the illustration are shipped loose with the water

heater.

Temperature and

Pressure Relief Valve

(must be installed)

Adapter

(Polypropeltene to PVC or CPVC)

Strainer

( )must be installed

Operator

Manual

Communication

Cable

Keys

1.2 Serial Number Locations

The unit’s serial number is located on the rating plate on

the rear panel of the unit. Please provide this serial number

when inquiring about service or warranty solutions. Each

heat engine, up to six depending on model, also has a serial

number located on its ASME certification tag.

Unit Serial Number: ______________________________

Heat Engine 1 (ASME) Serial Number: _____________

Heat Engine 2 (ASME) Serial Number: _____________

Heat Engine 3 (ASME) Serial Number: _____________

Heat Engine 4 (ASME) Serial Number: _____________

Heat Engine 5 (ASME) Serial Number: _____________

Heat Engine 6 (ASME) Serial Number: _____________

Date of Installation: ___ / ___ / ______

2. Safety

2.1 Safety Signal Words

DANGER

Indicates an imminently hazardous situation which, if

not avoided, will result in death or serious injury. This

signal word is limited to the most extreme situations.

WARNING

Indicates a potentially hazardous situation which, if not

avoided, could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation which, if not

avoided, may result in minor or moderate injury.

NOTICE

Indicates that equipment or property damage can result if

instructions are not followed.

SAFETY

INSTRUCTIONS

Safety instructions (or equivalent) signs indicate

specific safety-related instructions or procedures.

Note: Contains additional information important to a

procedure.

2.2 Installation Warnings

WARNING

DO NOT use this water heater for any purpose other

than water heating.

Read, understand, and follow the Installation and Operation

manuals, including all warnings and precautions, before

operating this water heater. If you do not follow these

instructions exactly, a fire or explosion may result, causing

property damage, personal injury, or loss of life.

Follow all local codes and the most recent edition of the

National Fuel Gas Code (ANSI Z223.1/NFPA 54) in the USA

or the Natural Gas and Propane Installation Code in Canada

(CSA B149.1).

This water heater must be installed by a licensed plumber,

gas fitter, and/or professional service technician.

Installation by unqualified person(s) voids the warranty.

iQ751 - iQ1501 Safety

DANGER

A. This water heater does not have a pilot. It is equipped

with an ignition device which automatically lights the

burner. Do not try to light the burner manually.

B. BEFORE OPERATING, smell all around the water

heater area for gas. Be sure to smell next to the floor

because some gas is heavier than air and will settle

on the floor.

WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone in

your building.

• Immediately call your gas supplier from a neighbor’s

phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire or

police department.

C. Use only your hand to turn the manual gas shut-off

valve. Never use tools. If manual gas shut-off valve will

not turn by hand, don’t try to repair it. Call a qualified

service technician. Force or attempted repair may

result in a fire or explosion.

WARNING

DO NOT use or store flammable liquids around the water

heater, including gasoline, oils, spray paints, etc.

DO NOT operate this water heater unless it is properly

vented to the outside (the exhaust vent piping must be

connected from the unit directly to the outside). Improper

venting can cause a build-up of carbon monoxide, which

can result in brain damage or death. Exhaust gases must

be completely expelled out of the building.

This water heater is factory preset for NATURAL GAS

but may be field converted for use with propane.

For propane conversion, refer to the Propane (LPG)

Conversion section of this manual. Connecting the

water heater to any other gas supply can result in

property damage, serious injury, or even death.

This water heater is suitable for use in potable water

heating applications. The cold and hot water fittings on

the top of the water heater MUST NOT be connected to

any heating system.

The water heater temperature is factory set to 120°F

(49°C). Hot water temperatures above 125°F can cause

severe burns instantly or death from scalds. If the

proposed water heater outlet temperature is to be set

above 125°F, installation of a thermostatically controlled

(or temperature limiting) mixing valve is recommended

for all hot water going to faucets to avoid the risk

of scalding. Examples include commercial applications

where 140°F (60°C) is often needed or if the space

heating temperature required is higher than the domestic

hot water. Always check the temperature of the hot

water before bathing, showering, washing, etc.

Protect against snow and debris accumulation around

the vent terminations. Regularly inspect the exhaust

vent pipe and the air intake pipe to ensure they remain

clear from obstructions at all times.

Designed for operations at outlet water temperature(s) not

in excess of 190F (88C).

iQ751 - iQ1501 Safety

CAUTION

Make sure you know the location of the gas shut-off

valve and how to operate it. Immediately close the

gas shut-off valve if the water heater is subjected to

fire, overheating, flood, physical damage, or any other

damaging condition that might affect the operation of

the unit. Have the water heater checked by a qualified

technician before resuming operation.

If the water quality is known to have high acidity and/

or high hardness, water treatment is recommended.

Consult the local water authority.

SAFETY

INSTRUCTIONS

DO NOT use this appliance if any part has been under

water.

DO NOT reverse the cold water and gas connections as

this will damage the gas valve.

DO NOT overtighten fittings as damage may occur,

causing internal leakage.

The appliance should be located in an area where leakage

within the unit or at its connections will not result in

damage to the surrounding area. The manufacturer

will not be responsible for any damage resulting from

leaking if adequate drainage is not provided.

iQ751 - iQ1501 Technical Specifications

Sept 1 2202 - Revision 0

3. Technical Specifications

3.1 Specifications Chart

Models

iQ iQ iQ751, Gen II 1001, Gen II 1501, Gen II

Type Indoor/Outdoor, Floor Mounted Indoor/Outdoor, Floor Mounted

Fuel Preset for Natural Gas. Convertible to propane without additional parts.

Minimum Input (Btu/h) 30,000

Maximum Input (Btu/h) 751 ,000 1,00 1 ,0 1 ,000 1,50 00

Maximum Output (Btu/h) 705,940 940,94

1 4,4 60,9 0

94% 94

% 9

Turn io Down Rat (TDR) 25:1 33:

1 5

0:1

Water Inlet ions/ Outlet Connect 2" Headers with 6" OD Flange

Gas Inlet tionConnec 1-1/4" Gas Inlet with 4-5/8" OD Flange

Condensate Drain Connection 3/4" PVC

Maximum Condensa Rate Flow te (GPH) 5.4 7.

2 1

0.8

Unit dimensions H x W x D (inches) 67.7 X 30 X 44.3 (48 cu. ft) 67.7 X 30 X 60.4 (66 cu. Ft)

Service Clearances 24" recommended on all sides

Unit weight (lbs.) 730 800 1025

Shipping Crate Dimensions H X W X D / Weight 87 X 47 X 67 (Inches) / 972 (LBS) 87 X 47 X 67 (Inches) / 1059 (LBS) 81 X 47 X 83 (Inches) / 1567 (LBS)

Venting Type Direct Vent (2 pipe - , Power ventintake & exhaust) (1 pipe - exhaust )only

Venting Materials (USA) Sch. 40 PVC, Sch. 80 CPVC, Polypropylene, Stainless Steel

Venting Materials (Canada) Type BH Gas Vent Classes: II A (PVC), II B (CPVC), II C (Polypropylene), I (AL294C SS)

Vent Size (Diameter) 6" Ø

Max 6” Vent - VenLength Single Pipe / Power t 220 ft.* 130 ft.* 65 ft.*

Max 6” Vent Length - Two pipe / Direct .*Vent 110 ft 65 ft.* 35 ft.*

* Venting Note: From the maximum lengths above, deduct 5 ft. per 90° elbow an . per 45° elbowd 2 ft

Ignition Electronic Spark Ignition

Temperature Range 100° 0°FF – 19

Temperature Stability +/- 4°F

Installation ion AmbienLocat t Temperature 40°F – 130°F

Safety Flame Rod, Thermal Fuse, Overheat Prev tionen Device, Fan Speed Monitor, Flue Temperature Monitor, Blocked Vent ,Detector

Dual Flame Sensing

Water Pressure Min / Max (PSIG) 30 / 160

NG/LP- Min. Static Gas Pressure (Full Fire) 2.5" W.C. (set Gas regulator to 8” WC for NG 11” WC for LP)

NG/LP - Ma eximum Static Gas Pressur 14” W.C. (set Gas regulator to 8” WC for NG 11” WC for LP)

Gas Regulator Pressure set to 8" for NaW.C. tural Gas, 11" for ProW.C. pane

Electrical 120V AC, 60 Hz

Power Consumption Max 16 Amps, 24W (Standby) Max 20 Amps, 32W (Standby) Max 29 Amps, 48W (Standby)

Internal Water Volume (gallons) 3 4 6

Features and Ap als iQ iQ iQprov 751, Gen II 1001, Gen II 1501, Gen II

4-Unit Cascaded rnHigh Tu Down 100:1 133:1 200:1

Built-In Redundancy Multiple Heat Exchangers with Individual Control

Cascading Masterless, 4-Unit, Automatic Rotation

Common Venting Yes, Up to 4 Units

Heat Exchanger Expandable, Stainless 316L

ETL

SCAQMD Ultra Low Nox PPM)(under 20

ASME HLW

Performance GPM iQ751, Gen II iQ1001, Gen II iQ1501, Gen II

Hot Water Capacity, 45°F Rise 31.4 41.6 6 .4 3

Hot Water Capacity, 70°F Rise 20.2 26.7 4 .1 3

Hot Water Capacity, 90°F .7Rise 15 20.8 3 .2 1

Hot Water Capacity, 100°F .7Rise 14.1 18 28.9

Hot Water Capacity, 140°F Rise 10.1 13.4 20.7

Warranty Heat Exchanger Coil – 10 years, All Ot sher Parts – 2 year

ge without notice.

3.2 High Elevation Installations

For operation at elevations above 2,000 feet, the hot water

delivery capacity should be reduced by 4% for each 1,000 feet

above sea level.

iQ751 - iQ1501 Technical Specifications

May 2018 - Revision 01

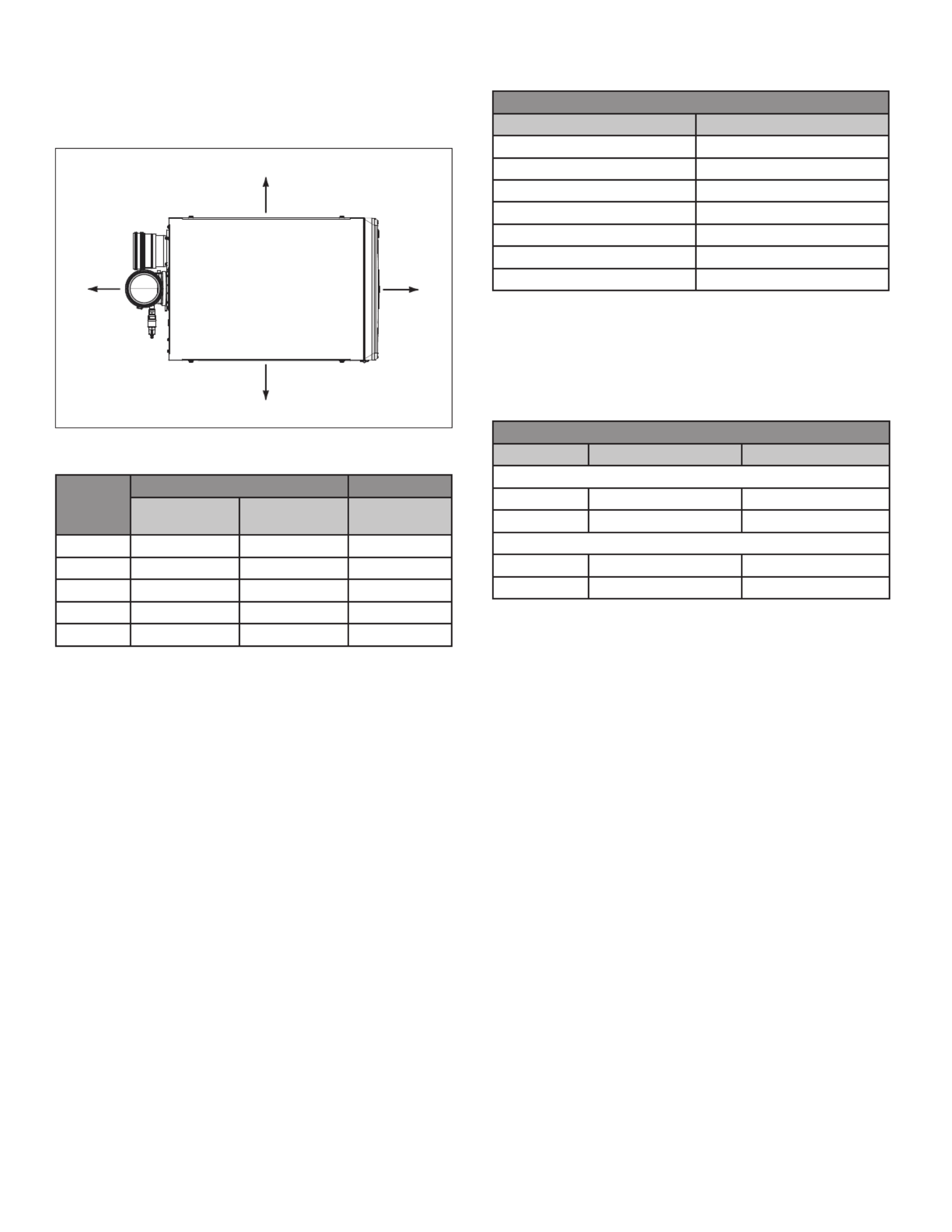

3.3 Clearance Requirements

In order for the water heater to operate properly and

efficiently, the clearances specified in the table below are

recommended.

24”

32”

Service Clearances. If multiple units are installed, the side clearance can be

shared between the two units.

Location Required Recommended

From

Combustibles

From Non-

Combustibles

Service

Clearance1

Top 6” (15.2 cm) 2” (50.8 cm) 18” (46 cm)

Back 5/8” (15.8 mm) 5/8” (15.8 mm) 24” (61 cm)

Sides 1” (25.4 mm) 1/2” (12.7 mm) 24” (61 cm)

Front 2” (5.1 cm) 2” (5.1 cm) 32” (81 cm)

Bottom 0” (0 mm) 0” (0 mm) 0” (0 mm)

1 Service clearances are recommended dimensions to allow for normal

service of the unit.

3.4 Connection Specifications

Connections

Description Specification

Gas Supply Inlet Connection 1-1/4” NPT Flange Connection

Water Supply Inlet Connection 2” Copper Flange Connection

Heated Water Outlet Connection 2” Copper Flange Connection

Exhaust Gas Vent16” Polypropylene

Air Intake Inlet16” Polypropylene

Condensate Drain Connection 3/4”

Power Supply 120V AC Power

1 Use the 6” adapter provided when using PVC or CPVC pipe.

Using sizes other than specified can cause damage to the water heater

and will void the warranty.

3.5 Exhaust Gas Standards

CO2 and CO Standards

Description CO2 Range (%) Max. CO Level (ppm)

Natural Gas

High Fire 9.1% to 9.3% < 200 ppm

Low Fire 9.1% to 9.3% < 60 ppm

Propane Gas

High Fire 10.1% to 10.5% < 200 ppm

Low Fire 10.1% to 10.5% < 60 ppm

iQ751 - iQ1501 Technical Specifications

Ju 2020 - Revision 02 ly

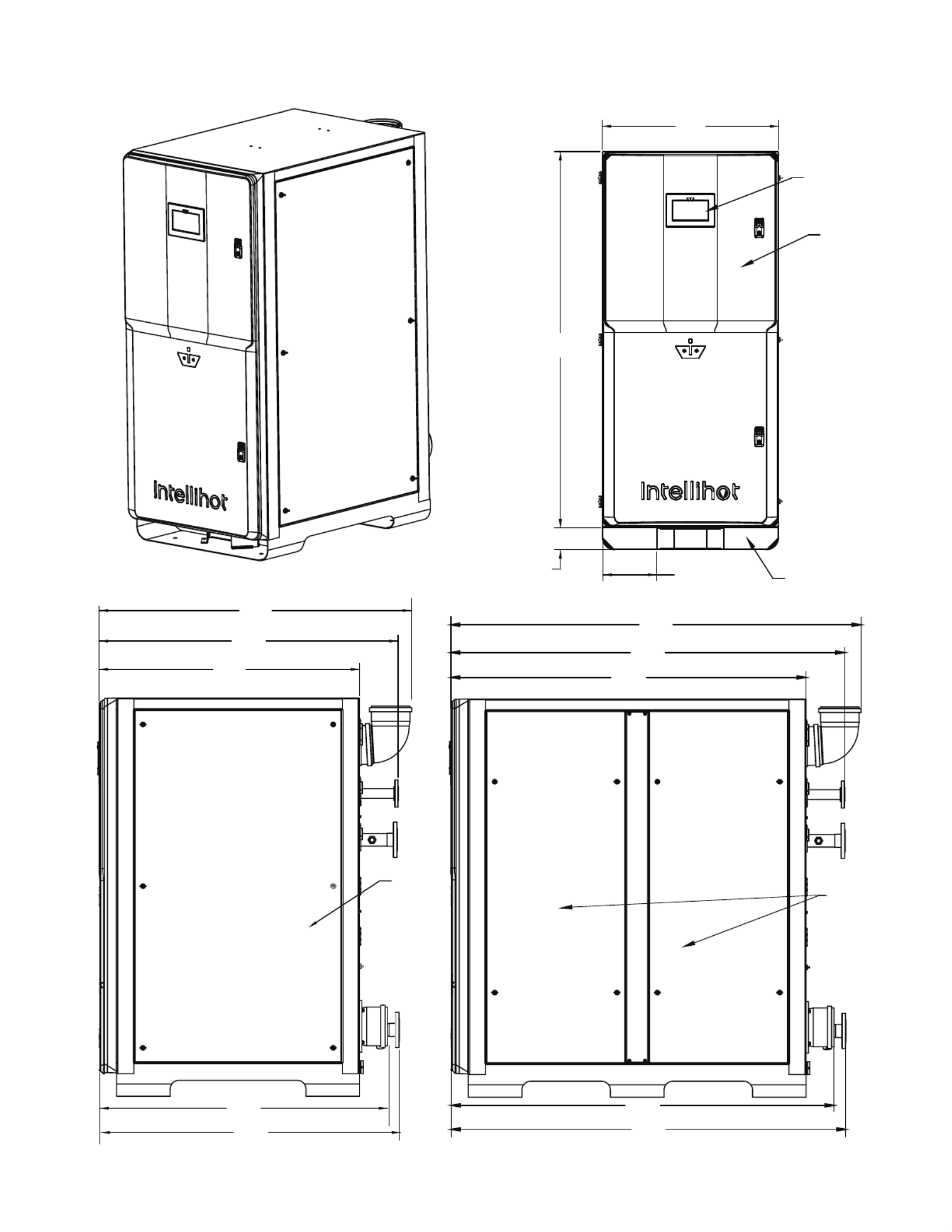

3.6 Overall Dimensions

FRONT VIEW

iQ iQ iQ751 | 1001 | 1501

iQ iQ751 | 1001

30.0

[762]

64.0

[1625]

3.7

[95] 9.2

[233] FORK-LIFT

CHANNELS

FRONT

DISPLAY

FRONT

PANEL

49.0

[1243]

50.9

[1293]

44.3

[1125]

50.8

[1292]

53.2

[1351]

REMOVABLE

SIDE NELPA

65.1

[1653]

67.1

[1703]

60.4

[1535]

69.8

[1772]

67.0

[1702]

REMOVABLE

SIDE NELPA

iQ1501

SIDE VIEW

iQ751 - iQ1501 Technical Specifications

July 2020 - Revision 02

iQ iQ iQ751 | 1001 | 1501

iQ iQ751 | 1001

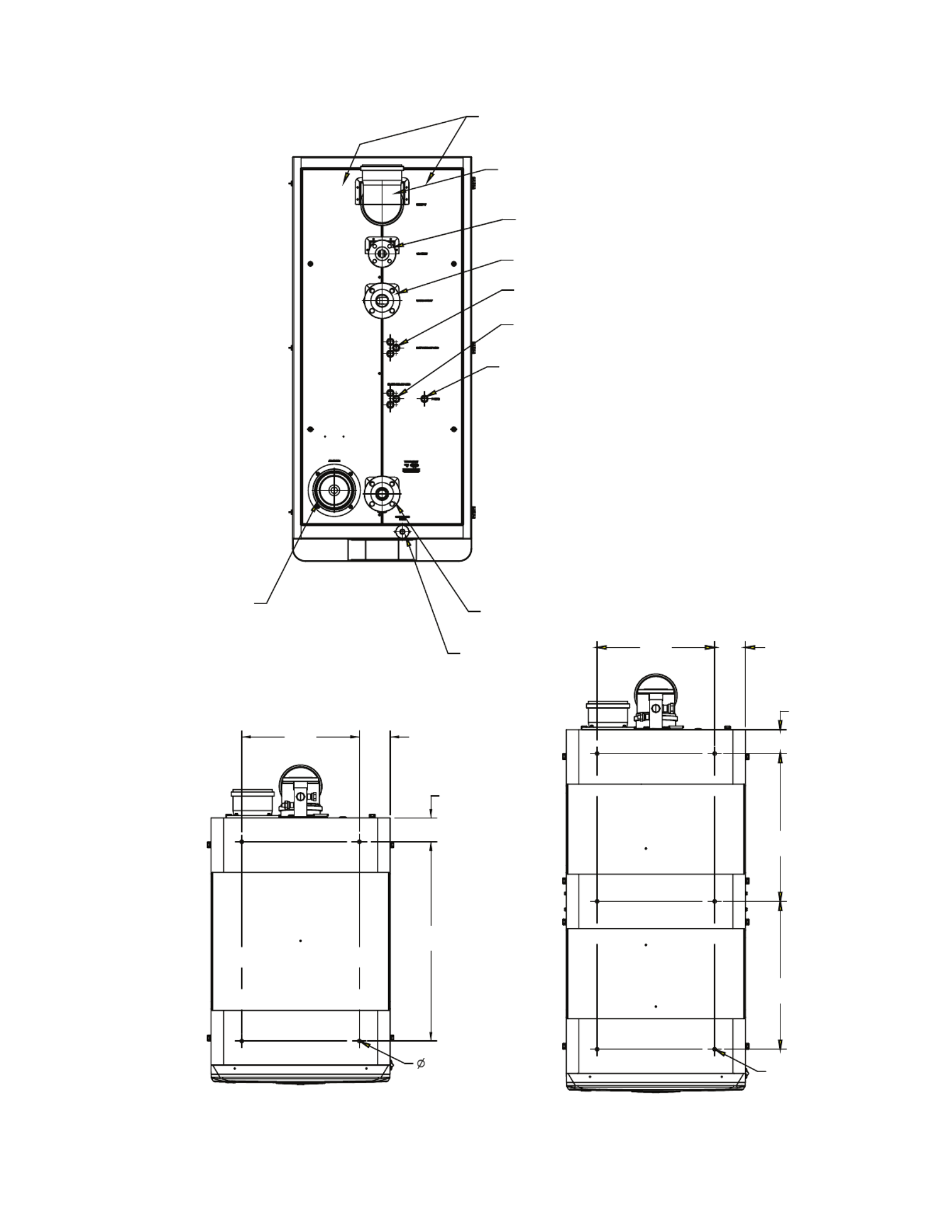

REAR VIEW

BOTTOM VIEW

iQ1501

REMOVABLE REAR

PANEL

6" PVC OR PP

EXHAUST

1-1/4" GAS

INLET

4-5/8 OD

FLANGE

2" WATER

OUTLET

6" OD FLANGE

LOW VOLTAGE

PORTS

HIGH VOLTAGE

PORTS

POWER

3/4" NPT

CONDENSATE

6" PVC OR PP

AIR INTAKE FILTERED

2" WATER

INLET

6" OD

FLANGE

19.7

[500]

5.2

[131]

4.0

[102]

33.3

[847]

0.6

[16]

(FRONT)

19.7

[500]

24.7

[628]

24.7

[628]

4.0

[102]

5.2

[131]

0.6

[16]

(FRONT)

iQ751 - iQ1501 Technical Specifications

May 2018 - Revision 01

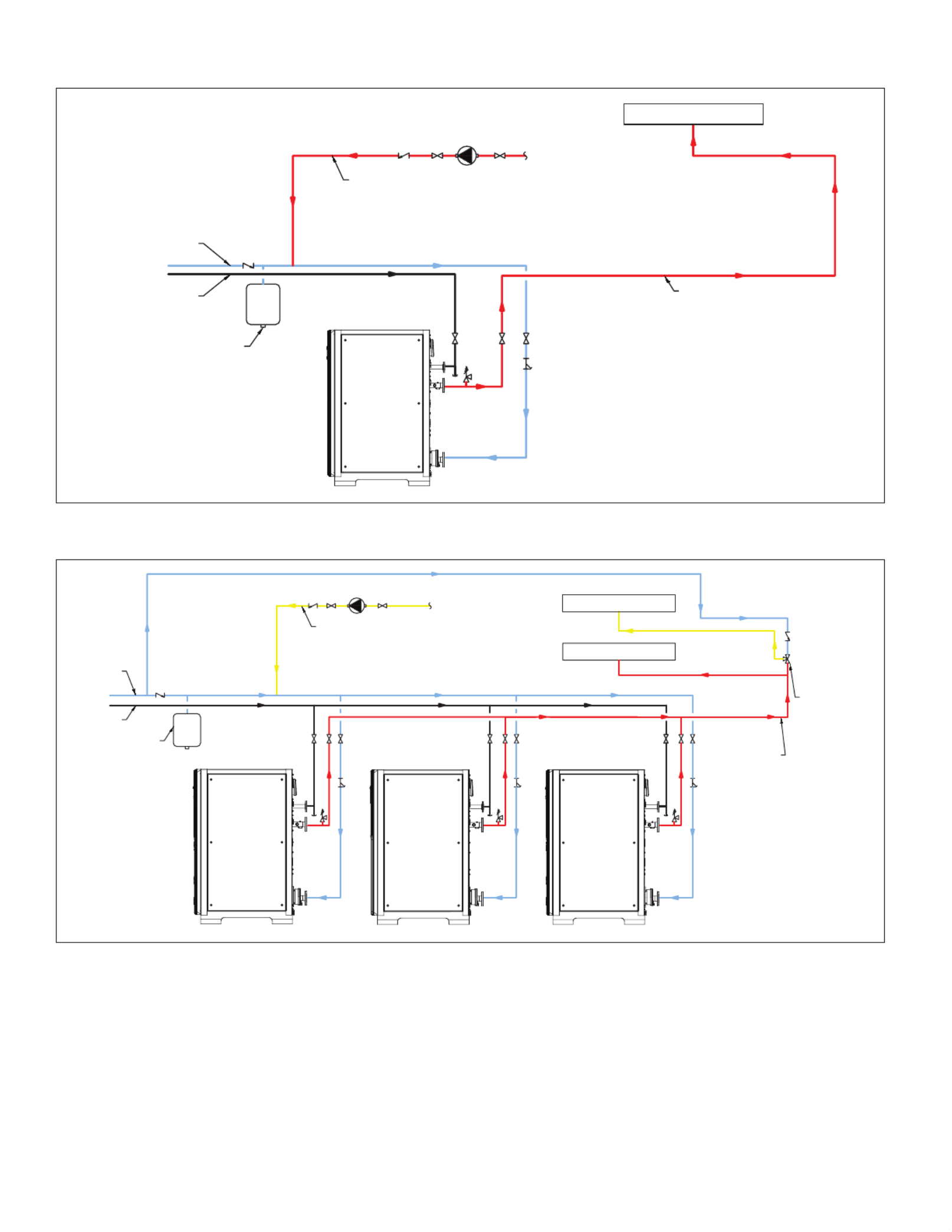

3.7 Configuration Options

Hot Water

Supply

Gas Supply

Cold Water Supply

Recirculation Line

Expansion

Tank

HOT WATER FIXTURES

Hot Water Return

System with no storage tank and without mixing valve.

HIGH TEMP FIXTURES

Cold Water

Supply

Gas Supply

Recirculation Line

Expansion

Tank Hot Water Supply

Low Temp Return LOW TEMP FIXTURES

Thermostatic

Mixing Valve

(Installed per MFG

instuctions)

Multiple unit system with mixing valve but no storage tank.

iQ751 - iQ1501 Quick Reference Installation Guide

May 2018 - Revision 01

4. Quick Reference Installation Guide

4.1 Install the Water Heater

When installing the water heater, follow all local building

codes and the current edition of the National Fuel Gas Code

(ANSI Z223.1/NFPA 54) in the USA, or National Gas and

Propane Installation Code (CAN/CGA B149.1) in Canada.

Note: For water heater installations in Massachusetts,

refer to section, “16. Requirements for State of

Massachusetts” on page 63.

1. Select an installation location

For an interior or exterior location refer to section “5.

Preparation Before Installation” on page 15.

2. Check the quality of the water to determine if additional

treatment would beneficial to the function and efficiency

of the water heater. For additional information refer to

section “5. Preparation Before Installation” on page 15.

3. Make all necessary gas connections.

For additional information refer to section “6. Gas

Connection” on page 17.

4. Make all necessary venting connections.

For additional information refer to section “7. Air Intake

Inlet and Exhaust Gas Outlet Pipe Connections” on page

22.

5. Make all necessary water connections.

For additional information refer to section “8. Water

Connections” on page 31.

6. Make all necessary electrical connections.

“9. Electrical Power” on page 35.

Note: For additional electrical protection, the use of

a surge protection device is recommended. Damage

caused by power surges is not covered by the warranty.

7. If necessary, convert the water heater from the factory

preset of using natural gas to using propane. Refer to “11.

Natural Gas to Propane Conversion” on page 40 for

the required instructions.

8. As part of the propane conversion process, the CO2

and CO values must be adjusted. This process is also

required when installing the water heater at altitudes over

8,000 feet. This procedure should be performed only by

a qualified technician. To check and/or adjust the CO2

and CO levels, refer to “10. Adjusting CO2 Level” on page

36.

9. If connecting multiple units together, refer to “13.

Connecting Multiple Units” on page 49.

10. Fill out the Warranty Card and return it to Intellihot. For

a copy of the card go to “18. Product Warranty” on page

67.

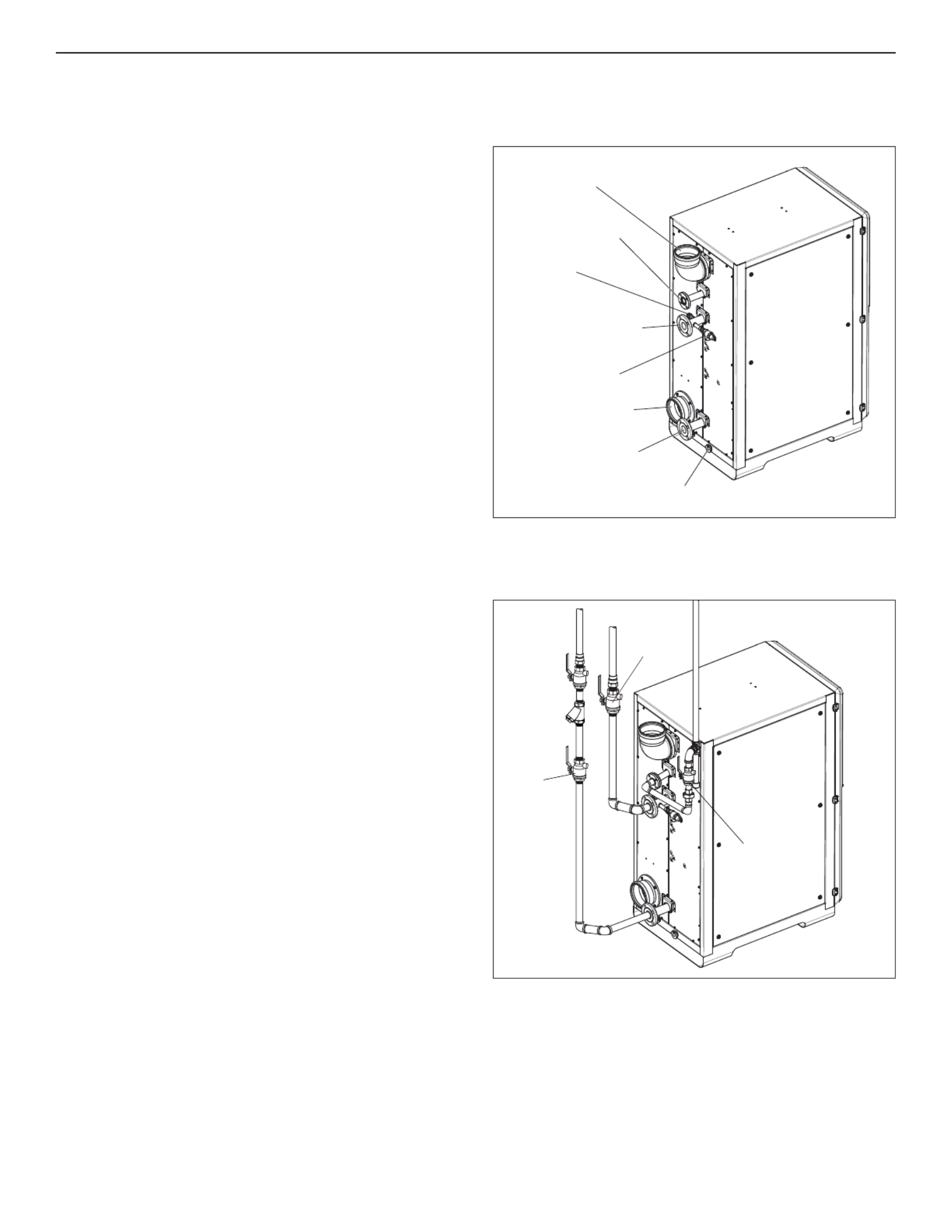

4.2 Pre-Startup Instructions

1. Recheck the hot and cold water lines, the gas line,

condensate drain line, the fresh air inlet, and exhaust vent

to make sure they are properly connected.

Exhaust

Port

Gas

Inlet

Hot Water

Outlet

Cold Water

Inlet

Air

Intake

Condensate

Drain

Pressure Relief

Valve

3/4” NPT

Port

2. Open the gas supply valve, cold water valve, and hot water

valve.

Gas

Valve

Cold

Water

Valve

Hot

Water

Valve

3. With the unit OFF, open a nearby hot water faucet and

allow the water to run through the unit until all the air is

removed from the water lines and from the water heater.

4. If multiple units are being installed, follow these

instructions for each unit.

iQ751 - iQ1501 Preparation Before Installation

May 2018 - Revision 01

5. Preparation Before Installation

5.1 Selecting an Indoor Installation Site

Note: When installing the water heater, follow all local

building codes and the current edition of the National

Fuel Gas Code (ANSI Z223.1/NFPA 54) in the USA,

or National Gas and Propane Installation Code (CAN/

CGA B149.1) in Canada when installing this product.

Note: For water heater installations in Massachusetts,

refer to section “16. Requirements for State of

Massachusetts” on page 63.

1. Select an interior location for the installation. Each

installation is unique; therefore, take the time to find the

best location for the water heater.

a. Install the water heater near locations that use hot

water, such as bathroom, kitchen, or laundry room

faucets.

b. Select a location that minimizes the length of the

water pipe.

c. If the distances are long or if the faucet or appliance

requires “instant” hot water, we recommend running

a recirculation line back to the water heater from the

farthest fixture.

d. Insulate the hot water supply and recirculation lines.

e. Select a location away from foot traffic and away from

areas where dust, debris, chemical agents, or other

combustible materials could accumulate.

f. Allow sufficient space for service and maintenance

access to all gas, water, and drain connections.

g. Make sure the location meets all building code

requirements.

2. Minimize the distance that the exhaust gas outlet and air

intake inlet must travel to an exterior wall.

a. The exhaust vent outlet must not be located next to

a walkway, near soffit vents, crawl space vents, or

other areas where condensate (water vapor) could

cause damage or create a hazard. Refer to the

Venting Clearance Speci� cations section for additional

information.

b. The fresh air inlet vent must be separated from the

exhaust vent per guidelines in section “7. Air Intake

Inlet and Exhaust Gas Outlet Pipe Connections” on

page 22.

c. Contaminated or dirty air drawn into the intake pipe

can damage the water heater. The warranty does not

cover damage caused by airborne contaminants.

3. Locate the unit close to a drain and near gas and water

connections.

The water heater produces a significant amount of

condensate during normal operation and should be

located near a suitable drain where damage from a

possible leak will be minimal. Installing the water heater

in a location without a drain will void the warranty

and the manufacturer will not be responsible for any

resulting water damages that may occur. For additional

information, refer to the Condensate Line Installation

section.

4. Locate the water heater and all the water pipes in an area

where the ambient temperature always remains above

freezing.

a. When the water heater is connected to an electrical

power supply, it will automatically prevent the water

from freezing inside the unit.

b. The unit’s freeze protection system will not prevent

the water in the external piping from freezing.

NOTICE

In cold climates, if there is a power failure, the unit’s freeze

protection system will not operate and can result in water

freezing inside the heat engine. To prevent damage to the

water heater, turn OFF the gas supply and inlet water valve.

Drain the unit completely. Damage caused by freezing water

is not covered by the warranty.

5. Select an appropriate location for the combustion air and

exhaust pipes to exit the building, as shown in the Venting

Clearance Speci� cations section in this manual.

6. Check the water quality.

Proper maintenance of the water heater is required to

ensure that the water meets EPA quality standards. The

following table shows the maximum contaminant levels

allowed, based on the EPA National Secondary Drinking

Water Regulations (40 CFR Part 143.3). Refer to section

“17. Warranty” on page 64 for additional information.

If you suspect that your water is contaminated in any

way, discontinue use of the water heater and contact an

authorized technician or licensed professional.

If the incoming water is known to have a high mineral

content or “hardness” (see warranty section), treatment

is recommended upstream from the water heater.

iQ751 - iQ1501 Preparation Before Installation

May 2018 - Revision 01

5.2 Selecting an Outdoor Installation Site

Note: When installing the water heater, follow all local

building codes and the current edition of the National

Fuel Gas Code (ANSI Z223.1/NFPA 54) in the USA,

or National Gas and Propane Installation Code (CAN/

CGA B149.1) in Canada when installing this product. .

Note: For water heater installations in Massachusetts,

the unit must be installed by a plumber or gas-fitter

licensed within the Commonwealth of Massachusetts.

Refer to the Requirements for the State of

Massachusetts section in this manual for additional

information.

1. Select a location for the installation. Each installation is

unique; therefore, take the time to find the best location

for the water heater. Select a location that minimizes the

length of the water pipe.

a. Select a location that minimizes the length of the

water pipe.

b. If the distances are long or if the faucet or appliance

requires “instant” hot water, we recommend running

a recirculation line back to the water heater from the

farthest fixture.

c. Insulate the hot and cold water supply and

recirculation lines to prevent freezing or hot surface

danger.

d. Select a location away from foot traffic and away from

areas where dust, debris, chemical agents, or other

combustible materials could accumulate.

e. Allow sufficient space for service and maintenance

access to all gas, water, and drain connections.

f. Make sure the location meets all building code

requirements.

g. Contaminated or dirty air drawn into the intake pipe

can damage the water heater. The warranty does not

cover damage caused by airborne contaminants.

h. Ensure that the air intake is free (and remains free)

from grass clippings, wood, landscaping and other

debris. It must be higher than the code defined snow

line.

i. Install Intellihot outdoor kit IGT-SPR0063. For

installation instructions & details, see manual IGT-

MNL0019

2. Locate the unit close to a drain and near gas and water

connections.

The water heater produces a significant amount of

condensate during normal operation and should be

located near a suitable drain where damage from a

possible leak will be minimal. If installing on a roof,

installing the water heater in a location without a drain

will void the warranty and the manufacturer will not

be responsible for any resulting water damages that

may occur. For additional information, refer to the

Condensate Line Installation section.

3. Locate the water heater and all the water pipes in an area

where they can be properly insulated.

a. When the water heater is connected to an electrical

power supply, it will automatically prevent the water

from freezing inside the unit.

b. The unit’s freeze protection system will not prevent

the water in surrounding pipes from freezing.

NOTICE

If there is a power failure, the unit’s freeze protection system

will not operate and can result in water freezing inside the

heat engine. To prevent damage to the water heater, turn

OFF the gas supply and inlet water valve. Completely drain

the unit. Damage caused by freezing water is not covered by

the warranty.

iQ751 - iQ1501 Gas Connection

May 2018 - Revision 01

6. Gas Connection

WARNING

FIRE AND/OR EXPLOSION HAZARD

To avoid serious injury or even death, the gas line

installation and the gas line inlet pressure test must be

done by a licensed professional.

Always match the water heater with the type of gas

supplied to the unit (natural gas or propane). The water

heater is factory preset for natural gas.

Make sure the gas line pressures are within normal

limits. Pressures outside normal limits can result in

poor performance and hazardous operating conditions.

6.1 Quick Reference Installation Instructions

1. Determine fuel source; natural gas or propane as shown in

“6.2 Fuel Source” on page 17.

2. Measure gas pressure as shown in “6.3 Gas Pressure

Requirements” on page 17.

3. Install a gas pressure regulator and vent line if gas

pressure is above maximum recommendations as shown

in “6.4 Gas Pressure Regulator” on page 17.

4. Measure the length of the supply line as shown in “6.5

Length of Gas Supply Line” on page 18”.

5. Select the proper gas piping material as shown in “6.5

Length of Gas Supply Line” on page 18.

6. Select the proper gas piping diameter as shown in “6.7

Determine Correct Gas Pipe Diameter” on page 18.

7. Install a drip leg on the gas piping as shown in “6.8 Gas

Pipe Drip Leg and Shut-off Valve” on page 18.

8. Install a manual shut-off valve as shown in “6.8 Gas Pipe

Drip Leg and Shut-off Valve” on page 18.

9. Test all gas line connections for leaks.

NOTICE

Do not fire (operate) the water heater until all connections

have been completed and the heat engine is filled with water.

6.2 Fuel Source

1. Natural gas is the factory preset.

2. To convert the unit to propane, refer to the Propane

(LPG) Conversion section in this manual.

6.3 Gas Pressure Requirements

iQ series water heaters are designed to operate at gas

pressures as low as 2.5” WC (at maximum firing rate). Gas

inlet pressures to each unit should not exceed 14” WC under

any condition (when unit is firing or not firing).

Natural Gas Static Gas Pressure

Parameters Specifications

Minimum Static Gas Pressure 2.5” W.C. (non-corrugated, black

iron)

Recommended Gas Pressure 8” W.C.

Maximum Static Gas Pressure 14” W.C.

6.4 Gas Pressure Regulator

6.4.1 Venting of Gas Supply Regulators

Make sure the gas supply regulator is properly vented by

following all local codes and the gas regulator manufacturer’s

recommendations.

1. The vent pipe must be at least the same size as the

regulator vent.

2. When multiple units are connected, each regulator must

have a separate vent line.

3. Vent lines must not be connected together or connected

with any other appliance requiring external venting.

4. When selecting the size, the pipe diameter must be

increased by one size for every 20 feet of pipe.

a. Each 90° elbow is equivalent to approximately:

4.5 feet for nominal pipe sizes of up to 1-1/2”

10.5 feet for nominal pipe sizes of up to 4”.

b. Each 45° elbow is equivalent to approximately:

2 feet for nominal pipe sizes of up to 1-1/2”

5 feet for nominal pipe sizes of up to 4”.

1. If the gas inlet pressure is higher than recommended,

install a gas pressure regulator to lower gas pressure to an

acceptable level.

2. The gas pressure regulator must have the same or higher

minimum to maximum modulation range as the iQ model it

is regulating. For example, an iQ1001 gas pressure

regulator should have a modulation range of 30,000 BTU/

h to 1,001,000 BTU/h.

3. When multiple units are connected use a dedicated gas

pressure regulator for each unit.

4. Regulators required be mounted with a minimum of 12”to

of straight length pipe on either side a and recommended

a of 6 ft appliance. If min. from regulator manufacturer

recommends distance, their more then follow guidelines.

iQ751 - iQ1501 Gas Connection 18

May 2018 - Revision 01

6.5 Length of Gas Supply Line

1. Make sure the length supply line is correctly sized.

a. Measure the length of the gas supply line from the gas

meter to the water heater or other appliances requiring

gas. The diameter of the pipe must be in relation to

the length.

b. The total length of gas piping, as well as fitting pressure

drop, must be considered when sizing the gas piping.

Total equivalent length should be calculated from the

meter or source location to the last heater connected.

c. Gas pipe size should be selected on the total

equivalent length. The gas volume for cfh flow will be

the input divided by the calorific value of the fuel to be

supplied.

d. Use the Gas Pipe Sizing tables in this manual or refer

to the gas line manufacturers sizing information to

determine the correct diameter for the supply pipe.

e. The diameter of the gas lines, shown in the illustration,

will vary according to the specific installation

requirements.

6.6 Gas Piping Material

1. All gas piping and components must comply with NFPA

local codes, and utility requirements minimum. Only gas

approved fittings, valves, or pipe should be utilized.

2. Standard industry practice for gas piping is Schedule 40

iron pipe and fittings. All high and low gas pressure piping

systems must comply with local utility and building codes.

3. Assembled piping should be clean of all scale, debris, metal

particles, or foreign material.

4. The piping must be supported from the floor, ceiling, or

walls and by the water heater itself.

6.7 Determine Correct Gas Pipe Diameter

Note: The water heater should be the first appliance to be

connected to the gas supply line.

1. Determine the gas requirement of the water heater(s)

and other appliances requiring gas.

2. Size the pipe diameter according to the COMBINED total

maximum BTUH volume for all the appliances as if they

were all operating at the same time. Use the “6.10 Gas

Pipe Sizing Tables” on page 20.

3. Select the proper header pipe according to the number of

units being connected together, as shown in the chart.

Header Sizing for Multiple iQ Units

Number of

Heaters 1 2 3 4

Sch 40 Iron

Pipe 2” 2” 3” 3”

4. The maximum pressure drop from the source to the final

water heater must not exceed 0.3” W.C.

5. The maximum gas flow rate required is the sum of

the maximum inputs of each unit divided by the heat

of combustion of the fuel supplied at the location,

(approximately 1,030 BTU per cubic foot for natural gas

or 2,520 BTU per cubic foot for propane).

Note: The fuel supplier or utility should be consulted to

confirm that sufficient volume and normal pressure is

provided to the building at the discharge side of the

gas meter or supply pipe.

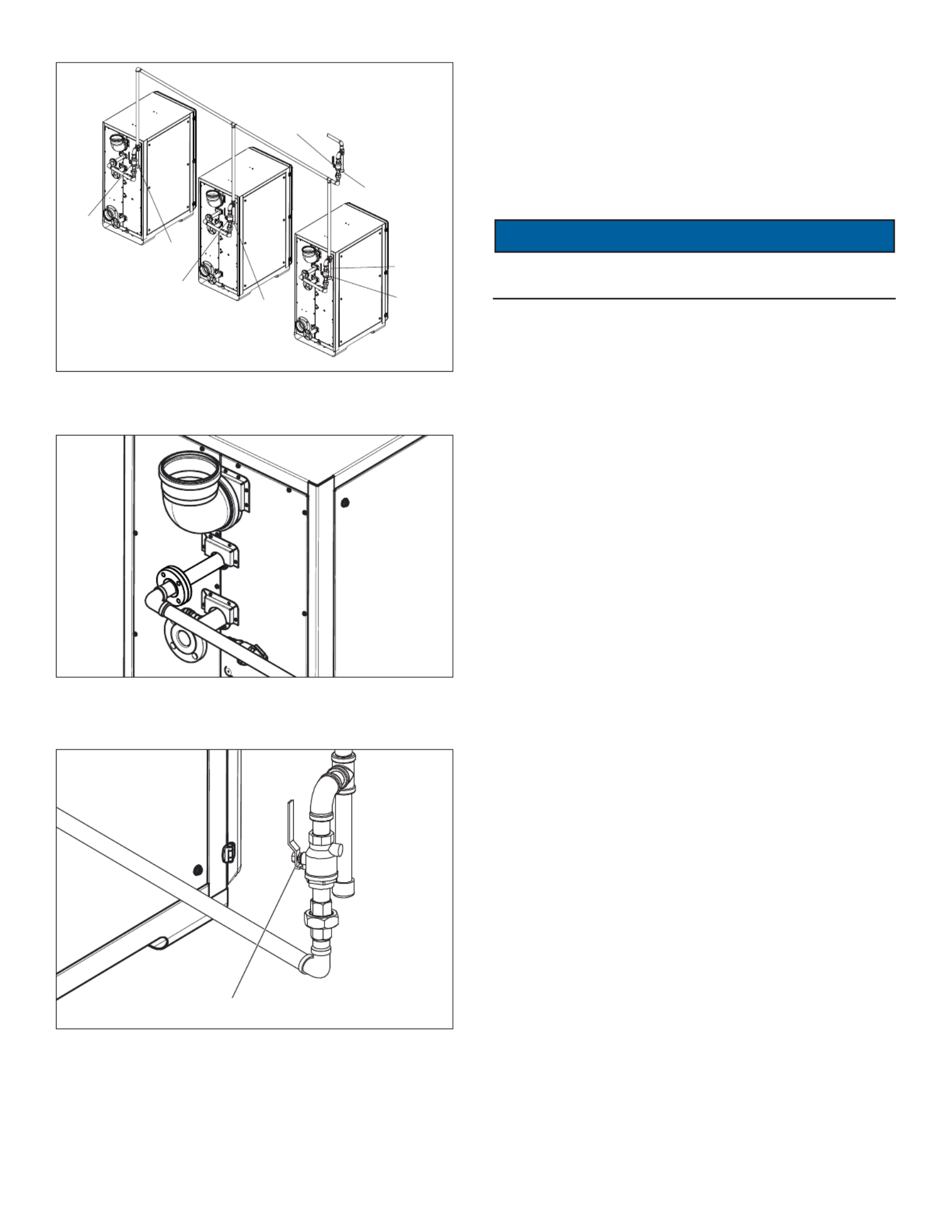

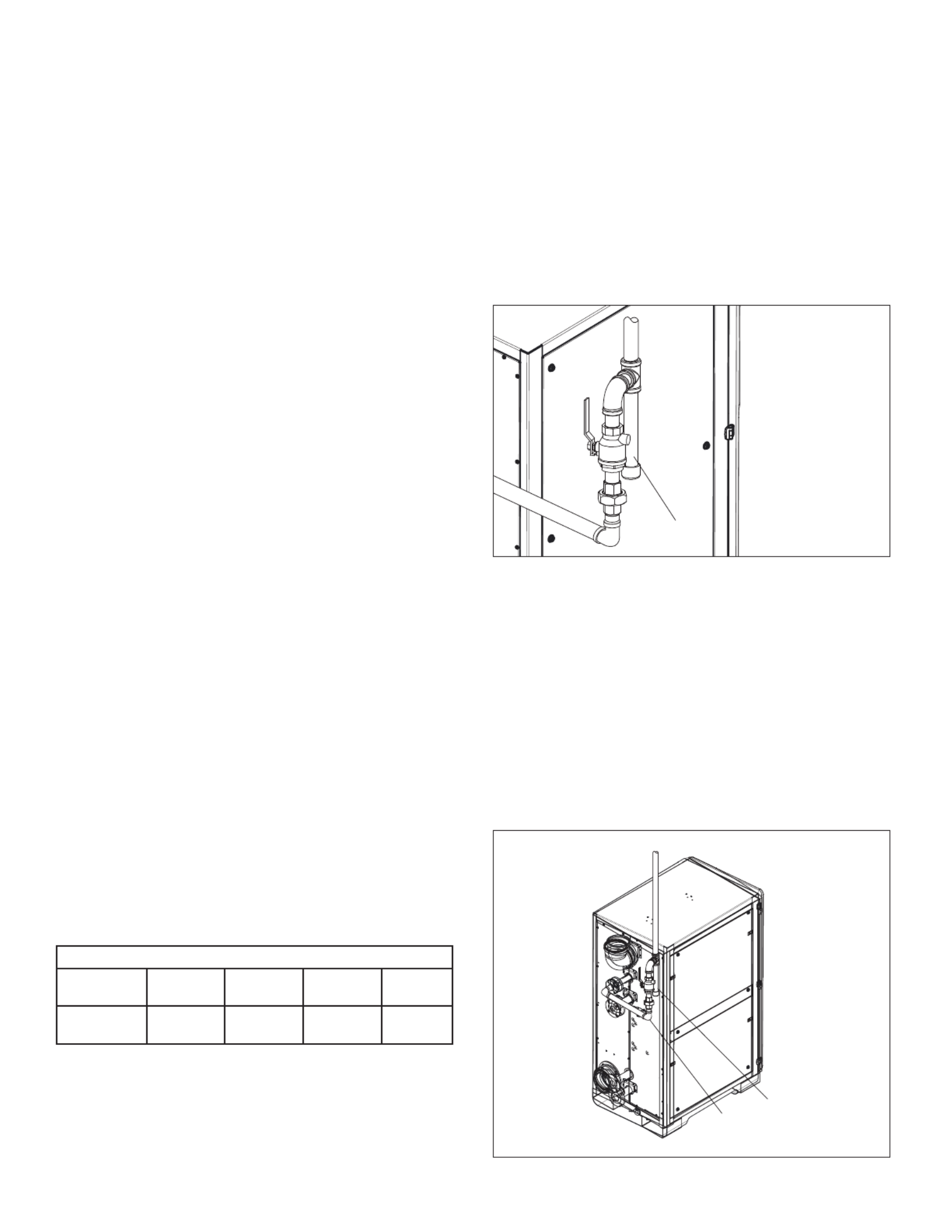

6.8 Gas Pipe Drip Leg and Shut-off Valve

1. Install a gas pipe drip leg on each water heater to prevent

dirt, condensation, or debris from entering the gas inlet.

Drip Leg

2. Local codes may require multiple units to have a full size

drip leg on the main gas supply line and one on each unit.

3. The drip leg should have a removable clean-out cap.

4. The gas pipe must not be supported by the drip leg.

5. Following local building codes when selecting and installing

a shut-off valve.

6. Local codes may require multiple units to have a shut-off

valve on the main gas supply line and one on each unit.

6.9 Connecting Gas Line to Unit

Note: Always clean the inside of the gas line of any dirt or

debris before connecting the piping to the unit.

Drip Leg

Main Supply

Line

Manual

Shut-o

Valve

iQ751 - iQ1501 Gas Connection

May 2018 - Revision 01

Main Supply

Line

Drip Leg

Manual

Shut-o

Valve

Drip Leg

Manual

Shut-o

Valve

Drip Leg

Manual

Shut-o

Valve

Manual

Shut-o

Valve

1. Install a 4-5/8” OD flanged steel coupling and gasket with

a short piece of 1-1/4” NPT black pipe.

2. Install a manual shut-off valve as described in “6.8 Gas

Pipe Drip Leg and Shut-off Valve” on page 18

Manual Shut-o Valve

3. Install a drip leg in “6.8 Gas Pipe Drip Leg and Shut-off

Valve” on page 18.

4. Continue installing pipe to reach the main gas supply

connection.

5. Test all gas pipe connections.

a. All the gas pipe connections should be tested as

prescribed in NFPA 54.

b. In multiple unit applications, each unit should be

isolated before testing any piping system may exceed

the allowable pressure of 14.0” W.C..

NOTICE

Do not fire (operate) the water heater until all connections

have been completed and the heat engine is filled with water.

iQ751 - iQ1501 Gas Connection

May 2018 - Revision 01

6.10 Gas Pipe Sizing Tables

This information is for reference only. Refer to gas pipe manufacturer specifications for actual delivery capacity. Contact the

local gas supplier for actual BTU/ft3 rating. This data copied from the National Fire Protection Association Article 54 (NFPA

54).

Pipe Sizes and BTU/h Capacity (NATURAL GAS). Use this table for static gas pressure

LESS THAN 5” W.C.

Length

including

fittings (feet)

3⁄4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"

10 360,000 678,000 1,390,000 2,090,000 4,020,000 6,400,000 11,300,000 23,100,000

20 247,000 466,000 957,000 1,430,000 2,760,000 4,400,000 7,780,000 15,900,000

30 199,000 374,000 768,000 1,150,000 2,220,000 3,530,000 6,250,000 12,700,000

40 - 320,000 657,000 985,000 1,900,000 3,020,000 5,350,000 10,900,000

50 - 284,000 583,000 873,000 1,680,000 2,680,000 4,740,000 9,660,000

60 - 257,000 528,000 791,000 1,520,000 2,430,000 4,290,000 8,760,000

70 - 237,000 486,000 728,000 1,400,000 2,230,000 3,950,000 8,050,000

80 - 220,000 452,000 677,000 1,300,000 2,080,000 3,670,000 7,490,000

90 - 207,000 424,000 635,000 1,220,000 1,950,000 3,450,000 7,030,000

100 - - 400,000 600,000 1,160,000 1,840,000 3,260,000 6,640,000

125 - - 355,000 532,000 1,020,000 1,630,000 2,890,000 5,890,000

150 - - 322,000 482,000 928,000 1,480,000 2,610,000 5,330,000

175 - - 296,000 443,000 854,000 1,360,000 2,410,000 4,910,000

200 - - 275,000 412,000 794,000 1,270,000 2,240,000 4,560,000

Note: BTU/h capacities are based on specific gravity of 0.6, pressure drop of 0.5” WC

Pipe Sizes and BTU/h Capacity (NATURAL GAS). Use this table for static gas pressure

GREATER THAN 5” W.C.

Length

including

fittings (feet)

1/2" 3⁄4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"

10 404,000 949,000 1,787,000 3,669,000 5,497,000 10,588,000 16,875,000 29,832,000 43,678,000

20 286,000 652,000 1,228,000 2,522,000 3,778,000 7,277,000 11,598,000 20,503,000 30,020,000

30 233,000 524,000 986,000 2,025,000 3,034,000 5,844,000 9,314,000 16,465,000 24,107,000

40 202,000 448,000 844,000 1,733,000 2,597,000 5,001,000 7,971,000 14,092,000 20,632,000

50 - 397,000 748,000 1,536,000 2,302,000 4,433,000 7,065,000 12,489,000 18,286,000

60 - 360,000 678,000 1,392,000 2,085,000 4,016,000 6,401,000 11,316,000 16,569,000

70 - 331,000 624,000 1,280,000 1,919,000 3,695,000 5,889,000 10,411,000 15,243,000

80 - 308,000 580,000 1,191,000 1,785,000 3,437,000 5,479,000 9,685,000 14,181,000

90 - 289,000 544,000 1,118,000 1,675,000 3,225,000 5,140,000 9,087,000 13,305,000

100 - 273,000 514,000 1,056,000 1,582,000 3,046,000 4,856,000 8,584,000 12,568,000

125 - 242,000 456,000 936,000 1,402,000 2,700,000 4,303,000 7,608,000 11,139,000

150 - 219,000 413,000 848,000 1,270,000 2,446,000 3,899,000 6,893,000 10,093,000

175 - 202,000 380,000 780,000 1,169,000 2,251,000 3,587,000 6,342,000 9,285,000

200 - - 353,000 726,000 1,087,000 2,094,000 3,337,000 5,900,000 8,638,000

Note: For 1/2” line BTU/h capacities are based on specific gravity of 0.6, pressure drop of 4.6” WC and 5.0” WC. For all other line sizes, capacities are

based on specific gravity of 0.6, pressure drop of 3.0” WC
