Print Server
User’s Manual
Version: 1.0
(April, 2006)
COPYRIGHT
Copyright ©2006/2007 by this company. All rights reserved. No part of this
publication may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language or computer language, in any form or by
any means, electronic, mechanical, magnetic, optical, chemical, manual or
otherwise, without the prior written permission of this company.
FCC COMPLIANCE STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the authority to operate equipment.
DISCLAIMER
This company makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any
warranties, merchantability or fitness for any particular purpose. Any software
described in this manual is sold or licensed "as is". Should the programs prove
defective following their purchase, the buyer (and not this company, its distributor,
or its dealer) assumes the entire cost of all necessary servicing, repair, and any
incidental or consequential damages resulting from any defect in the software.
Further, this company reserves the right to revise this publication and to make
changes from time to time in the contents hereof without obligation to notify any
person of such revision or changes.
CONTENTS
1. INTRODUCTION.................................................................1
1.1 Product Introduction......................................................... 2
1.2 Product Package ...................... ............... 3........................
1.3 Network Printing Architecture .......................................... 4
1.3.1 Print Server Network Functions..................................................... 5
1.3.2 Network Printing Functions for Clients......................................... 5
1.3.3 Network Printing Functions for Network Server........................... 8
1.4 Network Printing Environment ......................................... 9
1.5 Contents of the User’s Manual ...................................... 11
1.6 Firmware & Printing Function ........................................ 13
2. HARDWARE INSTALLATION .........................................14
3. WINDOWS PEER-TO-PEER NETWORK ........................15
3.1 System Architecture....................................................... 16
3.2 Administrator Installation and Setup .............................. 18
3.3 Administrator Utilities ..................................................... 26
3.4 Client Installation and Setup .......................................... 27
3.5 Client Utilities ................................................................. 32
3.5.1 Network Ports Quick Setup ......................................................... 32
3.5.2 Remote Ports (Utility).................................................................. 34
3.6 Windows Add Printer Procedure.................................... 37
4. WINDOWS NT/2000/2003 NETWORK.............................41
4.1 System Architecture....................................................... 42
4.2 Windows NT/2000/2003 Server Installation and Setup . 43
4.3 User Installation and Setup............................................ 45
5. NETWARE NETWORK ....................................................46
5.1 System Architecture....................................................... 47
5.2 NetWare 3.x/4.x/5.x Installation & Setup ....................... 49
5.2.1 Installation Using PCONSOLE ................................................... 49
6. UNIX SYSTEM NETWORK ..............................................53
6.1 Introduction .................................................................... 54
6.2 Enable Print Server’s TCP/IP Support........................... 55
6.3 Setup Print Server’s IP Address .................................... 56
6.3.1 DHCP........................................................................................... 56
6.3.2 BOOTP ........................................................................................ 56
6.4 Verify Print Server’s IP Address .................................... 59
6.5 Configure Remote LPD Printing on the Host ................. 60
7. CONFIGURATION UTILITY .............................................63
7.1 Introduction .................................................................... 64
7.2 Search for All Available Print Server.............................. 66
7.3 Status of Print Server..................................................... 67
7.4 Setup the Print Server ................................................... 69
7.5 General Configuration.................................................... 71
7.6 TCP/IP Configuration..................................................... 72
7.7 Netware Print Server Configuration ............................... 74
7.8 AppleTalk Configuration ................................................ 76
7.9 Bonjour Configuration .................................................... 77
7.10 SNMP Configuration ...................................................... 78
7.11 SMB Configuration......................................................... 79
7.12 System Configuration .................................................... 80
7.13 Wizard............................................................................ 82
7.14 Report............................................................................ 86
8. WEB MANAGEMENT.......................................................87
8.1 Introduction .................................................................... 88
8.2 Login .............................................................................. 89
8.3 Device Status................................................................. 90
8.3.1 System.......................................................................................... 90
8.3.2 Printer........................................................................................... 91
8.3.3 TCP/IP.......................................................................................... 92
8.3.4 SMB............................................................................................. 93
8.3.5 SNMP........................................................................................... 94
8.3.6 NetWare ....................................................................................... 95
8.3.7 AppleTalk .................................................................................... 96
8.3.8 Bonjour ........................................................................................ 97
8.4 Setup Wizard ................................................................. 98
8.4.1 System.......................................................................................... 98
8.4.1.1 Admin Password ........................................................................ 99
8.4.1.2 Advanced Settings ................................................................... 100
8.4.2 TCP/IP........................................................................................ 101
8.4.3 SMB........................................................................................... 103
8.4.4 SNMP......................................................................................... 104
8.4.5 NetWare ..................................................................................... 105
8.4.6 AppleTalk .................................................................................. 107
8.4.7 Bonjour ...................................................................................... 108
8.4.8 Save Settings.............................................................................. 109
8.5 System Tools ............................................................... 110
8.5.1 Load Default .............................................................................. 110
8.5.2 Upgrade...................................................................................... 111
8.5.3 Backup System........................................................................... 112
8.5.4 Restore System............................................................................ 113
8.5.5 Language.................................................................................... 114
9. TELNET MANAGEMENT ................................................115
9.1 Introduction .................................................................... 116
9.2 Login .............................................................................. 117
9.3 Get Setting Values – “get” Command............................ 118
9.4 Modify Setting Values – “set” Command ....................... 121
9.5 Other Commands .......................................................... 123
9.5.1 ipconfig ...................................................................................... 123
9.5.2 reboot ......................................................................................... 123
9.5.3 exit.............................................................................................. 123
9.5.4 help............................................................................................. 124
10. IPP PRINTING ...............................................................125
10.1 Introduction .................................................................. 126
10.2 System Setup .............................................................. 127
10.2.1 Print Server Side ...................................................................... 127
10.2.2 Client Side................................................................................ 127
11. LPR SETTING IN MAC OS ...........................................132
12. UPNP SETUP ................................................................136
13. WINDOWS XP SP2 SETUP ..........................................142
1
1. Int rod uction
2
1.1 Product Introduction
Thank you for purchasing and using our print server.
This print server allows your printer to become a shared
device on the network. It offers printing flexibility and
manageability on your Local Area Network at an extremely
low cost and with an absolute minimum setup and
maintenance required.
This print server provides an Ethernet network port
(10/100Mbps Ethernet), two USB 2.0 ports and one Parallel
port for printers.
This print server supports IPX/SPX, NetBEUI, TCP/IP
and AppleTalk protocols. It is the best network printing
solutions for various common network operating systems
such as Windows 95/98SE/Me/NT/2000/XP/2003, NetWare,
Unix/Linux and MAC OS, etc.
With the help of Installation Wizard, you can easily
and instantly complete the settings for the printing
environment, and start enjoying the fantastic features
provided by the print server.
In the following chapters, we will introduce in detail
the printing features, installation methods, and system
configuration for different network environments.
If you would like to set up and install print server
quickly, please refer to the Quick Installation Guide that
comes along with this print server.
3
1.2 Product Package
This package contains the following components:
One Print Server
One Power Adapter
One Quick Installation Guide
One CD-ROM (Including all the software utilities,
drivers and User’s Manual)
4
1.3 Network Printing Architecture
This section illustrates how print server functions and
operates on the network. Before you install and use print
server, it is strongly recommended that you read this
section completely, and select only the chapters you need
according to your network operating system by “Contents
of the User’s Manual” in next section.
This section will first introduce the role every
component plays in the network-printing environment.
Print Server
Client User
Network Server (optional)
Windows NT Server
NetWare Server
Windows 98Windows NT
Workstation Windows 2000
Unix Print Server
Network Printing Environment
Print Server
Client User
Network Server
5
1.3.1 Print Server Network Functions
Windows NT Server
NetWare Server
Windows 98Windows NT
Work station
Windows 2000
Unix Print Server
Print Server
Because print server supports IPX/SPX, NetBEUI,
TCP/IP and AppleTalk network protocols, any networked
computer can directly print to the print server from any of
its installed protocol.
1.3.2 Network Printing Functions for Clients
Windows NT Server
NetWare Server
Windows 98Windows NT
Work station
Windows 2000
Unix Print Server
Client User
6
Common operating systems for clients are classified as
following:
Windows 95/98SE/Me/NT/2000/XP/2003
Our print server system provides PTPP (Peer-to-Peer
Printing) driver and utilities for Windows
95/98SE/Me/NT/2000/XP/2003 users. PTPP (Peer-to-Peer
Printing) supports TCP/IP protocol.
In the client installation procedure, after PTPP (Peer-
to-Peer Printing Driver) is installed into Windows, the
system will automatically (manual configuration is also
allowed) search all the print servers on the network, and
then add their printing ports into Windows’ printing port
(see below).
7
Windows 98
PTPP
Print Server
MIS-2
P1 P2
P3
P1
Print Server
MIS-1
UNIX / Linux
UNIX (include HP/UX, SCO Unix, SunOS, Solaris,
Unixware DECUnix, IBM AIX and others) and Linux use
the system-standard LPR to print through print server.
MAC OS
MAC OS can use the system-standard AppleTalk
network to print through print server.
8
1.3.3 Network Printing Functions for Network Server
Windows NT Server
NetWare Server
Windows 98Windows NT
Workstation
Windows 2000
Unix Print Server
Network Server
Common network servers are classified as following:
Windows NT/2000/2003
Our print server system provides PTPP (Peer-to-Peer
Printing) driver and utilities for Windows NT/2000/2003.
After PTPP is installed, the server can directly print
through print server. Adding this printing function into
Windows NT/2000/2003 int queue, user Server allows pr
authority management, and many other advanced features to
be used.
NetWare 3.x/4.x/5.x
In NetWare environment, print server offers various
printing modes like print queue, remote printer, etc.
9
1.4 Network Printing Environment
Common network environment are classified as
following:

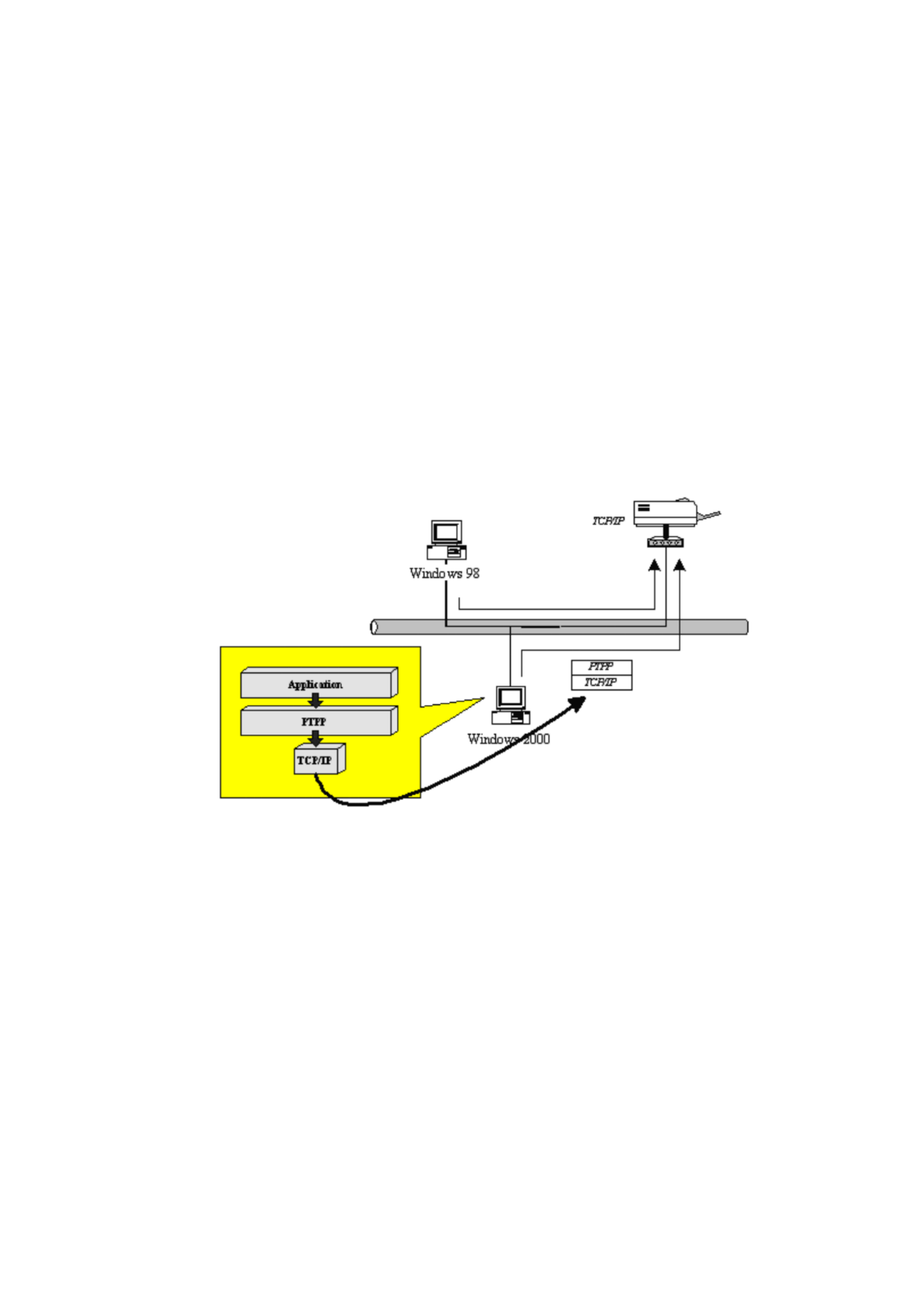

Windows Peer-to-Peer Network
The client’s PTPP driver will use TCP/IP protocol to
print through print server.
Windows NT/2000/2003 Network
Network printing function will become available after
PTPP driver is installed into Windows NT/2000/2003.
Adding this printing function into Windows NT/2000/2003
Server allows print queue, user authority management, and
many other advanced features to be used.
11
1.5 Contents of the User’s Manual
Chapter 2 explains print server’s hardware installation
and configuration. It is strongly recommended for you to
read.
The following chapters introduce:
Chapter 3. Windows Peer-to-Peer Network
Chapter 4. Windows NT/2000/2003 Server-Based
Networks
Chapter 5. NetWare Network
Chapter 6. UNIX System Network
You may select the appropriate chapters and sections
to read depending on your network printing’s requirement.
Chapter 7 and chapter 8 introduce print server’s
management and configuration utilities on Windows and
Web Browser’s environment respectively. You may select
the appropriate management utility according to the
administrator’s computer platform.
Chapter 9 introduces the commands that can be used in
print server management through Telnet.
Chapter 10 introduces Print Server’s IPP Printing
function and setup procedure. The IPP Printing provides a
convenient way to print documents across the Internet by
the IPP protocol.
12
Chapter 11 introduces how to setup LPR printing in
MAC OS.
Chapter 12 introduces the UPnP function of the print
server. UPnP function will help to find the IP address of
the print server and enables user directly link to the web
page of the print server without entering the IP Address of
the print server in web browser.
Chapter 13 In Windows XP SP2, you may not find any
print server listed on the “Available Ports” in “Network
Ports Quick Setup”. Please follow the instruction in this
chapter and resolve the problem.
13
1.6 Firmware & Printing Function
The print server provides a complete network printing
solution. The feature set is listed below:
PTPP (Peer-to-Peer-Printing)
TCP/IP (LPR)
IPP Printing
NetWare Bindery Printing
AppleTalk
SMB Printing
14
2. Ha rdware In sta lla tio n
1. Unpack the print server package and verify that all
the items listed in the section 1.2 are provided.
2. Connect the print server to the printer you want to
share on the network.
3. Connect the print server to your network by attached
the network cable to the UTP port of the print server.
4. Connect the power adapter to the print server. The
print server will perform the Power-On-Self-Test (POST)
after it is powered on. During the POST, the three Printer
Port LEDs will be on. When the LEDs are unlighted, the
print server is ready.
NOTE1: MUST use the power adapter shipped with the print
server, do NOT use any other power adapter from any
sources.
NOTE2: To prevent the compatibility problem between print
server and a few printer, it is recommended that you
power on the print server before the printer.
15
3. Windows Peer- to -Pe er
Ne two rk
16
3.1 System Architecture
Print server supports Windows Peer-to-Peer network
printing mode, which is suitable for most medium and small
network environments. Through quick and simple
installation procedure, users can immediately enjoy the
convenience of network printing.
Installation procedure is separated into following two
parts:
1. Administrator Installation and Setup (refer to
section 2 for more detailed information).
System administrators must:
Install administrator’s utilities into his/her computer.
Configure print server from administrator’s
configuration utility.
17
2. Client Installation and Configuration (refer to
section 3 for more detailed information).
Client users must install Windows PTPP driver (Peer-
to-Peer Printing) for network printing.
In addition, after PTPP is installed, the system will
automatically search for all print servers on the network,
and add the printing port of the print servers into Windows’
printing port (refer to Network Printing Architecture in
section 1.4 for more detailed information).
18
3.2 Administrator Installation and Setup
The Administrator Installation can be performed on
Windows 95/98SE/Me/NT/2000/XP/2003 with the same
user interface. Before the installation, please verify that
your network protocol is installed on your PC (TCP/IP, IPX
and/or NetBEUI). It will be helpful in your installation
process.
1.Insert the CD shipped along with the print server into
your CD-ROM drive. The Autorun.exe program should be
executed automatically. If not, run Autorun.exe manually
from CD-ROM drive’s root directory.
2.The “Installation Manager” will be displayed on the
screen as following. Click “Administrator Installation”.
19
3.The “Print Server Utilities” window will be
displayed. Click “Next”.
4.Click “Next” to install the utilities in the default
folder or click “Change” to specify the destination folder
where you would like to install the utilities.
20
5.Select the components you want to install. It is
highly recommended to install all provided components.
Click “Next” to continue.
21
6.The system will start to install the utilities
automatically.
7.You have completed the installation phase and
prepare to configure the Print Server. The “Choose Print
Server” will list all Print Servers within the network. Select
the Print Server you would like to configure and click
“Next”.
22
NOTE 1: If this is the first time you configure the Print Server,
the “Print Server Name” is the last 6-digit of MAC ID
with prefix “PS”. Please check the MAC ID on the
print server.
NOTE 2: The list can only display the devices from the same
manufacturer.
23
8.Specify a recognizable name for the Print Server and
click “Next”.
9.Specify the IP Address for the Print Server manually
or click “Next” to keep default IP Address, i.e. 192.168.2.2.
24
10.The configuration summary is displayed in the
window. Now, you have completed the Print Server setup.
Click “Finish” and your system will add network port of the
Print Server to your PC automatically.
25
11.The Administrator Installation procedure is totally
completed. Click “Finish”.
The Administrator Installation Program have executed
the installation procedure that performs the following tasks:
Install all utilities and drivers to the administrator’s
PC.
Configure the print server (including the print
server name and network protocol)
Add the network port of the print server to the
administrator’s PC.
If you want to print from this administrator’s PC to the
print server, all you need to do is to perform Windows’
standard “Add Printer” procedure (please refer to Section
3.6).
28
3.The “Print Server Utilities” window will be
displayed. Click “Next”.
4.Click “Next” to install the utilities in the default
folder or click “Browse” to specify the destination folder
where you would like to install the utilities.
29
5.The system will start to install the utilities
automatically.
30
6.Now, the installation procedure is completed, you are
ready to set up the client’s computer. All network ports of
the Print Servers detected on the network will be added to
your PC automatically, click “Continue”.
Note that if there are no print servers detected in the
network currently, please click “Continue” to finish the
installation. Please refer to Section 3.5.1 to add network
ports of print servers manually.
31
7.The Client Installation procedure is completed. Click
“Finish”.
After the installation, you have completed the
following tasks:
Install all utilities and drivers to the client’s PC.
Add all the print server’s network ports of the
network to the client’s PC.
You can then perform the Windows’ standard “Add
Printer” procedure to add network printers to your PC.
Please refer to Section 3.6.
32
3.5 Client Utilities
After Client Installation is completed, there will be
three tools in print server’s Program folder.
Network Ports Quick Setup
Remote Ports
Uninstall Network Driver
The Uninstall Network Driver will assist you in
removing all installed client software. The other two tools
are described as follows.
3.5.1 Network Ports Quick Setup
Network Ports Quick Setup Utility offers a very
simple method to add or remove print server’s printer port
from the client’s computer.
33
During the client’s installation procedure, the system
will automatically search for all print servers on the
network, and add them into the printer ports of the client’s
computer (see below).
If you have just installed another new print server in
the network, you must run this program first. This program
will search for new print servers and allow you to add the
new network printer port into client’s computer
conveniently. Perform the standard Add Printer procedure,
then you can print directly to the printer through the newly
installed print server.
34
Please be aware that Network Ports Quick Setup Utility
can only detect and configure all print servers on the same
network, it cannot search and configure print servers on
other subnets across network segments. You must use
Remote Ports Utility described in the next section to
manage remote (across network segments) print servers.
Select the network ports in the “Available Ports” list
and click “>” to add ports. If you want to add all available
ports, please click “>>”. To cancel some of the network
ports or all ports from the “Chosen Ports” list, please click
“<” or “<<”.
3.5.2 Remote Ports (Utility)
Remote Ports Utility offers a convenient way for you
to manage and add printer port of the remote print server.
From the assistant of this utility, you can print to other
print servers outside the subnet across network segment.
However, please note that this function only supports
TCP/IP network protocol.
Please follow the procedures described below:
35
Step1. Run Remote Ports Utility. Clicks “Add” to
add a remote print port.
Step2. Enter print server’s name, IP address, select
used ports, and enter LPR queue name of each port. Click
“Ok”.
Step3. The new remote print port is displayed as
follows.
36
In order to use the remote printing function, you will
have to proceed with normal Add Printer procedure and
select your printer port as the newly added remote printer
port.
37
3.6 Windows Add Printer Procedure
After adding a “Network Port” of the print server to
your PC by Administrator or Client Installation Program,
you can follow the procedure described below to add
printer to the Windows. Note that following “Add Printer”
steps are running in Windows XP, the steps in other
Operating Systems are similar.
Step1. Click “Start”, choose “Settings” and select
“Printers and Faxes”.
Step2. Click “Add a Printer”.
Step3. The “Add Printer Wizard” is displayed. Click
“Next”.
38
Step4. Select “Local printer attached to this
computer” and make sure that “Automatically detect and
install my Plug and Play printer” is not selected. Click
“Next”.
Step5. Choose the suitable “Print Server Network
Port” which was created by the Administrator Installation
or Client Installation process and click “Next”.
39
Step6. Select a suitable printer manufacturer and the
printer model and click “Next”. If your printer is not in the
list, click “Have Disk…” to install the driver of the printer.
After installation, the printer model will be added to the
list.
Step7. Name your printer and setup the default printer,
click “Next”.
40
Step8. Choose to print the test page or not. It is
recommended to print a test page. Click “Next”.
Step9. You have added the printer to the PC
successfully. The information of the printer is displayed in
the windows. Click “Finish”.
41
4. Windows NT/2000/2003
Network
42
4.1 System Architecture
In Windows network environment, other than the Peer-
to-Peer network printing architecture described in the
previous chapter, we also offer the Server-Based Printing
architecture for Windows NT/2000/2003 server. Only one
Windows NT/2000/2003 is required to have Windows PTPP
(Peer-to-Peer Printing) driver installed and share the
printing service on the network. Other network users can
simply connect to the server and access the shared printer
(see below).
43
4.2 Windows NT/2000/2003 Server
Installation and Setup
Please follow the procedures described below for
installation and construct a peer-to-peer connection (PTPP)
between Windows NT/2000/2003 Server and Print Server.
Step1.
If this is your first time installing print server, please
install the administrator software on Windows
NT/2000/2003 server first. Refer to section 3.2 for
installation instructions.
If your network has already installed a working print
server and your Windows NT/2000/2003 server has not yet
installed the PTPP driver, please install the client software.
Refer to section 3.4 and 3.5 for installation instructions.
Step2.
Please add/configure the Peer-to-Peer Printing of the
Windows NT/2000/2003 network printer and verify that you
can print from Windows NT/2000/2003 to the print server
by the installed PTPP driver.
44
Step3.
Share the above server’s printer to the network by
performing the standard Windows printer sharing process.
45
4.3 User Installation and Setup
After server side’s installation is completed, client side
will be able to find the server’s shared printer in Network
Neighborhood. You only need to perform Window’s
standard Add New Printer procedure, select “Network
Printer” shown in the screen below, and complete the
configurations afterwards to access the shared printer.
46
5. Ne tWa re Network
48
Printing performance is enhanced.
Relieve NetWare file server’s burden.
Relieve the need of a workstation running the
remote printer utility.
Improve productivity by locating the printer near
the workgroup.
Each print server should log into a NetWare server
before servicing the print jobs. Each print server will
occupy a user account with which it can log into the
NetWare server.
49
5.2 NetWare 3.x/4.x/5.x Installation &
Setup
Once your print server is connected to your Ethernet
network, you can set it up for use with your networking
software.
5.2.1 Installation Using PCONSOLE
5.2.1.1 Configuring as Print Server Mode
1. Run the NetWare PCONSOLE program.
2. Change the current file server, if necessary, using
the Change Current File Server menu selection.
3. Choose the Print Queue Information menu selection.
4. Press the Insert key to add a new print queue.
5. Type in a print queue name, such as “PQ” or “Q1”.
50
6. You have now successfully created the print queue
that your print server will serve. Press the Escape key until
the Available Options main menu is displayed.
7. Select Print Server Information.
8. Press the Insert key to add a new NetWare print
server object. The print server name can be identical to the
PSxxxxxx name printed on the label of the print server.
9. Press Enter to select the newly created print server.
10. Select Print Server Configuration.
11. Select Printer Configuration.
12. Select Printer 0 (or Printer 1, Printer 2), and press
Enter, then select LPT1 (or LPT2, LPT3) in the Type field.
If your print server is with only one port, you do not need
to configure this Type field.
51
13. Press Escape, and answer Yes to the Save
Changes question.
14. Select Queues Serviced by Printer, then select
Printer 0 (or Printer 1, Printer 2) and press Enter.
15. Press Insert and add your newly created print
queue to the list of queues serviced by the printer. Enter a
priority number for the queue service, or press Enter to
accept the default.
52
16. Repeatedly press Escape to exit the PCONSOLE
program.
17. Reset the print server to have the changes take
effect.
NOTE: If the print server you have is with multiple
printer connectors, you may create multiple print queues
and printer objects.
Your print server should now be ready to use. You
should be able to redirect printing to your print server
using a CAPTURE command such as the one shown in the
previous section.
53
6. UNIX System Network
54
6.1 Introduction
The print server is available for TCP/IP printing by
Unix LPD (Line Printer Daemon) protocol. The LPD
protocol originated with Unix release is based on the BSD
version of Unix and supported under most versions of Unix.
This chapter explains how to configure the print server
for TCP/IP operation, and how to modify configuration
files on your Unix system to allow printing to the print
server. The configuration examples in this manual follow
the syntax for BSD based Unix systems. Please refer to the
related system documentation for the correct syntax of your
systems.
To configure the print server for LPD printing, perform
the procedures below:
1. Enable Print Server’s TCP/IP Support.
2. Set up Print Server’s IP address.
3. Verify Print Server’s IP Address.
4. Configure remote LPD printing on the host.
5. Print a test page.
In the next sections, we will describe these five
procedures step by step.
55
6.2 Enable Print Server’s TCP/IP Support
The default configuration of the print server is with
TCP/IP support enabled. Anyway, you can configure the
print server to enable TCP/IP support using the
configuration program.
56
6.3 Setup Print Server’s IP Address
The print server must have a unique IP address in order
to be recognized by the network.
You can set up the IP address on the various Unix
systems using any one of the following methods:
1. DHCP (Dynamic Host Configuration Protocol)
2. BOOTP (Bootstrap Protocol)
The print server will use the last three methods to
obtain its IP address automatically if its IP address is
configured as Auto (0.0.0.0).
6.3.1 DHCP
There are many Unix systems that support DHCP
protocol, and the procedures to configure the DHCP server
database are different. This manual does not describe the
DHCP server configuration on the Unix systems. It is
highly recommended that the DHCP server should be
located on the same network as the print server.
6.3.2 BOOTP
If you have the BOOTP daemon, bootpd, running on
your UNIX system that is accessible by the print server,
you can use the BOOTP protocol to set up the IP address of
the print server. We recommend that the BOOTP server
should be located on the same subnet as the print server. If
you use Network Information Services (NIS) in your system,
you may need to rebuild the NIS map with the BOOTP
57
services before doing the following BOOTP configuration.
To rebuild the NIS map, please refer to your system
documentation.
To configure the IP address data for the BOOTP server,
you will need to log in the host of BOOTP server as the
superuser (root). Perform the following steps to add address
entries,
1. Optionally, assign a name corresponding to the
print server’s IP address. You can add this address to the
/etc/hosts file, by adding a line such as:
203.66.191.12 pserver
2. Add an entry to the host’s /etc/bootptab file, similar
to the following:
hostname:\
:ht=1:\
:ha=print_server_ethernet_address:\
:ip=print_server_ip_address:
Lines should be indented with tabs.
Where hostname is the device name of a print server,
the ht=1 tag specifies the hardware type is Ethernet, the
ha= tag specifies the Ethernet address of a print server,
which is the Node ID located on the print server. The ha tag
must be preceded by the ht tag. The ip= tag should
correspond to the IP address you want to assign to the print
server.
58
For example, a print server with the following
configuration:
Node ID: 0000B4010101 (this implies Ethernet
address is 0000B4010101),
IP address: 203.66.191.12
The entry for this print server in the /etc/bootptab file
should be:
PS010101:\
:ht=1:\
:ha=0000B4010101:\
:ip=203.66.191.12:
59
6.4 Verify Print Server’s IP Address
To verify that your print server is responding to the
newly assigned IP address using a PING command:
ping ip-address
60
6.5 Configure Remote LPD Printing on the
Host
The procedure you use to configure your Unix host(s)
to allow printing to your network remote print server varies
between different varieties of Unix. The procedure below
can be used for Unix variants that are related to BSD Unix,
such as SunOS or Linux. For other versions of Unix,
consult your system documentation, keeping in mind that:
1. The print server should be treated as a BSD
networked print server host.
2. The host name should be the name (or IP address)
that you have assigned to the print server.
3. The printer name (or queue name) on the remote
host should be lpt1, lpt2 or lpt3, the name of the printer
port on the print server.
You will need to perform the tasks below, logged in as
the superuser (root). To configure your Unix host for
printing,
1. Optionally, assign a name corresponding to the
print server ’s IP address. You can add this address to the
/etc/hosts file, by adding a line such as:
203.66.191.186 pserver
2. Create a spool directory for the printer in the same
directory where spool directories are normally kept on the
machine, such as /var/spool or /var/spool/lpd:
61
mkdir /var/spool/lpd/pserverd
chown daemon /var/spool/lpd/pserverd
chgrp daemon /var/spool/lpd/pserverd
chmod 775 /var/spool/lpd/pserverd
3. Add an entry to the host’s /etc/printcap file, similar
to the following:
printer-name:\
:lp=:\
:rm=203.66.191.186:\
:rp=lpt1:\
:lf=/var/spool/lpd/pserverd.log:\
:sd=/var/spool/lpd/pserverd:\
:mx#0:
Lines should be indented with tabs. More than one
printer name can be used, with variants separated by
vertical bars (name1|name2).
The rm= entry should correspond to the IP address you
have assigned to the print server. You can also use a host
name if you have assigned one in the /etc/hosts file.
The sd= entry should correspond to the spool directory
you created in the previous step.
The rp= entry should correspond to the port name of
the remote printer. The values should be one of lpt1, lpt2 or
lpt3 depends on the printer port.
62
The print server should now be available for printing
from your Unix host.
63
7. Configuration Utility
65
Bonjour: Allow you to configure the Bonjour
function.
SNMP Configuration: SNMP Information
Configuration.
SMB: Configure the SMB Group Name.
System Configuration: Print Server Network
Ability Setting and Firmware Upgrade.
Setup Wizard: Guide You Through All the Settings.
Report: List the Status of All Available Print
Servers on the Network.
We will explain each function separately in the
following section.
66
7.2 Search for All Available Print Server
Every time when you run print server’s configuration
utility, click the “Search” icon on the tool bar. The
configuration utility will delay for several seconds because
the utility is using system’s available network protocols to
search for all print servers on the network. All available
print servers will be listed under “Print Server Group” on
the left side of the window.
You must select the print server you would like to
configure from the list. The system will, at the same time,
display the selected print server’s status on the right side of
the window.
67
7.3 Status of Print Server
Click “Status” icon on the tool bar, the status of the
current selected print server will be showed on the right
side of the window.
The information of the print server displayed are MAC
ID, Model Type, Firmware Version, status of each printer
port, NetWare file server name, NetWare file server polling
interval, NetWare printer queue names, IP address, subnet
mask, default gateway, AppleTalk printer type, AppleTalk
zone and print server printing ability…etc.
You can refresh the print server ’s status by pressing
the “Refresh” button .
69
7.4 Setup the Print Server
Click “Setup” icon on the tool bar, the setup items
of the current selected print server will be showed on the
right side of the window.
Double click one of the icons to set up the selected
print server. A screen will pop up to verify “User Name”
and “Password” of the print server. The default values are
as follows.
User Name: admin
Password: 1234
70
71
7.5 General Configuration
Double Click “General” icon and the General
configuration window will pop-up.
You can see basic print server information in this page.
You also can configure the “Print Server Name”, “SMB
Group Name”, “User Name” and “Password” here.
Server Name, the name of the print server. You can
use this name to identify the print server when you are
searching for the print server by the administration and
client utilities.
User Name / Password is used to authenticate the
administrator by the Web administration tool.
72
7.6 TCP/IP Configuration
Double Click “TCP/IP” icon and the TCP/IP
configuration window will pop-up.
You can configure the print server to automatically get
IP from DHCP server or manually specify static IP. The
print server also has a built-in DHCP server. You can
enable this DHCP server and let it manages IP for you.
74
7.7 Netware Print Server Configuration
Double Click “NetWare” icon and the NetWare
configuration window will pop-up.
This print server supports NetWare Bindery Printing
method. The print server periodically polls the NetWare
server printer queues for printing jobs. You have to assign
the NetWare server name, print server polling interval and
the name of queue on the NetWare server for each printer
port.
Polling Time is the polling interval of the print server
for waiting printing jobs on the NetWare server.
Queue Serviced by Printer is the name of the printer
queue on the NetWare server. The printer queue keeps all
printing jobs waiting on the NetWare server. You have to
assign a printer queue for each printer port of this print
server.
75
NetWare Server is the name of the NetWare file
server that provides printer queues.
77
7.9 Bonjour Configuration
Bonjour technology (“Rendezvous” was renamed
“Bonjour” with the release of Mac OS X v10.4), also
known in the industry as Zero Configuration networking,
enables automatic discovery of computers, devices, and
services on IP networks. It uses industry standard IP
protocols to allow devices to automatically find each other
without the need to enter IP addresses or configure DNS
servers. This technology is used in MAC OS.
Service Name is a name to identify the device on IP
network. The Print Server has three printer ports; please
designate the unique and friendly service name for each
printer connected to one of the three printer ports.
78
7.10 SNMP Configuration
Double Click “SNMP” icon and the SNMP
configuration window will pop up.
Contact: You can enter the print server administrator’s
contact information here. This information will b e
displayed in the SNMP management tool.
Location: You can enter the installed location of the
print server here. This information will be displayed in the
SNMP management tool.
79
7.11 SMB Configuration
SMB Group Name, the name of SMB group that this
print server belongs to. All PC should join the same group
before they can use this print server by SMB protocol.
Pass Job when Error Occurred: When the printer is
interrupted because of paper out or off line while printing,
user can enable this function and set the interval time to
bypass the current printing job. Or the printing document
will not be printed completely or with unformatted
messages.
Waiting Time to Pass Job: The range is from 1 to 60
seconds. By default, the parameter is enabled and the
default waiting time is 20 seconds.
80
7.12 System Configuration
Double Click “System” icon and the System
configuration window will pop-up.
In the System configuration page, you can select to
enable/disable each printing or management protocol,
assign name for each printer port of this print server, and
upgrade the new firmware for this print server.
Port Name is the name of the printer port. The Print
Server has three printer ports, two USB 2.0 ports and one
parallel port. Each printer port has to be assigned a name.
Then you can use this name to access the printer port. By
default, the printer port name is “lpt1” for port 1, “lpt2” for
port 2 and “lpt3” for port 3.
81
Upgrade: You can use this “Upgrade” tool to update
the newest firmware of the print server. Click “ ” button
and select the correct firmware in your PC. After selecting
the firmware file, click the “Upgrade” button to finish the
firmware update process.
Note that before you upgrade the firmware please make
sure that the IP Address settings of the print server are in
the same network as your computer.
82
7.13 Wizard
Click “Wizard” icon on the tool bar, the setup
wizard item of the current selected print server will be
showed on the right side of the window.
Double click the “Print Server Setup Wizard” the setup
wizard will guide you through all the setup process.
83
Step 1: Set up the name of this print server and the
port name for each printer port.
Step 2: Select to enable required printing protocol.
Please refer to section 7.12 for detail information.
85
Step 5: Click “Save” to finish setting.
87
8. Web Management
88
8.1 Introduction
Print server can be configured and managed on the
Web. Through Local Area Network, or even Internet,
administrator can easily configure and manage print
server’s various main functions in browsers. Simply enter
print server ’s IP address into your browser’s address field
to manage a print server by print server’s built-in Web
Server.
The default IP Address, User Name and Password
settings of the Print server are as follows.
IP Address: 192.168.2.2
User Name: Admin
Password: 1234
89
8.2 Login
You may use any Web Browser to review the status or
configure the settings of the print server. After entering the
IP address of the print server, a login page display. You
have to enter correct “User Name” and “Password” before
going to the Web Management pages.
Notes: Default User Name is “admin”, default
password is “1234”.
90
8.3 Device Status
8.3.1 System
System Information includes “Device Name”, “Print
Server Name”, “Model Type”, “System Up Time”,
“Firmware Version”, “MAC Address” and the protocols
enabled status, etc.
91
8.3.2 Printer
The Print Server can communicate with the printer to
get the printer information including printer manufacturer,
model number, printing language supported, and also the
printer’s status. This page lists the information of printers
connected to all printer ports.
92
8.3.3 TCP/IP
This page lists all TCP/IP settings of the print server
including “IP Address”, “Subnet Mask” and “Gateway”. It
also lists DHCP server setting.
93
8.3.4 SMB
This page lists the SMB group and the pass job interval
time settings of the print server.
95
8.3.6 NetWare
This page lists NetWare settings, including “Polling
Time”, “Use Bindery Mode”, “Name of the File Server” and
“Port Attached Queue”.
96
8.3.7 AppleTalk
This page lists AppleTalk settings, including
“AppleTalk Zone Name” and “Printer Type” of printers
connected to all print ports.
97
8.3.8 Bonjour
This page lists Bonjour settings, including “Printer
Service Name” of each port.
98
8.4 Setup Wizard
8.4.1 System
You can change the print server name and port name of
the print server from here.
Print Server Name, the name of the print server. You
can use this name to identify the print server when you are
searching for the print server by the administration and
client utilities. By default, the print server name is the last
6-digit of MAC ID with prefix “PS”.
Port Name is the name of the printer port. The Print
Server has three printer ports, two USB 2.0 ports and one
parallel port. Each printer port has to be assigned a name.
Then you can use this name to access the printer port. By
default, the printer port name is “lpt1” for port 1, “lpt2” for
port 2 and “lpt3” for port 3.
99
8.4.1.1 Admin Password
It allows you to change the password of the print
server.
Name is the administrator name of the print server. If
you change the user name, you have to login to the print
server from administrator utility or web management with
the new name. The default user name is ”admin”.
Password, enter the password you want to change to
the print server. The password can be up to 8-digit
alphanumeric format. The default password is “1234”.
Re-type Password, enter the password you want to
change to the print server again.
100
8.4.1.2 Advanced Settings
You can enable/disable the printing protocols and
management tools from the screen. To enable the function,
please select “Enabled”; to disable the function, please
select “Disabled”.
101
8.4.2 TCP/IP
You can configure the print server to automatically get
IP from DHCP server or manually specify static IP. The
print server also has a built-in DHCP server. You can
enable this DHCP server and let it manages IP for you.
If you need the print server to automatically get an IP
from DHCP server, select “Enable Obtain TCP/IP Settings
Automatically (Use DHCP/ BOOTP)”. You also can select
“Disable Use the following TCP/IP Settings” to manually
assign “IP Address”, “Subnet Mask” and “Gateway” for the
print server.
You can enable/disable the print server’s DHCP server.
The DHCP server is disabled by default. If the DHCP
Server is enabled, you have to assign a range of IP
addresses here. Fill in the “Start IP”, “Range”, “Gateway”,
103
8.4.3 SMB
You can enable/disable the SMB protocol from here. If
SMB is enabled, enter the “SMB Group Name” to specify
the SMB group that this print server belongs to. All PC
should join the same group before they can use this print
server by SMB protocol.
Pass Job when Error Occurred: When the printer is
interrupted because of paper out or off line while printing,
user can enable this function and set the interval time to
bypass the current printing job. Or the printing document
will not be printed completely or with unformatted
messages.
Waiting Time to Pass Job: The range is from 1 to 60
seconds. By default, the parameter is enabled and the
default waiting time is 20 seconds.
104
8.4.4 SNMP
The print server supports SNMP configuration. If it is
enabled, please set up the following parameters.
SNMP System Contact: You can enter the print server
administrator’s contact information here. This information
will be displayed in the SNMP management tool.
SNMP System Location: You can enter the installed
location of the print server here. This information will be
displayed in the SNMP management tool.
106
jobs waiting on the NetWare server. You have to assign a
printer queue for each printer port of this print server.
107
8.4.6 AppleTalk
AppleTalk is a data communication protocol often used
by Macintoshes. The print server can use these parameters
to join the AppleTalk network and share the printer to other
AppleTalk workstations. You have to select to enable or
disable AppleTalk, and setup the “Zone Name” and “Printer
Type” for each printer port of this print server.
AppleTalk Zone Name: Print server has to join zones
of AppleTalk before it can be shared to other workstations.
Only workstations in the same zone can share the printer. If
you want to share the printer to all workstations in all
Zones, you should enter only “*” in the “Zone Name” field.
Printer Type, the type of printer attached to each
printer port. You can get the printer type from the
manufacturer of the printer.
108
8.4.7 Bonjour
“Bonjour” technology (“Rendezvous” was renamed
“Bonjour” with the release of Mac OS X v10.4), also
known in the industry as Zero Configuration networking,
enables automatic discovery of computers, devices, and
services on IP networks. It uses industry standard IP
protocols to allow devices to automatically find each other
without the need to enter IP addresses or configure DNS
servers.
Bonjour Function: Enable or disable “Bonjour”
protocol.
Service Name is a name to identify the device on the
IP network. The Print Server has three printer ports; please
designate the unique and friendly service name for each
printer connected to one of the three printer ports.
109
8.4.8 Save Settings
You can click the “Save Settings” to save the settings
and restart the system.
111
8.5.2 Upgrade
You can upgrade new firmware for this print server in
this page. Click “Browse” to select the new firmware in
your storage and then click “OK”, the firmware will be
updated in several minutes.
Note that before you upgrade the firmware please make
sure that the IP Address settings of the print server are in
the same network as your computer.
Be aware that if you have started upgrading firmware,
you have to follow all the upgrading steps or the print
server can’t turn back to normal configuration.
Produktspecifikationer
| Varumärke: | Intellinet |
| Kategori: | Skrivarserver |
| Modell: | 521574 |
Behöver du hjälp?
Om du behöver hjälp med Intellinet 521574 ställ en fråga nedan och andra användare kommer att svara dig
Skrivarserver Intellinet Manualer
9 September 2024
8 September 2024
8 September 2024
8 September 2024
8 September 2024
7 September 2024
7 September 2024
6 September 2024
Skrivarserver Manualer
- Skrivarserver Netgear
- Skrivarserver Hawking Technologies
- Skrivarserver IOGEAR
- Skrivarserver Dymo
- Skrivarserver Inter-Tech
- Skrivarserver Airlive
- Skrivarserver EXSYS
- Skrivarserver Gembird
- Skrivarserver Atlantis Land
- Skrivarserver SEH
- Skrivarserver StarTech.com
- Skrivarserver Lindy
- Skrivarserver Hamlet
- Skrivarserver Digitus
- Skrivarserver D-Link
Nyaste Skrivarserver Manualer
27 Oktober 2024
28 September 2024
26 September 2024
26 September 2024
20 September 2024
20 September 2024
20 September 2024
20 September 2024
20 September 2024
20 September 2024
