KNX Observer 180
Standard / Universal
Ref.-no.: ..3180../..3180-1A..
Operating Instructions
Observer 180
1. System Information
This device is a product of the instabus EIB system and complies with
EIBA directives.
Detailed technical knowledge obtained in instabus EIB training courses is
a prerequisite to proper understanding.
The functionality of this device depends on the software.
Detailed information on loadable software and attainable functionality as
well as on the software itself may be taken from the manufacturer’s
product database.
Planning, installation and commissioning of the unit are performed by
means of EIBA certified software.
2. Installation Instructions
All attachment models are plugged onto an instabus bus coupler.
Instructions on how to fit and install a bus coupler can be obtained from
the technical documentation.
3. Safety warnings
Caution: The installation and assembly of electrical equipment may
only be carried out by a skilled electrician.
4. Function

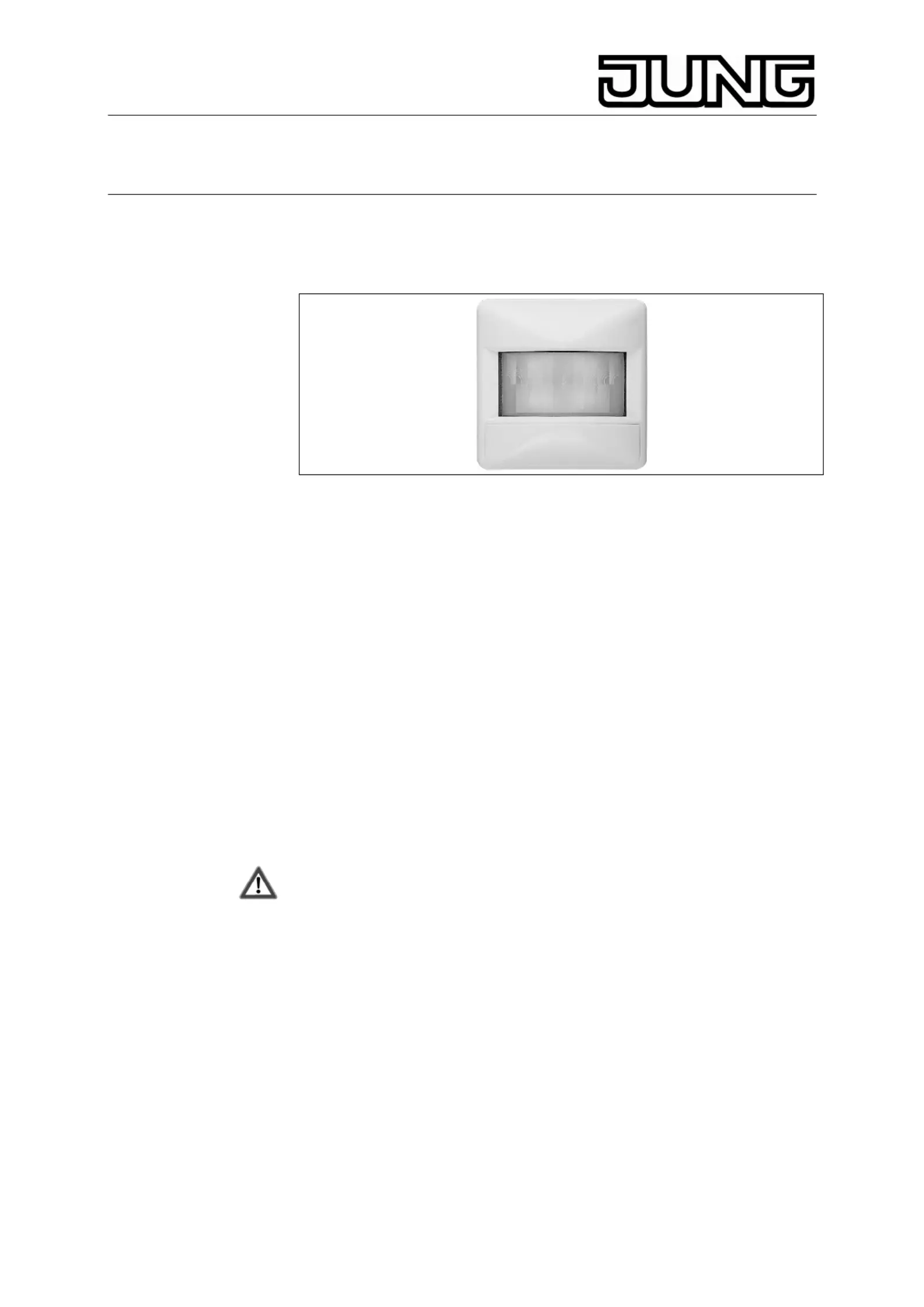

This user module is designed for interior application. It responds to
thermal movements released by persons, animals or objects and
transmits corresponding telegrams to the instabus.
The device must be fitted at the opposite installation height (1.10 m or
2.20 m), depending upon the cap lens type.
Stand: Jan-08 825 588 03
KNX Observer 180
Standard / Universal
Ref.-no.: ..3180../..3180-1A..
1 Lens for 2.20 m and 1.10 m installation height.
2 Lens for 1.10 m installation height.

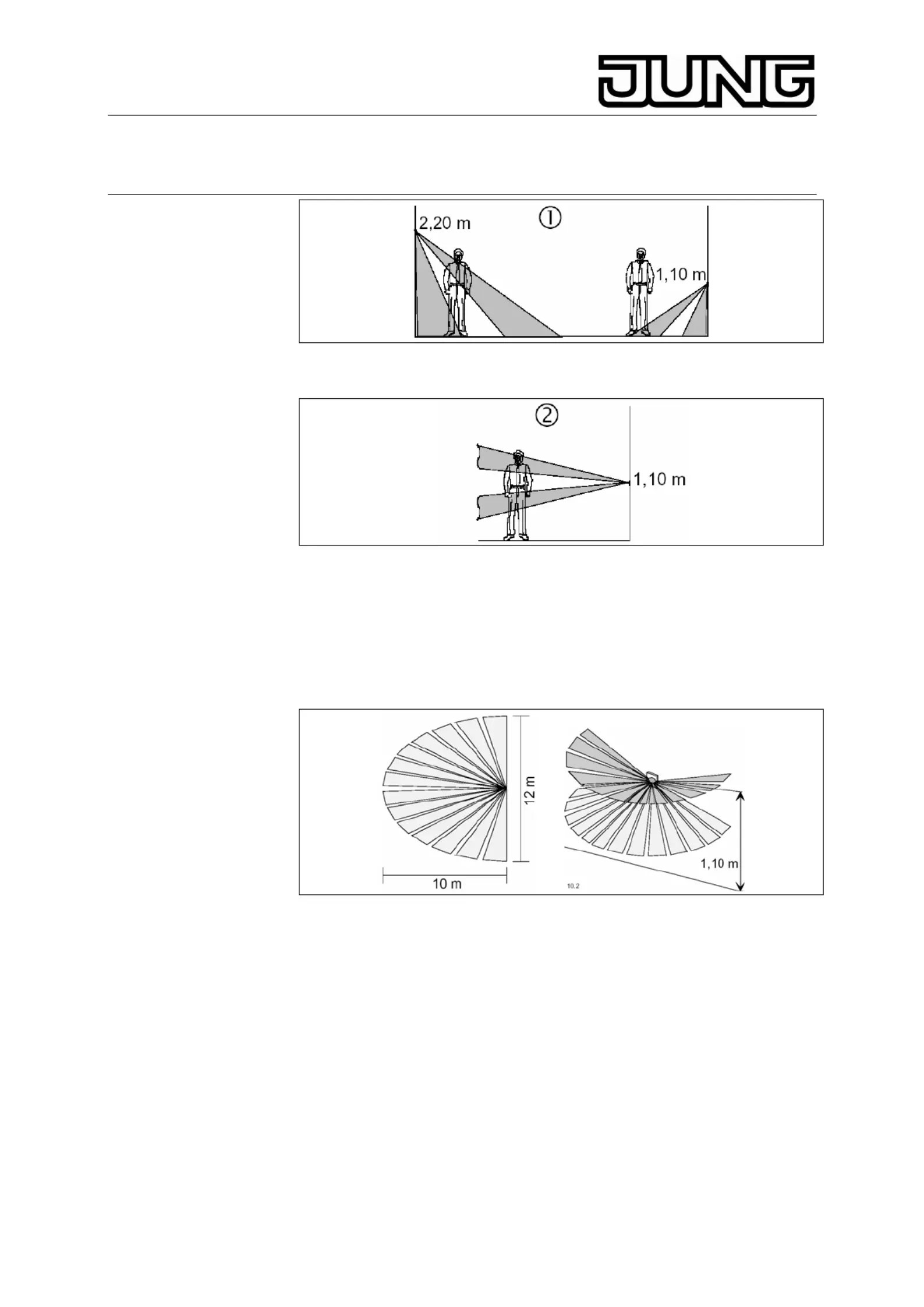

Detection Field Pictorial Schematic
Cap lens for 1.10 m installation height.
Size of detection field:
10 m x 12 m.
Details refer to an installation height of 1.10 m.
Detection Field Pictorial Schematic
Cap lens for 2.20 m installation height.
Detection field for 2.20 m installation height
Size of detection field: 12 m x 12 m.
Details refer to an installation height of 2.20 m.
Installation to different heights may vary the rated (recommended)
detection range.
2
KNX Observer 180
Standard / Universal
Ref.-no.: ..3180../..3180-1A..
Example:

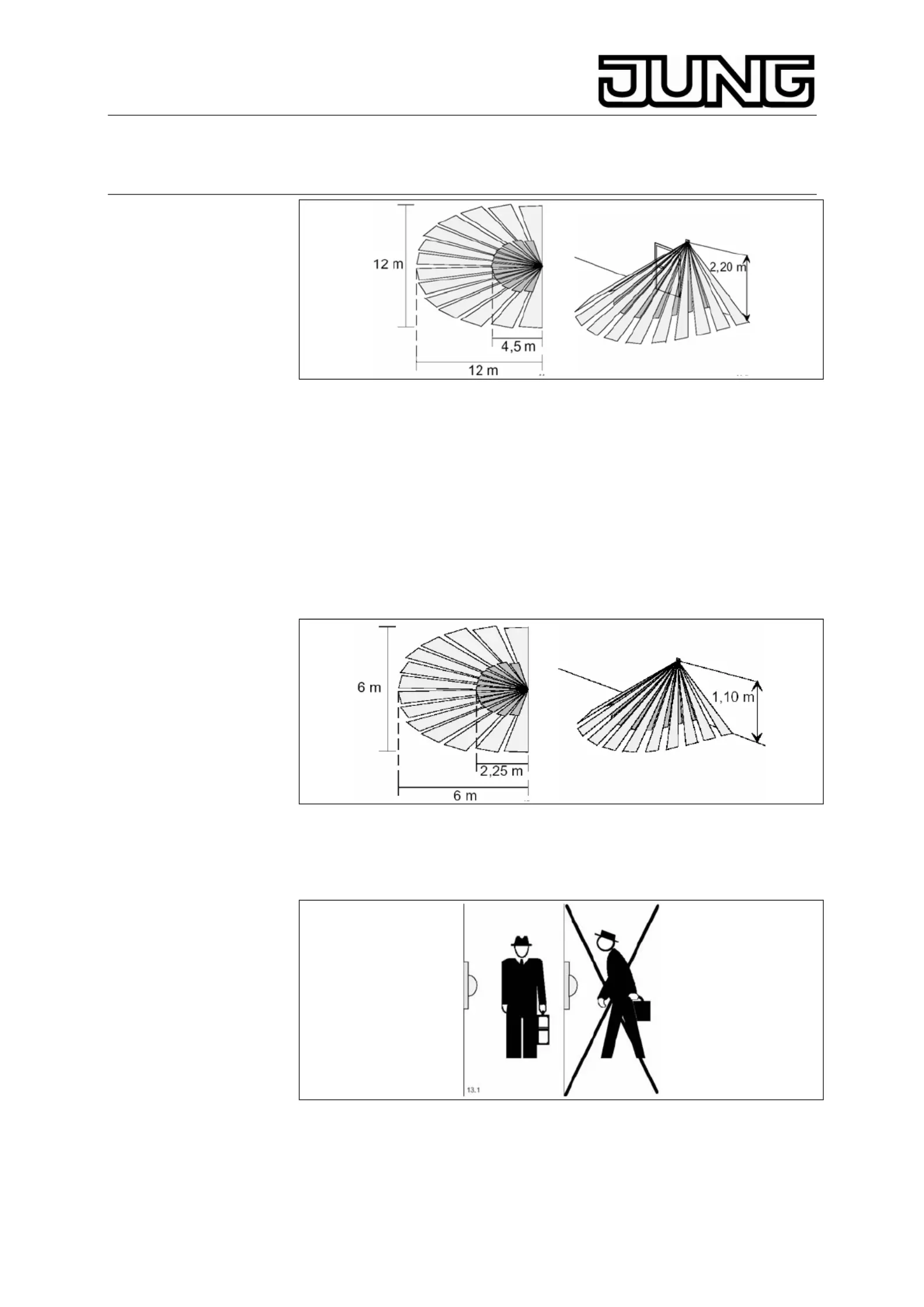

Detection Field Pictorial Schematic
Cap lens for 2.20 m installation height, however, fitted at a height of
1.10 m.
Detection field for 1.10 m installation height:
Size of detection field:
6 m x 6 m.
Details refer to an installation height of 1.10 m.
If pets, such as cats and dogs, are not to be detected, use cap lens for
1.10 m installation height.
For achieving the optimum detection range, install the observer lateral to
the walking direction..
Otherwise, losses in detection range must be expected.
Avoid interfering sources, e. g. lamps or heatings within the detection
range of the devices. (Refer to chapter ‘Application of Slip-On Aperture’.).
Never align sensors towards the sun. The high thermal energy may
cause irreparable damage to them.
3
