Push-button sensor module
Ref.-no.: 4008 TSM
Safety instructions
Caution! Electrical devices may only be installed and tted by electrically skilled persons.
Non-compliance with the installation information could cause damage to the device, re or other hazards.
Connect the push-button sensor module exclusively to the universal relay or dimming station (no mains potential!).
To fasten radio to the supporting ring, only use the enclosed plastic screws.
These instructions are a component part of the product and must remain with the end customer.
Correct use
• Operation of consumers, e.g. light on/off, dimming, blinds/shutters up/down, calling up and saving light scenes etc.
• Connection to relay station or dimming station
• Installation in appliance box according to DIN 49073
Product characteristics
• 8 channels of the relay and dimming station can be controlled: switching, contact, dimming, blind/shutter.
• 16 channels for stations connected in parallel in conjunction with the push-button sensor expansion module.
• All channels of the stations can be connected in the state as delivered.
• Central function: all selected channels of the stations are controlled centrally
• Light scenes: up to 4 light scenes can be freely congured.

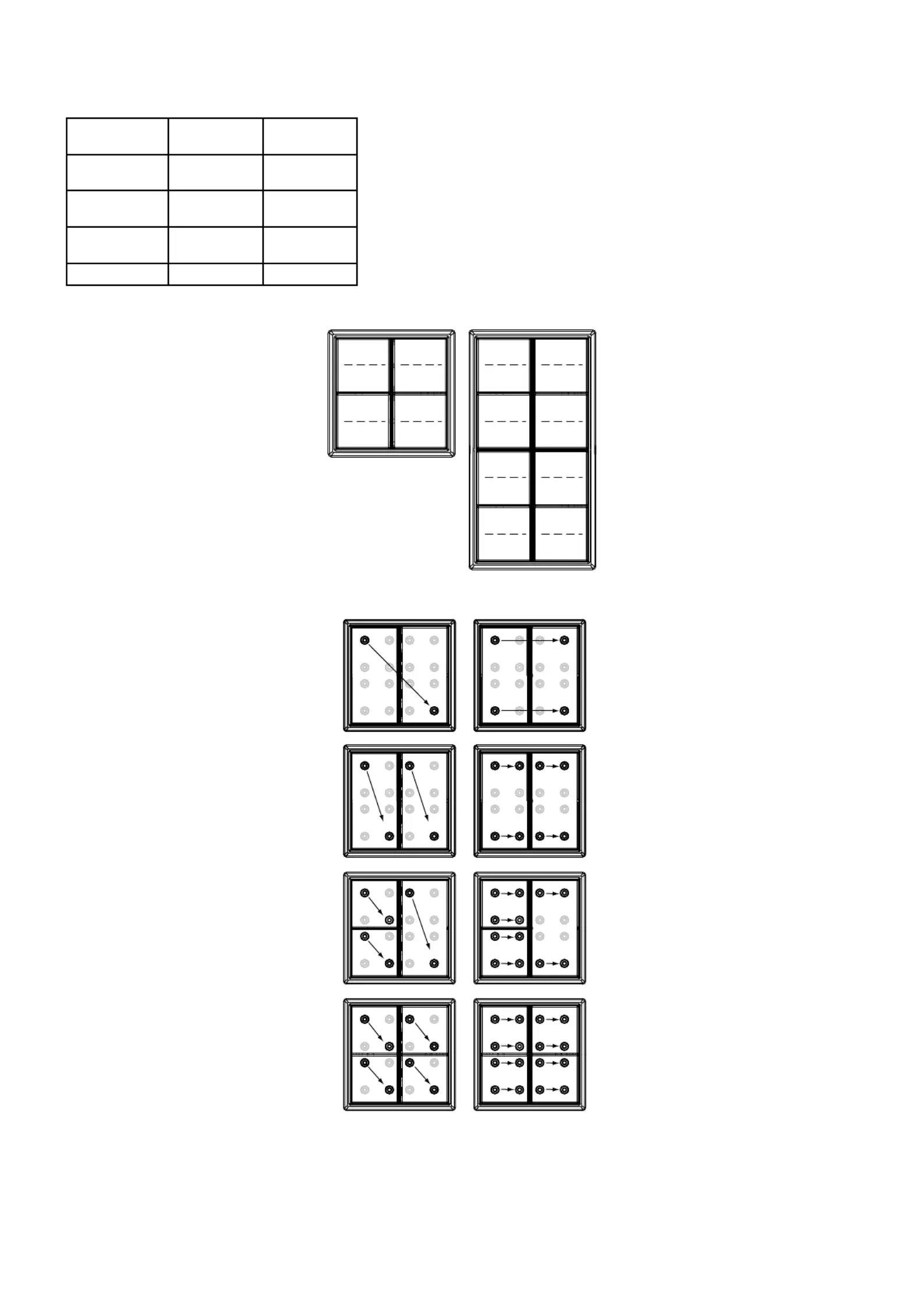

• Buttons can be congured corresponding to the cover kit.
• Programming without additional aids
• Free assignment of the buttons to the channels
• Red LED as status indicator (can be switched off)
• Blue orientation light (can be switched off)
• Feedback of switching states on all connected push-button sensor modules and sensor modules
• Up to 4 push-button sensor modules with up to 4 push-button sensor expansion modules can be connected to a single relay station (appli-
cation e.g. in two-way circuits or cross connections)
• Cloning of push-button sensor modules: transmitting the button assignment of a push-button sensor module to other push-button sensor
modules (application e.g. in changeover or cross connections)
• Push-button sensor modules and push-button sensor modules with expansion module can be cloned
• Easy installation using 2-wire cable
• Covers can be labelled using the laser labelling tool on the Internet under www.jung-lasern.de
• Operation
• Each button can be operated over its entire surface or top/bottom, depending on the programming. The function depends on the setting of
the station.
• Switching / momentary contact: press button briey.
• Move blind/shutter: press and hold button.
• Stop or adjust blind/shutter: press button briey
• Dimming: press and hold button
Structure of the device

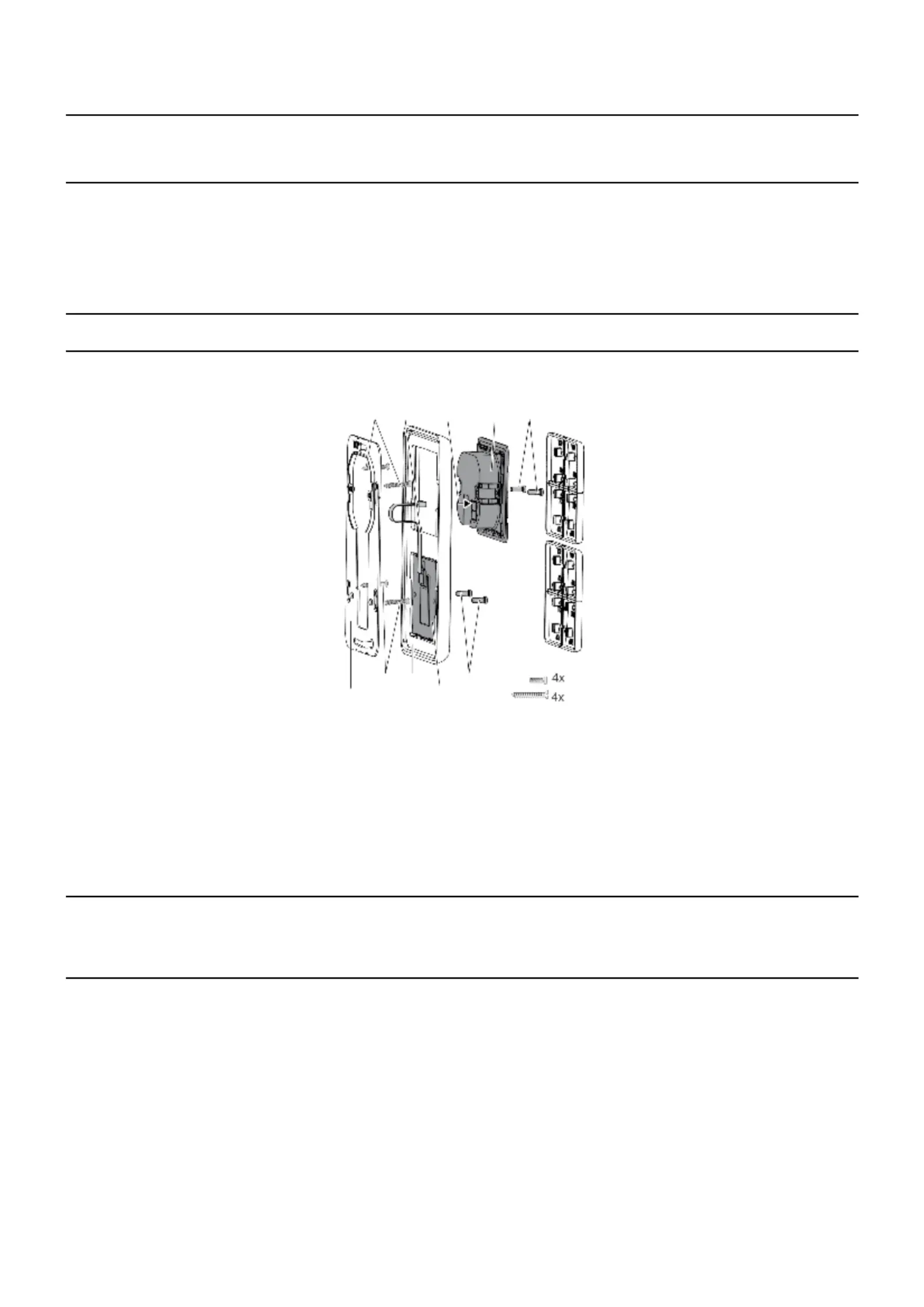

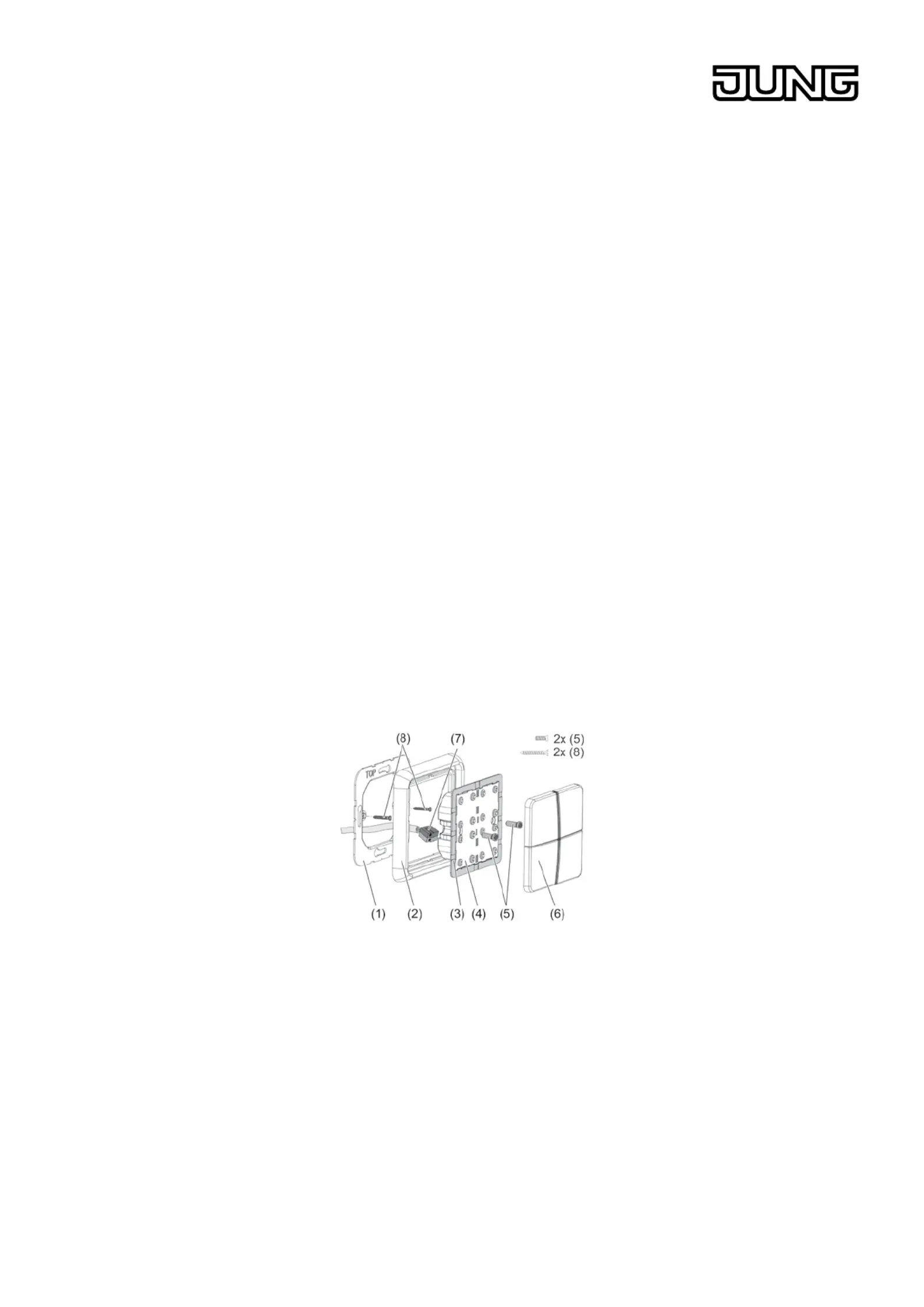

Bild 1: Installation
(1) Supporting ring
(2) Frame
(3) Adapter frame
(4) Push-button sensor module
(5) Locking screw
(6) Button set
(7) Connecting terminal
(8) Box screws
