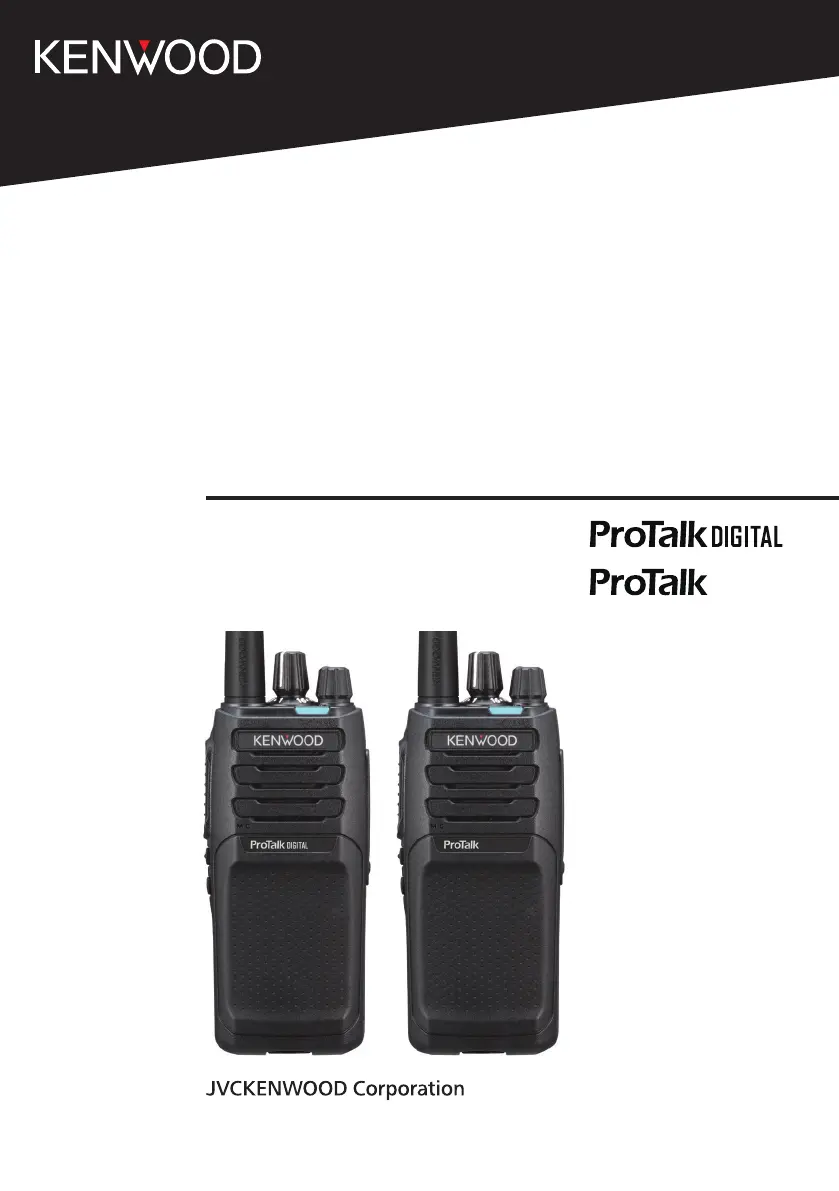

USER MANUAL
NX-P1200NV
NX-P1200AV
NX-P1202AV
NX-P1300NU
NX-P1300AU
NX-P1302AU
B5A-3583-00_EN

2
CONTENTS
MODELS COVERED BY THIS MANUAL 4 .........................................................
PREPARATION 5 ................................................................................................
INSTALLING THE ANTENNA ......................................................................................5
INSTALLING/ REMOVING THE BATTERY PACK 5 ........................................................
INSTALLING THE BELT CLIP 6 ......................................................................................
INSTALLING THE CAP OVER THE SPEAKER/ MICROPHONE JACKS 6 ....................
INSTALLING THE SPEAKER/ MICROPHONE OR HEADSET 7 ...................................
ORIENTATION 8 .................................................................................................
BASIC OPERATION 9 ........................................................................................
POWER ON 9 .................................................................................................................
ADJUST THE VOLUME ............................................................................................... 9
SELECT A ZONE 9 .........................................................................................................
SELECT A CHANNEL 9 .................................................................................................
MAKE A CALL 9 .............................................................................................................
RECEIVE VOICE ....................................................................................................... 10
POWER OFF 10 .............................................................................................................
LED Indicator Status 10 .............................................................................................
SELF-PROGRAMMING MODE 11 .....................................................................
SELF-PROGRAMMING FLOW 11 ..................................................................................
DEFAULT CHANNEL SETTINGS 13 ..............................................................................
ID SETUP 19 ..................................................................................................................
NXDN ID Setup (Digital) 19 ........................................................................................
Reserved Group Setup (Digital) 20 ............................................................................
ZONE SELECTION 22 ....................................................................................................
CHANNEL SETUP 23 .....................................................................................................
Frequency Setup 23 ...................................................................................................
Channel Type Setup ..............................................................................................26
TX Setup 27 ...............................................................................................................
QT/DQT Setup (Analog) 29 ........................................................................................
RAN Setup (Digital) 32 ...............................................................................................
TX Power Setup 33 .....................................................................................................
CHANNEL CONFIRMATION MODE 34 .............................................................
BUTTON FUNCTION PROGRAMMING MODE 35 ............................................
FUNCTIONS LIST 35 .....................................................................................................
PROGRAMMABLE FUNCTIONS 37 ..............................................................................
Button Lock 37 ...........................................................................................................
Calling Alert 37 ...........................................................................................................
External Speaker 37 ...................................................................................................

3
Home Channel 38 ......................................................................................................
Home Channel Select 38 ...........................................................................................
Individual Reply 39 .....................................................................................................
Low Transmit Power ............................................................................................... 40
Monitor 40 ..................................................................................................................
Monitor Momentary 40 ...............................................................................................
Scan 40 ......................................................................................................................
Scan Temporary Delete ......................................................................................... 40
Scrambler/ Encryption 41 ...........................................................................................
Speaker Attenuation 41 ..............................................................................................
Squelch Off 41 ............................................................................................................
Squelch Off Momentary 41 .........................................................................................
Super Lock 42 ............................................................................................................
Zone Down 42 ............................................................................................................
Zone Up 42 .................................................................................................................
Channel Down 42 .......................................................................................................
Channel Up 42 ...........................................................................................................
OTHER PROGRAM FUNCTIONS 43 .................................................................
SECOND PTT 43 ...........................................................................................................
CW MESSAGE 43 ..........................................................................................................
FIXED VOLUME ......................................................................................................... 43
RX/TX FREQUENCY SCAN 43 ......................................................................................
ZONE SELECT 43 ..........................................................................................................
VOICE OPERATED TRANSMISSION (VOX) 44 .............................................................
VOX Type ............................................................................................................... 44
VOX Function Setup 44 ..............................................................................................
VOX Operation 45 ......................................................................................................
Semi-VOX Operation 45 .............................................................................................
BACKGROUND OPERATIONS 46 .....................................................................
TIME-OUT TIMER (TOT) ........................................................................................... 46
BATTERY SAVER 46 ......................................................................................................
LOW BATTERY WARNING ........................................................................................ 46
BUSY CHANNEL LOCKOUT (BCL) 46 ..........................................................................
VOICE ANNOUNCEMENT 47 ........................................................................................
ALL RESET MODE 48 ........................................................................................
TROUBLESHOOTING GUIDE 49 .......................................................................
SPECIFICATIONS 50 ..........................................................................................

4
MODELS COVERED BY THIS MANUAL
The models listed below are covered by this manual:
NXDN/ Analog Transceiver
NX-P1200NV : VHF TRANSCEIVER
NX-P1300NU : UHF TRANSCEIVER
Analog Transceiver
NX-P1200AV : VHF TRANSCEIVER
NX-P1202AV : VHF TRANSCEIVER
NX-P1300AU : UHF TRANSCEIVER
NX-P1302AU : UHF TRANSCEIVER

5
PREPARATION
INSTALLING THE ANTENNA
Screw the antenna into the connector on the top of the
transceiver by holding the antenna at its base and turning it
clockwise until secure.
Antenna
INSTALLING/ REMOVING THE BATTERY PACK
The battery pack is not charged at the factory; charge it before use.
CAUTION
◆Do not short the battery terminals or dispose of the battery by fire.
◆Never attempt to remove the casing from the battery pack.
1 Align the battery pack with the back of the
transceiver, then press the battery pack and
transceiver firmly together until the release latch on
the base of the transceiver locks.
2 To remove the battery pack, lift the safety catch on
the base of the transceiver, then press the release
latch underneath the safety catch.
3 While pressing the release latch, pull the battery
pack away from the transceiver.

6
INSTALLING THE BELT CLIP
If necessary, attach the belt clip using the two
supplied M3 x 8 mm binding screws.
Note:
◆If the belt clip is not installed, its mounting location
may get hot during continuous transmission or when
left sitting in a hot environment.
◆Use the Phillips #2 screwdriver.
Belt clip
M3 x 8 mm
screws
CAUTION
◆Do not use glue which is designed to prevent screw loosening when installing the
belt clip, as it may cause damage to the transceiver. Acrylic ester, which is contained
in these glues, may crack the transceiver’s back panel.
INSTALLING THE CAP OVER THE SPEAKER/ MICROPHONE
JACKS
Note:
◆For the speaker/ microphone jack, waterproof performance is guaranteed by securing
the supplied cap. Waterproof performance will not be guaranteed by connecting an
optional speaker/ microphone, etc.
◆Use the Phillips #1 screwdriver.
1 If you are not using an optional speaker/
microphone or headset, install the cap over the
speaker/ microphone jacks.
2 Secure the cap in place using the attached screw.
Speaker/ microphone
jack cap
Screw

7
INSTALLING THE SPEAKER/ MICROPHONE OR HEADSET
Note:
◆The transceiver is not fully water resistant when using a speaker/ microphone or
headset.
◆Use the Phillips #1 screwdriver.
1 Insert the speaker/ microphone plugs into the
speaker/ microphone jacks of the transceiver.
2 Place the locking bracket over the speaker/
microphone plugs so that the locking tabs insert
into the transceiver grooves.
3 Secure the locking bracket in place using the
attached screw.
Speaker/ microphone
locking bracket
Screw

8
ORIENTATION
ab c
d
e
f
Battery pack
Microphone
Antenna
Speaker
a Selector
Rotate to change the operating channel.
b LED indicator
Refer to the “LED Indicator Status” {p. 10}.
c Power switch/ Volume control
Turn clockwise to switch the transceiver ON. To switch the transceiver OFF,
turn counterclockwise until a click sounds. Rotate to adjust the volume level.
d PTT (Push to Talk) switch
Press and hold, then speak into the microphone to transmit.
e Side 1 button
Press to activate its programmable function.
Default Function
Press None (No function)
Press and hold Zone Up
• For function descriptions and details on how to change the function
of the button, refer to “BUTTON FUNCTION PROGRAMMING Side 1
MODE” {p. 35}.
f Side 2 button
Press to activate its programmable function.
Default Function
Press None (No function)
Press and hold Zone Down
• For function descriptions and details on how to change the function
of the button, refer to “BUTTON FUNCTION PROGRAMMING Side 2
MODE” {p. 35}.

9
BASIC OPERATION
POWER ON
Turn the switchPower / Volume control clockwise to switch the
transceiver power ON.
• Power-on tone will sound.
ADJUST THE VOLUME
Rotate the switchPower / Volume control to adjust the volume.
• Clockwise increases the volume and counterclockwise decreases the volume.
Note:
◆To adjust the volume using background noise as a reference in Analog mode, use the
[Monitor] or function.[Squelch O]
SELECT A ZONE
Press and hold the button for 1 second to increase the Side 1
Zone number (Zone 1 Zone 2 Zone 3 Zone 4 Zone 1).
Press and hold the button for 1 second to decrease the Side 2
Zone number (Zone 4 Zone 3 Zone 2 Zone 1 Zone 4).
• and buttons are the default settings.Side 1 Side 2
SELECT A CHANNEL
Rotate the to select your desired channel.Selector
MAKE A CALL
Press and hold the switch, then speak into the microphone PTT
using your normal speaking voice.
• Hold the microphone approximately 3 to 4 cm (1.5 inches)
from your mouth.
Release the switch to receive.PTT
Note:
◆When the battery pack voltage becomes too low, transmission will stop and an alert
tone will sound.

11
SELF-PROGRAMMING MODE
This mode allows you to program the certain transceiver’s settings of zone and
channel.
SELF-PROGRAMMING FLOW
Self-programming flow has two patterns depending on the model.
NX-P1200NV/ NX-P1300NU (NXDN/ Analog Transceiver)
B
A
B
A
D
C
[Side 1] + [PTT] + Power ON
[PTT]
[PTT]
Select NXDN ID
CHANNEL SETUP
NXDN ID
Setup Mode
[Selector] : Select digit
[Side 1] : Up
[Side 2] : Down
[PTT] [PTT]
[PTT]
Select Reserved Group ID
Reserved Group
Setup Mode
[Selector] : Select digit
[Side 1] : Up
[Side 2] : Down
[PTT]
[PTT]
Frequency
Setup Mode
Frequency
Table
Selection
[Side 1] / [Side 2]
[PTT]
[PTT]
Channel Type
Setup Mode
Channel Type
Selection
[PTT]
[PTT]
TX
Setup Mode
Transmit
Mode
Selection
[PTT]
[PTT]
QT/DQT
Setup Mode
QT/DQT Table
Selection
[PTT]
[PTT]
RAN
Setup Mode
RAN Table
Selection
[PTT]
[PTT]
TX Power
Setup Mode
Transmit
Power
Selection
[PTT]
Confirmation
Setup Mode
ID SETUP/ ZONE SELECTION
Returns to the
currently set
zone number.
Release [Side 1] + [PTT]
*2
*1*3*4
*1 : Channel type is selected from “NXDN” (Digital), “Analog” or “Mixed” (Dual).
*2 : TX Setup Mode can be selected when Channel Type is “Mixed” (Dual).
*3 : QT/DQT Setup Mode can be selected when Channel Type is “Analog” or “Mixed” (Dual).
*4 : RAN Setup Mode can be selected when Channel Type is “NXDN” (Digital) or “Mixed” (Dual).
[Side 1] / [Side 2] [Side 1] / [Side 2] [Side 1] / [Side 2]
[Side 1] / [Side 2] [Side 1] / [Side 2]
[Selector] : Change channel number.
Power OFF and then ON
Return to normal operation
Zone 1
Setup
Mode
[PTT]
Zone 2
Setup
Mode
[PTT]
Zone 3
Setup
Mode
[Side 2]
[Side 1]
[Side 2]
[Side 1]
[Side 2]
[Side 1]
[PTT]
Zone 4
Setup
Mode
D
C
[Side 2]
[Side 1]

12
NX-P1200AV/ NX-P1202AV/ NX-P1300AU/ NX-P1302AU (Analog
Transceiver)
B
A
B
A
D
C
[Side 1] + [PTT] + Power ON
CHANNEL SETUP
[PTT]
[PTT]
[PTT]
Frequency
Setup Mode
Frequency
Table
Selection
[Side 1] / [Side 2]
[PTT]
[PTT]
QT/DQT
Setup Mode
QT/DQT Table
Selection
[PTT]
[PTT]
TX Power
Setup Mode
Transmit
Power
Selection
[PTT]
Confirmation
Setup Mode
ZONE SELECTION
Returns to the
currently set
zone number.
Release [Side 1] + [PTT]
[Side 1] / [Side 2]
[Side 1] / [Side 2]
Zone 1
Setup
Mode
[PTT]
Zone 2
Setup
Mode
[PTT]
Zone 3
Setup
Mode
[Side 2]
[Side 1]
[Side 2]
[Side 1]
[Side 2]
[Side 1]
[PTT]
Zone 4
Setup
Mode
D
C
[Side 2]
[Side 1]
[Selector] : Change channel number.
Power OFF and then ON
Return to normal operation

13
DEFAULT CHANNEL SETTINGS
This transceiver allows you to reprogram each of the channels with different
frequencies and QT tone/DQT code (Analog)/ RAN (NXDN (Digital)) settings.
NX-P1200NV
Channel
Number
Zone 1/ Zone 2 (Analog) Zone 3/ Zone 4 (Digital)
Table
No.
Frequency
(MHz)
Table
No. QT (Hz) Table
No.
Frequency
(MHz)
Table
No. RAN
1 1 151.6250 1 67.0 1 151.6250 1 1
2 1 151.6250 4 77.0 1 151.6250 2 2
3 1 151.6250 8 88.5 1 151.6250 3 3
4 1 151.6250 29 179.9 1 151.6250 4 4
5 1 151.6250 12 100.0 1 151.6250 5 5
6 2 151.9550 1 67.0 2 151.9550 1 1
7 2 151.9550 6 82.5 2 151.9550 2 2
8 2 151.9550 10 94.8 2 151.9550 3 3
9 2 151.9550 29 179.9 2 151.9550 4 4
10 2 151.9550 12 100.0 2 151.9550 5 5
11 20 154.4900 1 67.0 20 154.4900 1 1
12 21 154.5150 1 67.0 21 154.5150 1 1
13 10 151.5125 1 67.0 10 151.5125 1 1
14 12 151.6850 1 67.0 12 151.6850 1 1
15 5 151.7000 1 67.0 5 151.7000 1 1
16 6 151.7600 1 67.0 6 151.7600 1 1
Compatible KENWOOD Model
Zone Number Model Name
Zone 1/ Zone 2 NX-P1200AV (Zone 1 ~ 4)/ NX-P1202AV (Zone 2 ~ 4)/
NX-240 (Analog Mode)/ TK-2402V
Zone 3/ Zone 4 NX-240 (Digital Mode)
Produktspecifikationer
Varumärke: | Kenwood |
Kategori: | Walkie-talkies |
Modell: | NX-P1200NV |
Behöver du hjälp?
Om du behöver hjälp med Kenwood NX-P1200NV ställ en fråga nedan och andra användare kommer att svara dig
Walkie-talkies Kenwood Manualer

14 September 2024

14 September 2024

30 Augusti 2024

29 Augusti 2024

28 Augusti 2024

24 Augusti 2024

24 Augusti 2024

23 Augusti 2024

23 Augusti 2024

22 Augusti 2024
Walkie-talkies Manualer
- Walkie-talkies Alecto
- Walkie-talkies Binatone
- Walkie-talkies Marquant
- Walkie-talkies Reer
- Walkie-talkies VTech
- Walkie-talkies Sencor
- Walkie-talkies Dickie
- Walkie-talkies Olympia
- Walkie-talkies Flamingo
- Walkie-talkies Vertex Standard
- Walkie-talkies Silvercrest
- Walkie-talkies AEG
- Walkie-talkies Midland
- Walkie-talkies Akai
- Walkie-talkies MAAS
Nyaste Walkie-talkies Manualer

8 Januari 2025

4 Januari 2025

2 Januari 2025

2 Januari 2025

2 Januari 2025

2 Januari 2025

2 Januari 2025

17 Oktober 2024

14 Oktober 2024

14 Oktober 2024
