1) Make sure power is off and transformer is NOT plugged into a n electrical outlet. NOTE: No splice or wiring

is required if transformer is equipped with jumper connector.

2) Open front cover of the transformer case by lifting the cover up.

3) Locate and disconnect the white jumper connector inside the housing. *Save the jumper connector with

these instructions for possible future use.

4) Remove one (1) of the 1/8” diameter knockouts on the side of the transformer and push the photo control

white connector through the knock out hole.

5) Inside the housing, slide the spacer and the star nut over the white connector and thread on to the photo

control and tighten.

6) Plug photo control withe connector into the housing connector.

7) Push the front cover back into position and secure with the two (2) screws provided.

8)Locatetransformerandpositionphotocontrolsothenoarticiallightwillshineonthecell.Thiswouldcause

the photo control to cycle on and off.

*Intheeventthatthephotocontrolshouldfail,thelightingxtureswillremainon,eveninthedaytime.If

this should happen, follow these instructions and remove the defective photo control** and place

the jumper connector in its place.

9) Plug power supply cord into standard 115/120 volt receptacle. NOTE: The power supply cord must be

plugged into a weather tight receptacle equipped with a Ground Fault Circuit Interrupter (GFCI).

**Contact your local Kichler

®

Landscape Lighting distributor to order replacement photo control No. 15565BK.


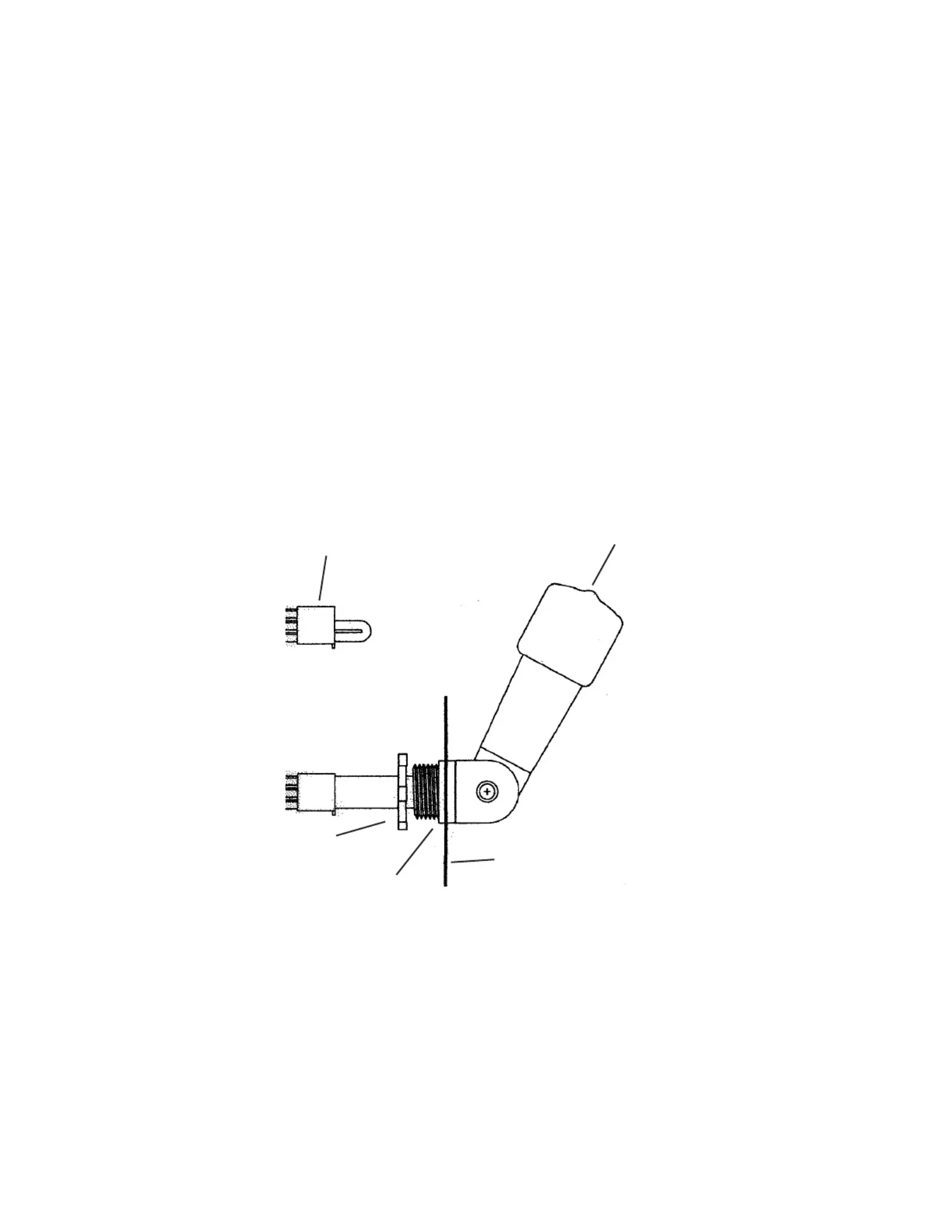

CONTROL

JUMPER

CONNECTOR

TRANSFORMER

HOUSING

STAR LOCK-UP NUT

PLASTIC SPACER

IS-15565
