Sida 1/4
:MOVE LINE
FOLLOW BOARD
FOR BBC MICRO:BIT
STAY ON TRACK WITH THIS
For :MOVE mini Mk2
1
2
On the underside of the Line Follower Board, there are
two potentiometers which can be adjusted using a small
screwdriver. These can adjust the boards sensitivity to
light depending on which direction its turned.
For use with the :MOVE mini, see the
following page.

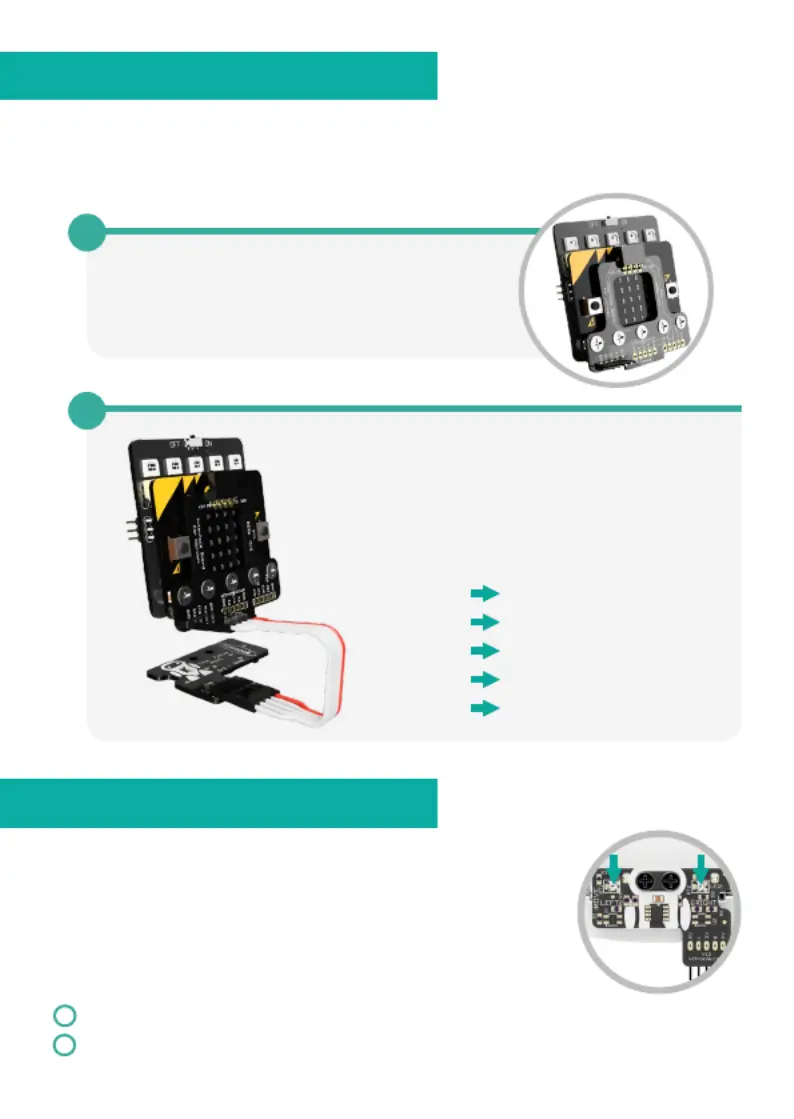

If you wish to use this board separately,
connect the Line Follow Board to the
Interface Board in the order shown.
GND 0V
P15 R
3V3 3V
P16 L
GND 0V
BUILD INSTRUCTIONS
TUNING GUIDE
To make the detector less sensitive: turn the pot clockwise.
To make the detector more sensitive: turn the pot anti-clockwise.
-
+
NOTE: This kit includes fixings for both the original :MOVE mini and
:MOVE mini Mk2, so there may be spare components left over after
the build.
To use the Line Following board with the
Interface board, first complete the build
instructions provided with the Interface
Board.

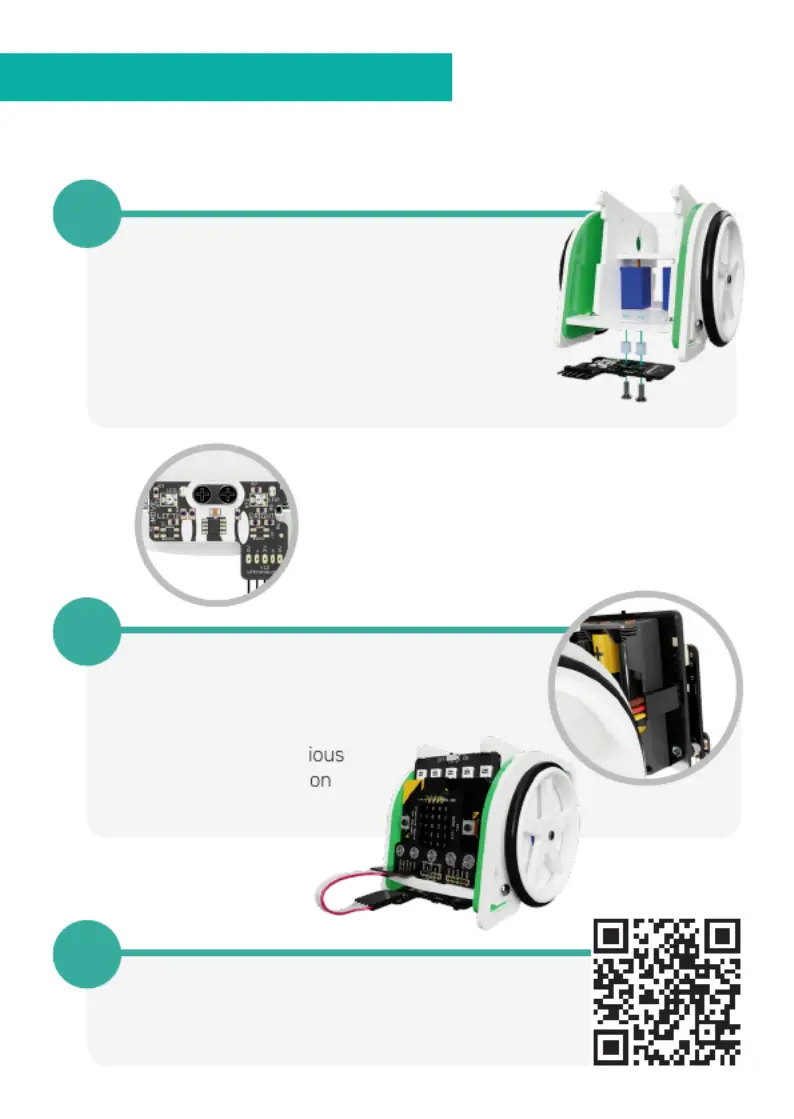

a. Remove the ‘:MOVE’ panel and SERVO:Lite
board from the :MOVE mini.
b. Using the LONGER two M3 screws and
spacers provided, attach the line following
board to the underside of :MOVE mini. The
shorter screws can be discarded.
1
Reconnect the servos and slot the SERVO:Lite
assembly back into :MOVE mini. Using the
cable provided, connect the Interface Board to
the Line Follower Board. Refer
to Step 2 on the prev
page for the connecti
diagram.
GET CODING!
Visit kitronik.co.uk/5659 for help. See the
online datasheet for a tuning guide.
2
3
NOTE: Ensure the larger robot logo is visible
from below and the pins are pointing out of
the front of the :MOVE mini.
FOR USE WITH :MOVE MINI
NOTE: This instruction book is for :MOVE mini Mk2. If you have an
original :MOVE mini, visit www.kitronik.co.uk/5659-mk1.
